Smart Toilet Paper Remaining Alert for Efficient Refilling
WS201 is a wireless sensor that utilizes ToF technology to monitor the fill level of containers with high accuracy. Working with Milesight LoRaWAN® gateway and Milesight IoT Cloud, WS201 allows users to remotely monitor and manage container fill levels and status in real-time.
WS201 utilizes advanced ToF (Time of Flight) technology for precise distance measurement, ensuring accurate detection of toilet paper fill levels. Additionally, it has a minimal blind zone of only 1 cm.
Optimize alerts and notifications for paper supply by implementing customizable threshold levels for greater flexibility.
Ultra-thin body design effectively saves deployment space and adapts to various sizes of toilet paper dispensers.
1 DevEUI QR code on the front for quick scanning
2 Buckle-open lid design for easy maintenance

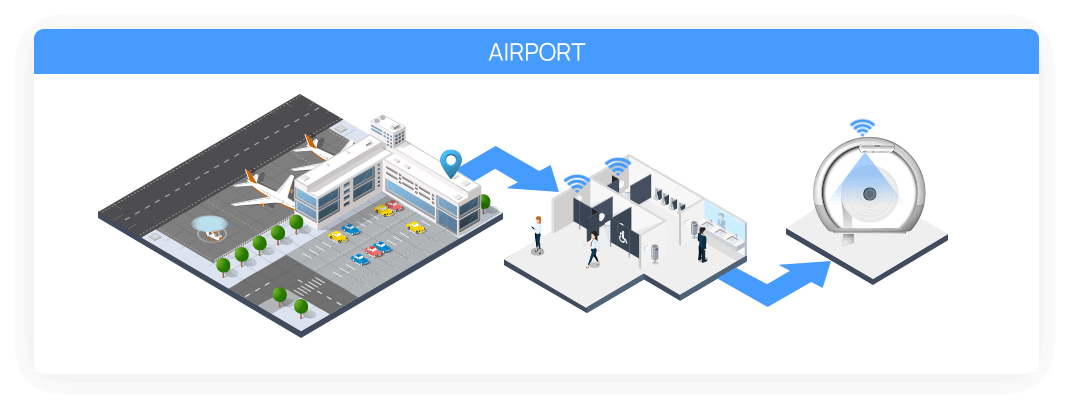

Good restroom experience always has a directly positive impact on occupants' perception of a building. To make it right and easy, Milesight Smart Restroom Solution provides IoT insights into the status of cleanliness and hygiene.
Get More DetailsSchedule Hibernate Mode to align with scenarios such as mall closing and office hours ending.
The WS201 is powered by a long-lasting coin cell battery that can last up to 2 years. This ensures uninterrupted usage and eliminates the need for frequent battery replacements.
Switching On/Off & Configuring the Devices Wirelessly
Install the
Milesight ToolBox
Enable NFC and run ToolBox,
then attach your phone to the device
Verify the password
and start configuring

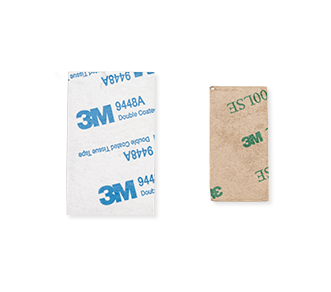

3M Tape Mounting
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -132dBm@300bps |
| Mode | OTAA/ABP Class A |
| Distance Measurement | |
| ToF FoV | 25 ° |
| FoV Accuracy | ± 5 ° |
| Detection Range | 1 ~ 55 cm |
| Detection Accuracy | ± 1cm |
| Detection Resolution | ①1mm (1.0≤X≤15.0cm) ②2mm (15.0＜X≤35.0cm) ③3mm (35.0＜X≤55.0cm) X = Detection Distance |
| Others | |
| Button | 1 × Reset Button (Internal) |
| LED Indicator | 1 × Indicator (Internal) |
| Configuration | Mobile App (via NFC) |
| Physical Characteristics | |
| Power Supply | 1 × 590mAh CR2450 Lithium Battery |
| Battery Life1 | 2 Years |
| Operating Temperature | -10°C ~ +60°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Color & Material | White, ABS + PC (Flame Retardant) |
| Ingress Protection | IP30 |
| Dimension | 66 × 38 × 12 mm (2.60 × 1.50 × 0.47 in) |
| Installation | On the flat surfaces with 3M tapes |
| Warranty2 | 2 Years |
1 Tested under laboratory conditions and for guideline purposes only.
2 For detailed information, visit our website at https://www.milesight.com.
