AI Road Traffic Pro Bullet
Plus Camera

Empowering Roads with AI

road traffic pro bullet plus camera small
road traffic pro bullet plus camera side small
road traffic pro bullet plus camera front small
  • Traffic Violation Detection
  • Intelligent AI-powered LPR Algorithm
  • Traffic Flow Statistics
  • Evidence Camera Linkage
  • 4X/12X AF Lens
  • Up to 4K Ultra High Definition
  • 1/1.8'' Sensor & 0.002Lux Starlight
  • 90fps High Frame Rate
  • FEATURES
  • MODELS
  • DOWNLOAD

Introducing Milesight Intelligent Traffic

maxresdefault
maxresdefault
maxresdefault
maxresdefault

Traffic Violation Detection

Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.

traffic violation detection

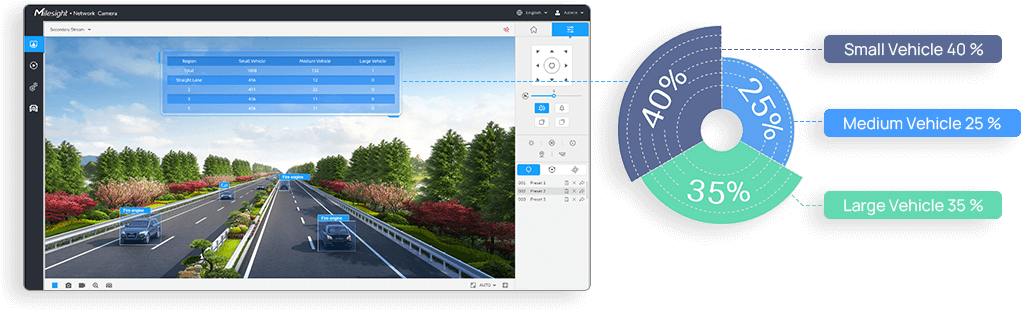

Traffic Flow Statistics

The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.

traffic flow statistics

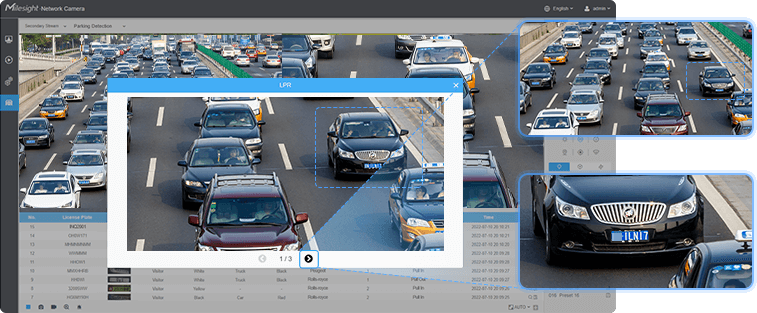

Evidence Camera Linkage

Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.

evidence camera linkage

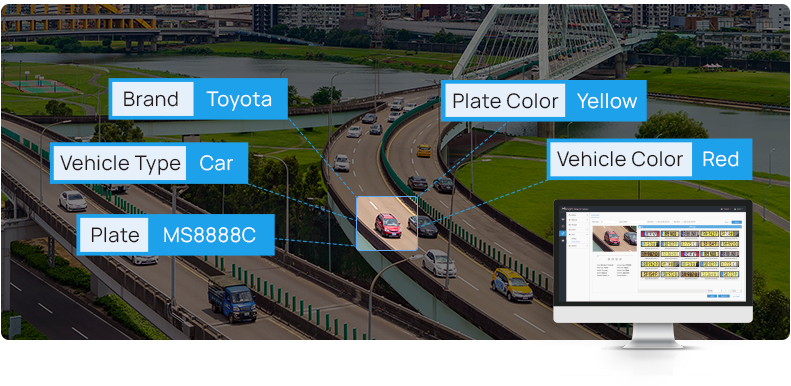

LPR Smart Search

Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.

lpr smart search 1

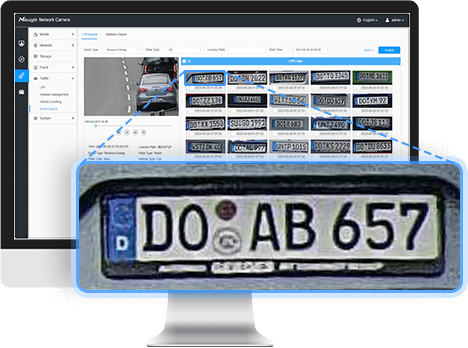

Plate Data Management

A number of options to ensure the powerful plate data management and flexible deployment of Milesight traffic systems.

On-edge Plate Management

Standalone black/white list management realizes the fast implementation for barrier control.

Milesight Back-ends Integration

Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.

Third-party VMS Integration

Various CGI/APIs and interfaces, protocols like TCP, HTTP make it easy to integrate with all data being pushed to third-party VMS or platforms.

plate data management

Intelligent AI-powered
LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Pro Bullet Plus Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and mobility.

1/1.8" STARVIS Starlight Sensor & 0.002Lux Ultra Low Light

Milesight AI Road Traffic Pro Bullet Plus Camera, with top-notch STARVIS Starlight Sensor, can provide detailed clear images in low and near-infrared light conditions down to 0.002Lux (Color) and 0Lux (B/W), ensuring good performance for 24/7 traffic monitoring.

starlight sensor 2
By Conventional Camera
By Milesight Camera
90fps

90fps High Frame Rate

With the industry leading frame rate reaching 90fps, Milesight AI Road Traffic Pro Bullet Plus Camera can easily catch vehicle and plate images with no latency despite of the high-speed movement.

4X/12X Optical Zoom

The 4X/12X Optical Zoom can zoom in to distant vehicles while still maintaining clarity, delivering high quality video over the entire image.

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

versatile interfaces

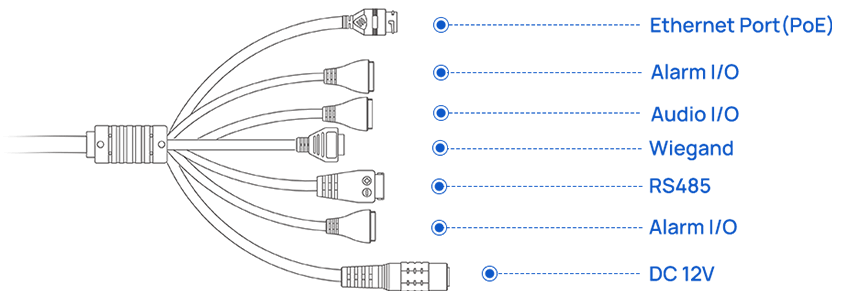

Versatile Interfaces

A rich set of interfaces such as DC, Audio I/O and Alarm I/O are available to offer more choices for easy management and various needs. For example, the alarm interface allows easy integration with traffic light control systems, ensuring smooth operation and compatibility.

SIP/VoIP Support

Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

Specifications

NDAA

Non-NDAA

Camera
NameAI Road Traffic Pro Bullet Plus Camera
Image Sensor1/2″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F1.7
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management
White/Black ListUp to 2000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O2/2
Video
Max. Image Resolution1920x1080
Primary Stream60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
13W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
Weight1445.8g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series

Camera
NameAI Road Traffic Pro Bullet Plus Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F1.7
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1 (Integrated Cable Version) 2/2 (Cable Out Version)
Video
Max. Image Resolution2688x1520
Primary Stream60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
General
Working Temperature-40℃~60℃
Working Humidity5~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
13W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
Weight1623g
Dimensions320mmX134mmX171mm
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series

Camera
NameAI Road Traffic Pro Bullet Plus Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens5.3~64mm, 12X Optical Zoom
Field of ViewH61°~H5°/D69°~D5°/V36°~V2°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F2.8
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1 (Integrated Cable Version)
2/2 (Cable Out Version)
Video
Max. Image Resolution1920x1080
Primary Stream60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
14W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
Weight1623g
Dimensions320mmX134mmX171mm
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series

Camera
NameAI Road Traffic Pro Bullet Plus Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens5.3~64mm, 12X Optical Zoom
Field of ViewH57°~H4°/D69°~D5°/V44°~V1°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F2.8
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1 (Integrated Cable Version) 2/2 (Cable Out Version)
Video
Max. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
General
Working Temperature-40℃~60℃
Working Humidity5~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
13W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
Weight1623g
Dimensions320mmX134mmX171mm
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series

Camera
NameAI Road Traffic Pro Bullet Plus Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.009Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F1.7
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand,
No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1 (Integrated Cable Version)
2/2 (Cable Out Version)
Video
Max. Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption9W MAX
13W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
Weight1623g
Dimensions320mmX134mmX171mm
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series

Camera
NameAI Road Traffic Pro Bullet Plus Camera
Image Sensor1/2″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR Pro
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F1.7
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color,
Vehicle Brand, No-plate Vehicle Capture
Smart Traffic FunctionEvidence Camera Linkage, Vehicle Counting Based on Vehicle Type,
Specific Lane Management
White/Black ListUp to 1000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Video
Max. Image Resolution1920x1080
Primary Stream60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & Q & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
14W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Surge Protection4KV
Weight1445.8g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series

Documents

*Your Email

*Country

*Your Phone

*Company

*Your Website

*Business Type

*What Product are You Interested in?

*Message

*Verification Code

Verify Code

If you are interested in Milesight, please leave us a message.

Verify Code

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information
