AI 180° Panoramic Mini Bullet Camera

The Ultra Mini Bullet for 180° Panoramic View

AI · 180° Panoramic View · 4K Ultra High Definition · 120dB Super WDR · 0.005Lux Starlight · Smart IR II Technology · 180° IR Coverage · Heat Map · IP67 & IK10

AI 4K Heat Map PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Vandal-
Proof
Starlight Built-in Microphone Super WDR Privacy Mask

AI Video Analytics

Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.

AI Video Analytics

People Counting

Milesight People Counting Technology provides high accuracy and real-time data based on AI algorithm, with statistic reports for further analysis. It is a reliable and efficient way to understand the flow movement and make fast decision on security management. By analyzing the data and trend, you can also identify the peak of occupancy and increase the operational efficiency of the business.

AI people counting

Leading-edge H.265+ Compression

H.265+

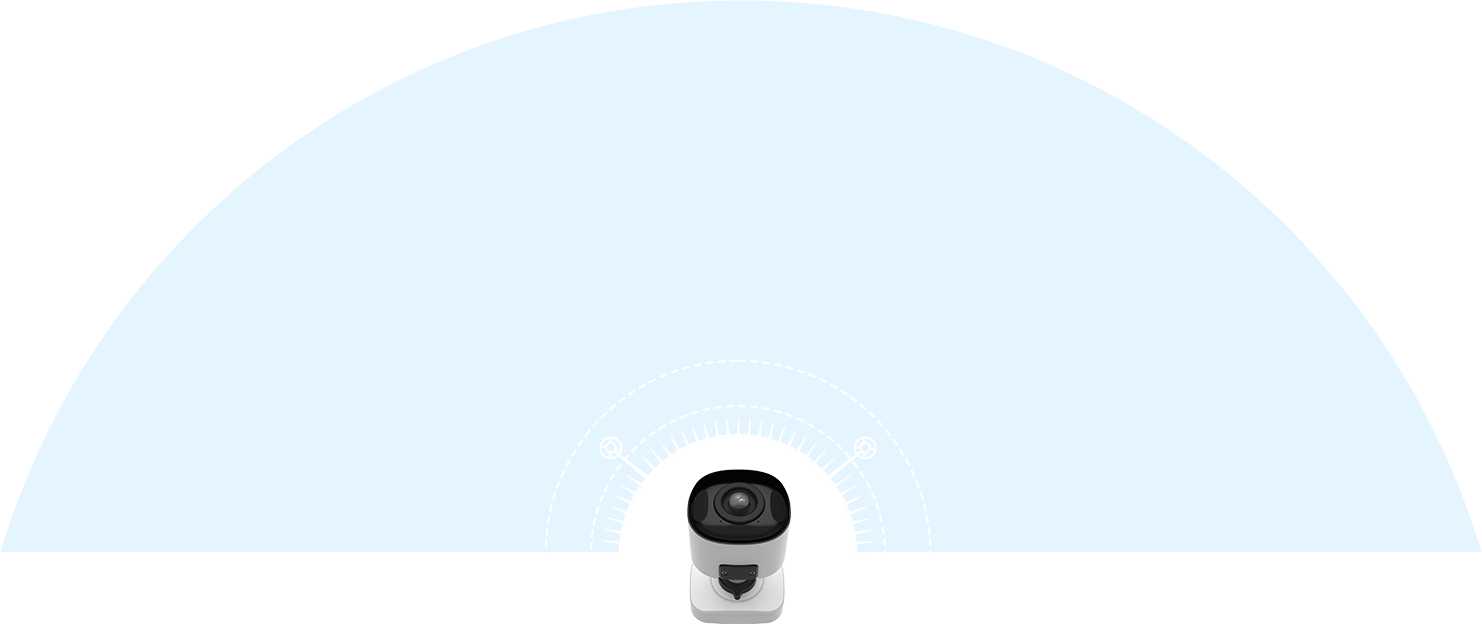

180° Panoramic View

The AI 180° Panoramic Mini Bullet Network Camera is perfect for whole picture viewing experience. It catches 180° horizontal coverage and 95° vertical coverage, achieving 180° panoramic viewing with only single sensor, which is a revolutionary creation in the bullet model.

180° Panoramic View of the ai panoramic bullet camera

4K Ultra High Definition

The AI 180° Panoramic Mini Bullet Network Camera features with 4K ultra high definition which better restores the images to guarantee superb image quality of 3840x2160. The camera is a special model which produces spherical image and will have the dewarp process to adjust the original images to offer presented images. Therefore, the high resolution is vital for the model.

4K Ultra High Definition

120dB Super WDR

Milesight’s sensor-based WDR technology allows the AI 180° Panoramic Mini Bullet Network Camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

120dB Super WDR

0.005Lux Ultra Low-light

The AI 180° Panoramic Mini Bullet Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.005Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

0.005Lux Ultra Low-light

Revolutionary IR Performance

To maximize the IR performance, the AI 180° Panoramic Mini Bullet Network Camera innovated both in the structure and technology. With two IR LEDs which has angles to truly realize the 180° IR coverage, the IR design also features adjustable illumination intensity IR LEDs to guarantee IR performance. And the IR reflection is ably avoided by the separated IR LEDs and Lens, achieving the best effect.

 180° IR coverage of  ai 180° Panoramic Mini Bullet Network Camera

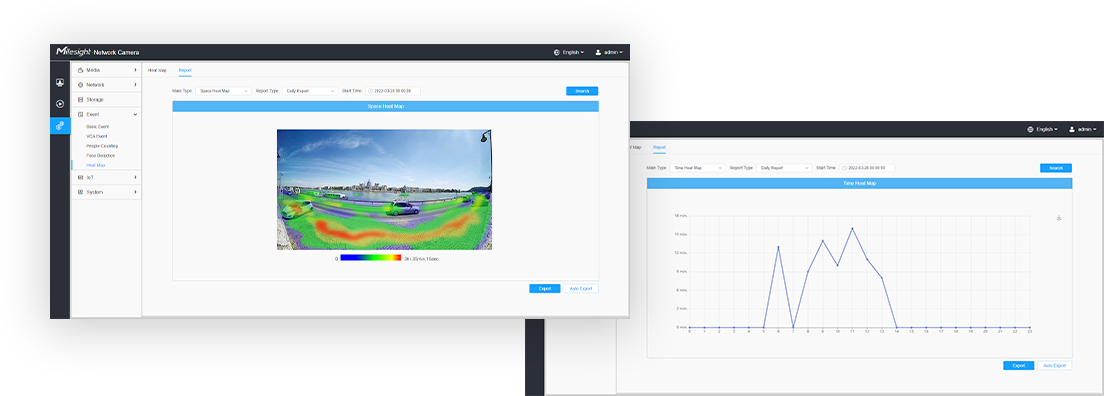

Advanced Heat Map

With scenario-adaptable and flexible configurations, Milesight Advanced Heat Map is embedded into the AI series, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

advanced  heat map

IP67 & IK10

Supporting IP67-rated weather proofing and IK10-rated vandal proofing which are the leading level of the industry, the AI 180° Panoramic Mini Bullet Network Camera is well protected against adverse impacts to ensure the robust performance.

IP67 & IK10

Advanced Built-in Microphone

With the built-in microphone which adopts the advanced codec, the AI 180° Panoramic Mini Bullet Network Camera is able to provide clearer voice. It is worth mentioning that Milesight uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance.

Built-in Microphone in  ai 180° Panoramic Mini Bullet Network Camera

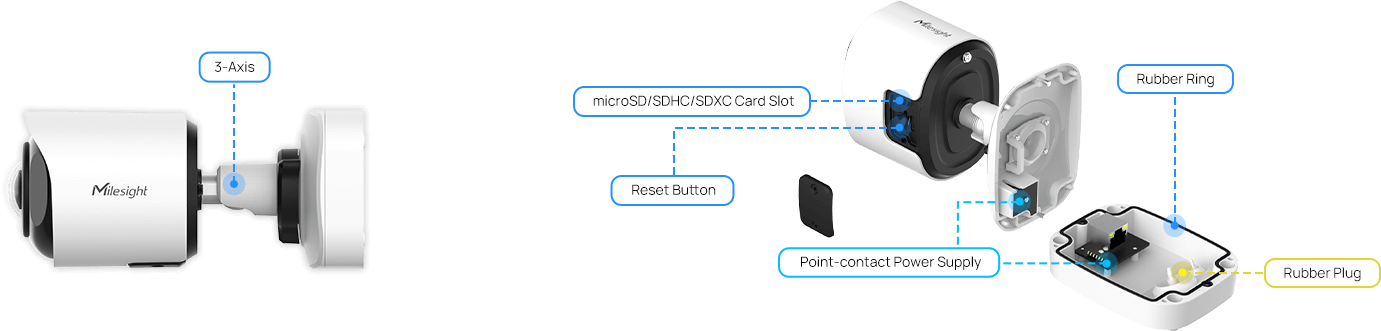

Exquisite Design

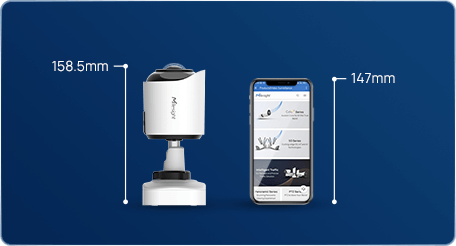

With ultra mini size of 95.8mmX74mmX158.5mm, the AI 180° Panoramic Mini Bullet Network Camera is a truly mini bullet with no compromise on the functionality. The considerate structure and the 3-axis mechanical design make sure of the network camera’s best ease of use, realizing the greatest user experience.

Exquisite Design of ai 180° Panoramic Mini Bullet Network Camera

Integrated Junction Box

The well-designed Integrated Junction Box ensures efficient and simple installation. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of unique IP67-rated weather-proof design and pioneering Point-contact Power Supply, the Integrated Junction Box is able to offer stable operation and supreme user-experience.

Junction box

SIP/VoIP Support

The AI 180° Panoramic Mini Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

ai 180° Panoramic Mini Bullet Network Camera, SIP, VoIP
  • MS-C5365-PA
  • MS-C8165-PA
Camera Name 5MP AI 180° Panoramic Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F2.0, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 1.68mm @F2.0
Mount M12
Field of View H180°/V95°
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance 180° IR Illumination Up to 15m
S/N >55dB
Video Max. Image Resolution 2592x1944(Original)
Primary Stream 60Hz: 30fps@(2592x1944)(Original), 30fps@(2560x1440, 1920x1080, 1280x720)
50Hz: 25fps@(2592x1944)(Original), 25fps@(2560x1440, 1920x1080, 1280x720)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio Interface Built-in Microphone
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 5W MAX, 8W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 95.8mmX74mmX158.5mm
Weight 630g
Warranty 3/5 Years
Camera Name 4K AI 180° Panoramic Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01Lux @F1.2, Color: 0.012Lux @F2.0, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 1.68mm @F2.0
Mount M12
Field of View H180°/V86°
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance 180° IR Illumination Up to 15m
S/N >55dB
Video Max. Image Resolution 3840x2160
Primary Stream 60Hz: 25fps@(3840x2160), 30fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
50Hz: 25fps@(3840x2160), 25fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio Interface Built-in Microphone
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 6W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated metal housing
Dimensions 95.8mmX74mmX158.5mm
Weight 630g
Warranty 3/5 Years
  • * Naming Convention
  • P - PoE Supported
  • A - AI Series
