AI 4X/12X Pro Bullet Plus
Network Camera

Experience the All-round and Powerful Functions

4x12x pro plus bullet camera wall mount small
4x12x pro plus bullet camera front small
4x12x pro plus bullet camera left small
  • AI Deep Learning
  • 4X/12X Optical Zoom
  • 140dB Super WDR & 0.002Lux Ultra Low-light
  • 90fps High Frame Rate
  • 180m IR Distance
  • 4K Viewing Experience
  • Robust Performance with IP67 & IK10
  • Audio I/O, Alarm I/O, PoE & DC 12V
  • FEATURES
  • MODELS
  • DOWNLOAD

AI Empowers Security

Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.

4X/12X Optical Zoom

The 4X/12X Optical Zoom can zoom in to distant objects while still maintaining the clarity, delivering high quality video over the entire image.

140dB Super WDR

Record greater scene details with true color reproduction even under the extreme back light and high contrast conditions.

140 super wdr

90fps High Frame Rate

With the industry leading frame rate reaching 90fps, Milesight Network
Camera can easily catch images with no latency despite of the
high-speed movement.

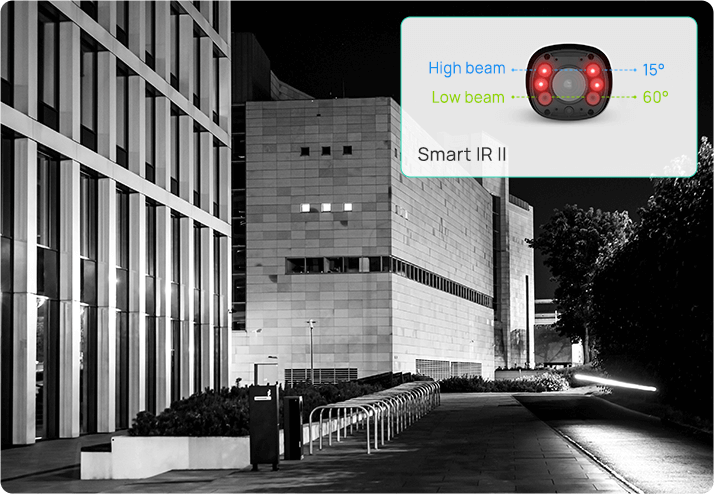

Smart IR II Technology

The IR LEDs technology upgraded to provide videos with a viewing range of up to 180m, which reaches better image clarity and quality. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the zoom ratio.

smart ir technology card

1/1.8" Strarlight Sensor & 0.002Lux Ultra Low Light

Milesight AI Camera Series, with top-notch Sony STARVIS Starlight Sensor, can provide detailed color images in low and near-infrared light conditions down to 0.002Lux (Color) and 0Lux (B/W), without additional lighting.

starlight sensor lux light
4k view

4K Video Viewing
Experience

Delivering 4K resolution (3840*2160, effectively four times that of Full HD) is able to provide users with ultra-high-definition video viewing experience.

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well
protected against adverse impacts to ensure the robust performance.

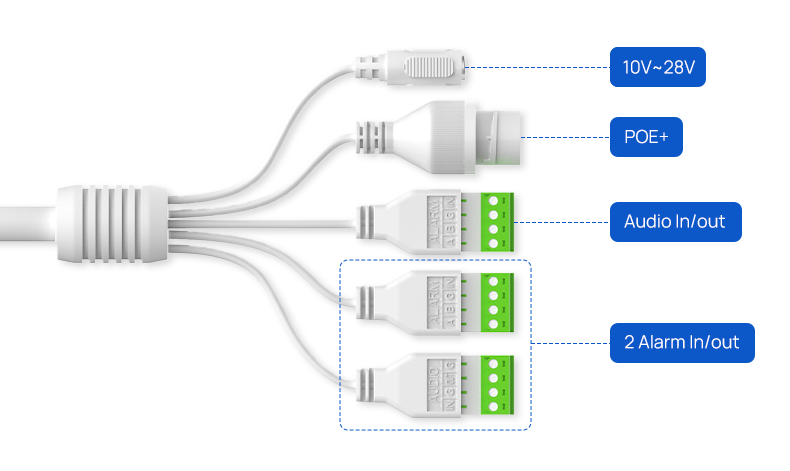

Integrated Cable
Management Bracket

In the base, there are power interface, PoE port and other interfaces. Thanks to integrated cable management, it takes no effort in installation.

integrate cable management bracket

Integrated Junction Box

A: The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
B: The round design of the junction box conceals the cables inside, making it look more neat and clear.

integrated junction box

SIP/VoIP Support

Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

Specifications

NDAA

Non-NDAA

Camera
NameAI 4X/12X Pro Bullet Plus Network Camera
Image Sensor1/2″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR
Lens8~32mm, 4X Optical Zoom
MountΦ14
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
Focus ControlAuto/Manual
ApertureF1.6-F1.7
Iris ControlAuto
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Video
Max. Image Resolution1920x1080
Primary Stream60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisIntrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System CompatibilityONVIF Profile G & M & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
HousingVandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance
Surge Protection4KV
Weight1445.8g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
NameAI 4X/12X Pro Bullet Plus Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR
Lens5.3~64mm, 12X Optical Zoom
MountΦ14
Field of ViewH61°~H5°/D69°~D5°/V36°~V2°
Focus ControlAuto/Manual
ApertureF1.6~F2.8
Iris ControlAuto
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Video
Max. Image Resolution1920x1080
Primary Stream60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisIntrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System CompatibilityONVIF Profile G & M & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
HousingVandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance
Surge Protection4KV
Weight1447g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
NameAI 4X/12X Pro Bullet Plus Network Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR
Lens8~32mm, 4X Optical Zoom
MountΦ14
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
Focus ControlAuto/Manual
ApertureF1.6-F1.7
Iris ControlAuto
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Video
Max. Image Resolution2688x1520
Primary Stream60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisIntrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System CompatibilityONVIF Profile G & M & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption8W MAX
14W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
HousingVandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance
Surge Protection4KV
Weight1445.8g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
NameAI 4X/12X Pro Bullet Plus Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Lens5.3~64mm, 12X Optical Zoom
MountΦ14
Field of ViewH57°~H4°/D69°~D5°/V44°~V1°
Focus ControlAuto/Manual
ApertureF1.6~F2.8
Iris ControlAuto
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Video
Max. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisIntrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System CompatibilityONVIF Profile G & M & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption8W MAX
13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
HousingVandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance
Surge Protection4KV
Weight1447g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
NameAI 4X/12X Pro Bullet Plus Network Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.009Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Lens8~32mm, 4X Optical Zoom
MountΦ14
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
Focus ControlAuto/Manual
ApertureF1.6-F1.7
Iris ControlAuto
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Video
Max. Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisIntrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap.
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System CompatibilityONVIF Profile G & M & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption9W MAX
13W MAX (With IR on)
10W Max (With Heater on)
Heater on: below 10℃, Heater off: above 25℃
HousingVandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance
Surge Protection4KV
Weight1445.8g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
Image Sensor1/2″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6-F1.7
Iris ControlAuto
Video
Max.Image Resolution1920x1080
Primary Stream60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
60Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption7W MAX
13W MAX (With IR on)
10W Max (With Heater on); Heater on: below 10℃, Heater off: above 25℃
Surge Protection4KV
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight1445.8g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens5.3~64mm, 12X Optical Zoom
Field of ViewH61°~H5°/D69°~D5°/V36°~V2°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F2.8
Iris ControlAuto
Video
Max.Image Resolution1920x1080
Primary Stream60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
60Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption7W MAX
13W MAX (With IR on)
10W Max (With Heater on); Heater on: below 10℃, Heater off: above 25℃
Surge Protection4KV
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight1447g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens5.3~64mm, 12X Optical Zoom
Field of ViewH57°~H4°/D69°~D5°/V44°~V1°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F2.8
Iris ControlAuto
Video
Max.Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
13W MAX (With IR on)
10W Max (With Heater on); Heater on: below 10℃, Heater off: above 25℃
Surge Protection4KV
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight1447g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationB/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6-F1.7
Iris ControlAuto
Video
Max.Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
13W MAX (With IR on)
10W Max (With Heater on); Heater on: below 10℃, Heater off: above 25℃
Surge Protection4KV
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight1445.8g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
Image Sensor1/2″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR Pro
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6-F1.7
Iris ControlAuto
Video
Max.Image Resolution1920x1080
Primary Stream60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
14W MAX (With IR on)
10W Max (With Heater on); Heater on: below 10℃, Heater off: above 25℃
Surge Protection4KV
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight1445.8g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR
(Super WDR Pro is optional for T Series)
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens5.3~64mm, 12X Optical Zoom
Field of ViewH61°~H5°/D69°~D5°/V36°~V2°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F2.8
Iris ControlAuto
Video
Max.Image Resolution1920x1080
Primary Stream60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
14W MAX (With IR on)
10W Max (With Heater on); Heater on: below 10℃, Heater off: above 25℃
Surge Protection4KV
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight1447g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens5.3~64mm, 12X Optical Zoom
Field of ViewH57°~H4°/D69°~D5°/V44°~V1°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F2.8
Iris ControlAuto
Video
Max.Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
13W MAX (With IR on)
10W Max (With Heater on); Heater on: below 10℃, Heater off: above 25℃
Surge Protection4KV
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight1447g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.009Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6-F1.7
Iris ControlAuto
Video
Max.Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃~60℃
-60℃~60℃(Optional for Heater Version)
Working Humidity0~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
14W MAX (With IR on)
10W Max (With Heater on); Heater on: below 10℃, Heater off: above 25℃
Surge Protection4KV
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight1445.8g
Dimensions320mmX134mmX126mm
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps/90fps)
P - PoE Supported
C/E/A - AI Series

Documents

*Your Email

*Country

*Your Phone

*Company

*Your Website

*Business Type

*What Product are You Interested in?

*Message

*Verification Code

Verify Code

If you are interested in Milesight, please leave us a message.

Verify Code

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information
