NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

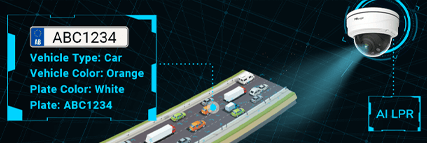

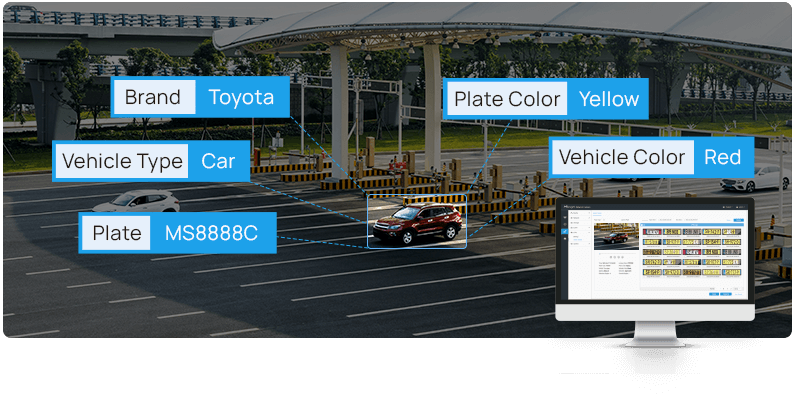

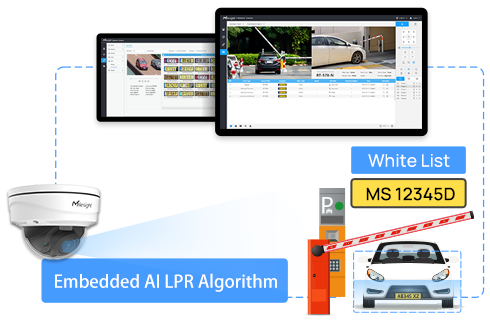

AI-powered LPR Algorithm
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

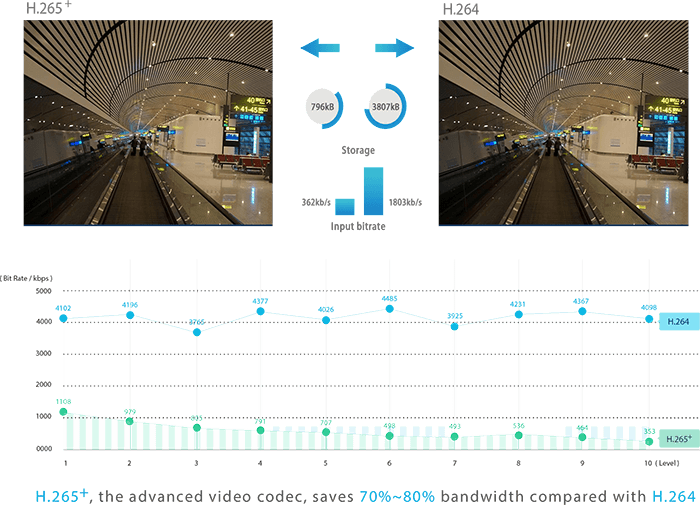

Leading-edge H.265+ Compression

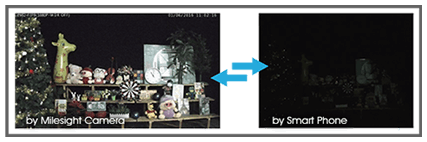

0.005Lux Ultra Low Light
With the starlight premium technology, Milesight NDAA AI Camera Series is able to deliver high detailed color images even in the low light environments reaching 0.005Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

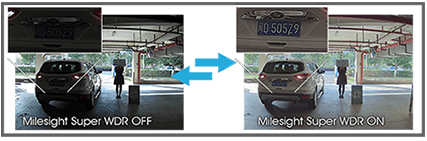

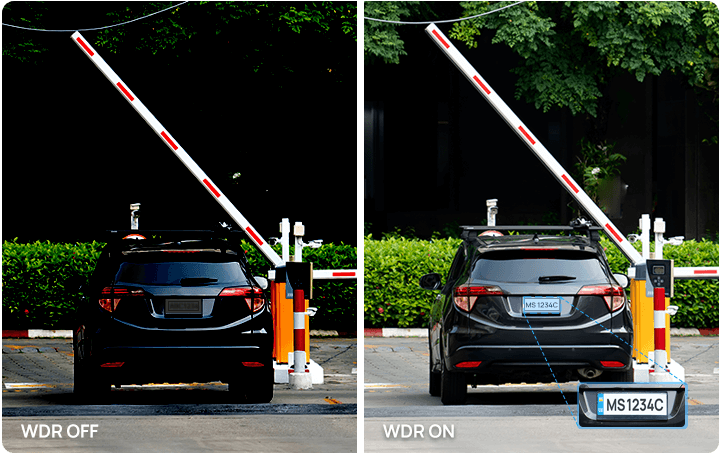

120dB Super WDR
Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

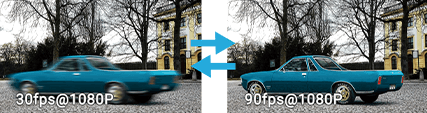

90fps
With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

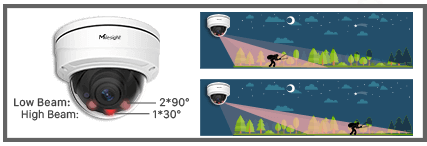

Smart IR II Technology
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 50m(90m). Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the zoom ratio.

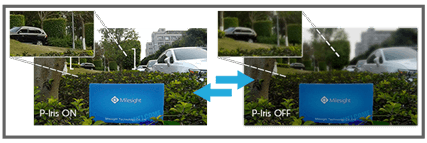

P-Iris Control
Adopting P-Iris control technology, Milesight NDAA AI LPR Motorized Pro Dome Network Camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.

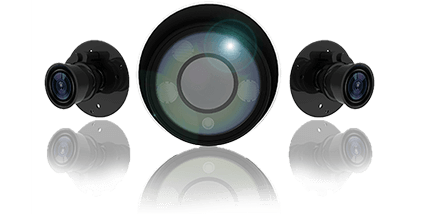

Motorized Zoom Lens
Equipped with motorized zoom & focus lens, Milesight NDAA AI LPR Motorized Pro Dome Network Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.

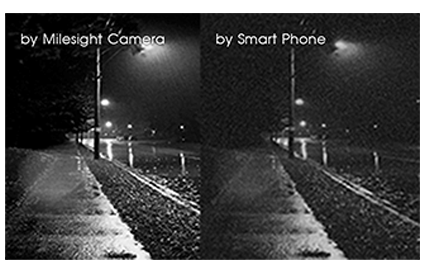

3rd Generation Dot Matrix IR LEDs
In order to provide superior night visibility, the NDAA AI LPR Motorized Pro Dome Network Camera employs the 3rd generation dot matrix IR LEDs, essentially guaranteeing excellent image quality, long lifespan and energy efficiency.
Clamshell Design
Aiming to reduce the installation troubles to the least, Milesight creatively introduces the clamshell design to the dome base. This revolutionary innovation enlarges the space to make cable connection a piece of cake, greatly saving efforts for installers.
Smoked Dome Cover
Milesight NDAA AI LPR Motorized Pro Dome Network Camera supports Smoked Dome Cover which is able to hide the direction of the camera for not letting people see where the camera is pointed.

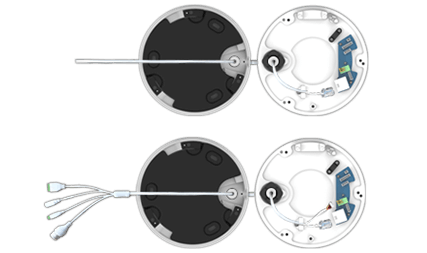

Integrated Cable Management
In the base, there are power interface, PoE port, Alarm I/O and Audio Output. Thanks to integrated cable management, it takes no effort in installation.

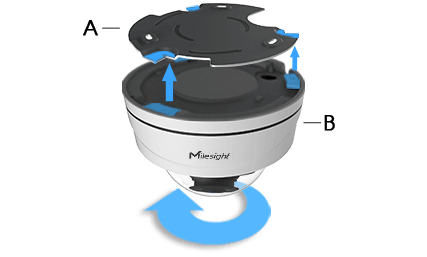

Mounting Bracket
For installers, holding the camera body to secure the screws into the wall is a fatiguesome job. Being customer-oriented, Milesight optimized the hardware structure to avoid that with a light thin mounting bracket, installers could firstly secure the mounting bracket in the desired location and then insert the camera body, thus no unnecessary energy is wasted.

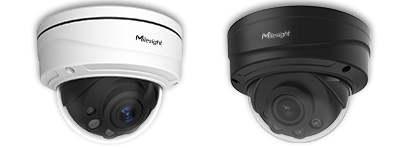

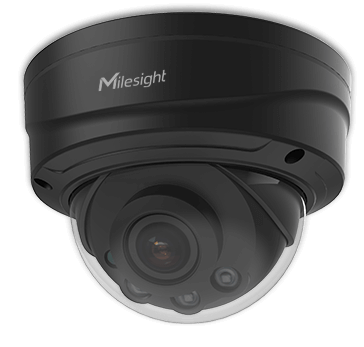

Two Colors Available
Available in White and Black, the NDAA AI LPR Motorized Pro Dome Network Camera provides more choices for your preference.
- MS-C2972-TF(I)LPA
| Camera | Name | 2MP AI LPR Motorized Pro Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 50m(3.0~10.5mm/2.7~13.5mm) | |
| S/N | >55dB | |
| Lens | Lens | Motorized 2.7~13.5mm/3.0~10.5mm@F1.4, P-Iris(Optional) |
| Field of View | H115°~H34°/D135°~D39° /V62°~V19° (2.7~13.5mm), H93°~H33°/D107°~D38° /V52°~V18° (3.0~10.5m) | |
| Mount | Φ14 | |
| Focus Control | Auto/Manual | |
| Iris Control(Optional for I Series) | Auto/Manual | |
| LPR | Max. Vehicle Speed | 200km/h |
| Recognition Accuracy | >95% | |
| Coverage | Support simultaneous detection of 4 regions | |

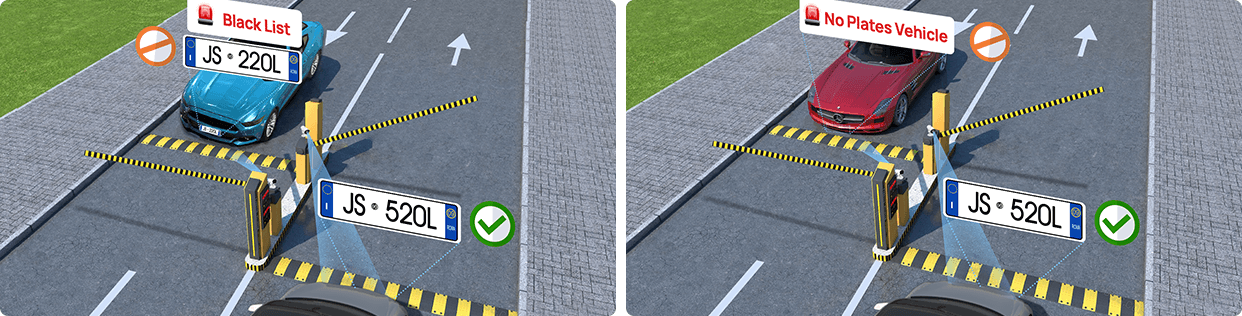

| White/Black List | Up to 1000 records inside the camera | |
| Smart Traffic Detection | License Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition | |
| Video | Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 90fps@(704x576), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 90fps@(704x576), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) | |
| Privacy Masking | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |

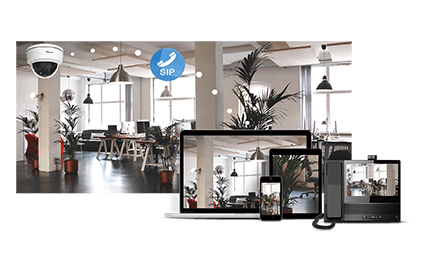

| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE(802.3af)/DC 12V±10% | |
| Power Consumption | 8W MAX, 11W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated Metal Housing | |
| Weight | 1100g | |
| Dimensions | Φ143mmX108.4mm | |
| Warranty | 3/5 Years |
- * Naming Convention
- T - High Frame Rate (90fps)
- F - Motorized Vari-focal Lens
- I - P-Iris Supported
- L - LPR Supported
- P - PoE Supported
- A - AI Series
