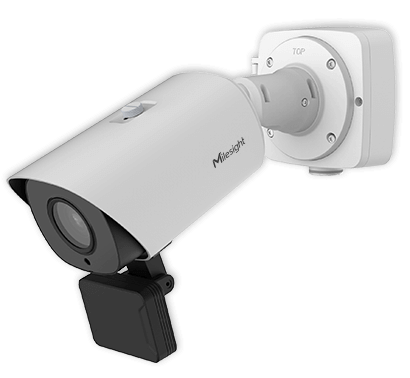

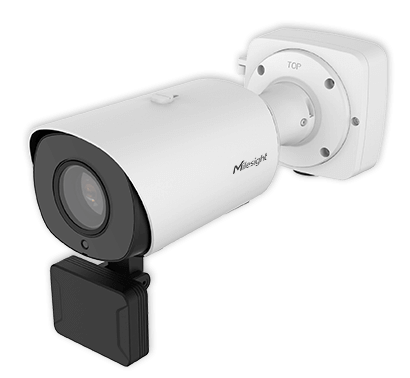

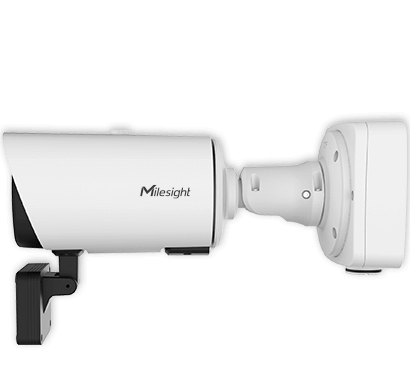

NDAA Radar AI LPR 4X/12X Pro Bullet Plus Network Camera

Integrate 3D Radar, AI and LPR into One

3D Radar · AI LPR · 200km/h · 90m Detection Distance · 95% Accuracy · 1/2'' Sensor · 90fps · 180m IR Distance · 12X(5.3~64mm)/4X(8~32mm) AF Lens

NDAA 3D Radar LPR AI H265+ Starlight Super WDR Smart IR II 3-Axis SD Card ONVIF G&Q&S&T PoE Weather-
Proof

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

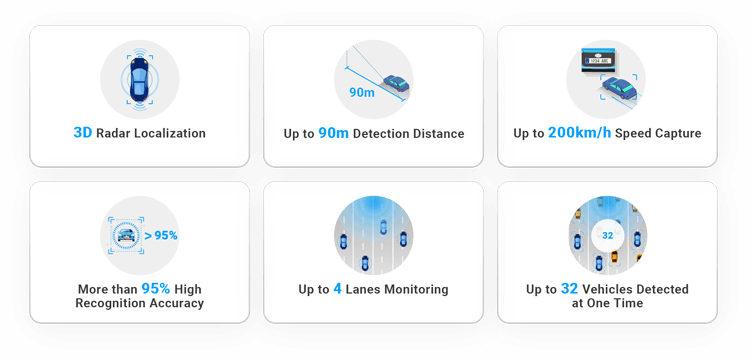

Advanced 3D Radar Technology

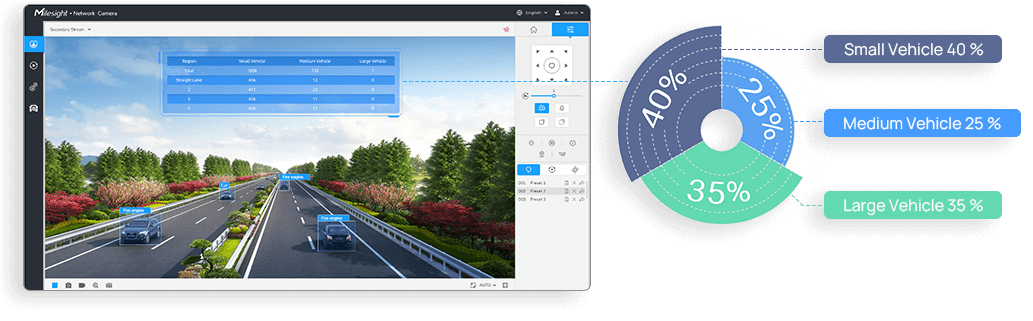

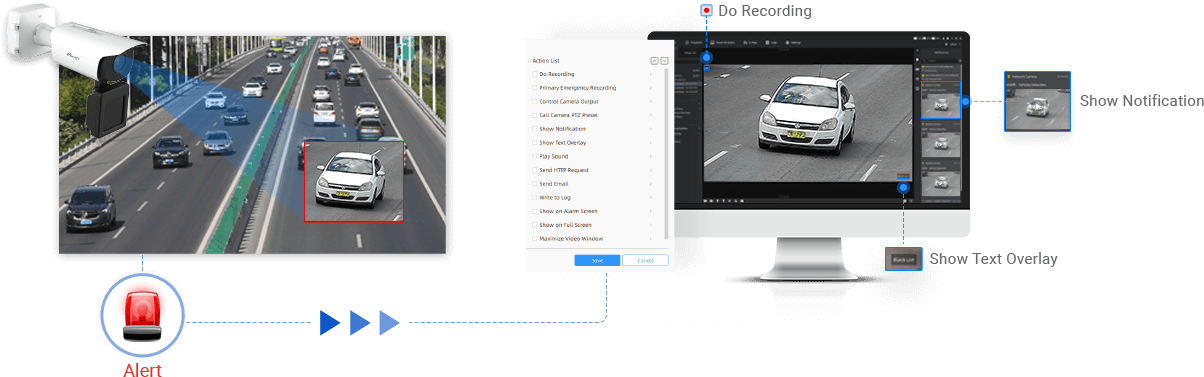

Radar is a detection technology that uses radio waves to determine the velocity, range, or angle of objects. The Milesight 3D radar can locate the vehicle position and direction with high accuracy. Verified by 3D radar and AI-powered LPR algorithm, the NDAA Radar AI LPR 4X/12X Pro Bullet Plus Network Camera can precisely provide real-time information of detection distance, speed capture and flow control, greatly optimizing traffic monitoring, and ensuring the safety of public transport.

Milesight 3D Radar technology

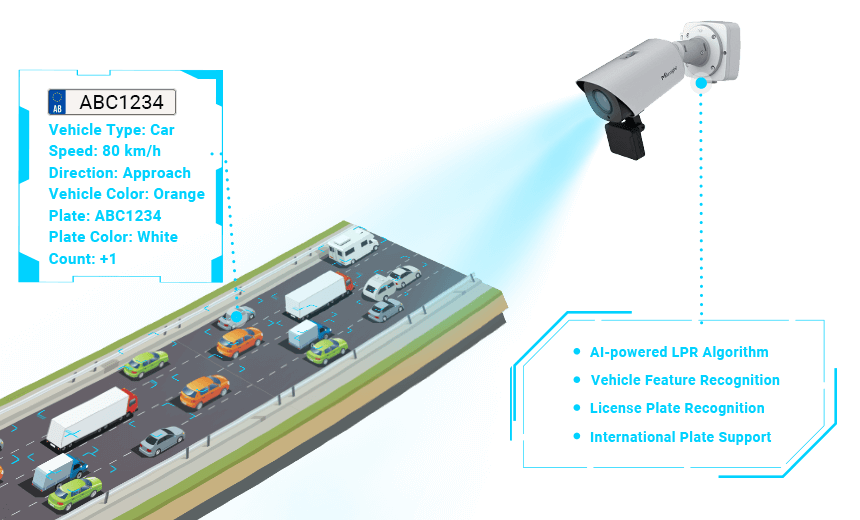

Intelligent AI-powered LPR Algorithm

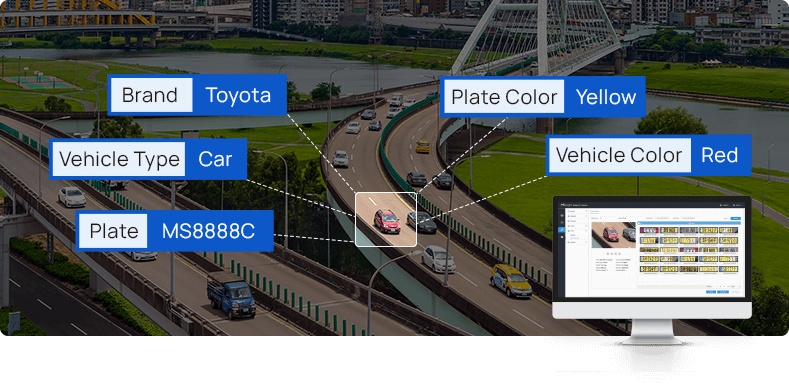

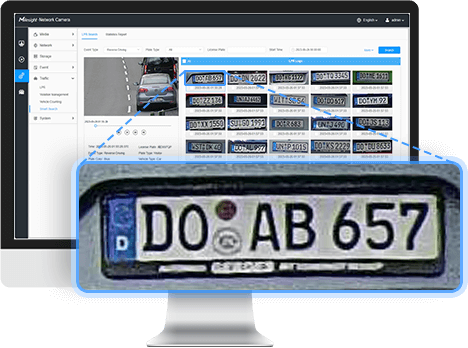

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. The Milesight NDAA Radar AI LPR 4X/12X Pro Bullet Plus Network Camera can not only recognize vehicle plates in real time, but also identify more vehicle features, like vehicle type, color, etc., generating reliable traffic insights to improve safety and mobility.

Milesight AI LPR technology

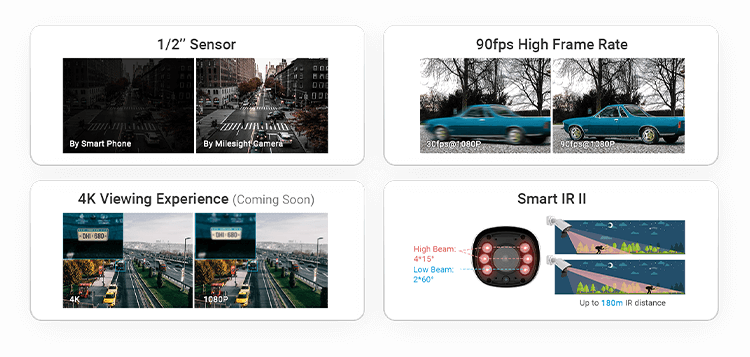

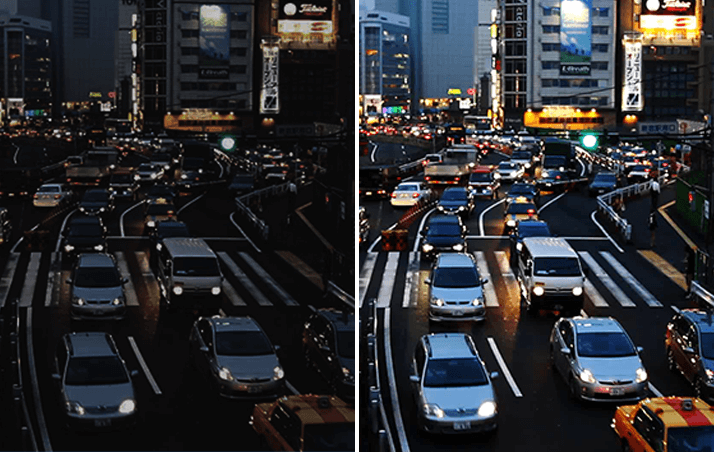

Superior Image Quality

Milesight applies Sony' s high sensitive 1/2" sensor whose capacity is approximately twice than that of the conventional ones. Its high sensitivity is designed for capturing saturated and sharp images even in pitch dark environment. The Milesight NDAA Radar AI LPR 4X/12X Pro Bullet Plus Network Camera is coupled with the 90fps high frame rate and 4K video viewing experience that deliver ultra-high-definition images with no latency despite of the high-speed movement.

Milesight NDAA camera with superior image quality

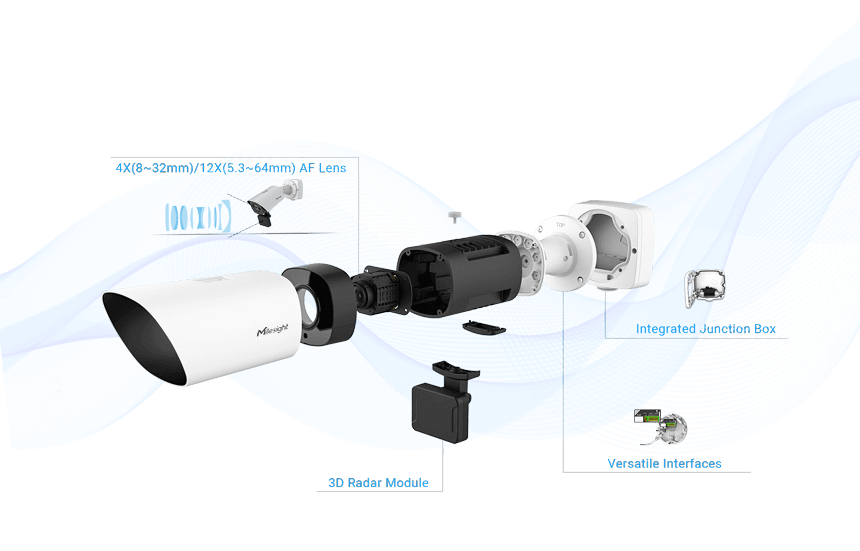

Easy Deployment and Compact Structure

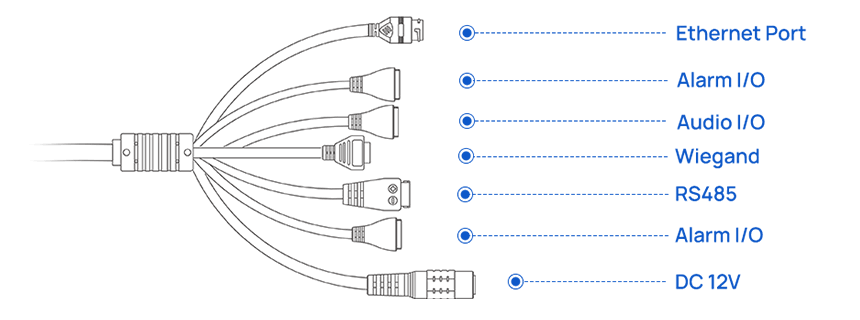

Featuring 4X/12X Auto Focus Lens, the Milesight NDAA Radar AI LPR 4X/12X Pro Bullet Plus Network Camera achieves a clear visual experience perfectly for long distance. As an all-in-one 3D radar camera, the radar module is directly integrated in the camera, which is easy to deploy for the users. Do not worry if you are in complex environments, the well-designed integrated junction box and versatile interfaces ensure installation efficiency.

ndaa radar camera with easy installation
  • MS-C2866-X4TL(V)PA
  • MS-C2966-X12TL(V)PA
Camera Name 2MP NDAA Radar AI LPR 4X Pro Bullet Plus Network Camera
Image Sensor 1/2" Progressive Scan CMOS
Min. Illumination Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Lens Lens 8~32mm, 4X Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6~F1.7
Iris Control Auto
LPR Max. Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage Support simultaneous detection of 4 regions
White/Black List Up to 1000 records inside the camera
Smart Traffic Detection License Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition
Radar(Optional) Working Frequency 60GHz, 61~62GHz
Capture Rate >99% (Traffic jam >95%)
Lane Coverage 1~4 Lanes (Recognition ≥95% individually)
Tracking Target Up to 32
Speed Detection Range ±5km/h~±200km/h
Speed Detection Accuracy ±0.36km/h
Detection Distance Up to 90m
Distance Detection Accuracy ±0.4m
Angle Measurement Accuracy ±0.5°
Installation Height 2~7m
Video Max. Image Resolution 1920x1080
Primary Stream 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 7.5W MAX, 14.5W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing (Without Radar Module)
Surge Protection 4KV
Dimensions 320mmX134mmX126mm; 320mmX134mmX171mm (With radar module)
Weight 1445.8g; 1623g (With radar module)
Warranty 3/5 Years
Camera Name 2MP NDAA Radar AI LPR 12X Pro Bullet Plus Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Lens Lens 5.3∼64mm, 12X Optical Zoom
Field of View H61°∼H5°/D69°∼D5°/V36°∼V2°
Mount Φ14
Focus Control Auto/Manual
Aperture F1.6∼F2.8
Iris Control Auto
LPR Max. Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage Support simultaneous detection of 4 regions
White/Black List Up to 1000 records inside the camera
Smart Traffic Detection License Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition
Radar(Optional) Working Frequency 60GHz, 61~62GHz
Capture Rate >99% (Traffic jam >95%)
Lane Coverage 1~4 Lanes (Recognition ≥95% individually)
Tracking Target Up to 32
Speed Detection Range ±5km/h~±200km/h
Speed Detection Accuracy ±0.36km/h
Detection Distance Up to 90m
Distance Detection Accuracy ±0.4m
Angle Measurement Accuracy ±0.5°
Installation Height 2~7m
Video Max. Image Resolution 1920x1080
Primary Stream 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 7.5W MAX, 15W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing (Without Radar Module)
Surge Protection 4KV
Dimensions 320mmX134mmX126mm; 320mmX134mmX171mm (With radar module)
Weight 1447g; 1625g (With radar module)
Warranty 3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • T - High Frame Rate (90fps)
  • P - PoE Supported
  • L - LPR Supported
  • V - Radar Supported
  • A - AI Series
