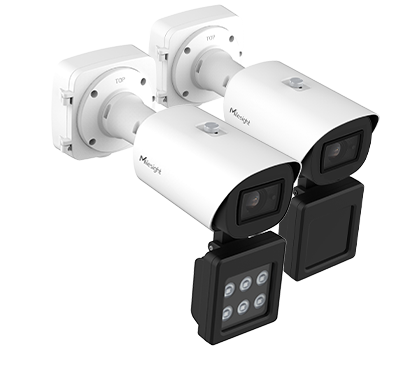

NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Camera

Comprehensive AI Functions for LPR Solution

2MP · AI · LPR · Supplement Light · Wiegand Interface · 120dB Super WDR · 0.005Lux Ultra Low-light · IP67 · Smart IR II · Illumination Distance Up to 20m · PoE

NDAA AI LPR Supplement Light PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Starlight Super WDR Privacy Mask 3-Axis

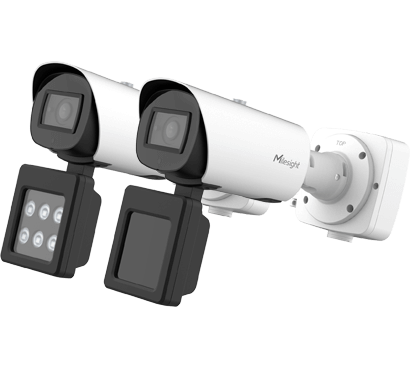

  • slide1

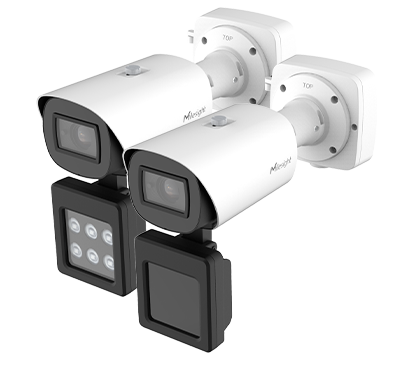

  • slide2
  • slide3

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

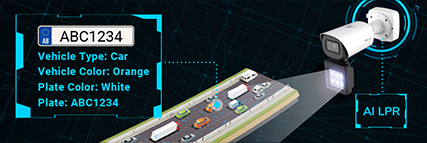

AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

smart License Plate Recognition, LPR, ANPR, LPR IP Camera,LPR Camera

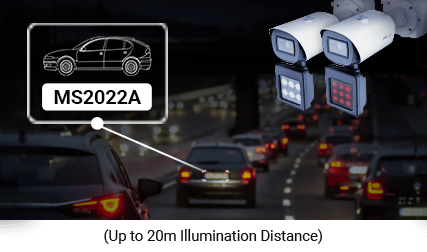

Integrated Supplement Light

Integrated with supplement light of IR LED Light or White LED Light with Max. 20m illumination distance, Milesight NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Camera could not only turn on and off the supplement light, but also change the luminance of the supplement lighting automatically, achieving a flexible way for the monitoring control.

supplement light

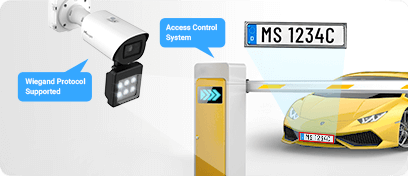

Flexible Compatibility

To maximize the usability and compatibility, Milesight NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Camera also supports Wiegand Protocol, which allows the easy open integration with third-party VMS or platforms, realizing solutions such as traffic management, toll collection, and access control.

wiegand

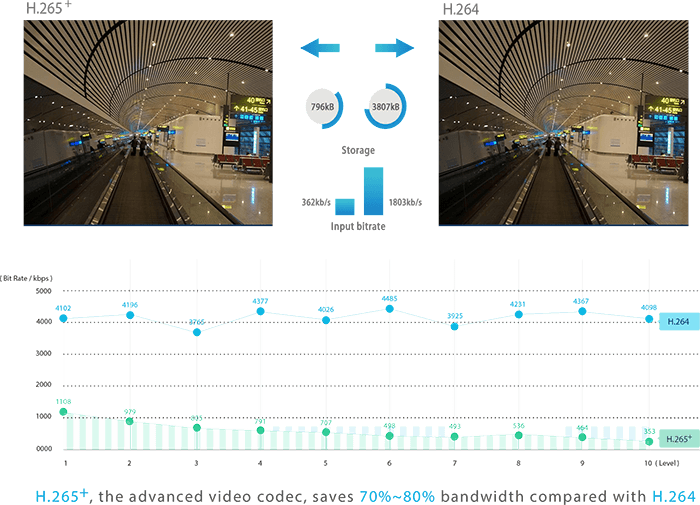

Leading-edge H.265+ Compression

H.265+

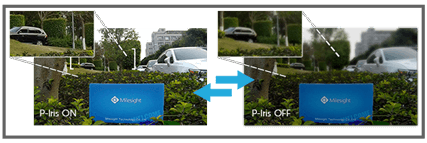

P-Iris Control

Adopting P-Iris control technology, Milesight NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Network Camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.

P-iris

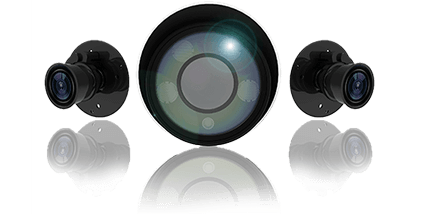

Motorized Zoom Lens

Equipped with motorized zoom & focus lens, Milesight NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.

Motorized Zoom Lens

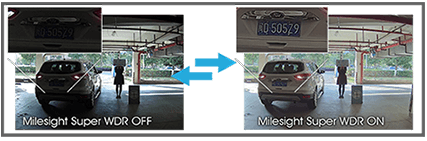

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

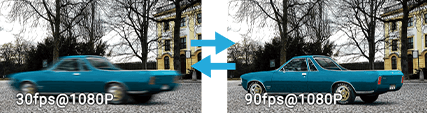

90fps High Frame Rate

With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

AI high frame rate

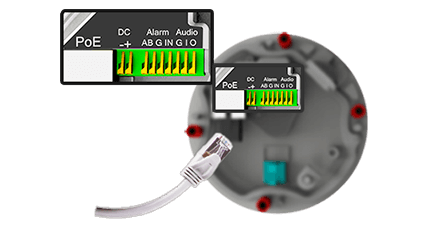

Integrated Cable Management Bracket

In the base, there are power interface, PoE port and other interfaces. Thanks to integrated cable management, it takes no effort in installation.

bracket

SIP/VoIP Support

Milesight NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

SIP camrea
  • MS-C2966-TF(I)LWPA
CameraName2MP Supplement Light AI LPR Motorized Pro Bullet Plus Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
LensLensMotorized 2.7~13.5mm@F1.4, P-Iris(Optional)
Field of ViewH113°~H33°/D130°~D38°/V60°~V18°
MountΦ14
Focus ControlAuto/Manual
Iris ControlAuto/Manual (Optional for I Series)
LPRMax. Vehicle Speed200km/h
Recognition Accuracy>95%
CoverageSupport simultaneous detection of 4 regions
Smart Traffic DetectionLicense Plate Recognition, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition
IlluminatorSupplement LightIR LED Light or White LED Light
Light Bead9 (For IR LED Light)/6 (For White LED Light)
Illumination DistanceUp to 20m
Light ControlAuto/Always On/Off/Customize
VideoMax. Image Resolution1920x1080
Primary Stream60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
WiegandSupport
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption5W MAX, 25W MAX (For IR LED Light), 25W MAX (For White LED Light)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated Metal Housing (Without Supplement Light)
Dimensions320mmX134mmX126mm, 320mmX134mmX231mm (With Supplement Light)
Weight1630g, 2075g (With Supplement Light)
Warranty3/5 Years
  • * Naming Convention
  • T - High Frame Rate (90fps)
  • F - Motorized Vari-focal Lens
  • I - P-Iris Supported
  • P - PoE Supported
  • L - LPR Supported
  • W - Supplement Light Supported
  • A - AI Series
