CCTV Router UR32S
Designed for Remote Management in Batch
Designed for Remote Management in Batch
By deploying it in practical CCTV projects, Milesight CCTV Router UR32S can achieve a stable and secure connection between on-site surveillance devices and remote side professional installers or technicians. In this way, Milesight cameras and NVRs can be managed in batch easily and remotely in a more secure and efficient way.
*Enabling smart remote management solution may require higher CPU performance.
Milesight CCTV Router UR32S supports Wi-Fi Client and AP Mode, allowing users to simply connect the router to M-Sight Pro APP. Since all devices connected to the router will be immediately listed on the APP, users can configure the remote access permissions of devices in batch for installers or technicians within a few steps.
Milesight CCTV Router UR32S features global 4G LTE CAT4/3G network with multiple carrier networks, achieving easy global connectivity. Meanwhile, it supports automated failover or failback between Ethernet and cellular with SIM card inserted.
Milesight CCTV Router UR32S guarantees secure transmission with stateful Firewall VPN tunnels including IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN. At the same time, it supports SNMP v1/v2c/v3 for maximized security and flexibility to meet different needs.
Equipped with industrial-grade NXP processor and compact design, Milesight CCTV Router UR32S allows great performance and easy deployment even in a limited space. Furthermore, its rugged metal casing with IP30 protection enables reliable operation under harsh environments and can withstand temperatures ranging from -40°C to +70°C.
MilesightVPN is an on-premises VPN platform designed for Milesight CCTV Routers to establish VPN rapidly and easily, achieving the one-stop remote access solution.
|Name||Milesigt CCTV Router UR32S|
|CPU||ARM Cortex-A7,528 MHz|
|Memory||128 MB DDR3 RAM and 128MB Flash|
|Antenna Connector||1×50Ω SMA Connector (Center PIN: SMA Female)|
|SIM Slots||1 (Mini SIM-2FF)|
|Numbers||2 × 10/100 Mbps|
|Property||1 × WAN + 1 × LAN (Default) or 2 × LAN|
|Mode||Full or half duplex (Auto-Sensing)|
|PoE||2 × 802.3 af/at PoE PSE on LAN Ports (Optional)|
|Antenna Connector||1×50Ω SMA Connector (Center PIN: RP-SMA Female)|
|Standards||IEEE 802.11 b/g/n,2.4GHz|
|Tx Power||802.11b: 16 dBm +/-1.5 dBm (11 Mbps)|
802.11g: 14 dBm +/-1.5 dBm (54 Mbps)
802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7)
|Modes||AP or Client mode|
|Security||WPA/WPA2 authentication, WEP/TKIP/AES encryption|
|Reset Button||1 × RESET|
|LED Indicators||1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength|
|Network Protocols||IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, FRP, etc.|
|VPN||DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE|
|Security||Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls,|
DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
|Management||Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub|
|AAA||Radius, Tacacs+, LDAP, Local Authentication|
|Multilevel Authority||Multiple Levels of User Authority|
|Reliability||VRRP, WAN Failover|
|Power Supply and Consumption|
|Power Connector||2-pin 5.08 mm Terminal Block|
|Input Voltage||9-48 VDC, with Surge-Protection and Reverse Polarity Protection|
|Power Consumption||Typical 1.8 W, Max 2.2 W (In Non-PoE mode)|
|Dimension||108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)|

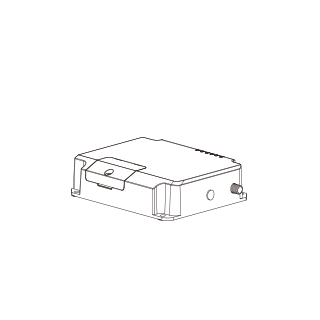

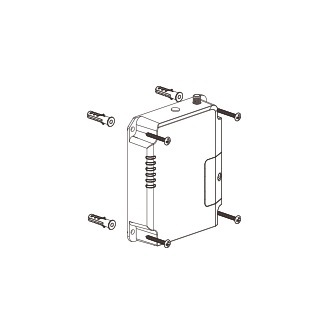

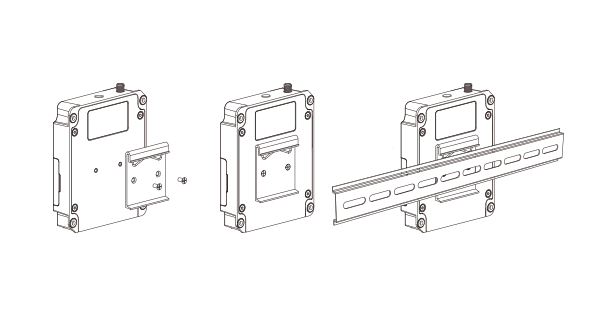

|Installation||Desktop, Wall or DIN Rail Mounting|
|Operating Temperature||-40°C to +70°C (-40℉ to +158℉)|
|Storage Temperature||-40°C to +85°C (-40℉ to +185℉)|
|Ethernet Isolation||1.5 kV RMS|
|Relative Humidity||0% to 95% (non-condensing) at 25°C/77℉|
|Regulatory||CE, FCC, RCM|
|EMC||EN 55032, EN 55035|
|EMS||IEC 61000-4-2 Level 3|
IEC 61000-4-3 Level 2
IEC 61000-4-4 Level 2
IEC 61000-4-5 Level 2
IEC 61000-4-6 Level 3
IEC 61000-4-8 Level 1
IEC 61000-4-11 Level 3
|Radio Frequency||EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413|
