6.1 Live Video

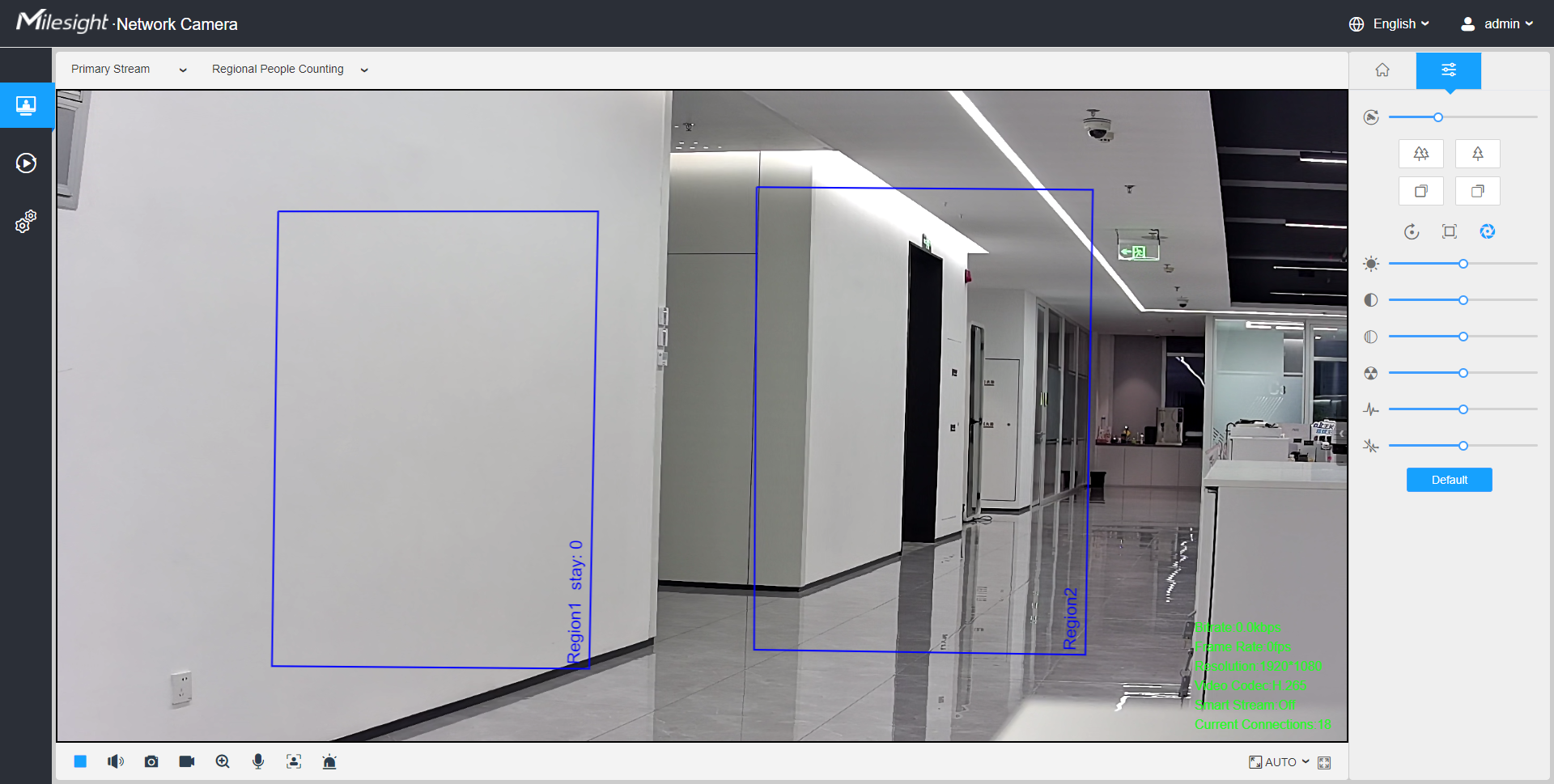

After logging in the network camera web GUI successfully, user is allowed to view live video as follows.



Table 1. Description of the buttons
No. Parameter Description
1

Live Video

 Click to access the live view page.
2

Playback

 Click to access the playback page.
3

Settings		 Click to access the configuration page.
4 Click to select system language.
5 Display the user name and click to logout.
6 Choose the stream (Primary/Secondary/Tertiary) to show on the current video window.
7 Choose the options (Hide Detection Region/Region Entrance/Region Exiting/Advanced Motion/Line Crossing/Loitering/People Counting/Object Left/Object Remove/Regional People Counting) to hide/display detection region on the current video window.

Note: The People Counting/Regional People Counting is optional for MS-Cxxxx-xPA and MS-Cxxxx-xPC.
8

Recording		 When recording, the icon appears.
9

Alarm

 When an alarm of VCA event was triggered, the icon appears.
10

Alarm

 When an alarm of people counting was triggered, the icon appears.
11

Alarm

 When an alarm of Motion Detection was triggered, the icon appears.
12

Alarm

 Except for the kinds of alarms above, when other alarms were triggered, the icon appears.
13 /

Stop/Play

 Stop/Play live view.
14

Snapshot

 Click to capture the current image and save to the configured path. The default path is: C:VMS\+-1\ IMAGE-MANUAL.
15 /

Start/Stop Recording

 Click to Start Recording video and save to the configured path. The default path is C:VMS\+-1\MS_Record. Click again to Stop Recording.
16

Digital Zoom

 When enabled, you can zoom in a specific area of video image with your mouse wheel.
17

Manual Output

Manually trigger Camera Alarm Output.

18

Window Size

 Click to display images at a window size.
19

Full Screen

 Click to display images at full-screen.
20

Face Detection

 Click to enable the Face Detection Mode.
Note: Only appears when your camera is MS-Cxxxx-xPC.

Wall/Ceiling

 Click to access installation. And the AI algorithm will change according to the installation (Wall algorithm/Ceiling algorithm).
Zoom: Adjust the Zoom length of the lens.
Note: Only work when your camera is equipped with motorized lens.
Focus-/Focus+: Adjust focus of the lens.
Note: Only work when your camera is equipped with motorized lens.
Iris-/Iris+: Adjust Iris of the lens.
Note: Only work when your camera is equipped with motorized lens.
Focus Speed: To adjust the speed of focus.
Note: Only work when your camera is equipped with auto focus lens.
Zoom-/Zoom+: Click to zoom in and zoom out.
Note: Only work when your camera is equipped with auto focus lens.
Focus-/Focus+: Click to focus near or far of the lens.
Note: Only work when your camera is equipped with auto focus lens.
Lens Initialization, Auxiliary Focus and Auto Iris.
Note:
  • The Auto Iris is turned on by default when your camera is equipped with auto focus lens.
  • The Auto Iris support turn on/off when your camera is equipped with P-Iris.
Brightness: Adjust the Brightness of the scene.
Contrast: Adjust the color and light contrast.
Saturation: Adjust the Saturation of the image. Higher Saturation makes colors appear more "pure" while lower one appears more “wash-out”.
Sharpness: Adjust the Sharpness of image. Higher Sharpness sharps the pixel boundary and makes the image looks “more clear”.
2D DNR/3D DNR: Adjust the noise reduction level.
Default: Restore brightness, contrast and saturation to default settings.
