6.4 LPR Mode

Milesight LPR Camera supports professional LPR Live View interface , it can show the real-time license plate recognition results and display the snapshots of detected license plates ,which realizes a stand-alone LPR solution.

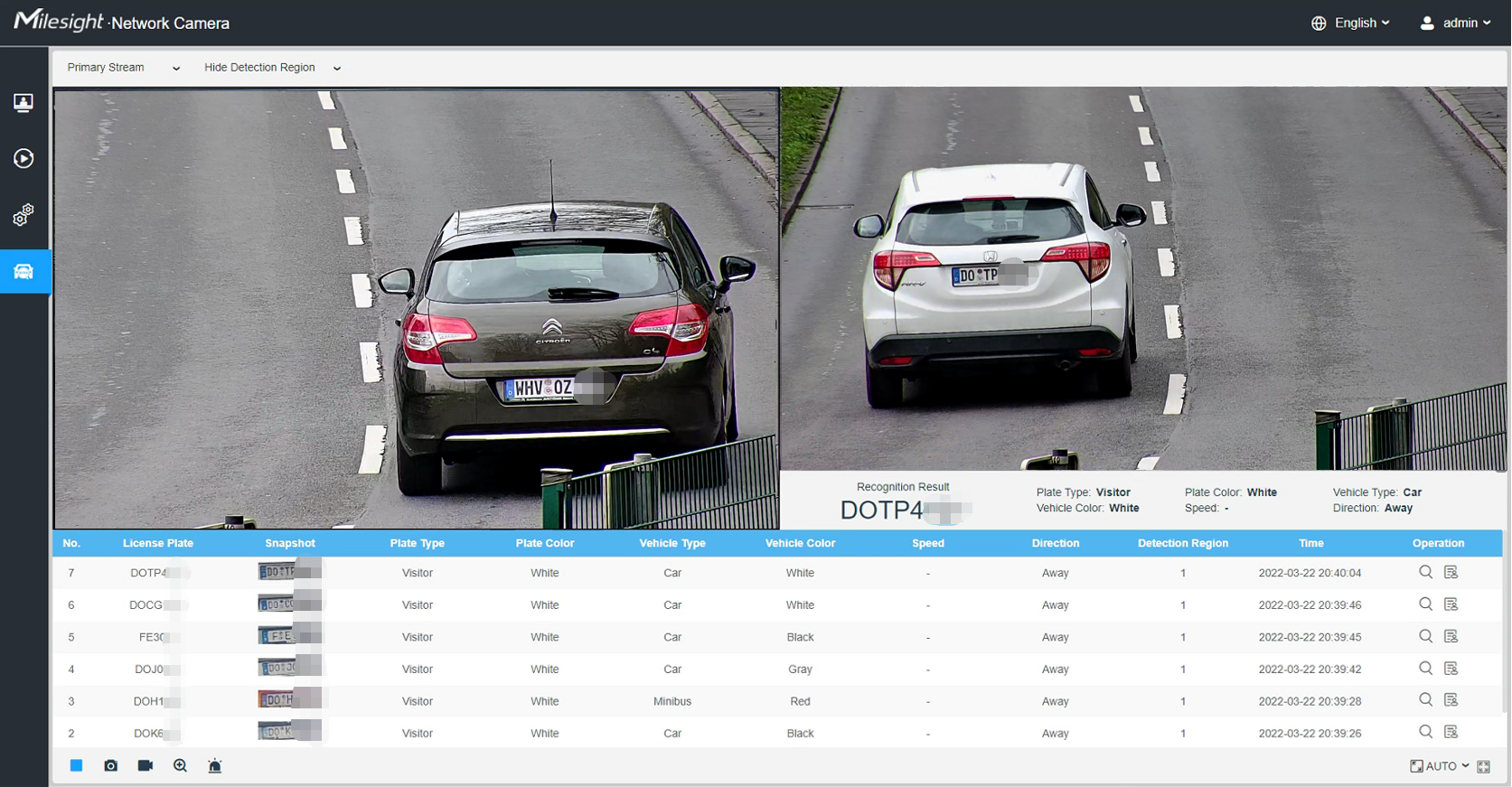

After logging in the LPR network camera web GUI successfully, users can click to access the LPR Mode page, which is shown as follows.



Left Panel: Live View interface of LPR cameras.

Right Panel: Snapshots of the real-time vehicle and display the information of the vehicle according to the snapshot.

Bottom Panel: Display the information of the vehicles recently detected.

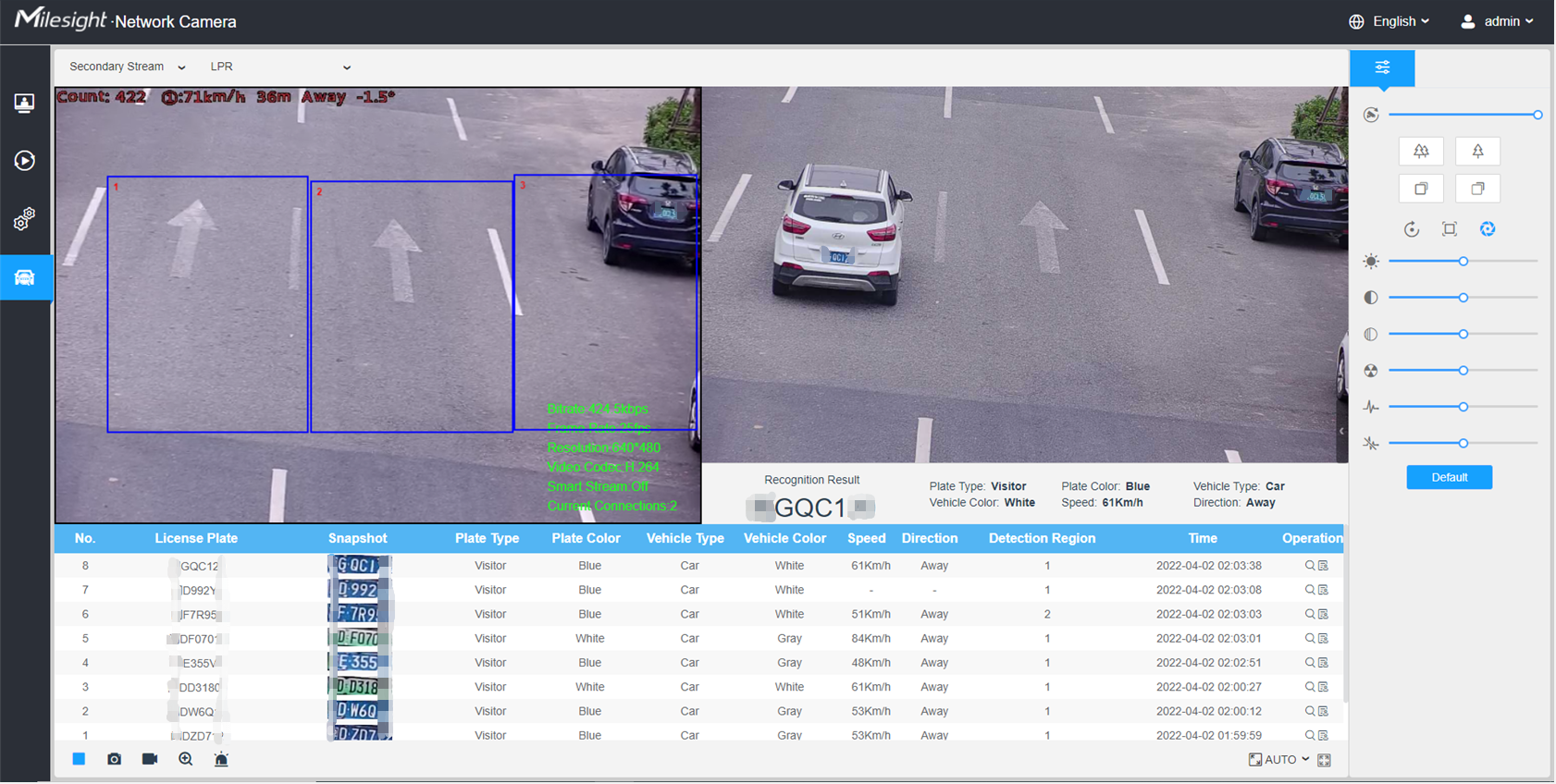

Note: The Speed can only be detected by Radar LPR network cameras:


Table 1. Description of the buttons
Parameter Description
1

Live Video

Click to access the live view page.
2

Playback

Click to access the playback page.
3

Settings
Click to access the configuration page.
4

LPR Mode

Click to access the LPR Mode page.
5 Click to select system language.
6 Display the user name and click to logout.
7 Choose the Stream (Primary/Secondary/Tertiary) to show on the current video window.
8 Choose the options (Hide Detection Region/LPR) to hide/show detection region on the current video window.

9 /

Stop/Play

Stop/Play live view.
10

Alarm

When the Black List license plates passing by, the icon appears.
11

Alarm

When the White List license plates passing by, the icon appears.
12

Alarm

When the Visitor license plates passing by, the icon appears.
13

Snapshot

Click to capture the current image and save to the configured path. The default path is: C:VMS\+-1\ IMAGE-MANUAL.
14 /

Start/Stop Recording

Click to Start Recording video and save to the configured path. Click again to stop recording. The default path is C:VMS\+-1\MS_Record. Click again to Stop Recording.
15

Digital Zoom

When enabled, you can zoom in a specific area of video image with your mouse wheel.
16

Manual Output

Manually trigger Camera Alarm Output.

17

Window Size

Click to display images at a window size.
18

Full Screen

Click to display images at full-screen.
Click to view selected license plate with a large picture.

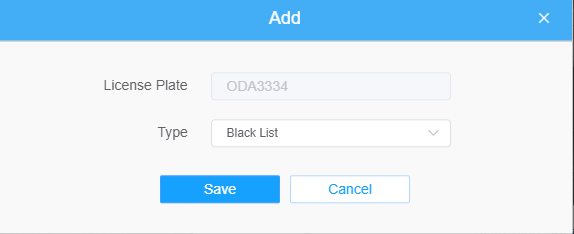

Click to add the selected license plate to White/Black List.
