Configuration Flow

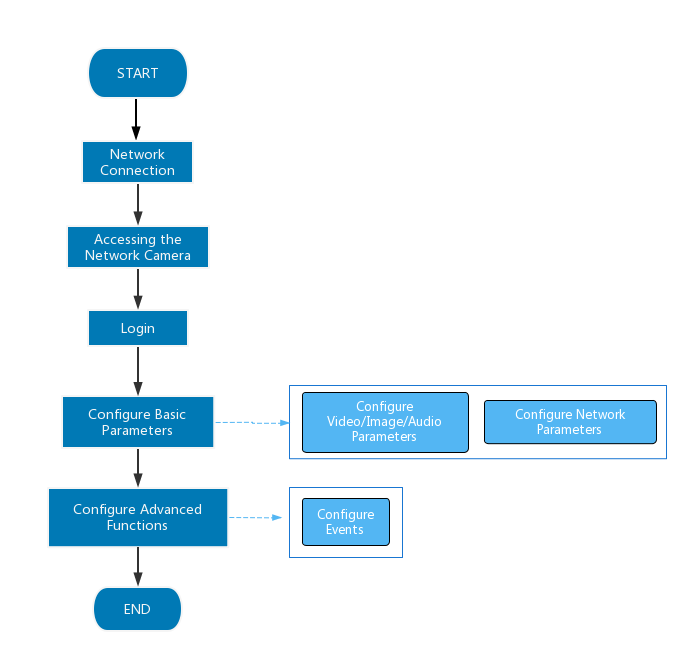

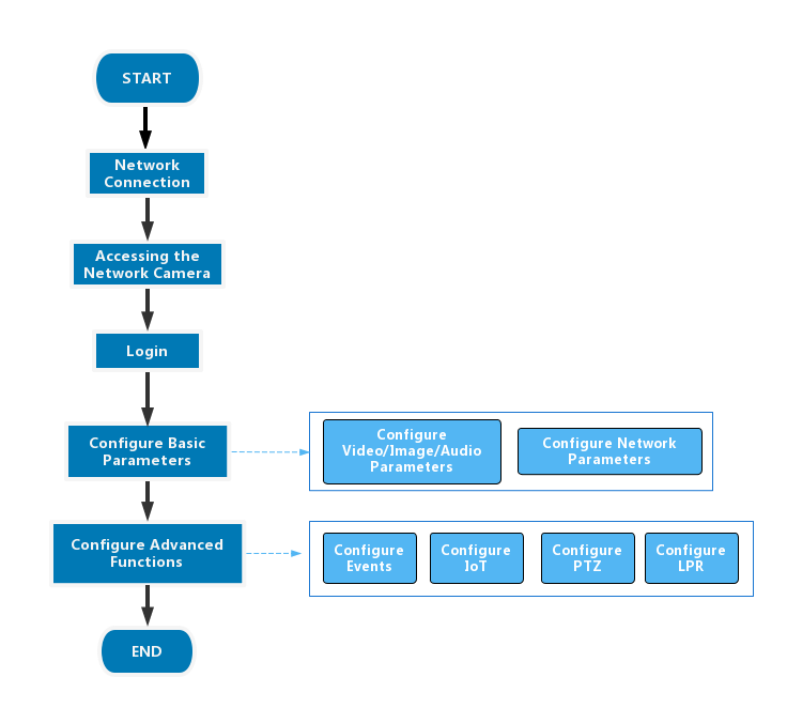

The configuration flow of cameras is shown in the following figure.

Note: The configuration must be based on the actual situation of different models.



More configuration details is shown in the following table.

Table 1. Description of flow
Configuration Description Reference
Network Connection Connect the network camera. You can set the camera over the LAN or dynamic IP connection.

4.1 Setting the Camera over the LAN

Accessing the Network Camera Accessing from IP address, web browser and Milesight back-end software are available.

5.1 Assigning An IP Address

Configure Basic Parameters After login the camera, you can adjust the video/image/audio/network parameters as needed. 8.1 Media

8.2 Network

Configure Advanced Functions Configure the advanced functions, such as VCA and people counting.

8.4 Event
