Playback

Click to enter playback interface. In this part, you can search and playback the recorded video files stored in SD cards or NAS. The Playback interface is as below:

Step1: Click the “Search” botton, choose the data and record type when the window pops up.

Note: A red icon will appear under the corresponding date when there is a recording for that day users can quickly identify which dates have recordings.

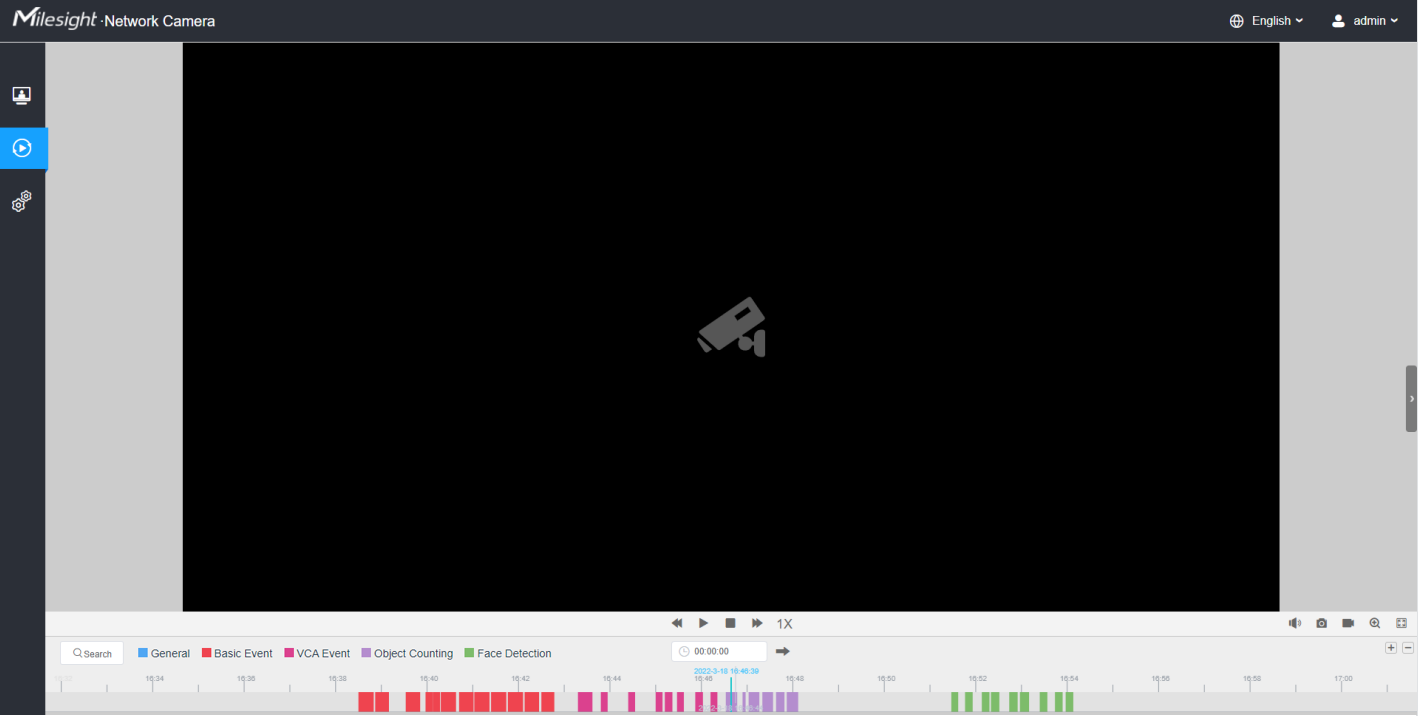

Step2: The timeline displays the video files for the day and show different colors according to selected record type. Drag the progress bar with the mouse to locate the exact playback point as needed.

Note: You can also input the time and click

to locate the playback point in the

filed. You can also click

to zoom out/in the progress bar.

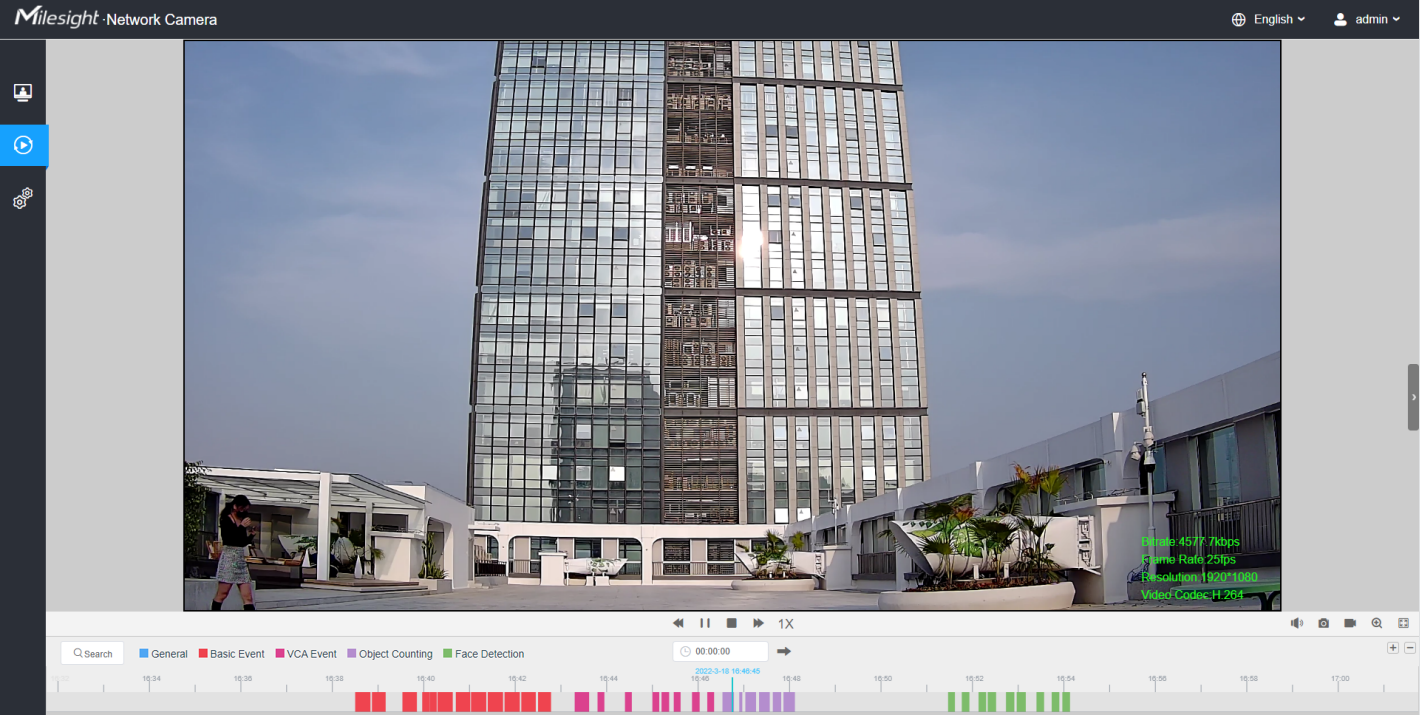

Step3: Click to play the video files found on this date. The toolbar on the button of playback interface can be used to control playing progress.

Table 1. Description of the buttons
No.	Parameter	Description
		Choose date to search recorded videos.
		Search the recorded videos by record type ( All/General/Basic Event/VCA Event/People Counting). The timeline will show different colors according to selected record type as below: For LPR camera, the record type include All/General/Basic Event/LPR. The timeline will show different colors according to selected record type as below:
1	// Speed Down/Speed Up/Speed	Adjust the speed of video playback. Speed Down: Includes 0.5X and 0.25X for Play. Speed Up: Includes 2X and 4X for Play. Speed: The default playback speed is 1X
2	/ Play/Pause	Play/Pause the video.
3	Stop	Stop the video.
4	Search Time	Select the time that want to locate.
5	Jump	Go To.

Table 2. Description of the buttons
No.	Parameter	Description
1	Mute	Click to enable the audio.
2	Snapshot	Click to take a snapshot.
3	/ Start/Stop recording	Click to start/stop recording.
4	Digital Zoom	Click to zoom on/off .
5	Full Screen	Full Screen.
6	Time Expand/Narrow	Time narrow/expand.
