Appendix: Wiring Diagrams

This chapter describes the wiring diagrams of the thermostat if there is a C wire. If there is no C wire or common wire, it is possible to use a Power Extension Kit (PEK). For details, please contact Milesight.

Wiring for Conventional Systems

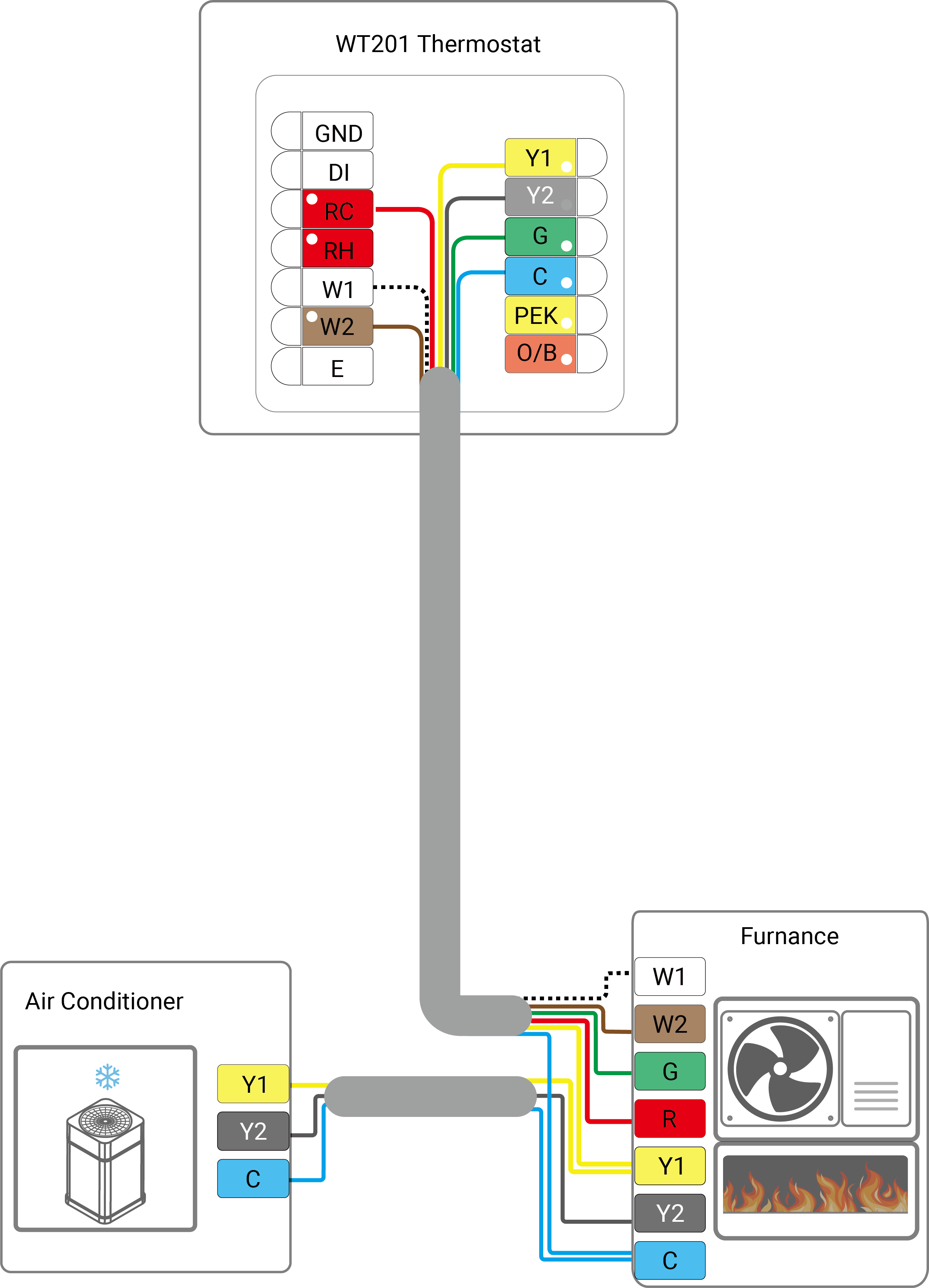

Furnace + Air Conditioner (Up to 2-heat/2-cool)

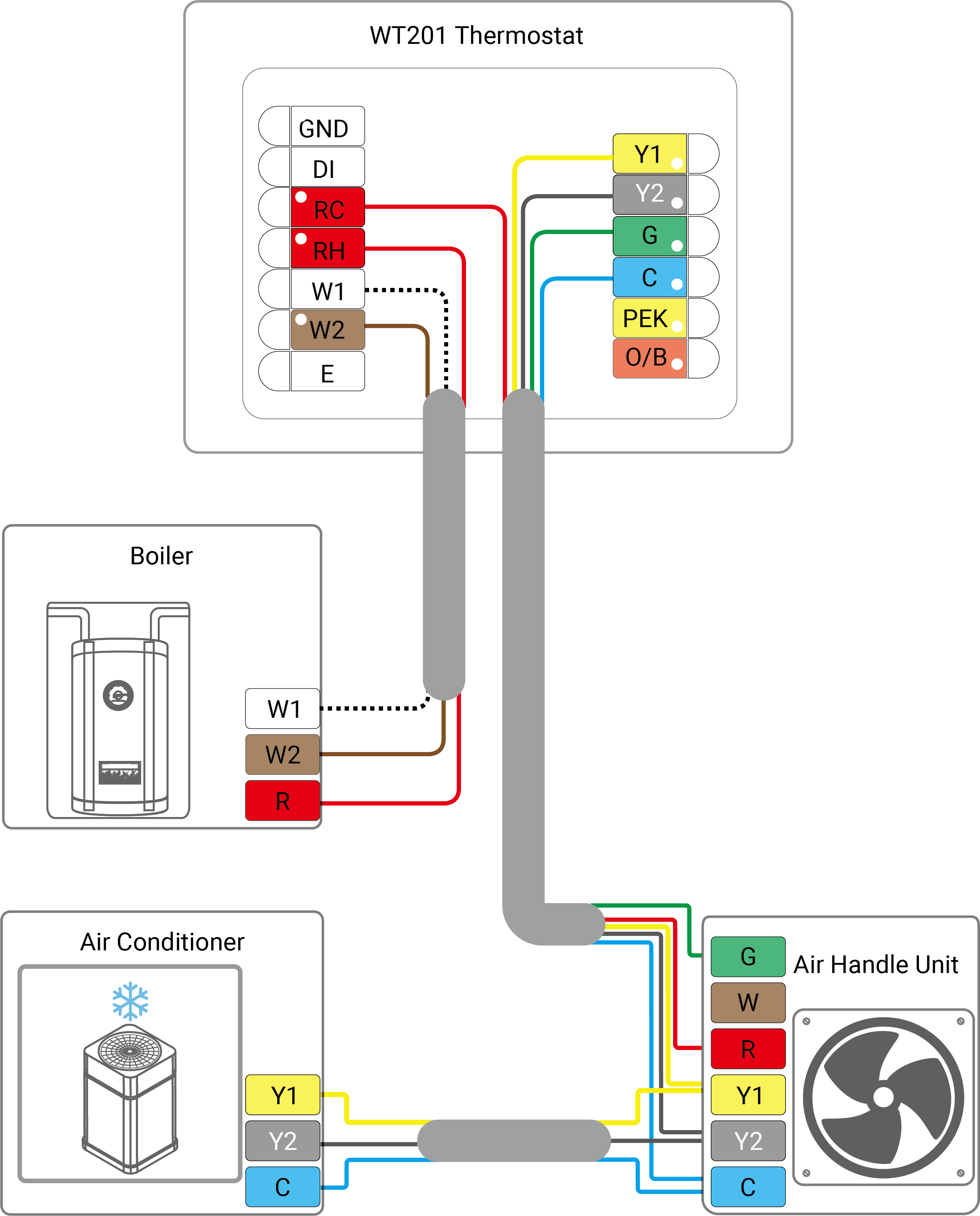

Boiler + Air Conditioner (2-heat/2-cool, 2 transformers)

Wiring for Heat Pumps

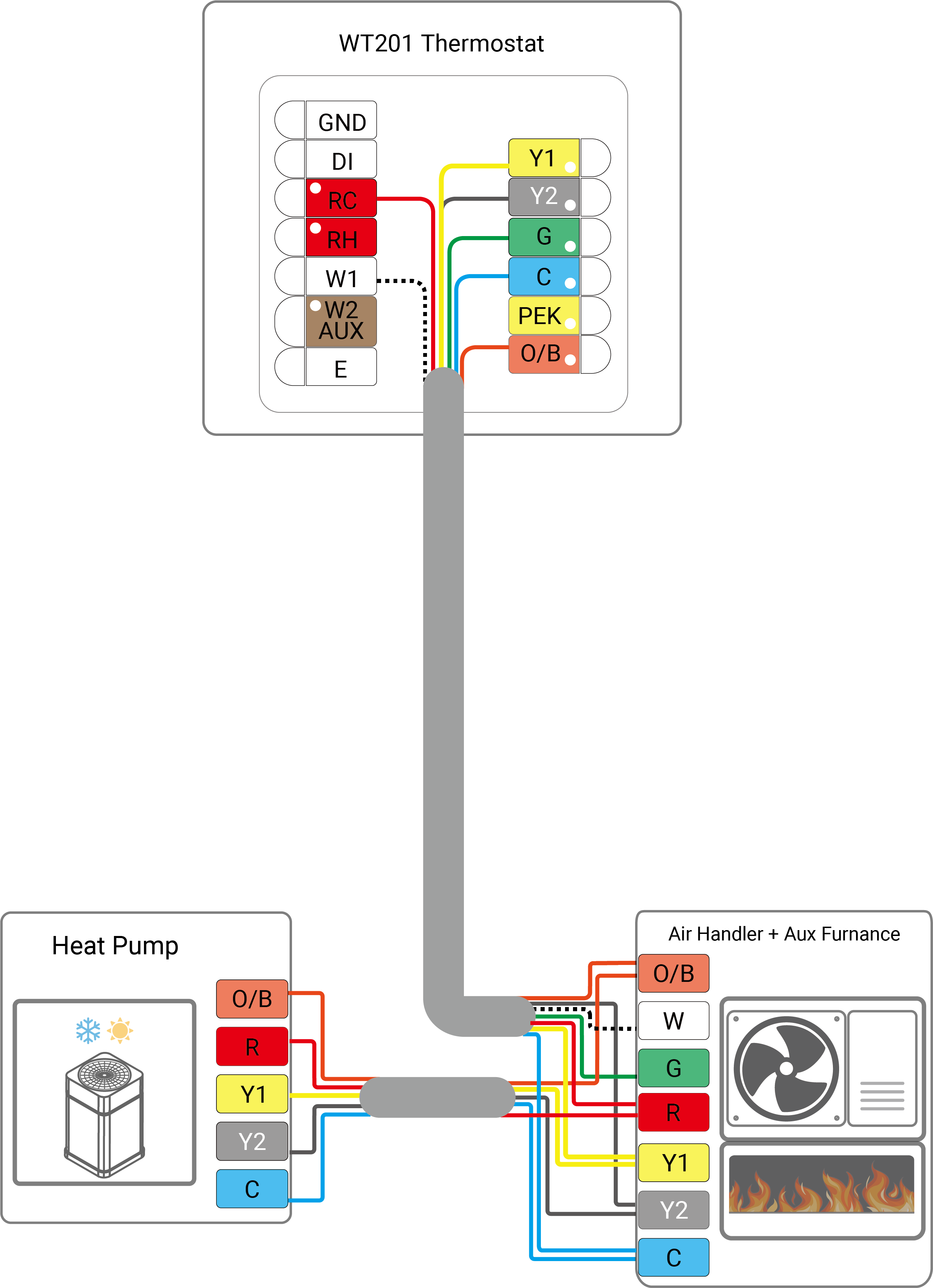

Heat Pump with Auxiliary Heat

Appendix: Wiring Diagrams

Wiring for Conventional Systems

Wiring for Heat Pumps

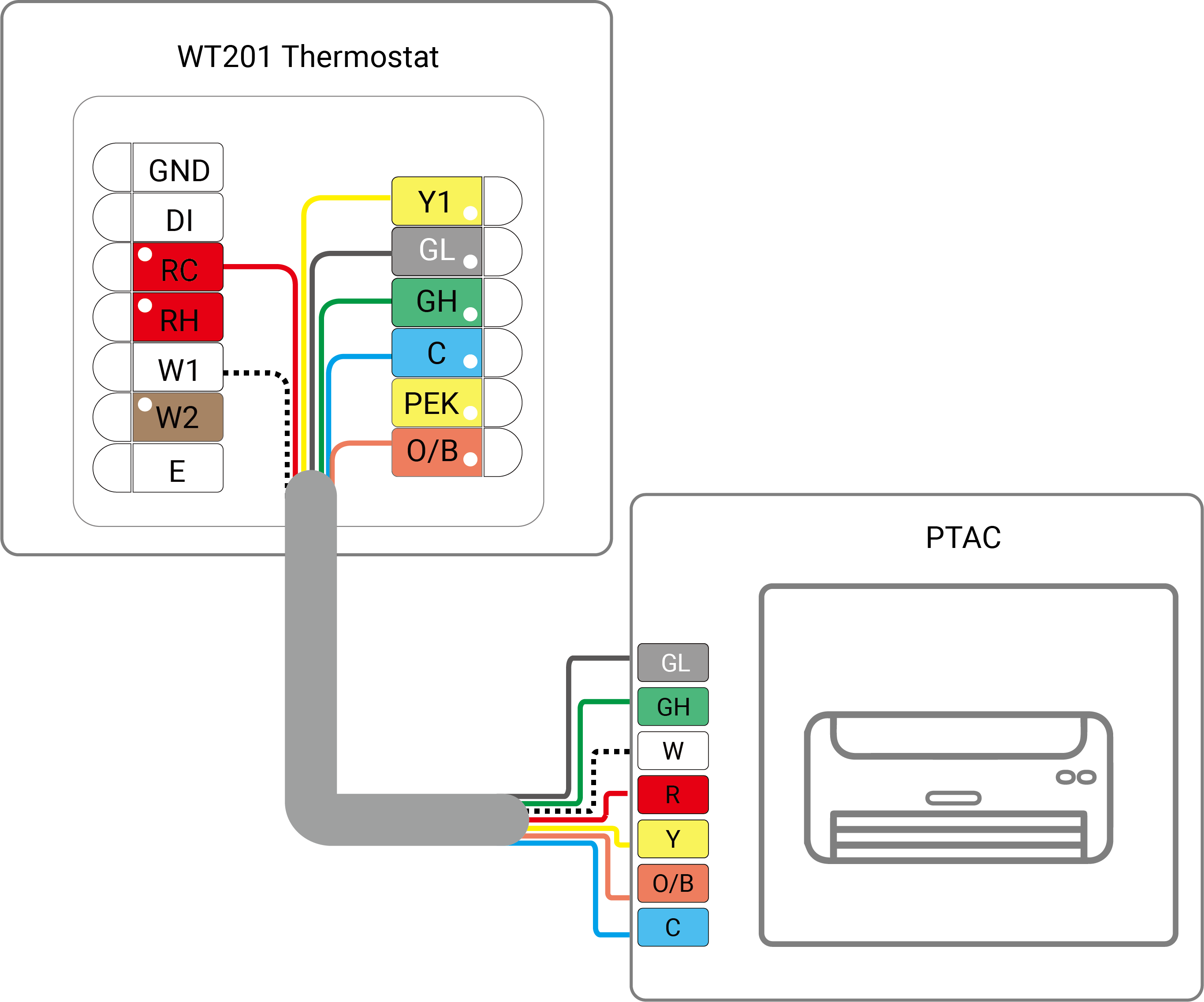

Wiring for PTAC
