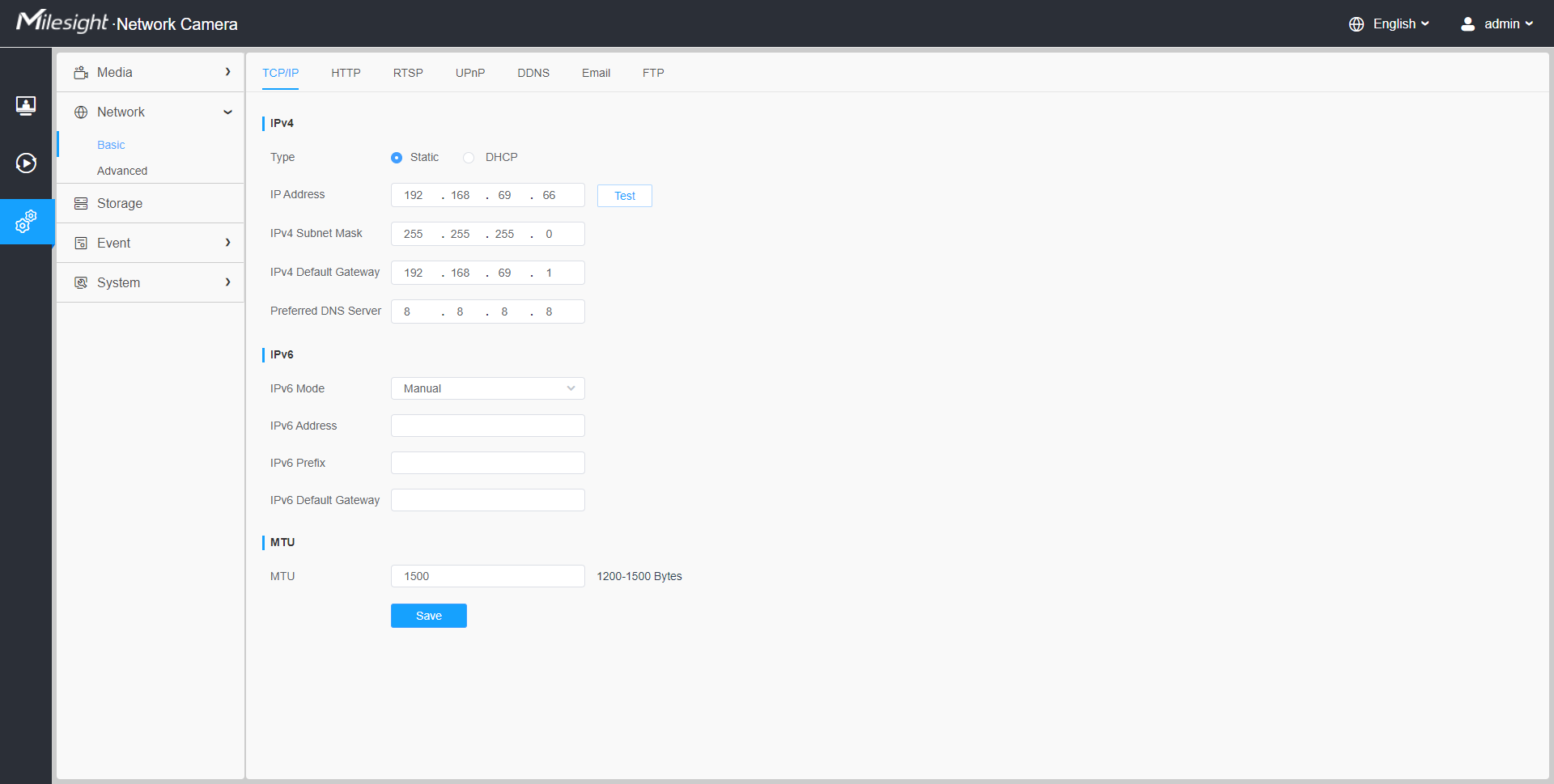

8.2.1.1 TCP/IP



Table 1. Description of the buttons

Parameters

Function Introduction

IPv4

Type: Static Type and DHCP Type are optional for user to get IPv4 address automatically or use fixed IP address.

IPv4 Address: An address that used to identify a network camera on the network.

Note: The Test button is used to test if the IP is conflicting.

IPv4 Subnet Mask: It is used to identify the subnet where the network camera is located.

IPv4 Default Gateway: The default router address.

Preferred DNS Server: The DNS Server translates the domain name to IP address.

IPv6

IPv6 Mode: Choose different modes for IPv6: Manual/Route Advertisement/ DHCPv6

IPv6 Address: IPv6 Address used to identify a network camera on the network

IPv6 Prefix: Define the prefix length of IPv6 address

IPv6 Default Gateway: The default router IPv6 address

MTU Maximum Transmission Unit. The default value is 1500. You can customize the value from 1200 to 1500 as needed.
Save the configuration.
