MQTT Device Integrated

Beaver IoT supports working as an MQTT broker to connect with Milesight devices or third-party devices, to get the device information and data.

Compatibility

• Any MQTT device: the report content is in JSON format, and supports configuring the uplink topic.

Device Template Management

Beaver IoT supports parsing data formats from devices with different reporting formats into entities using device templates, facilitating subsequent data visualization or management.

Add Template

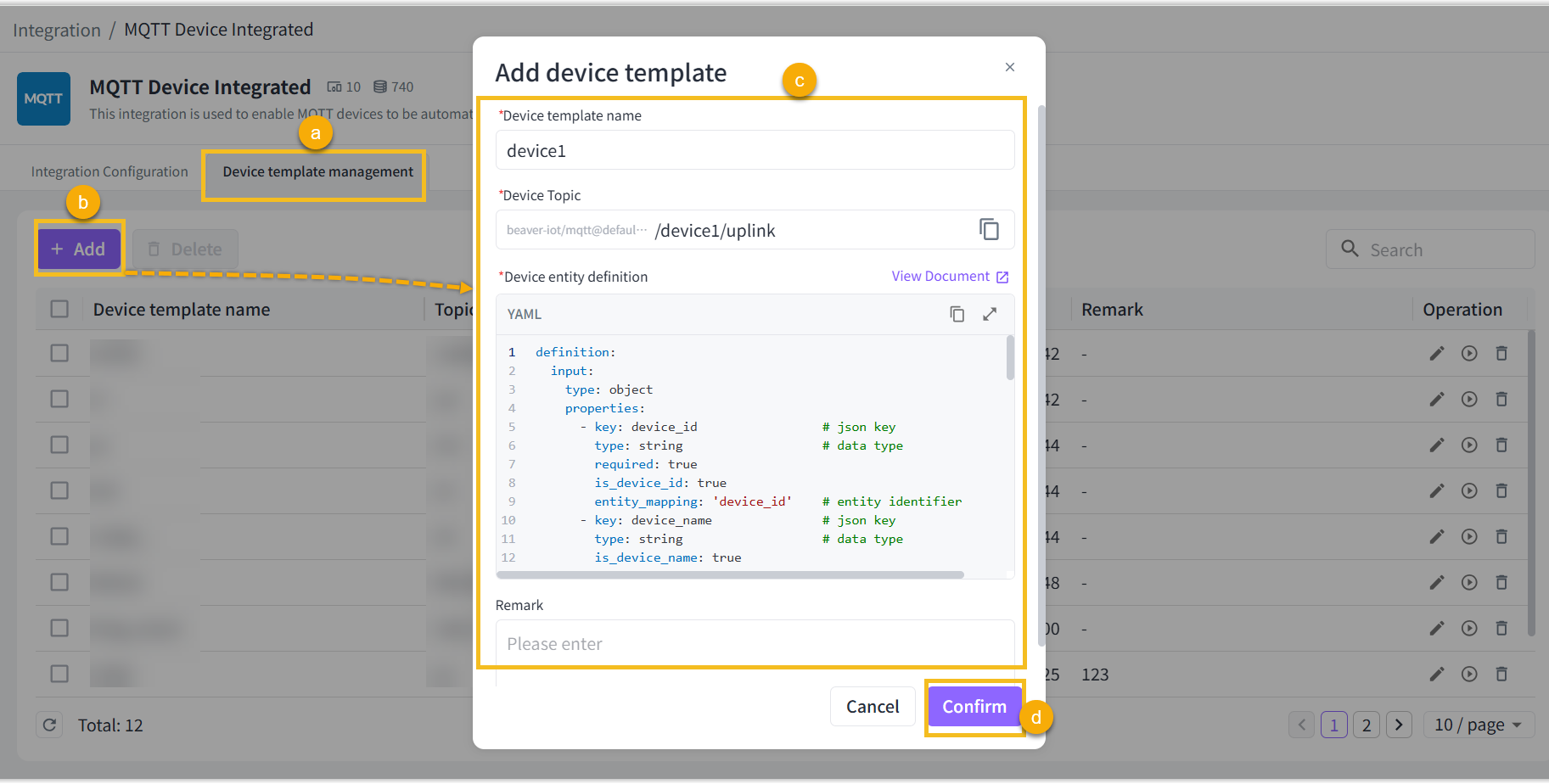

1. Go to Integration page of Beaver IoT platform to select MQTT Device Integrated integration, then go to Device template management tab and click +Add to add a new template.

2. Fill in a unique template name and a uplink topic for device to report, then click the copy icon to save this topic.

3. Configure the device entity definition and remark, click Confirm to save this template.



   Parameter	Description
   Device template name	This name must be unique and may only contain these characters: A-Z, a-z, 0-9, “_”, “@”, “#”, “$”, “-”, “/”, “[”, “]”
   Device topic	When filling in this topic, it must begin with “/”. The preceding part of this topic is fixed content and cannot be modified, please copy it in its entirety.
   Device entity definition	Parse the reported data into distinct entities.
   Remark	Optional field.

   Report example：

   {
       "device_id": "24E124710E338704",
       "device_name": "Device 1",
       "temperature": 26.8,
       "humidity": 15.2,
       "status": 1,
       "time": "2025-07-02 15:19:35"
   }

   Corresponding device template：

   definition:
     input:
       type: object
       properties:
         - key: device_id                 # json key
           type: string                   # data type
           required: true
           is_device_id: true
           entity_mapping: 'device_id'    # entity identifier
         - key: device_name               # json key
           type: string                   # data type
           is_device_name: true
         - key: temperature               # json key
           type: double                   # data type
           entity_mapping: 'temperature'  # entity identifier
         - key: humidity                  # json key
           type: double                   # data type
           entity_mapping: 'humidity'     # entity identifier
         - key: status                    # json key
           type: long                     # data type
           entity_mapping: 'status'       # entity identifier
         - key: time                      # json key
           type: string                   # data type
           entity_mapping: 'time'         # entity identifier
     output:
       type: object
       properties:
         - key: device_id                 # json key
           type: string                   # data type
           entity_mapping: 'device_id'    # entity identifier
         - key: temperature               # json key
           type: double                   # data type
           entity_mapping: 'temperature'  # entity identifier
         - key: humidity                  # json key
           type: double                   # data type
           entity_mapping: 'humidity'     # entity identifier
         - key: status                    # json key
           type: long                     # data type
           entity_mapping: 'status'       # entity identifier
         - key: time                      # json key
           type: string                   # data type
           entity_mapping: 'time'         # entity identifier
   initial_entities:
     - identifier: 'device_id'  # entity identifier
       name: 'device_id'        # entity name
       value_type: string       # entity value type
       type: property           # entity type
       access_mod: R
     - identifier: 'temperature'   # entity identifier
       name: 'temperature'         # entity name
       value_type: double          # entity value type
       type: property              # entity type
       access_mod: R
       attributes:
         unit: '℃'
     - identifier: 'humidity'     # entity identifier
       name: 'humidity'           # entity name
       value_type: double           # entity value type
       type: property             # entity type
       access_mod: R
       attributes:
         unit: '%'
     - identifier: 'status'      # entity identifier
       name: 'status'            # entity name
       value_type: long          # entity value type
       type: property            # entity type
       access_mod: R
       attributes:
         enum:
           0: 'Offline'
           1: 'Online'
     - identifier: 'time'     # entity identifier
       name: 'time'           # entity name
       value_type: string     # entity value type
       type: property         # entity type
       access_mod: R

   Template parameter：

   Parameter	Required	Description
   definition	Yes
   input	Yes	Define the JSON format of the uplink content
   type	Yes	The value is fixed as object
   properties	Yes
   key	Yes	JSON data item name
   type	Yes	JSON data type，Options: object, long, double, boolean, string
   required	No	Whether is key definitely be reported，Options: true, false
   entity_mapping	No	The identifier value mapped to the entity
   is_device_id	No	Whether this key value is device id, Options:：true, false
   is_device_name	No	Whether this key value is device name Options: true, false
   properties	No	When the key type is object, the define the next level parameters
   output	No	Define the JSON format of the downlink content
   type	Yes	The value is fixed as object
   properties	Yes
   key	Yes	JSON data item name
   type	Yes	JSON data type，Options: object, long, double, boolean, string
   entity_mapping	No	The identifier value mapped to the entity
   value	No	The fixed value of this key
   properties	No	When the key type is object, the define the next level parameters
   initial_entities	Yes	Define the format of device entities
   identifier	Yes	Entity unique identifier
   name	Yes	Entity name
   value_type	Yes	Entity data type，Options: object, long, double, boolean, string
   type	Yes	Entity type，Options: property, service, event
   access_mod	Yes	Type of access，Options: R，W，RW
   attributes	No	Entity attributes
   unit	No	Unit
   fraction_digits	No	Decimal places, double type use only
   max	No	Maximum value, long or double type use only
   min	No	Minimum value, long or double type use only
   max_length	No	Maximum length, string type use only
   min_length	No	Minimum length, string type use only
   enum	No	Enumeration values，the value is a list which the format is key: value
   format	No	When the value is HEX, the content is HEX characters; when the value is IMAGE: BASE64 or IMAGE: URL, the content is picture
   default_value	No	default value
   optional	No	Options: true, false
   children	No	Children entity list

Test Template

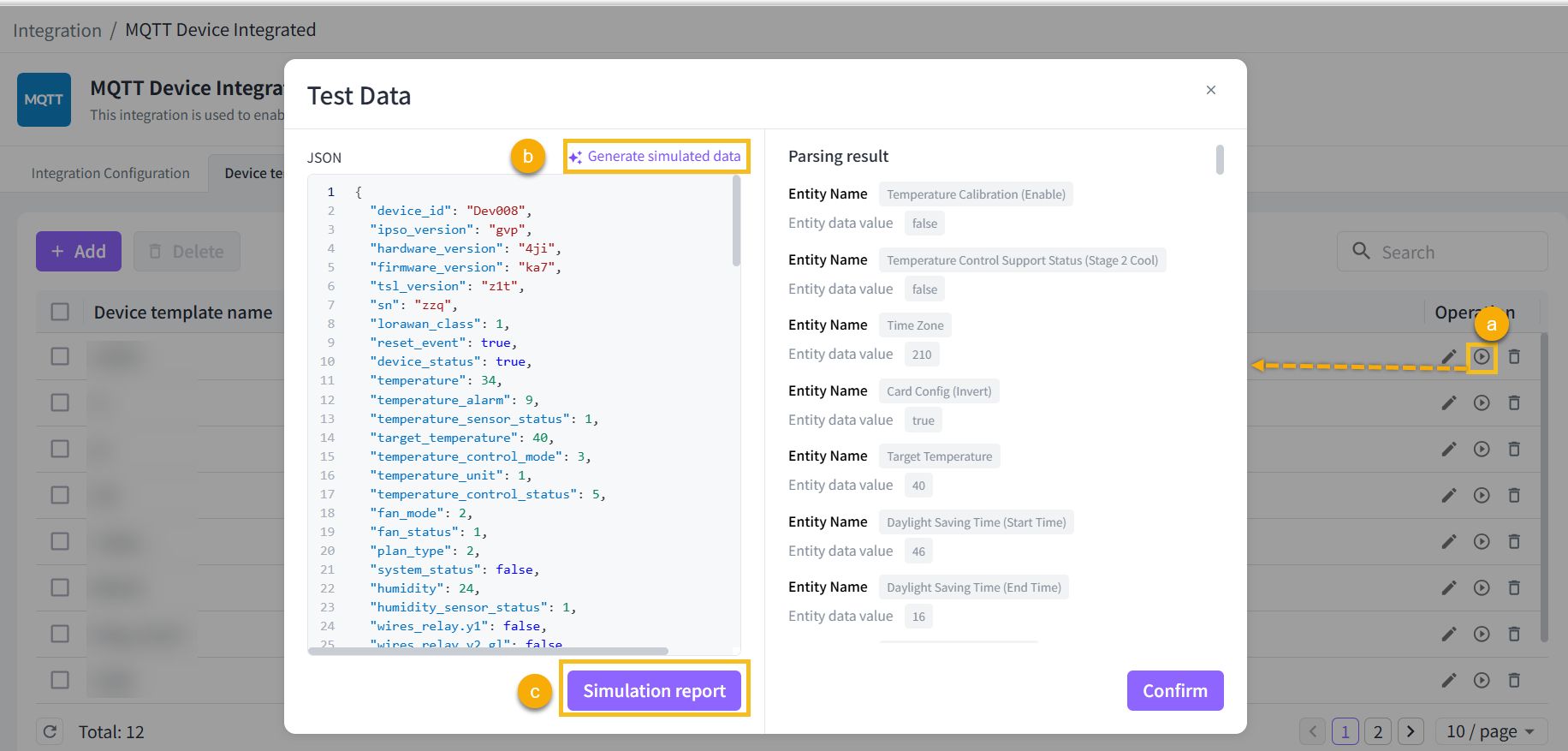

1. Select the desired template, click Test Data icon.
2. Enter the JSON format report data example on the left, or click Generate simulated data.
3. Click Simulation report, the test result will display on the right.

Edit Template

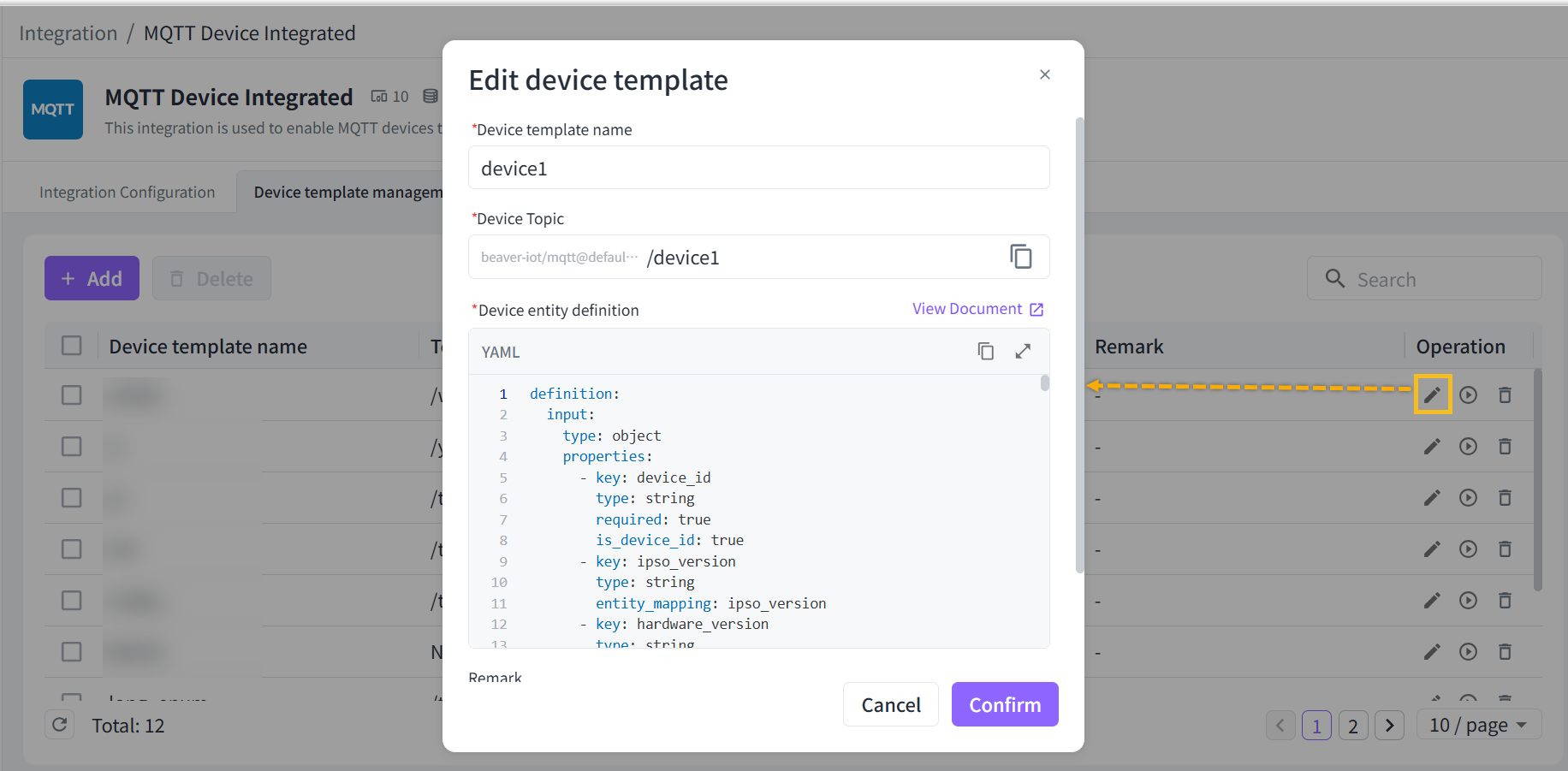

Select the desired template, click Edit icon to edit the template.

note

After adding the template, it is not suggested to modify the entity definition content, as this may cause the Beaver IoT to fail to parse it correctly and result in anomalies in existing entities.

Delete Template

note

When deleting templates, the associated device and all its data will be deleted simultaneously.

Delete a template：Click Delete icon of desired template to delete this template.

Delete template in bulk: Check the boxes of desired templates, click Delete button at the top to delete these templates.

Integration Steps

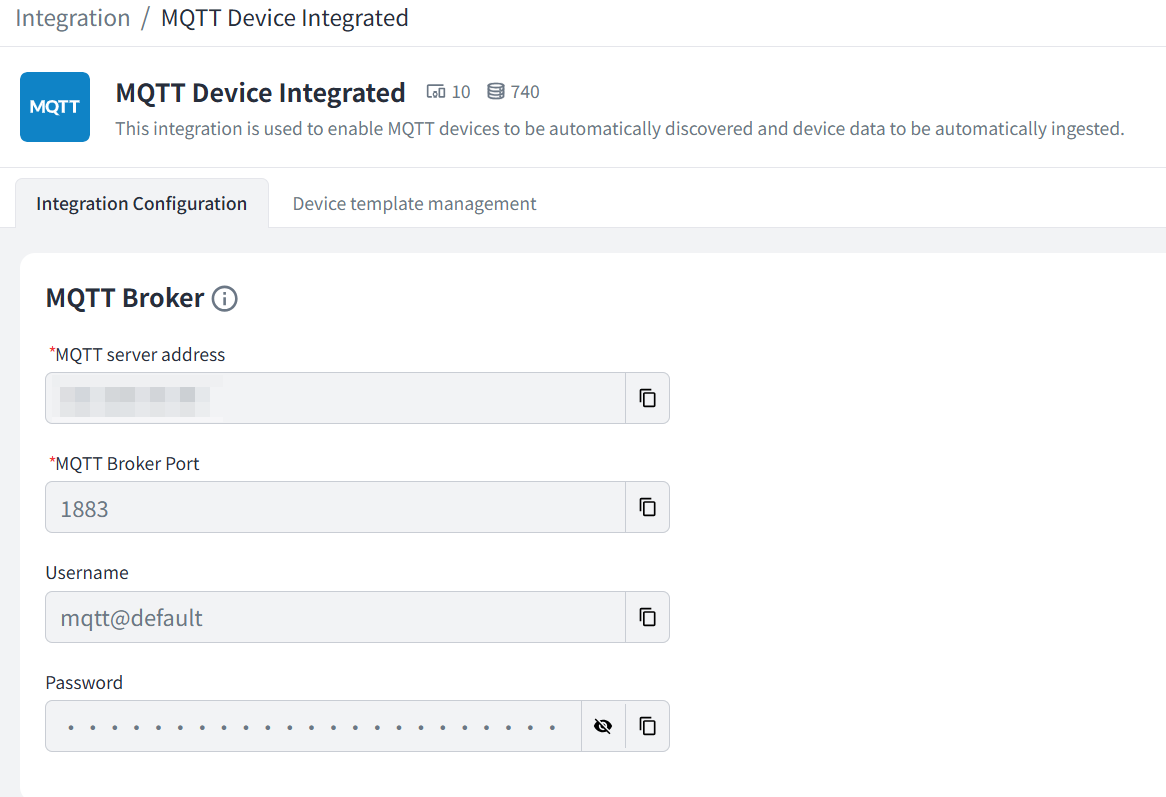

1. Go to Integration page of Beaver IoT platform and select MQTT Device Integrated integration to get MQTT broker information.



2. Go to configuration page of the MQTT device to configure the MQTT broker information, and paste the device uplink topic from device template (refer to step 2 of Add Template) .

   note

   Before configuration, ensure the MQTT device is able access the MQTT broker address of the Beaver IoT platform.

3. Save the settings and ensure the device is connected to Beaver IoT. After connected, Beaver IoT will create the device and corresponding entities automatically, which can be found on the relevant pages.
