Installation Prerequisites
Recommended Installation Scenarios
The following table lists application scenarios recommended and not recommended for the device. The device applies for many scenarios. The table lists only typical application examples. For scenarios not listed, contact Milesight for details.
| Recommendation | Installation Scenario | Example |
|---|---|---|
| Recommended | Various public spaces and their entrances/exits | Shopping malls, retail stores |
| Areas where space utilization needs to be optimized | Offices, libraries | |
| Areas requiring personnel scheduling and management | Train stations, airports | |
| Not Recommended | Locations where the device may be exposed to rain | Parks |
| Private areas | Bathrooms |
Detection Area Reference
The following table describes detection area calculation related parameters.
- Single Device Deployment
- * The "+0.05" in the formula accounts for the device's mounting offset from the ceiling surface.

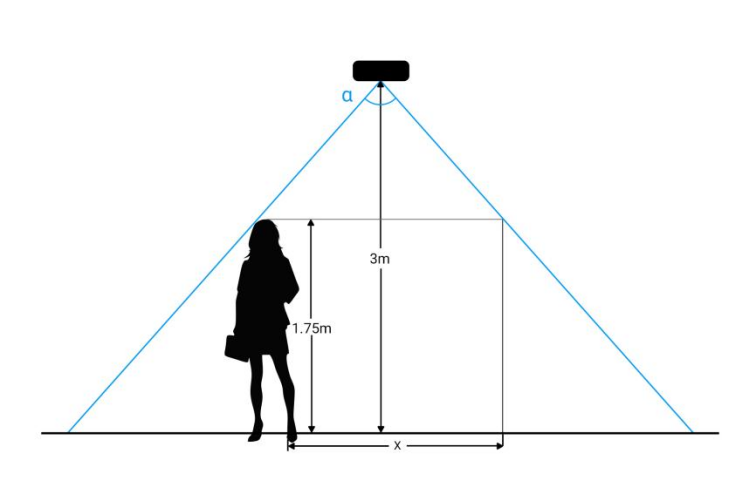

Table 1. Parameter Definition Parameters Description Value H Installation height 2.2 - 6 m If attribute identification is required, refer to the following table for the installation height requirements:Attribute Identification Installation height Children&Adult Differentiation 2.2 - 4m Gender Recognition 2.2 - 4m Staff Detection 2.2 - 4m Group Counting 2.2 - 6 m View Direction Detection 2.2 - 4m h Target height Example 1.7 m α Horizontal field of view angle 101° β Vertical field of view angle 70° x Detection range length 2 × tan(α/2) × (H-h+0.05)* y Detection range width 2 × tan(β/2) × (H-h+0.05)* The detection area depends on the device's field of view angle, installation height, and target height. The following figure uses the horizontal field of view angle, an installation height of 3 meters, and a target height of 1.75 meters as an example for illustration.
Example: For a 1.75 m target height, the detection area for each installation height is as follows:
Table 2. Detection Area Installation Height (m) Detection Area (m2) 2.2 1.21 × 0.7 2.5 1.94 × 1.12 3.0 3.16 × 1.82 3.5 4.37 × 2.52 4.0 5.58 × 3.22 4.5 6.80 × 3.92 5.0 8.01 × 4.62 5.5 9.23 × 5.32 6.0 10.44 × 6.02
- Multi-Device Deployment
-

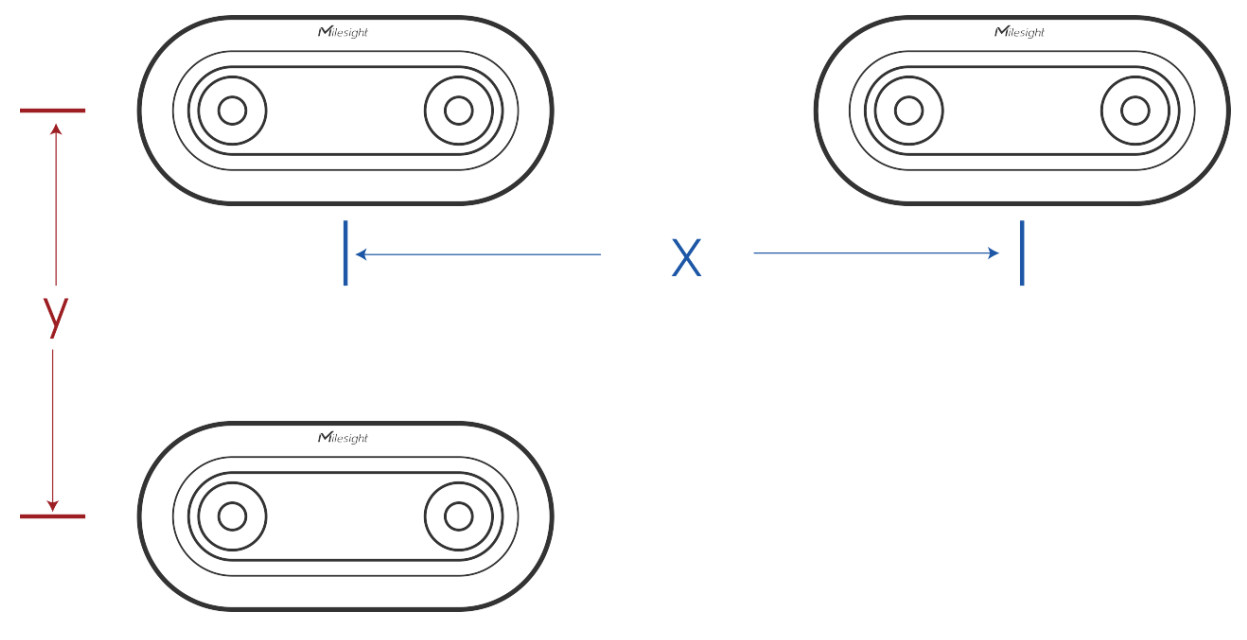

Table 3. Parameter Definition Parameters Description Value H Installation height 2.2 - 6 m If attribute identification is required, refer to the following table for the installation height requirements:Attribute Identification Installation height Children&Adult Differentiation 2.2 - 4m Gender Recognition 2.2 - 4m Staff Detection 2.2 - 4m Group Counting 2.2 - 6 m View Direction Detection 2.2 - 4m h Target height Example 1.7 m α Horizontal field of view angle of each device 101° β Vertical field of view angle of each device 70° x Detection range length of each device x = 2 × tan(α/2) × (H-h+0.05) for each device y Detection range width of each device y = 2 × tan(β/2) × (H-h+0.05) for each device a Number of devices required along the coverage length Coverage length ÷ x, Round to the nearest integer based on deployment requirements b Number of devices required along the coverage width Coverage width ÷ y, Round to the nearest integer based on deployment requirements Example: For a 6 m × 3 m (length × width) coverage area, with the devices installed at a height of 3 m (H) and a target height of 1.75 m (h):x = 3.16 m, a: Coverage length ÷ x = 6 ÷ 3.16 ≈ 1.90 ≈ 2 devices
y = 1.82 m, b: Coverage width ÷ y = 3 ÷ 1.82 ≈ 1.65 ≈ 2 devices
Conclusion: 2 × 2 = 4 devices are required for complete coverage of the 6 m*3 m area.
