Install the Device

WT401 supports both wall screw mounting and wall plate mounting. Please select the appropriate method based on your needs.

Requirements

  • The wall structure shall be sufficiently solid and stable to ensure firm screw fixation and overall mounting stability.
  • Screw mounting positions must avoid internal wall electrical wiring, water pipes and other concealed utilities to prevent structural damage and potential safety hazards.

Wall Screw Mounting

Prerequisites: Screwdriver, Electrical Drill, Wall Mount Screw Sets, Anti-theft Fixing Screw

Steps:

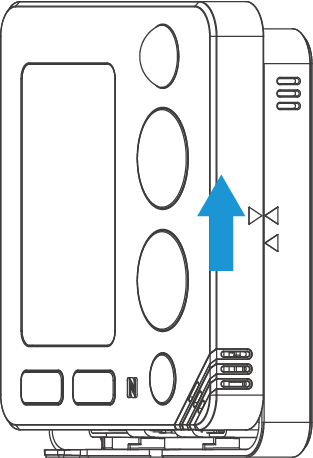

  1. Remove front panel from the device.

  2. Install the power cable or batteries to the device as described in Power Supply chapter.
  3. Drill two holes in the wall aligned with the wall-mount holes of the device.
  4. Insert the wall plugs into the drilled holes.

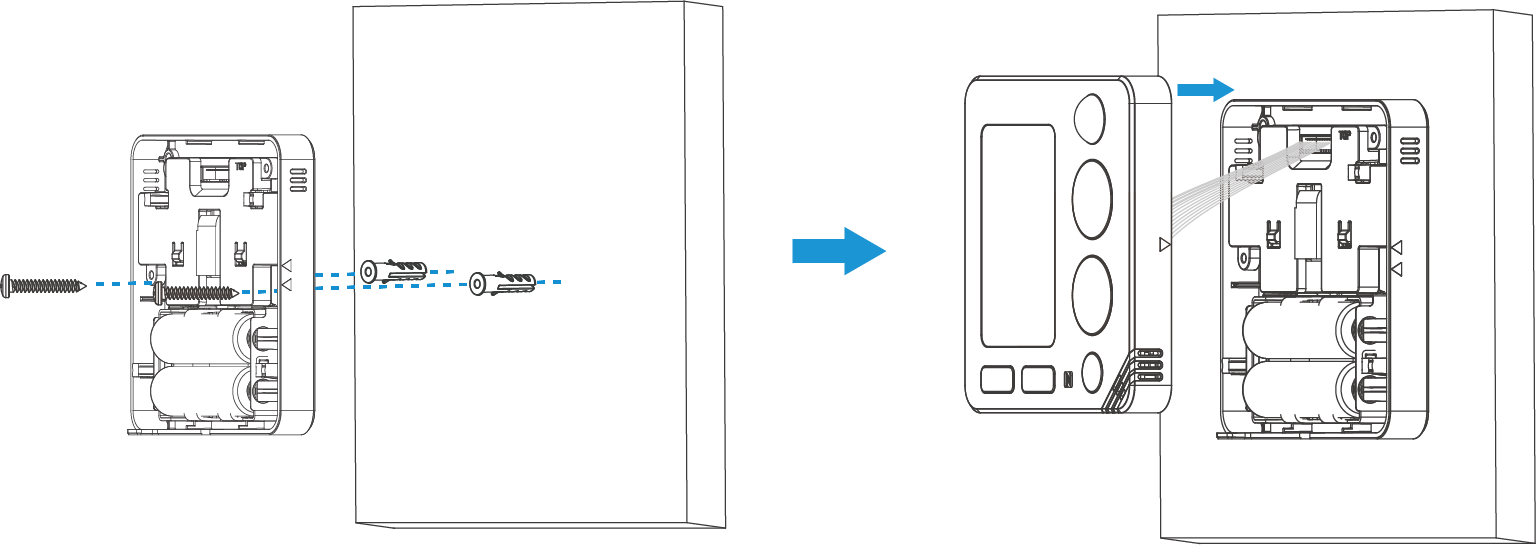

  5. Fasten the device to the wall plugs with the supplied wall mounting screws.

  6. Restore the front panel to the device.

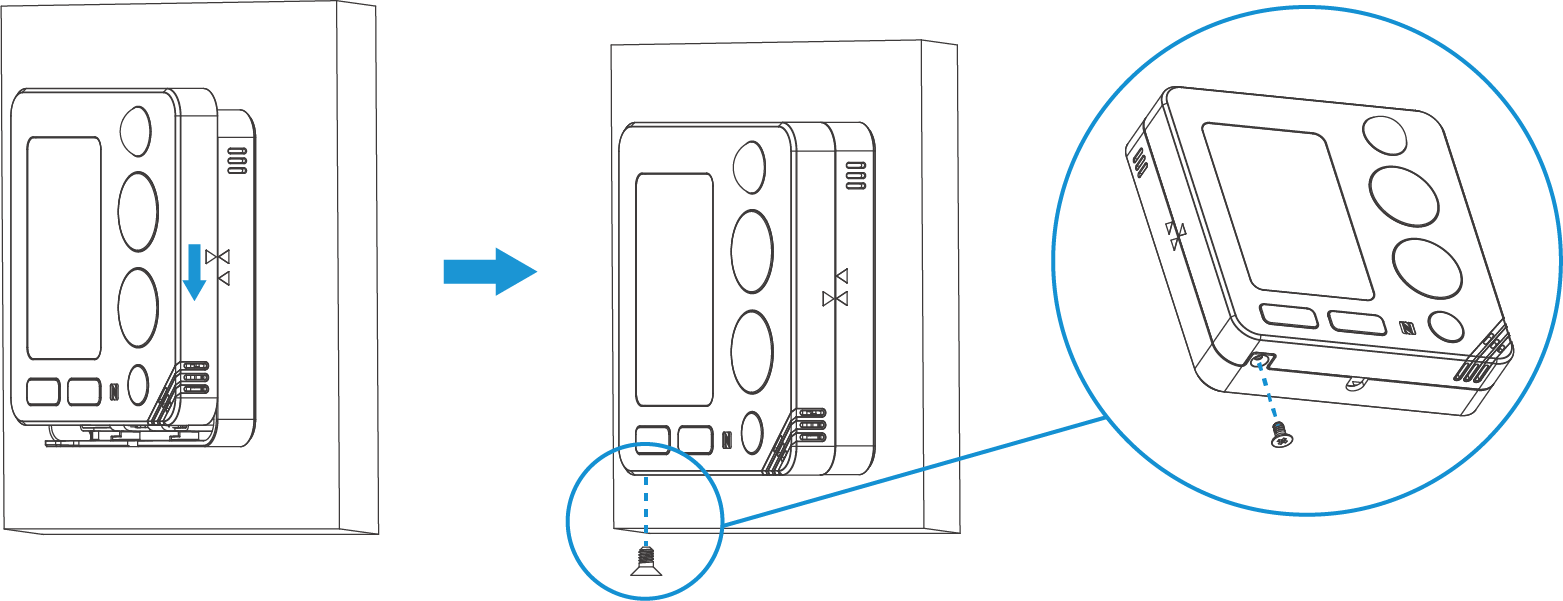

  7. Secure the bottom of the device using the anti-theft fixing screw.

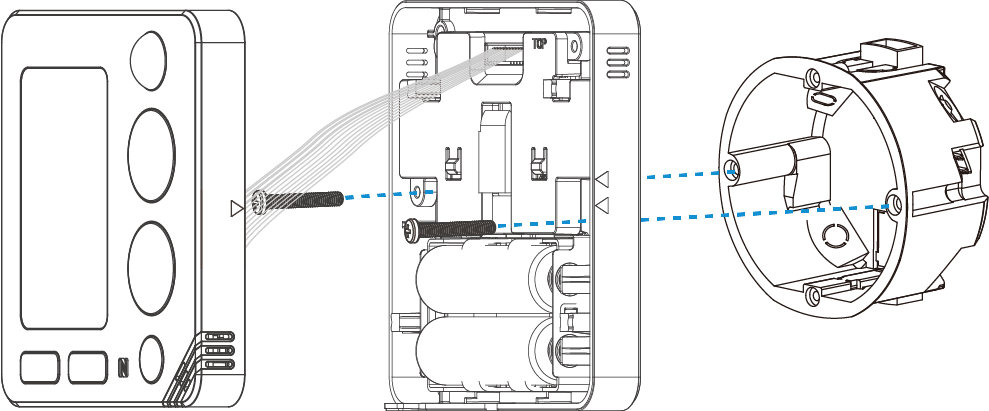

Tip: The device can be mounted to either an 86mm pattress box or a European 60mm pattress box using suitable mounting screws.

Wall Plate Mounting (60/86mm Box Optional)

Applicable: Standard 86mm pattress box, European 60mm pattress box.

Prerequisites: Screwdriver, Wall Plate Kit, Anti-theft Fixing Screw

Steps:

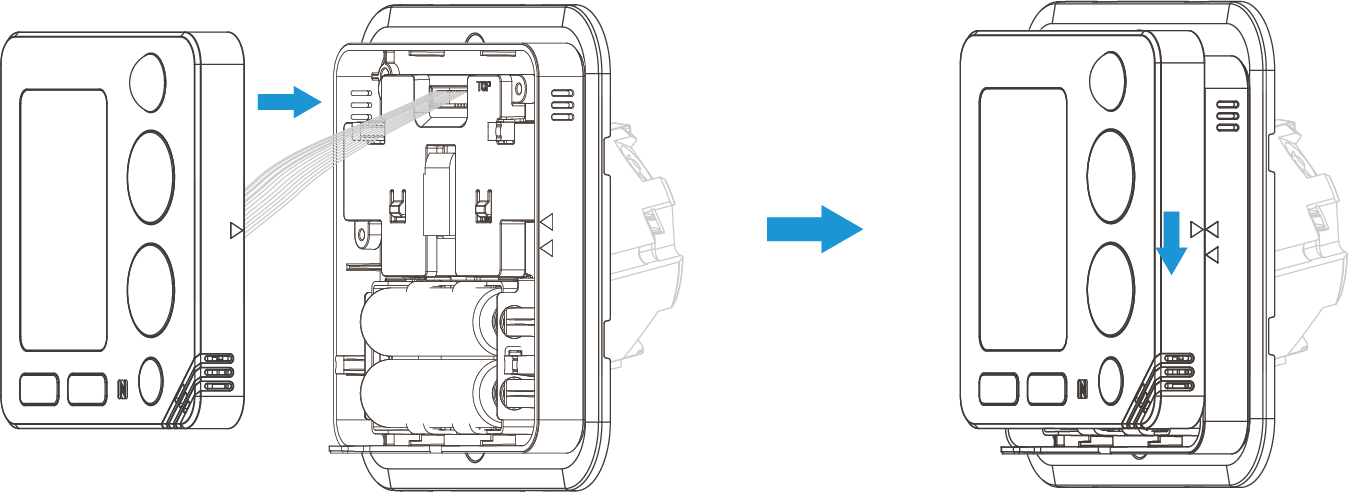

  1. Remove front panel from the device.

  2. Install the power cable or batteries to the device as described in Power Supply chapter.

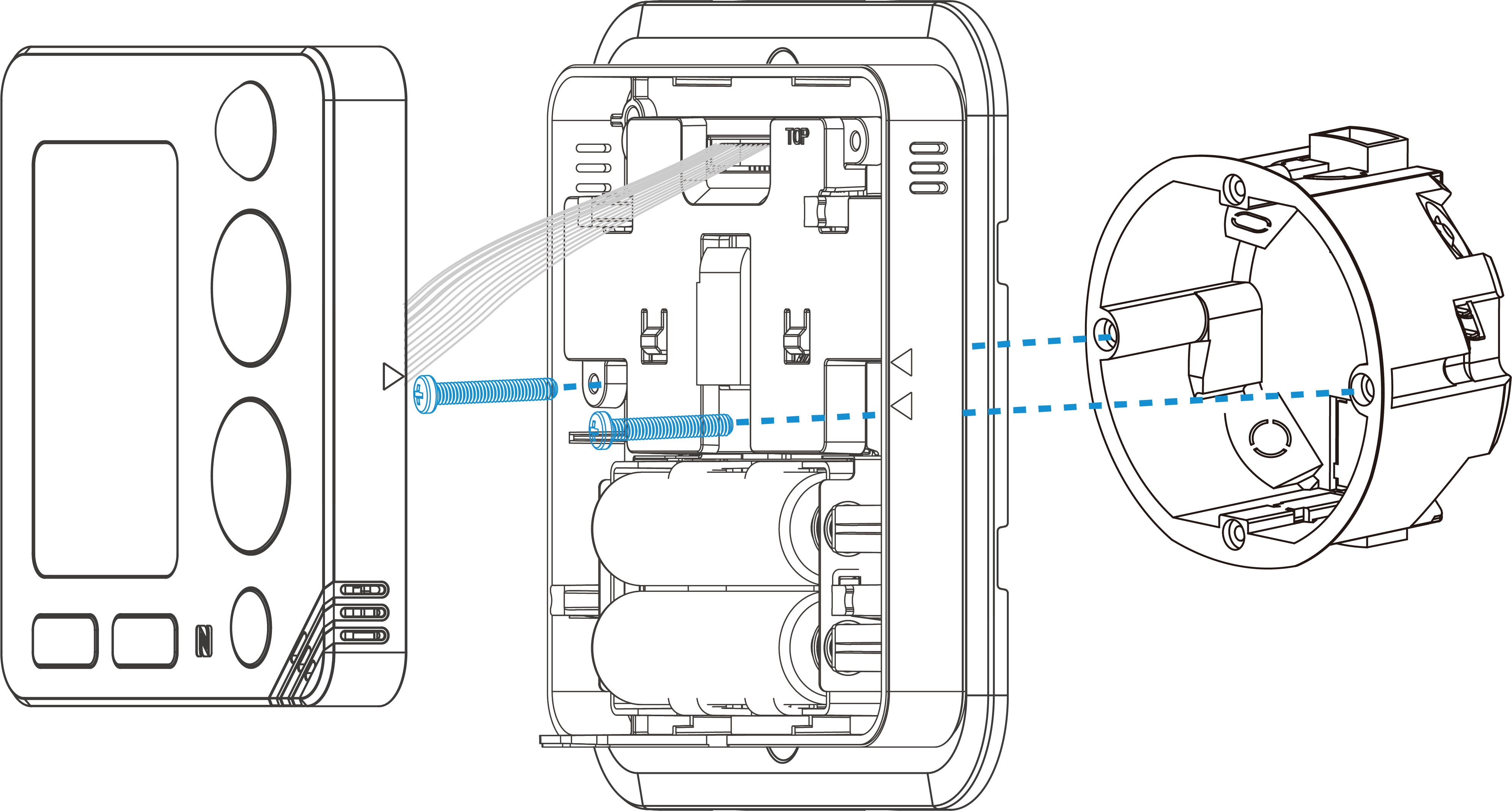

  3. Secure the device to the wall plate using screws.

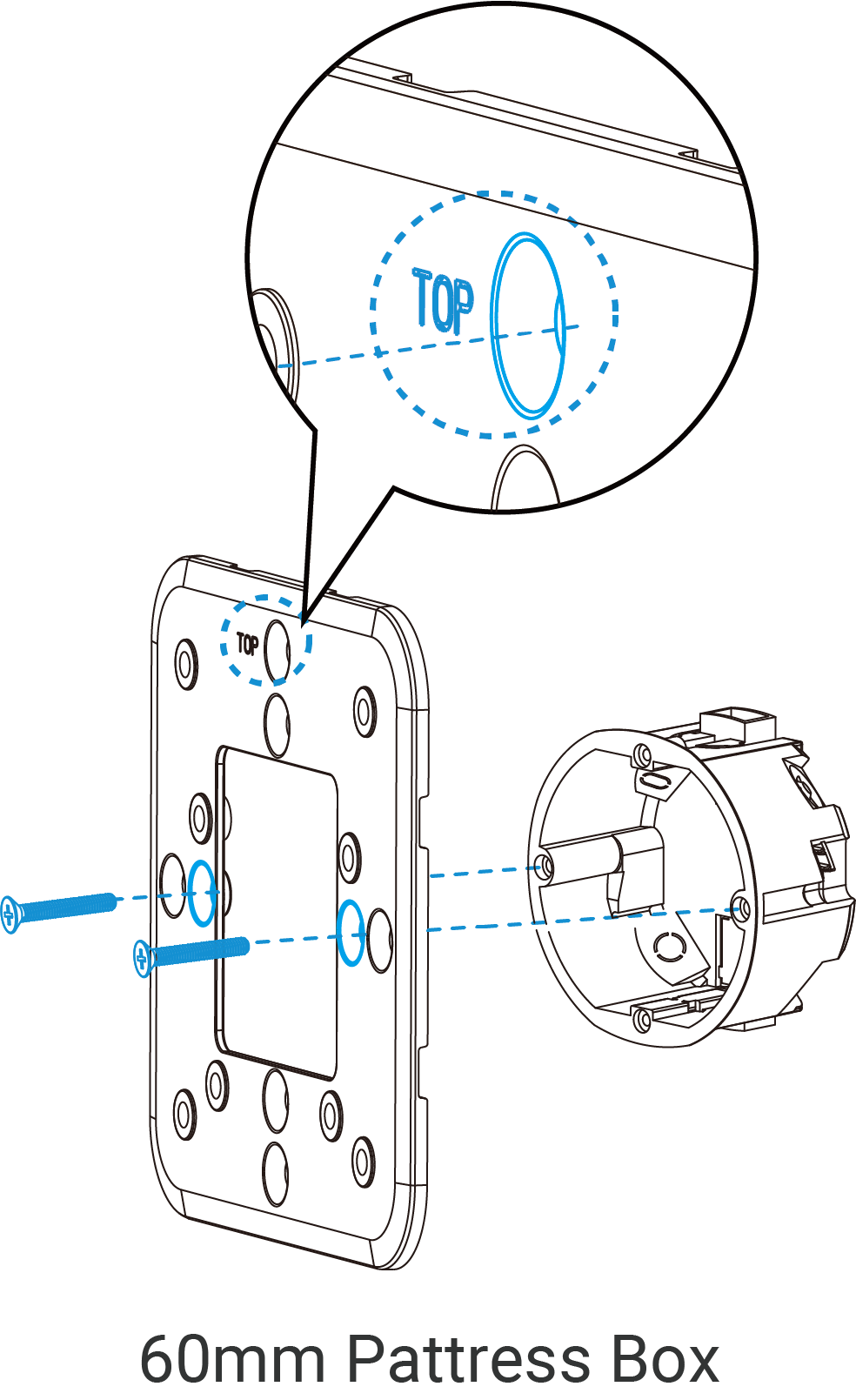

  4. Attach the wall plate and device assembly to the pattress box.

  5. Restore the front panel to the device.

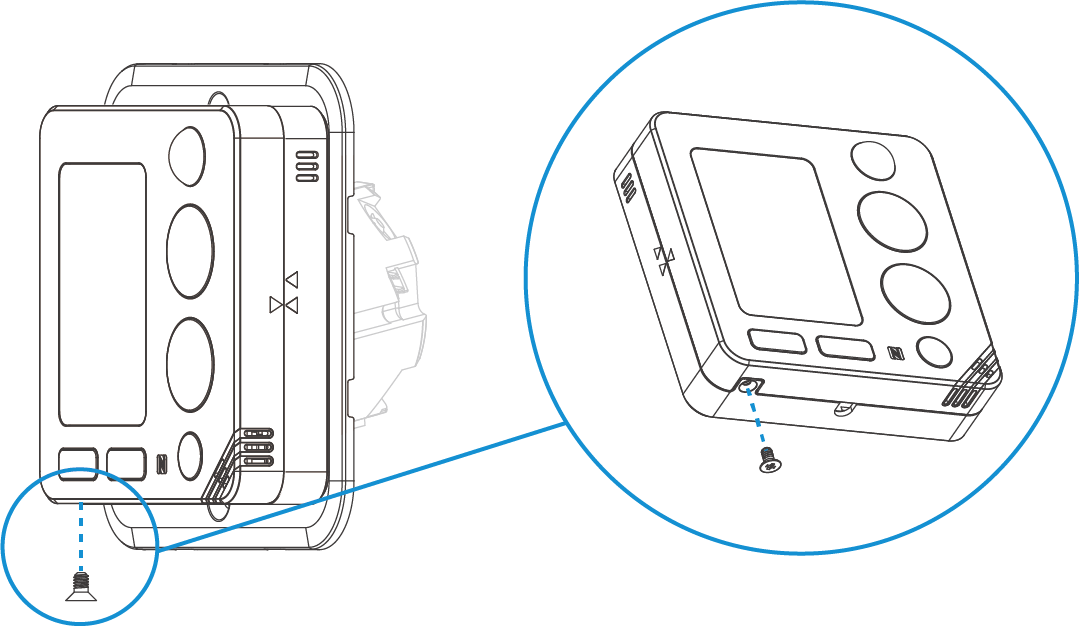

  6. Secure the bottom of the device using the anti-theft fixing screw.

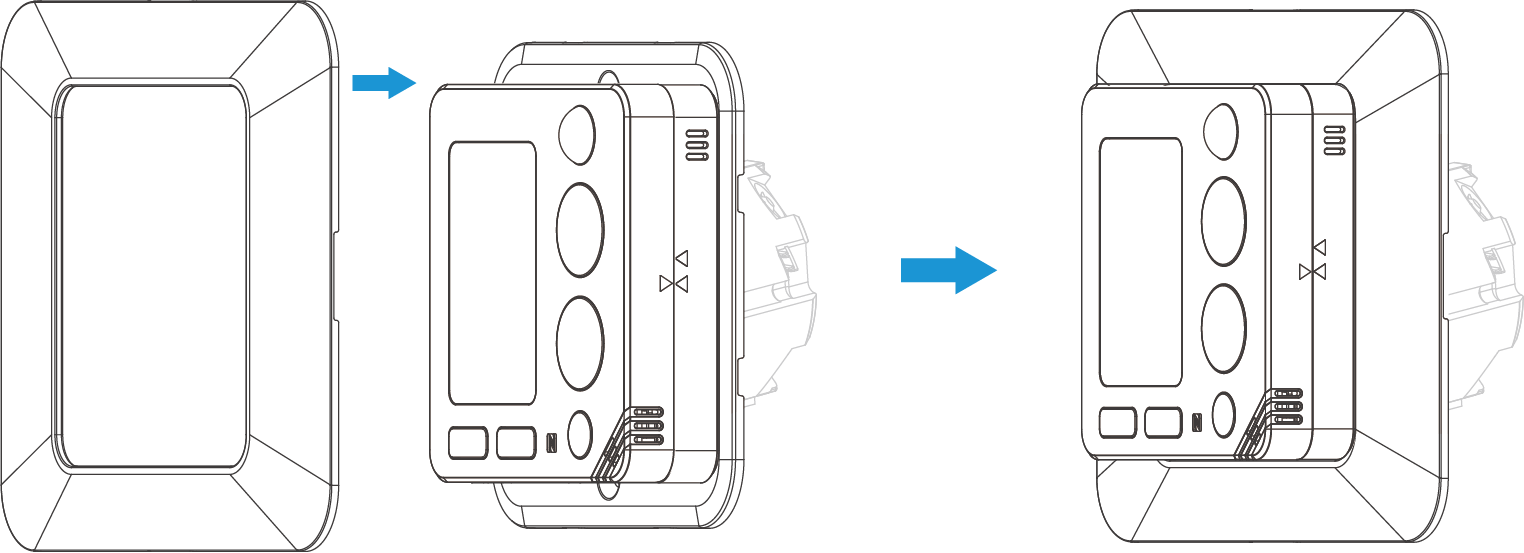

  7. Attach the decorative plate to the device.

Wall Plate Mounting (60/86/118/120mm Box Optional)

Applicable: Standard 86mm pattress box, European 60mm pattress box, 118/120mm pattress box.

Prerequisites: Screwdriver, Wall Plate Kit, Anti-theft Fixing Screw

Steps:

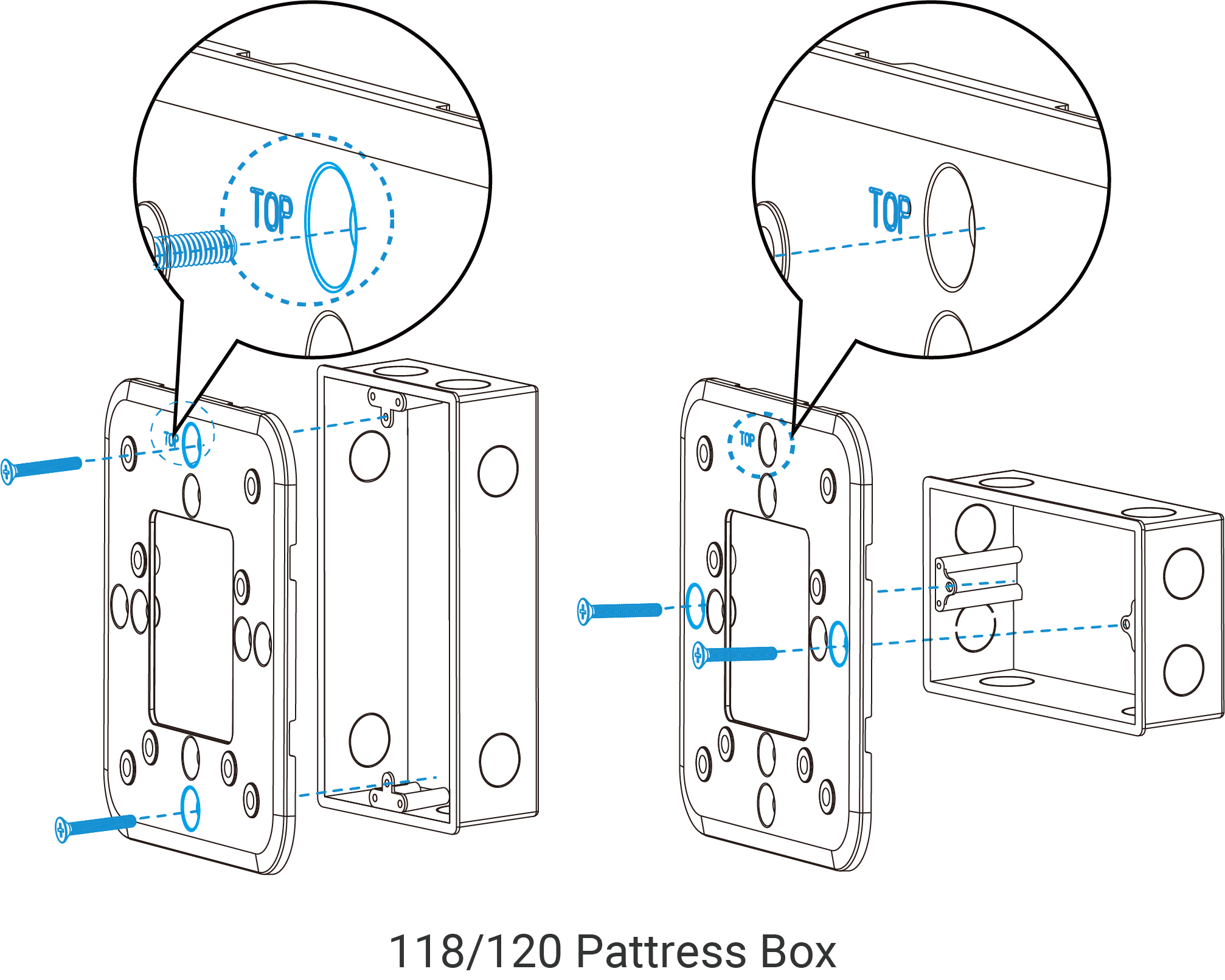

  1. Secure the wall plate to the pattress box using screws.



  2. Remove front panel from the device.

  3. Install the power cable or batteries to the device as described in Power Supply chapter.

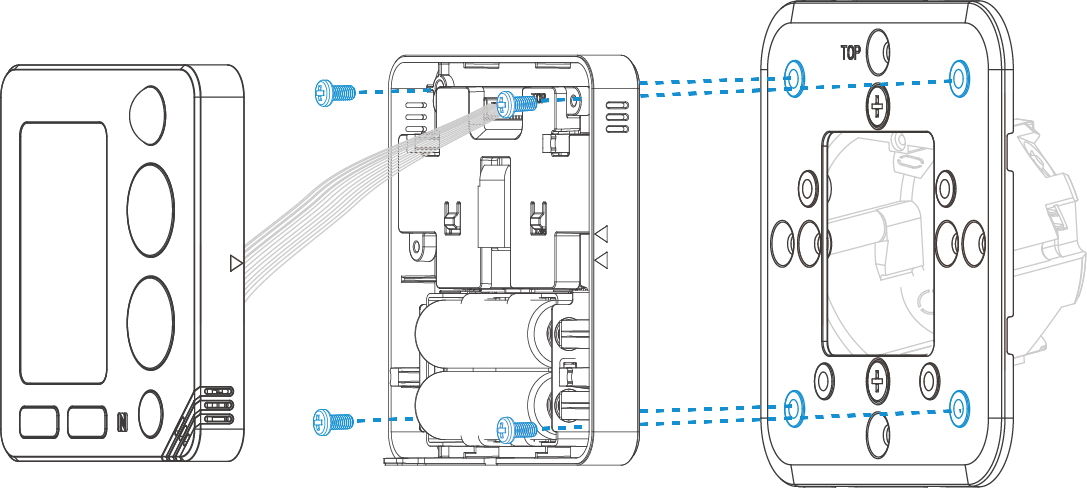

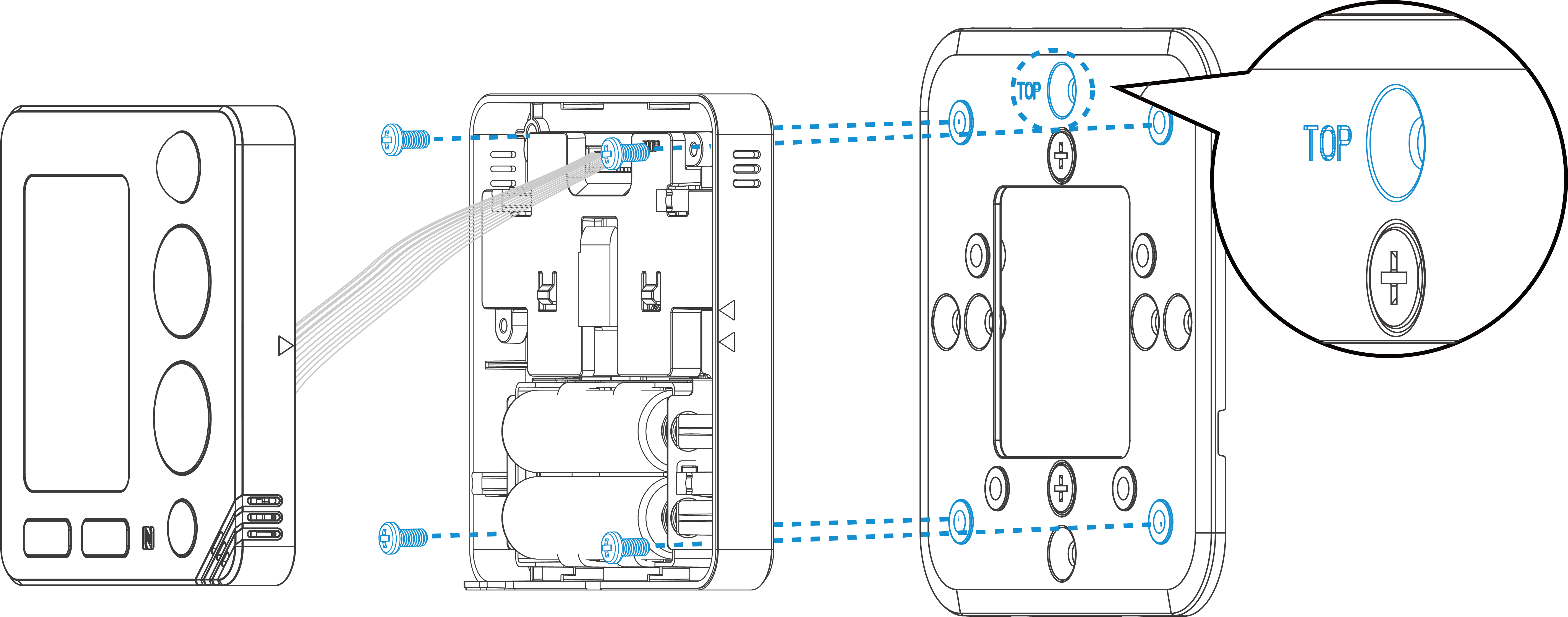

  4. Secure the device to the wall plate using screws.

  5. Restore the front panel to the device.

  6. Secure the bottom of the device using the anti-theft fixing screw.

  7. Attach the decorative plate to the device.
