Dispositivos implementados: UR32 * 100+ unidades
PoE PSE
Monitorización en tiempo real
España
Dispositivos implementados: UR35 * 200+ unidades
Open VPN
Puertos seriales
México
Dispositivos implementados: UR32 * 100+ unidades
Failover y backup WAN
Python SDK
Chile
Dispositivos implementados: UR75 * 200+ unidades
WiFi de doble banda (2.4GHz y 5GHz)
España
Dispositivos implementados: UR32L * 1300+ unidades
Conexión 4G LTE rápida y estable 24/7
España
España
Open VPN, WireGuard VPN y más
Python SDK
RS485 | RS232
Dual SIM
GNSS | GPS

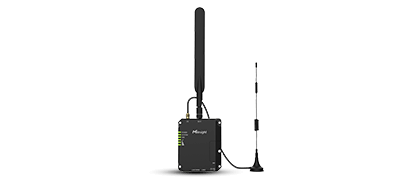

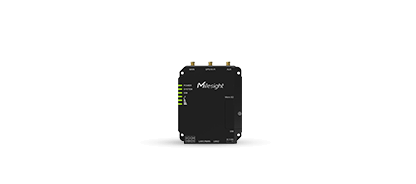

El UR32 4G proporciona a las IPC una conectividad de red segura, confiable y adaptable , asegurando la seguridad e integridad de los datos de videovigilancia. Garantiza una monitorización en tiempo real estable y mejora la seguridad urbana. Con PoE PSE, se puede simplificar la implementación y reduce el coste de switch extra.

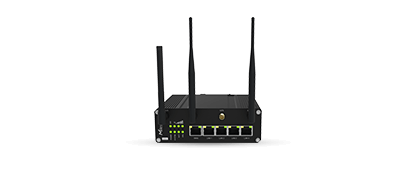

El UR35 se conecta con cámara de guía para aparcamiento, terminales de pago y sistemas de reconocimiento de matrículas mediante puertos seriales, asegurando la transmisión de datos en tiempo real y el control centralizado. Protege tus datos con Open VPN y múltiples protocolos. Simplifica el mantenimiento y reduce costos con la gestión remota.

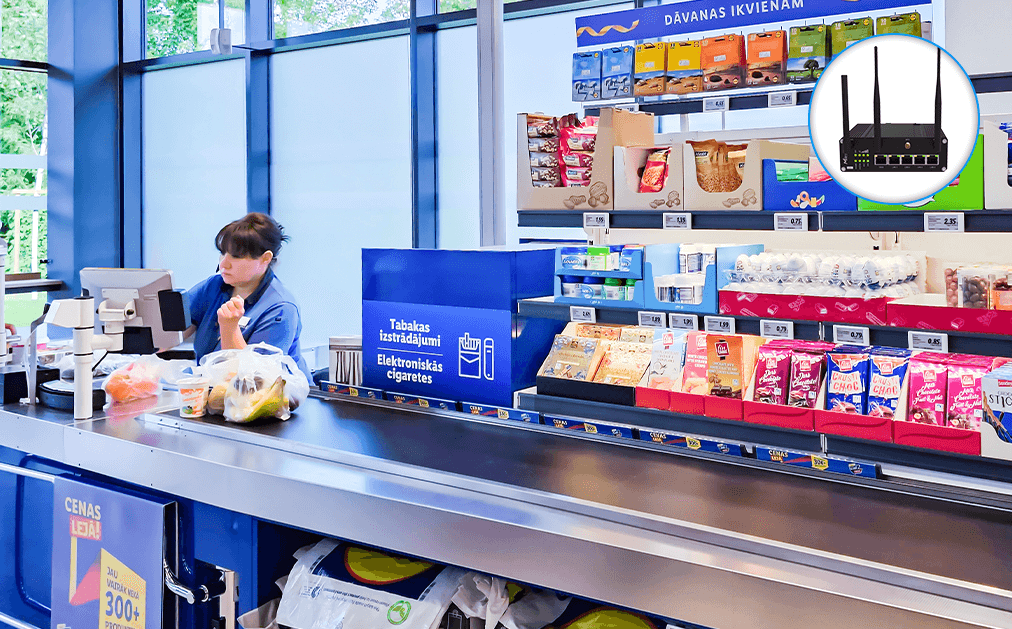

El UR32 dual SIM soporta failover y backup WAN, garantizando la estabilidad y la seguridad de red para retail stores. La función Python SDK integrada permite el desarrollo secundario para que el integrador de sistema pueda añadir la función extra, mejorando la complebilidad y competitividad de la solución. La gestión remota reduce costos operativos y de mantenimiento.

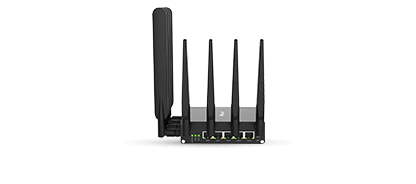

Milesight 5G routers ofrecen mayor ancho de banda y menor latencia, asegurando una rápida conexión de dispositivos IoT en estaciones. El WiFi de doble banda (2.4GHz y 5GHz) reduce la interferencia para conexiones confiables. Conecta más dispositivos simultáneamente para una comunicación y colaboración eficiente.

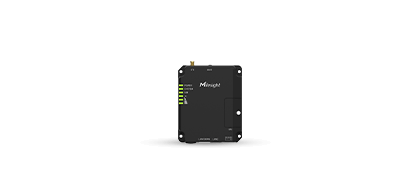

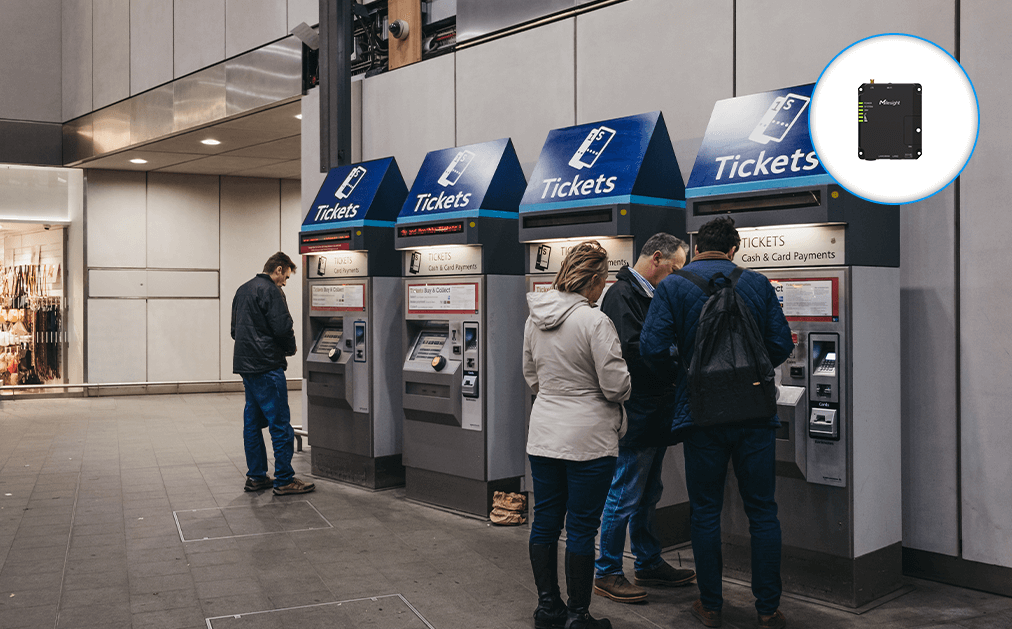

El lite router UR32L es resistente y compacto, fácil de instalar en kiosk, ofreciendo una conexión 4G LTE rápida y estable 24/7. Con la plataforma de gestión remota, puede monitorear y gestionar la red en tiempo real, realizar mantenimiento remoto y reducir costos de mantenimiento en el sitio.
4G Routers
5G Routers
| Performance | |||||
|---|---|---|---|---|---|
| CPU | 528 MHz,ARM Cortex-A7 | 528 MHz,ARM Cortex-A7 | 528 MHz,ARM Cortex-A7 | 528 MHz,ARM Cortex-A7 | 528 MHz,ARM Cortex-A7 |
| Storage Technologies | Memory：128 MB DDR3 RAM Flash：128MB | Memory：128 MB DDR3 RAM Flash：128MB | Memory：128 MB DDR3 RAM Flash：128MB Extended Memory： 1 x Micro SD Slot | Memory：128 MB DDR3 RAM Flash：128MB Extended Memory： 1 x Micro SD Slot | Memory：128 MB DDR3 RAM Flash：128MB Extended Memory： 1 x Micro SD Slot |
| Python | NA | NA | NA | √ | √ |
| Backhaul | |||||
| 4G | 1 x SIM Slot | 1 x SIM Slot | 1 x SIM Slot | 2 x SIM Slots | 2 x SIM Slots |
| Ethernet | 1 x 10/100 Mbps(LAN) | 2 x 10/100 Mbps | 2 x 10/100 Mbps | 2 x 10/100 Mbps | 5 x 10/100 Mbps |
| Wi-Fi | N/A | N/A | 2.4 GHz | 2.4 GHz (Optional) | 2.4 GHz (Optional) |
| VRRP | √ | √ | √ | √ | √ |
| WAN Fail-over | NA | √ | √ | √ | √ |
| Communication Ability | |||||
| Network Protocol | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. |
| MQTT | √ | √ | NA | √ | √ |
| Modbus | √ | NA | NA | √ | √ |
| Communication Security & Quality | |||||
| QoS | √ | √ | √ | √ | √ |
| VPN | OpenVPN / IPsec / L2TP / PPTP / GRE / DMVPN Client, OpenVPN / IPsec Server | OpenVPN / IPsec / L2TP / PPTP / GRE / DMVPN Client, OpenVPN / IPsec Server | OpenVPN / IPsec / L2TP / PPTP / GRE / DMVPN Client, OpenVPN / IPsec Server | OpenVPN / IPsec / L2TP / PPTP / GRE / DMVPN Client, OpenVPN / IPsec Server | OpenVPN / IPsec / L2TP / PPTP / GRE / DMVPN Client, OpenVPN / IPsec Server |
| Firewall | Access Control (ACL), DMZ, Port Mapping (DNAT), MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules |
| IP Passthrough | √ | √ | √ | √ | √ |
| AAA | Radius, TACACS+, LDAP, Local Authentication | Radius, TACACS+, LDAP, Local Authentication | Radius, TACACS+, LDAP, Local Authentication | Radius, TACACS+, LDAP, Local Authentication | Radius, TACACS+, LDAP, Local Authentication |
| Multi-interfaces | |||||
| Serial Ports | 1 x RS232 or RS485 (Software Switchable) | N/A | N/A | 1 x RS232 or RS485 (Hardware Optiona) | 1 × RS232 + 1 × RS485 (or 2 X RS485 Hardware Optional) |
| DI/DO | 1 × DI + 1 × DO | N/A | N/A | 1 × DI + 1 × DO | 1 × DI + 1 × DO |
| USB 2.0 | √ | N/A | N/A | N/A | N/A |
| GNSS | √ | N/A | N/A | Optional | Optional |
| Power | |||||
| Power Input | 5-24 VDC or 5V/1A by USB | 9-48 VDC | 9-48 VDC | 9-48 VDC | 9-48 VDC |
| PoE PSE | N/A | Optional | Optional | Optional | Optional |
| Power Consumption | Idle: 78mA@12V Data link: 226mA (peak)@12V Standby mode: 6.3 mA@12V | Typical 1.8 W, Max 2.2 W | Typical 1.8 W, Max 2.2 W | Typical 1.9 W, Max 2.4 W | Typical 3.9 W, Max 4.6 W |
| Management | |||||
| CLI | √ | √ | √ | √ | √ |
| SMS Control | √ | √ | √ | √ | √ |
| SNMP | √ | √ | √ | √ | √ |
| TR069 | √ | √ | N/A | √ | √ |
| DeviceHub | √ | √ | √ | √ | √ |
| MilesightVPN | √ | √ | √ | √ | √ |
| Strucal Design | |||||
| Size | 70 x 55 x 22 mm | 108 x 90 x 26 mm | 108 x 90 x 26 mm | 108 x 90 x 26 mm | 135 x 103x 45 mm |
| Protection | IP30 | IP30 | IP30 | IP30 | IP30 |
| Application Fearures | |||||
| In small embedded and require low power consumption scenario such as solar Powered monitoring,smart street light system, track and retail monitoring... | In small embedded and require low power consumption scenario such as solar Powered monitoring,smart street light system, track and retail monitoring... | In small embedded scenario and compatible to Milesight VMS platform directly | In small embedded and require low power consumption scenario such as solar Powered monitoring,smart street light system, track and retail monitoring... | With more interfaces and stronger performance for the industries and business buildings | |
| Performance | |||||
|---|---|---|---|---|---|
| CPU | 2GHz, Quad-Core ARM Cortex-A55 | 2GHz, Quad-Core ARM Cortex-A55 | 2GHz, Quad-Core ARM Cortex-A55 | ||
| Storage Technologies | Memory:1 GB LDDR4x RAM Flash:1 GB NAND Flash | Memory:1 GB LDDR4x RAM Flash:1 GB NAND Flash | Memory:1 GB LDDR4x RAM Flash:1 GB NAND Flash | ||
| Second Development | |||||
| Node Red | √ | √ | N/A | ||
| Backhaul | |||||
| 5G NR SA&NSA/4G/3G | 2 x SIM Slots | 1 x SIM Slots | 1 x SIM Slots | ||
| Ethernet | 10/100/1000 Mbps (1*WAN&4*LAN) | 2 × 10/100/1000 Mbps (1*WAN&1*LAN or 2*LAN) | 10/100/1000 Mbps(1* AN) | ||
| Wi-Fi 6 | √ | √ | Wi-Fi 5 | ||
| Stability Function | |||||
| VRRP | √ | N/A | N/A | ||
| WAN Fail-over | √ | √ | N/A | ||
| Communication Ability | |||||
| Network Protocol | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, ARP, SSH, VLAN, etc. | ||
| DDNS | √ | √ | N/A | ||
| Modbus | √ | √ | N/A | ||
| Communication Security & Quality | |||||
| QoS | N/A | ||||
| VPN | OpenVPN/IPsec/L2TP/PPTP Client, OpenVPN/IPsec Server | OpenVPN/IPsec/L2TP/PPTP Client, OpenVPN/IPsec Server | OpenVPN/IPsec Client, OpenVPN/IPsec Server | ||
| Firewall | Access Control (ACL), DMZ, Port Mapping (DNAT), DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | Access Control (ACL), DMZ, Port Mapping (DNAT), DoS&DDoS Protection, Filtering(IP&Domain), custom iptables rules | ||
| IP Passthrough | √ | √ | N/A | ||
| Multi-interfaces | |||||
| Serial Ports | 1 × RS232 + 1 × RS485 | 1 × RS485 (RS232 Hardware Optional) | N/A | ||
| DI/DO | 1 × DI + 1 × DO | 1 × DI + 1 × DO | N/A | ||
| USB 3.0 | √ | √ | √ | ||
| GNSS | √ | √ | √ | ||
| Power | |||||
| Power Input | 9-48 VDC or 5V/3A by USB | 9-48 VDC or 5V/3A by USB | 9-48 VDC or 5V/3A by USB | ||
| PoE PSE | √ | N/A | N/A | ||
| PoE PD | N/A | √ | N/A | ||
| Management | |||||
| DeviceHub | √ | √ | √ | ||
| MilesightVPN | √ | √ | √ | ||
| SNMP | √ | √ | N/A | ||
| Strucal Design | |||||
| Size | 135 x 115 x 36.4 mm | 105 x 110 x 218 mm | 90 x 72 x 15 mm | ||
| Protection | IP30 | IP67 | IP30 | ||
| Application Fearures | |||||
| 5G Routers for ultra-fast 5G communication in industrail applications | Fix and ultra-fast connection foroutdoor deployment and moving vehicles | Compact design for embedded scenarios with ultra-fast 5G communication | |||
