Milesight 5G CPE
Reliable and Ultra-Fast 5G Connectivity
UF51
Unleash Your Imagination with Milesight 5G CPE
Designed to deliver intelligence and high-speed network connectivity for more connected devices.
- Aesthetic Design
- 5G Ultra Fast Processing Speed
- Ample Memory and Storage Capacity
- Wi-Fi 6 & Dual Band Supported
- Built-in Omnidirectional Antennas
- Highly-Accurate GNSS Positioning
- NSA & SA Modes
- IP67 Rating & UV Resistance
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD

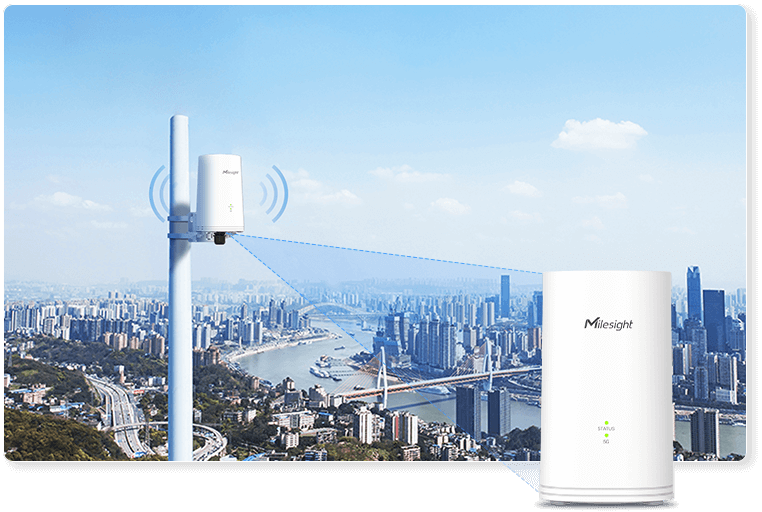

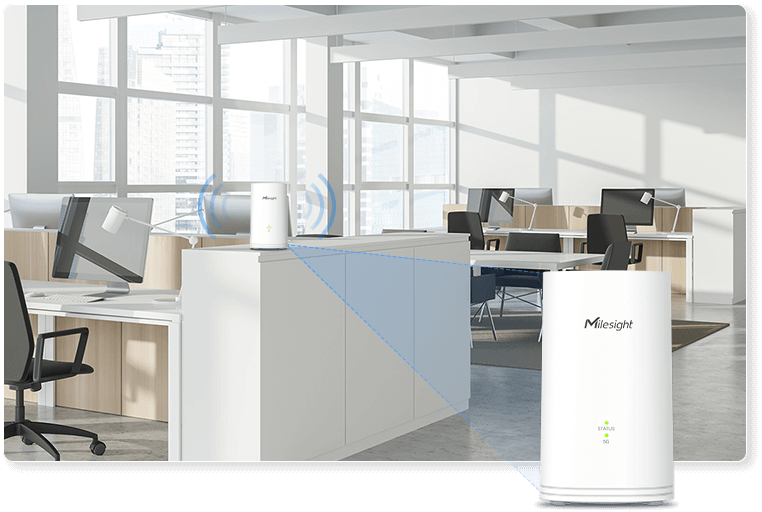

Aesthetic Design
Unlike its powerful performance would suggest, the sleek design makes the 5G CPE fit in your surroundings nicely and neatly.
Outstanding Performance
5G CPE offers faster processing speeds and ample memory and storage capacity, which allows for improving performance, efficiency, and versatility.
- ARM Cortex-A55 Processor
- 1 GB LDDR4x RAM
- 1 GB NAND Flash
Fast, Like No One Before
The 5G CPE delivers fast 5G speed which is around 100 times faster than 4G, higher bandwidth, and low latency to more businesses.
How long will it take to download 12Gb file?
100
mb per second
10000
mb per second
11
6
Minutes
Seconds
Wi-Fi 6 & Dual Band Supported
The 5G CPE brings unparalleled 5G download speed. With a strong signal, more devices can be connected, and it will Level-up your network coverage.
- 2 Gbps Peak Speed
- IEEE 802.11b/g/n/ax 4 x 4 MIMO, 2.4 GHz
- IEEE 802.11a/n/ac/ax 4 x 4 MIMO, 5 GHz

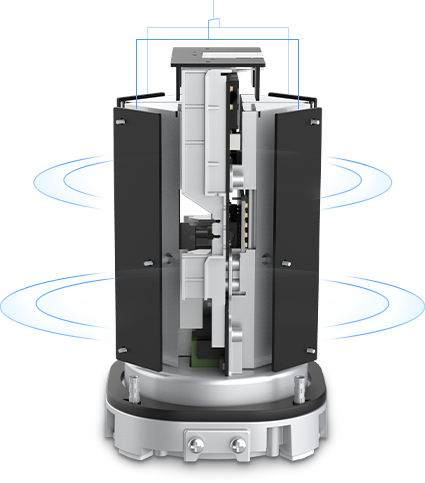

Built-in Omni Antenna
The 5G CPE is equipped with 12 built-in omnidirectional antennas including 8 cellular antennas and 4 Wi-Fi antennas for sub-6 Ghz band to receive the best signals wherever it is placed. Additionally, it features 1 GNSS antennas to realize maximum positioning performance.
13 x 5G Antennas ![built in omni antenna]( "built in omni antenna")
IP67 Rating & UV Resistance
With IP67-rated water resistance and UV resistance capacity, 5G CPE can be applied in various environments and weather conditions outdoors without being damaged by water, dust or UV. The durability is guaranteed to bring reliable performance and long service life.
Remote Management
Milesight DeviceHub offers a high-efficiency and low maintenance solution to easily deploy 5G CPE across multiple locations, reducing complexity and increasing productivity.
Simplify Your Processes with Node-RED
With compatibility with Node-RED, users can easily integrate devices, APIs, and online services effortlessly.
Accelerate Your Business in Most Environments

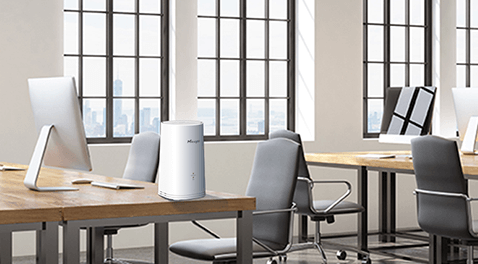

Desktop Installation

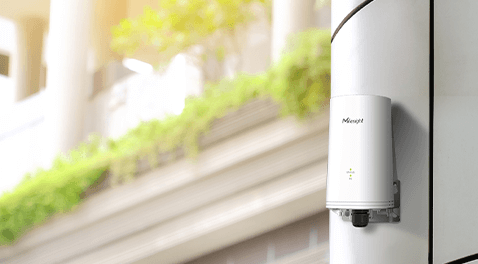

Wall Mounting

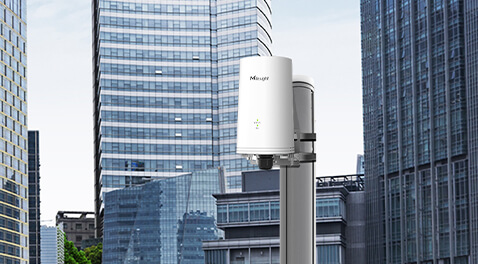

Pole Mounting
Specifications
- Hardware Specifications
- Software Specifications
| Hardware System | |
|---|---|
| CPU | Quad-core ARM Cortex-A55,2 GHz |
| Memory | 1 GB LDDR4x RAM and 1 GB NAND Flash |
| Cellular Interface | |
| Network | 5G NR SA & NSA/4G LTE/WCDMA |
| Frequency | 5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE TDD: B38/B40/B41/B42/B43 WCDMA: B1/B5/B8 |
| Antenna | 8 × Internal Antennas |
| SIM Slot | 1 (Micro SIM-3FF), 1.8V/3V |
| Ethernet Interface | |
| Numbers | 1 × 10/100/1000/ Mbps (LAN2) 1 × 10/100/1000/2500 Mbps (LAN1/WAN) |
| Property | 1 × WAN + 1 × LAN or 2 × LAN |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Ethernet Isolation | 1.5 kV RMS |
| PoE | 1 × 802.3at PoE PD on LAN1/WAN Port |
| Wi-Fi Interface (Optional) | |
| Antenna | 4 × Internal Antennas |
| Standards | IEEE 802.11b/g/n/ax 4 x 4 MIMO, 2.4 GHz IEEE 802.11a/n/ac/ax 4 x 4 MIMO, 5 GHz |
| Max Bit Rate | 2.4 GHz: 1200 Mbps, 5 GHz: 2400 Mbps |
| GNSS | |
| Antenna | 1 × Internal Antenna |
| Technology | GPS/GLONASS/Beidou/Galileo/QZSS |
| Positioning Accuracy | 2m CEP (Open Air) |
| Serial Interface | |
| Numbers | 1 × RS485 (RS232 Hardware Optional) |
| Connector | 3.5 mm Terminal Block |
| Baud Rate | 300bps to 230400bps |
| DI/DO | |
| Numbers | 1 × DI + 1 × DO, Galvanic Isolation |
| Connector | 3.5 mm Terminal Block |
| Digital Input | Dry Contact |
| Digital Output | Wet Contact, maximum 0.3A@30VDC |
| Others | |
| USB | 1 × USB 3.0 (Type-C) for network supply and debugging |
| Reset Button | 1 × RESET (Internal) |
| LED Indicators | 1 × STATUS,1 × Cellular Network |
| Power Connector | 1 × 2-pin 3.5 mm Terminal Block, with Surge-Protection and Reverse Polarity Protection |
| Built-in | Watchdog, Timer |
| Power Supply and Consumption | |
| Power Input | 1. 9-48 VDC by Power Connector 2. 802.3at PoE PD |
| Power Consumption | Without Wi-Fi: Typical 4.8 W, Max 6.5 W With Wi-Fi: Typical 9.9 W, Max 14.4 W |
| Physical Characteristics | |
| Ingress Protection | IP67 |
| Housing & Color | Polycarbonate + Cast Aluminium, White |
| Weight | 957.3g |
| Dimension | No Waterproof Connector: ф105 x 110 x 187 mm (ф4.13 x 4.33 x 7.36 in) With Waterproof Connector: ф105 x 110 x 218 mm (ф4.13 x 4.33 x 8.58 in) |
| Installation | Desktop, Pole Mounting, Wall Mounting, Bottom Screw Mounting |
| Environmental | |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 0% to 95% (Non-condensing) at 25°C/77°F |
| Approvals | |
| Regulatory | CE |
| Environmental | RoHS |
| Network | |
|---|---|
| Network Protocols | IPv4/IPv6, PPPoE, TCP, UDP, DHCP, HTTP, HTTPS, ARP, NTP, DNS, SSH, DDNS, SNMP, MQTT, MQTTS, etc |
| Routing | Static Routing |
| DDNS | Supported >14 service providers, others can be configured manually |
| IP Passthrough | Support to assign WAN IP address to the device on LAN |
| Reliability | WAN Failover |
| Diagnostics Tools | Ping, Traceroute, Nslookup, TCPDUMP, Logs, Cellular AT Command Debugger, Firewall iptables Debugger |
| Wi-Fi Interface | |
| Modes | AP or Client mode |
| Security | WEP/WPA/WPA2/WPA3 authentication, WEP/TKIP/AES encryption |
| MAC Filter | Blacklist, Whitelist |
| GNSS | |
| Protocol | NMEA0183 |
| Mode | Support reading by Serial Port, MQTT, TCP Client/Server, UDP Server |
| Security | |
| Firewalls | Access Control, DMZ, Port Mapping (DNAT), SYN-Flood Protection, Filtering(IP&Domain), Custom iptables Rules |
| Multilevel Authority | Multiple Levels of User Authority |
| VPN | |
| OpenVPN | Multiple Clients and a Server Support |
| IPsec | Multiple Clients and a Server Support |
| L2TP | L2TP Client Support |
| PPTP | PPTP Client Support |
| Others | |
| Serial Mode | Transparent(TCP Client/Server, UDP Server, MQTT Client), Modbus TCP/RTU Client, Modbus Gateway (Modbus RTU to Modbus TCP) |
| Digital Input | Support reading by SMS, MQTT |
| Digital Output | Support triggering by DI, SMS, MQTT |
| App | Node-RED |
| Management | |
| Configuration | Web, SNMP v1/v2c/v3, DeviceHub |
| Update | Web, DeviceHub |
| Device Management | DeviceHub, MilesightVPN |
| SNMP | SNMP v1/v2/v3, Support SNMP Trap |
| SMS | Send/Receive SMS, SMS Control |
| Event Alarm | System Startup/Reboot, Network Up/Down, Link Switch, VPN Up/Down, Cellular Traffic Monitoring, etc. |
12000mAh IP67 UPS Battery Backup Kit (Type-C Version)
Optional
- P/N:Type-C
- Output Voltage:5V
- Output Current:2A
- Output Port:Type-C
- Applicable Products:UG65/UR41/UR75/UF51/UG56/X1/X5/UF31/UG63
RC02 USB 3.0 Cable (C to C)
Customizable
- P/N:CC01
- Type:USB Type-C to Type-C Cable
- Color:Black
- Length:1 m
- Specification:USB 3.0, 4A
- Applicable Products:UF51/UR75
RC02 USB 3.0 Cable (A to C)
Customizable
- P/N:AC01
- Type:USB Type-A to Type-C Cable
- Specification:USB 3.0, 4A
- Color:Black
- Length:1 m
- Applicable Products:UF51/UR75
