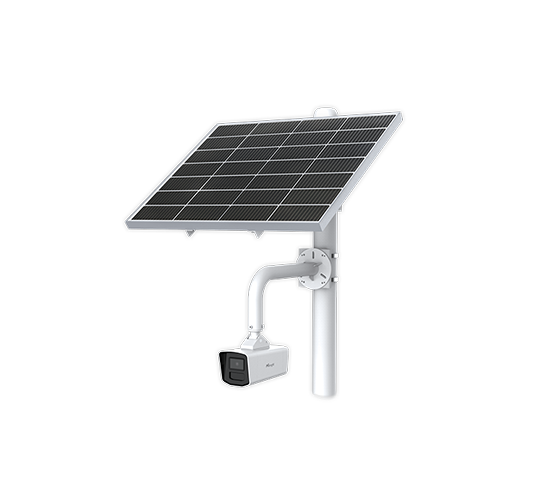

4G Solar-powered
ANPR Camera

All-in-one Kit with LPR Features, Green and Efficient!

product 1 1 small
product 2 1 small
product 3 1 small
  • 4G + Solar-powered for Quick Installation
  • 4MP High-Quality Images
  • 95% Vehicle Capture Rate & LPR Accuracy
  • Built-in High-Accuracy GPS Module
  • Up to 962Wh Battery & 2*100W Solar Panel
  • Up to 17-Day Battery Life with Continuous Recording
  • Flexible Working Mode for Enhanced Efficiency
  • FEATURES
  • MODELS
  • ACCESSORIES
  • DOWNLOAD

Make Sensing Matter, Anywhere, Anytime

Unlock the power of 24/7 remote monitoring with this groundbreaking kit. Wirelessly install in remote areas and safeguard them with advanced AI LPR technology, all controlled from a distance for enhanced security.

maxresdefault

Make Remote Security Simple

Address off-grid security challenges with Milesight innovative all-in-one kit. Designed to overcome network and power limitations, this solution leverages 4G/Wi-Fi connectivity and solar energy to provide a fully wireless system. By eliminating the need for complex wiring and traditional power sources, it cuts down on installation costs, reduces labor, and saves valuable time.

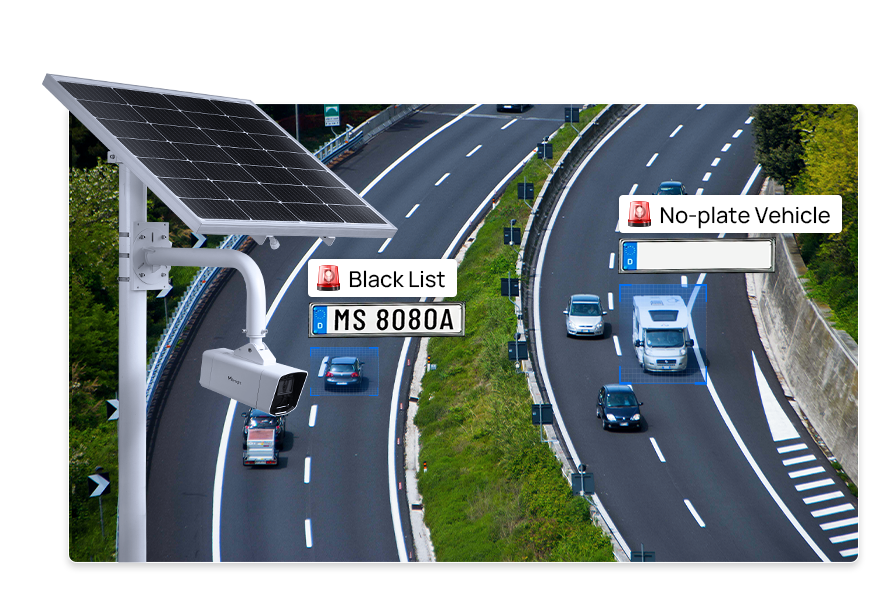

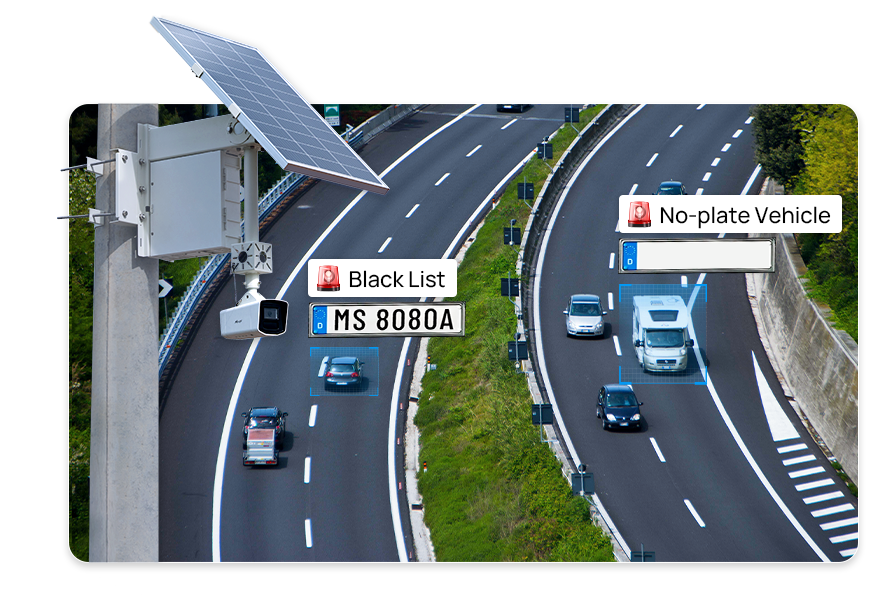

lpr features

Empowered with Intelligent Edge-AI LPR Algorithm

The cutting-edge Edge-AI LPR Algorithm is designed for superior security monitoring, enabling precise recognition of vehicle license plates and attributes. It supports black and white list alerts, detects vehicles without plates, and provides robust, traceable security management.

17 Days of Battery Life, Unmatched 24/7

Equipped with a high-capacity battery, this system powers through 17 days of continuous recording, with night-time IR and AI LPR features. Even in cloudy or rainy conditions, your security remains unbroken, ensuring round-the-clock protection and reliable video streaming when it matters most.

Go Green with Ultra-Low Power Consumption

With only 2 watts power consumption, this ultra-low power system prioritizes both security and the environment. The annual energy savings are equivalent to planting a tree, allowing you to protect your property while contributing to environmental sustainability with our eco-friendly design.

Energy-Saving or High Performance?
Flexible for Your Needs

Configuration

Recording

LPR Detection

Data Transmission

Performance

Continuous

On
(Full Frame Rate)

On/Off

Sleep

Scheduled Image Capture

Off

Off

Milesight Solar-Powered Camera offers flexible configuration to meet your security and power needs:

Performance Settings

Delivers full functionality for high-demand security situations, ensuring comprehensive monitoring and recording at maximum frame rates for the most accurate and detailed footage.

Sleep Settings

With two sleep modes—scheduled sleep and low-power sleep—this system maximizes efficiency by extending battery life up to 165 days. When needed, it can be instantly reactivated within 24 seconds to return to full performance mode, ensuring your security is always on standby and ready to deliver real-time protection.

All-in-one Kit with All-around Features

The comprehensive design of Milesight all-in-one kit ensures complete, standalone and AI-enabled functionality, making it ideal for remote and off-grid security.

Solar Panel

Up to 2*100W solar panels

Battery

Up to 962Wh ternary lithium battery

GPS

Built-in high-accuracy GPS module

4G/Wi-Fi Connectivity

Fast & reliable data transmission

Camera

  • 4MP/0.005Lux/120dB Super WDR
  • 20m IR distance
  • Up to 1TB local storage

LPR Features & Events

  • 95% Recognition accuracy of vehicle plate and attributes
  • Black/White List Event & No-plate Event

Reliability

  • IP67
  • Battery protection system ensures working in -20°C to +65℃

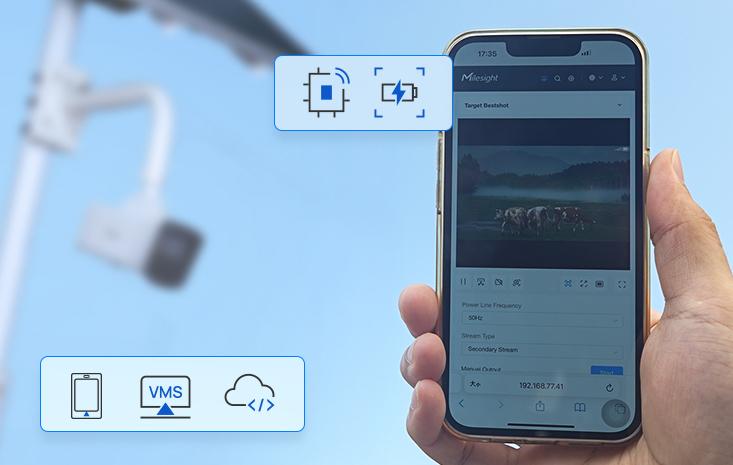

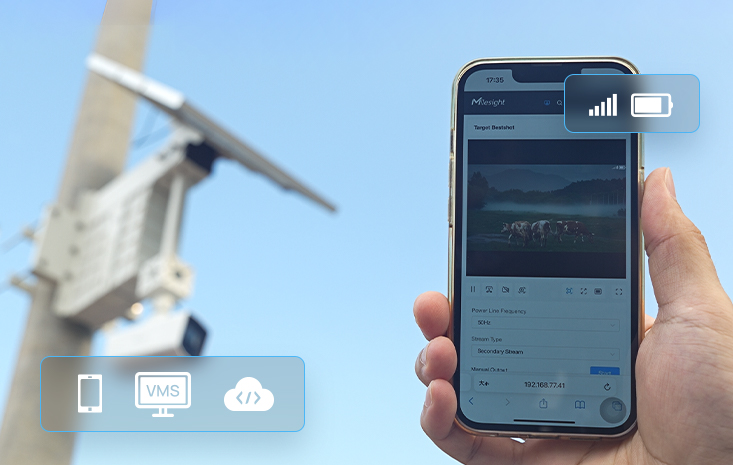

SiteGuard Suite for Seamless Remote Management

Milesight all-in-one kit comes integrated with the SiteGuard Suite, a complete back-end system featuring a cloud platform, client software, and mobile app. This powerful suite allows for remote monitoring, alerts, and management without the need for on-site presence.

app

Enhancing Security Across Various Scenarios

Remote Road

Effortlessly install in areas lacking existing infrastructure. The ultra-low power consumption and solar-powered design provide long-term, sustainable security monitoring. Ideal for tracking and recovering lost vehicles, even in remote locations.

Parking Lot

Utilizes ANPR technology to accurately capture and identify vehicle license plates, streamlining entry and exit processes while enhancing security.

Community Safety

It enhances safer neighborhoods by identifying potential threats through black & white list event, detecting suspicious vehicles, and triggering immediate alarms.

Construction Site

Its advanced ANPR technology ensures accurate monitoring of vehicle access and egress, preventing unauthorized entry and protecting valuable equipment.

Complete Off-Grid Camera Kit, Ready to Deploy

Milesight delivers a complete solar camera kit, including solar panel, battery pack, mounting accessories and camera body. With built-in SIM/SD card slot and unified interface design, everything is plug & play.

Related Products

4glpr

4G Solar-powered Traffic Sensing Network Camera

4g product

4G Solar-powered Security Network Camera

ai truecolor dual sensor panoramic 2

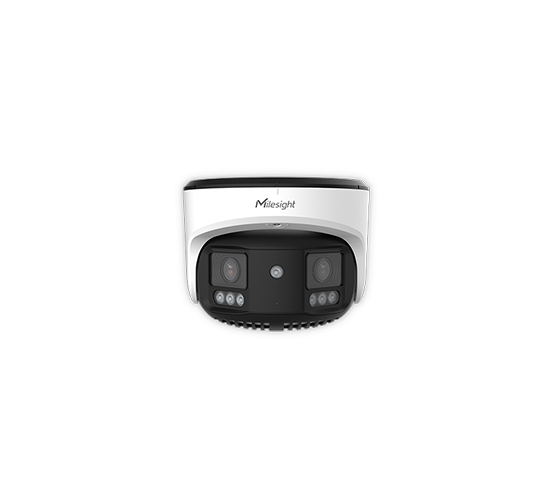

AI TrueColor Dual-sensor 180° Panoramic Camera

Specifications

Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR Wave Length850nm/740nm
IR DistanceUp to 20 m (65.62 ft)
S/N>55dB
Lens
Lens6mm/16mm
MountM12
Field of View6mm: H52.8°/D60.4°/V29.7°
16mm: H19.4°/D22.2°/V11°
Video
Max. Image Resolution4MP (2688*1520)
Primary Stream60Hz/50Hz: 15fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
Secondary Stream60Hz/50Hz: 15fps@(1280*720, 704*576, 640*480)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 4 areas (Mask)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Web AccessWIFI/VPN/Milesight VMS
Interface
Alarm I/OInput *1, Output *1
Audio I/OInput *1, Output *1
Ethernet1*RJ45 10M/100M Ethernet Port
RS4851
Wireless Network
WLAN802.11n/802.11g
Cellular4G LTE
NA: LTE-FDD(B2/4/5/12/13/14/66/71)
AU: LTE-FDD(B1/2/3/4/5/7/8/28) ; LTE-TDD(B40)
JP: LTE-FDD(B1/3/8/18/19/26); LTE-TDD(B41)
EU: LTE-FDD(B1/3/7/8/20/28A); LTE-TDD(B38/40/41)
SIM CardNano SIM
Intelligent Analytics
ANPR Distance6mm: Up to 10m
16mm: Up to 20m
CoverageUp to 2 lanes
Recognition Accuracy≥ 95%
Max. Vehicle SpeedVehicles with a speed of ≤ 70 km/h (43.5 mile/h)
Attributes IdentificationVehicle Type, No-plate Vehicle Capture, White/Black List Management
Country Region SupportedMore than 20 countries and regions
White/Black ListUp to 20,000 records inside the camera
System
GPSBuilt-in High-accuracy GPS Module
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering,
AGC, Anti-flicker, Corridor Mode, Deblur
Event TriggerIntelligent Analytics, External Input, etc.
Event ActionHTTP Post, FTP Upload, SMTP Upload, SD Card Record, External Output, Snapshot, Play Audio, Alarm to SIP Phone, etc.
System CompatibilityONVIF Profile G & M & S & T, API
General
Working TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Working Humidity0~95% (Non-condensing)
Power SupplyDC 12V±10%
Power ConsumptionSleep Mode: 0.19 W
Basic: 1.72 W (ANPR + 4G Module OFF)
Max: 3.51 W (Illuminator + ANPR + 4G streaming ON)
Surge Protection4KV
Weather ProofUp to IP67-rated for Weather-resistant Performance
Camera Dimensions120*120*260 mm
Camera Weight2.2kg
Certification
EMCCE-EMC (EN 55032,EN 55035)

FCC (PART 15B)

RCM (AS/NZS CISPR 32)
SafetyCE-LVD (EN IEC 62368-1)

RCM (AS/NZS 62368.1)
FRCE-RED (EN 300 328,EN301489-1,EN301489-17,EN 62133)

FCC (Part 15.247)

RCM (AS/NZS 4268,AS/CA S042.1,AS/CA S042.4,AS/NZS 2772.2)

Telec (MIC Item 19 of Article 2 Paragraph 1)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

Solar Power System
NameS100 Solar Power System
Solar Panel Modules in KitDefault: 1 units;
Optional: 2 units
Charge
PV Power100W
PV Input Voltage18V
MaterialMonocrystalline silicon
Energy Storage
Battery TypeNMC
Battery Capacity50AH
Total Energy555Wh
Battery Life9 days (without data transmission),

6 days (with data transmission)
Deep Cycles＞1000
Nominal Voltage11.1V
Discharge
Output Voltage9~12.6V DC
Maximum Output Current10A
Discharge Depth95%DOD
Function
Battery HeatingCharging current > 2A and lower than -5℃ turns on
Protection TypeOvercurrent/ Overvoltage/Short Circuit/ Undervoltage/ Temperature
Charging Temperature Range0℃~60℃
Discharging Temperature Range-20℃~65℃
Status IndicatorLED (charging status, battery status, output status)
Interface
CommunicationRS485
Output MethodM12 5-pin Connector
Output Line Length1.5m
Supported CablesDual Device Power Splitter Cable

Bridge Data & Power Cable (RS485 & DC Output)

Main Power Cable
General Parameters
WaterproofIP66
Humidity Range4-100% (no condensation)
Cooling MethodNatural Heat Dissipation
Hazardous Material Classification9
Shell MaterialGalvanized Steel + Plastic
Fixed WayHanging Rod / Wall Mounting
Product Dimensions765*630*69 mm

825*690*105 mm (with Package)
Weight13kg
Warranty2 years
CertificateUN38.3/MSDS/CE/ROHS

Solar Power System
NameS100 Solar Power System
Solar Panel Modules in KitDefault: 1 units;
Optional: 2 units
Charge
PV Power100W
PV Input Voltage18V
MaterialMonocrystalline silicon
Energy Storage
Battery TypeNMC
Battery Capacity90AH
Total Energy962Wh
Battery Life17 days (without data transmission),

11 days (with data transmission)
Deep Cycles＞1000
Nominal Voltage11.1V
Discharge
Output Voltage9~12.6V DC
Maximum Output Current10A
Discharge Depth95%DOD
Function
Battery HeatingCharging current > 2A and lower than -5℃ turns on
Protection TypeOvercurrent/ Overvoltage/Short Circuit/ Undervoltage/ Temperature
Charging Temperature Range0℃~60℃
Discharging Temperature Range-20℃~65℃
Status IndicatorLED (charging status, battery status, output status)
Interface
CommunicationRS485
Output MethodM12 5-pin Connector
Output Line Length1.5m
Supported CablesDual Device Power Splitter Cable

Bridge Data & Power Cable (RS485 & DC Output)

Main Power Cable
General Parameters
WaterproofIP66
Humidity Range4-100% (no condensation)
Cooling MethodNatural Heat Dissipation
Hazardous Material Classification9
Shell MaterialGalvanized Steel + Plastic
Fixed WayHanging Rod / Wall Mounting
Product Dimensions765*630*112.5 mm

825*690*140 mm (with Package)
Weight16kg
Warranty2 years
CertificateUN38.3/MSDS/CE/ROHS

A02 V2 Pole Mount

  • Weight: 1kg
  • Dimension: 180*138.5*47mm
  • Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter

SA02 Wall Mount

  • Weight: 2.2kg
  • Dimension: 150*260*400mm
  • Installation Environment: For wall or parapet installations

S100B55 Solar Power System

  • Weight: 13kg
  • Dimension: 765*630*69mm(825*690*105mm with Package)
  • Installation Environment: Generating and providing electricity for cameras, equipped with wall-mount and pole-mount brackets by default

S100B96 Solar Power System

  • Weight: 16kg
  • Dimension: 765*630*112.5mm(825*690*140mm with Package)
  • Installation Environment: Generating and providing electricity for cameras, equipped with wall-mount and pole-mount brackets by default

S100 Expansion Module

  • Weight: 15kg
  • Dimension: 825*690*140 mm (Packaging Dimensions)
  • Installation Environment: Model: SA100;For expanding solar energy receiving area to improve conversion efficiency. Includes a 100W Solar Panel and Mounting Bracket.

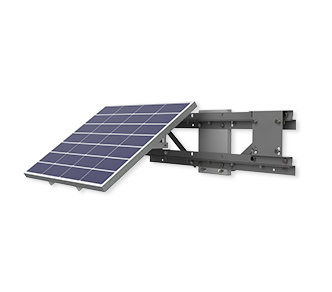

Solar Power System Bracket

  • Weight: 3.5kg
  • Dimension: 220*217.5*30 mm
  • Installation Environment: Model: BJ-N;For easier solar-powered system installation.

Documents
