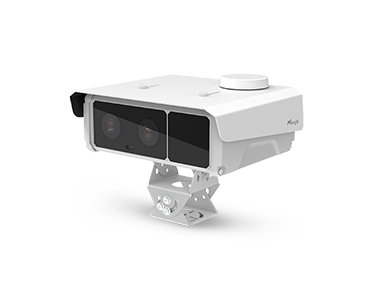

SingleVision trafficx
Camera

  • 5MP, 15-50mm, Motorized Zoom & Focus
  • Up to 250km/h High Recognizable Speed
  • AI Chip + AI ISP + AI-Powered ANPR
  • 99% Capture Rate & 98% ANPR Accuracy
  • 50m ANPR Distance & 2-3 Lanes Coverage
  • Traffic Violation Detection
  • Global Shutter for Blur-Free Capture
  • Up to 1TB On-Edge Storage
  • 4G LTE (Optional) + Built-in GPS
  • P-iris for Precise Aperture Control
Get in Touch
product
  • SPECIFICATION
  • ACCESSORIES
  • DOWNLOAD
  • VIDEO

5MP Motorized Lens

  • 60fps
  • P-iris
  • Lens Defogging
    (*Built-in fan and heater for faster lens defogging)

Dual Antenna Design

  • Stronger 4G Signal
  • Built-in GPS

Stainless Steel Bracket

  • Enhanced Corrosion Resistance
  • Higher Structural Strength
  • IP67 & IK10

Upgraded IR for Better Visibility

  • 740nm/850nm: 15 Light Beads

Capture Traffic Data Like Never Before

99 %

Capture Rate

98 %

Plate Recognition Rate

250 km/h

High Recognizable Speed

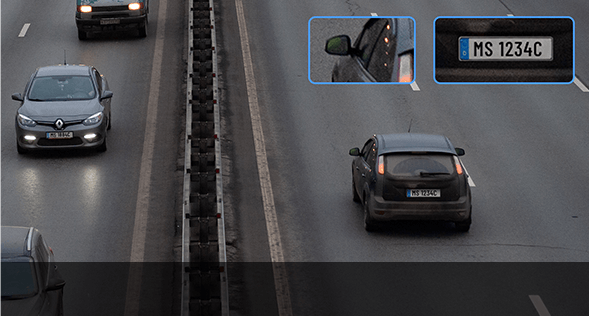

global shutter

Global Shutter

frame parity flashing

Frame Parity Flashing

Experience crystal-clear imaging and accurate plate recognition for vehicles traveling at speeds of up to 250 km/h. Engineered to deliver a 99% capture rate and 98% ANPR accuracy,
the Milesight SingleVision TrafficX Camera combines Global Shutter technology with advanced Frame Parity Flashing technology to capture sharp vehicle and plate details without
motion blur or overexposure. It sets a new standard for high-speed traffic monitoring with uncompromising image quality and recognition performance.

Powered by
vioguard
:
Various Traffic Violation Detection Capabilities

Powered by VioGuard – Milesight's cutting-edge traffic violation detection technology, Milesight SingleVision TrafficX Camera delivers highly accurate and automated enforcement for a wide range of traffic violations, including Phone Use Detection, Seatbelt Unfasten Detection, Illegal Lane Change Detection, Reverse Driving Detection, Not Following Directional Sign Detection, and more. By automatically detecting, capturing, and recording violation evidence, it helps law enforcement agencies improve operational efficiency, streamline traffic management, and enhance overall road safety.

Phone Use
vioguard 1
Seatbelt Unfasten
vioguard 2
Illegal Lane Change
vioguard 3
Reverse Driving
vioguard 4
Not Following Directional Sign
vioguard 5
Bus Lane Violation
vioguard 6
Truck Restricted Lane Violation
vioguard 7
Emergency Lane Violation
vioguard 8

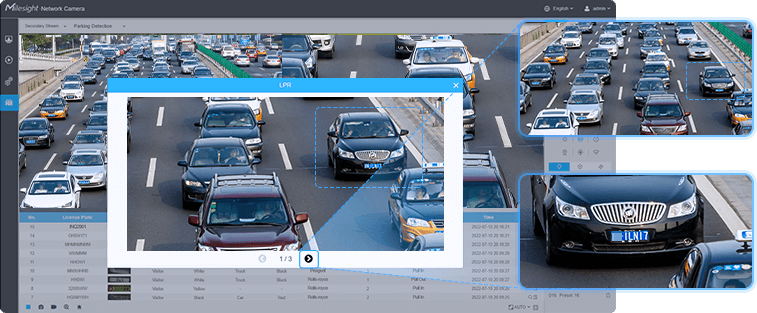

Triple AI Intelligence for Comprehensive
Vehicle and Plate Recognition

Powered by triple AI—an AI Chip, AI ISP, and AI-powered ANPR Algorithm—Milesight TrafficX Camera accurately recognizes license plate numbers and colors, as well as vehicle types, brands, colors, and travel directions. It also handles a wide variety of challenging plates, including reflective, low-contrast, multi-line, and ADR plates.

AI Chip + AI ISP + AI-Powered ANPR

4G LTE & GPS Empower Smart Mobility

4G LTE is optional for transmission over Internet wirelessly with a SIM card, eliminating the need of complicated network cable connections. Built-in GPS allows for recording the exact location where a plate is captured, helping authorities track vehicles, collect evidence and investigate crimes.

Milesight DualVision TrafficX Camera

4G Signal

Remote Management

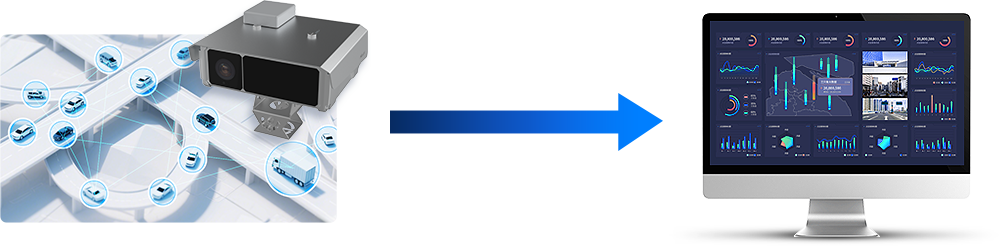

Open Compatibility for Seamless Integration

Support APls and TCP/HTTP/MQTT Protocols for Easy Integration

part8

Captured & Analyzed Traffic Data

APIs

TCP/HTTP/MQTT

Third-party Management Platform

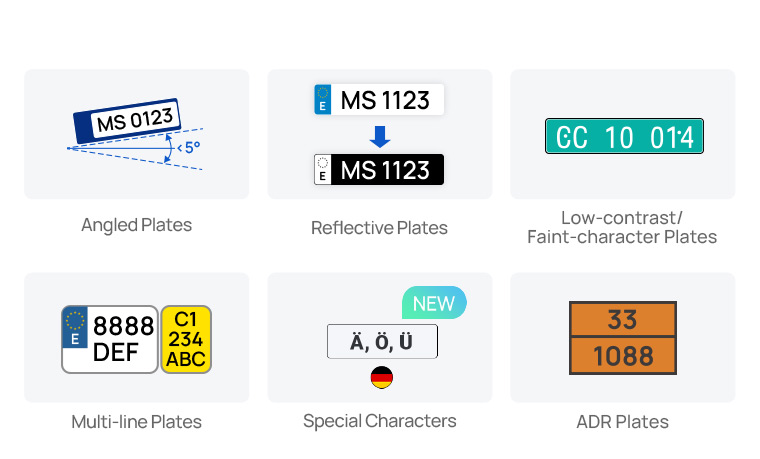

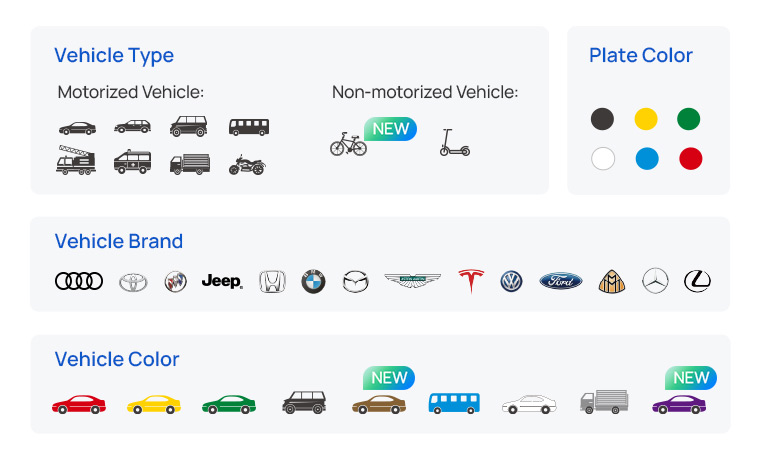

Versatile ANPR Attributes

  • Plate Number/Plate Type/Plate Color
  • Vehicle Type/Brand/Color
  • Country/Region

Rich Evidence Datasets

  • GPS
  • License Plate Coordinates
  • Vehicle Coordinates

Event Detection Data Insights

  • Event Type
  • Time
  • Device Information
  • Event Data

Full Snapshot Types

  • License Plate
  • Vehicle Snapshot
  • Full Snapshot
  • Violation Evidence
What Data Can We Push?
View More
View Less

Specifications

    • TS5020-GIE
    • TS12020-GIE
    Camera
    ModelTS5020-GIE
    NameSingleVision TrafficX Camera
    Image SensorColor, 2/3" Global Shutter
    Min. IlluminationColor: 0.001 Lux@F1.4
    Shutter Time30 us- 5000 us
    Day/Night ModeDay/Night/Auto
    Supplement LightIR Strobe Light (15 light beads @ 850nm, 15 light beads @ 740nm)
    IR Distance: 60m
    IR Wave Length: 850nm (Default), 740nm (Optional)
    Road Traffic Management
    Max. ANPR RangeUp to 50m
    Max. Vehicle Speed250 km/h
    CoverageRecommended for 2~3 lanes
    Capture RateUp to 99%
    Recognition AccuracyUp to 98%
    Country Region SupportedMore than 74 countries and regions
    Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand
    Violation ManagementReverse Driving, No-plate Vehicle Capture, Vehicle Attributes Event Detection
    White/Black ListUp to 20,000 records inside the camera
    LPR Smart SearchSupport
    Interface
    Ethernet1 * RJ45 10/100/1000 Mbps Ethernet Port
    RS4852 * RS485 ports, baud rate up to 115200 bps
    Power Output1 * DC 12V Output
    Alarm Input4 * Opto-isolated Digital Inputs
    Alarm Output1 * Relay Output
    Strobe Output2 * Strobe Output
    STNC IN1 * AC 24V Synchronization Input
    Lens
    Lens15-50mm, Motorized zoom and focus
    MountCustom mount
    Field of ViewHorizontal FOV 41.4° to 10.3°, Vertical FOV 26.8° to 8.42°, Diagonal FOV 32° to 13.3°
    Video
    Max. Resolution2448x2048
    Max. FPS60fps
    Video CompressionH.265/H.264/MJPEG
    Video Bit Rate16Kbps~16Mbps (CBR/VBR Adjustable)
    Image SettingBrightness/Contrast/Saturation
    Privacy MaskingUp to 8 Areas
    Wireless Network (Optional)
    Cellular4G LTE
    NA: B2/B4/B5/B12/B13/B25/B26
    EU: B1/B3/B7/B8/B20/B28
    AU: B1/B2/B3/B4/B5/B7/B8/B28/B66
    SIM CardNano SIM
    System
    System CompatibilityAPI, HTTP, TCP, MQTT, ONVIF Profile G & M & S & T
    StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
    General
    GPSBuilt-in High-accuracy GPS Module
    Working Temperature-40°C ~ 70°C
    Working Humidity0~95% (Non-condensing)
    Power ConsumptionMin.: 6.7W
    Max.: 26.0W
    Power Supply24 V DC/ 24 V AC
    Weight4.30kg
    6.43kg (With package)
    Dimensions295*245*141mm
    Warranty3 Years
    Certifications
    EMCCE-EMC (EN 55032, EN 55035), FCC (PART 15B), RCM (AS/NZS CISPR 32:2015+A1(2020))
    RFCE-RED (EN 301 489-1,EN301 489-19,EN301 489-52,EN 301 908-1,EN 301 908-13,
    EN 303 413,EN50663,EN62479)
    RCM(AS/CA S042.1,AS/CA S042.4,AS/NZS 2772.2)
    SafetyCE-LVD (EN IEC 62368-1), RCM(ASNZS 62368)
    EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU),
    IP67(IEC 60529),
    IK10(IEC 62262)

    Camera
    ModelTS12020-GIE (12MP*1)
    NameSingleVision TrafficX Camera
    Image SensorColor, 1.1" GMOS
    Min. IlluminationColor: 0.001 Lux@F1.6
    Shutter Time30 us- 5000 us
    Day/Night ModeDay/Night/Auto
    Supplement LightIR Strobe Light
    IR Distance: 60m
    IR Wave Length: 850nm (Default), 740nm (Optional)
    Road Traffic Management
    Max. ANPR RangeUp to 50m
    Max. Vehicle Speed320 km/h
    CoverageRecommended for 3~4 lanes
    Capture RateUp to 99%
    Recognition AccuracyUp to 98%
    Country Region SupportedMore than 74 countries and regions
    Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand
    Violation ManagementSeatbelt Unfastened, Phone Use, Illegal Lane Change, Special Lane Occupation,
    Reverse Driving, No-plate Vehicle Capture, Vehicle Attributes Event Detection
    Vehicle TypeCar, SUV, MPV, Pick-up, Van, Bus, Truck, Mini Truck, Trailer, Fire Engine, Ambulance, Motorbike, Bicycle
    Vehicle ColorBlack, White, Gray, Red, Yellow, Green, Blue, Purple, Brown
    White/Black ListUp to 100,000 records inside the camera
    LPR Smart SearchSupport
    Interface
    Ethernet1 * RJ45 10/100/1000 Mbps Ethernet Port
    RS4851 * RS485 Port (compatible with RS232)
    Alarm Input4 * Opto-isolated Digital Inputs
    Alarm Output1 * Relay Output
    Strobe Output4 * Strobe Output
    Lens
    Lens16-40mm, Motorized zoom and focus
    P-irisSupport
    ApertureF1.6
    MountCustom mount
    Field of ViewHorizontal FOV 52.2° to 21.9°, Vertical FOV 39.2° to 16.3°, Diagonal FOV 64.1° to 26.8°
    Video
    Max. Resolution4112x3072
    Primary Stream60Hz:12MP@60fps(4112x3072, 3296x2472, 3392x2008, 2560x1920, 2048x1536, 1920x1080, 1280x960, 1280x720)
    50Hz:12MP@50fps(4112x3072, 3296x2472, 3392x2008, 2560x1920, 2048x1536, 1920x1080, 1280x960, 1280x720)
    Secondary Stream60Hz: 2MP@60fps(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
    50Hz: 2MP@50fps(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
    Max. FPS60fps
    Video CompressionH.265/H.264/MJPEG
    Video Bit Rate16Kbps~16Mbps (CBR/VBR Adjustable)
    Image SettingBrightness/Contrast/Saturation
    Privacy MaskingUp to 8 Areas
    Wireless Network(Optional)
    Cellular4G LTE
    NA: B2/B4/B5/B12/B13/B25/B26
    EU: B1/B3/B7/B8/B20/B28
    AU: B1/B3/B5/B7/B8/B28
    SIM CardNano SIM
    System
    System CompatibilityAPI, HTTP, TCP, MQTT, ONVIF Profile G & M & S & T
    StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
    General
    GPSBuilt-in High-accuracy GPS Module
    Working Temperature-40°C ~ 70°C
    Working Humidity0~95% (Non-condensing)
    Power ConsumptionMin.: 10.3W
    Max.: 19.3W
    Power SupplyDC24V±20%
    Weight5.7kg
    8.3kg (With package)
    Dimensions382*310*256mm
    Wind ResistanceWithstands wind speeds up to Beaufort Scale 13 (≥ 32.7 m/s)
    Window Defogging & De-icingSupported via ITO heated glass with anti-reflection coating
    Warranty3 Years
    Certifications
    EMCCE_EMC(EN55032, EN IEC 61000-3-2, EN 61000-3-3, EN 55035), FCC (PART 15B), RCM (AS/NZS CISPR 32:2015+A1(2020))
    RFCE-RED (EN303 413, EN301 908-1, EN301 908-2, EN301 908-13, EN301 489-1, EN301 489-19, EN301 489-52, EN IEC 62368-1, EN 50665, EN IEC 62311); RCM (AS/CA S042.1, AS/CA S042.4, AS/NZS 2772.2)
    SafetyCE-LVD (EN IEC 62368-1), RCM(ASNZS 62368)
    EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU), IP67(IEC 60529), IK10(IEC 62262), NEMA 4X（NEMA 250-2020）

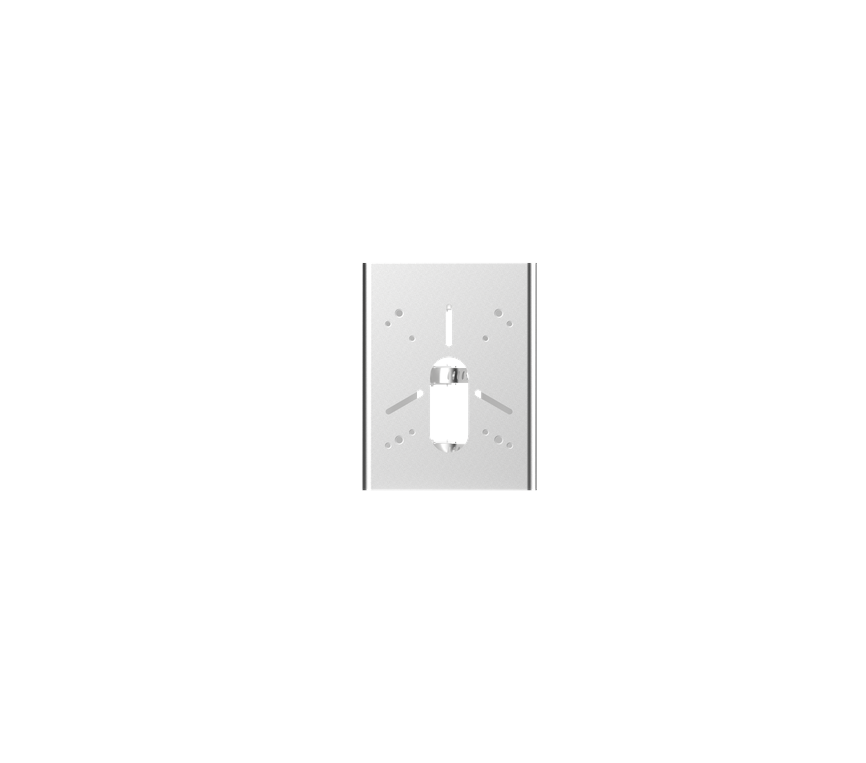

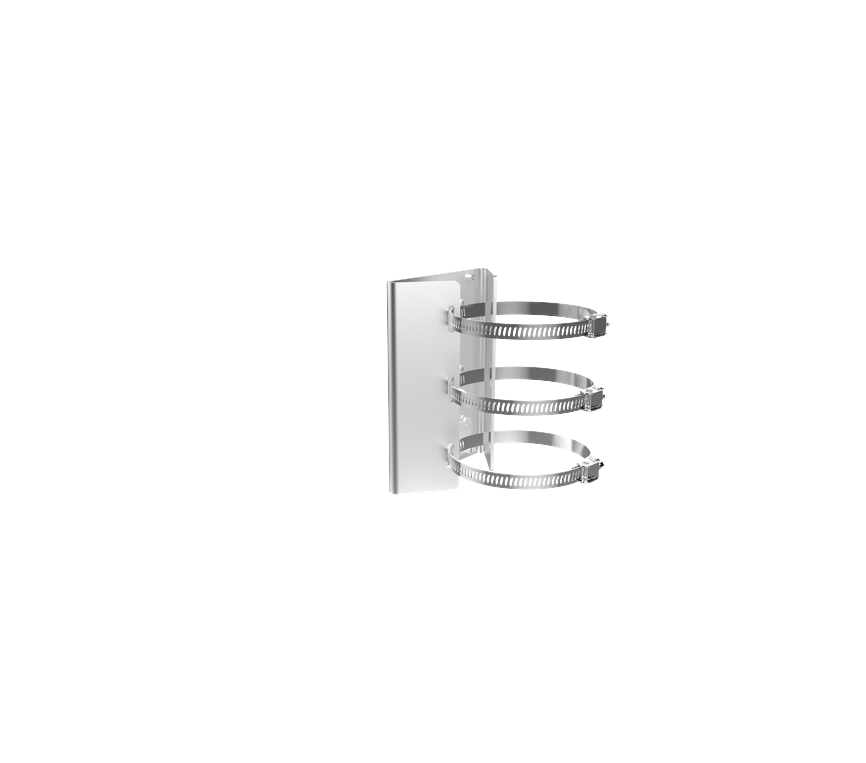

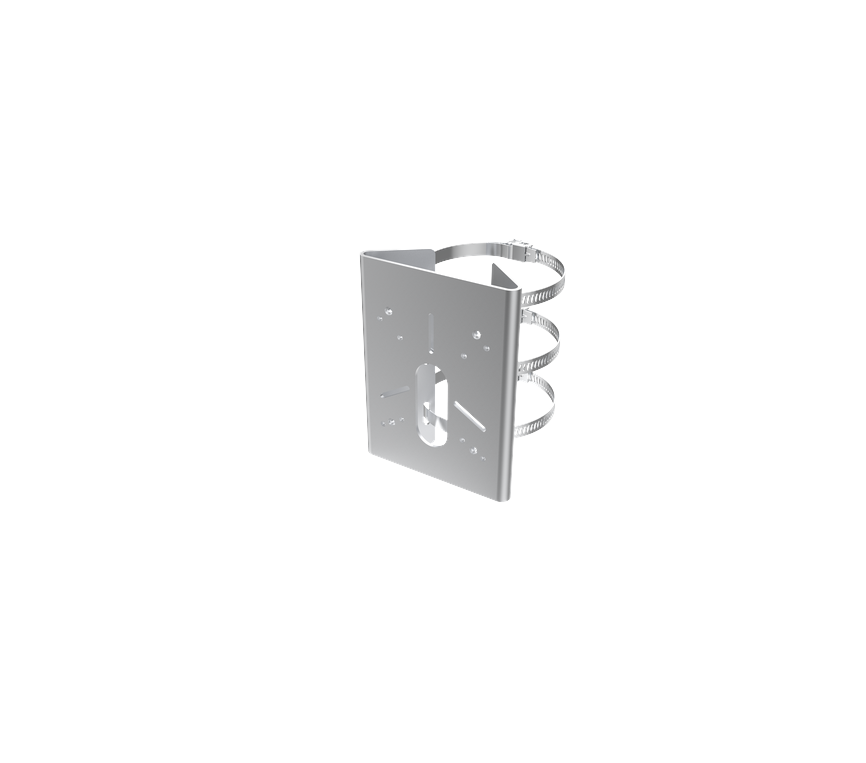

    A02-N Pole Mount

    • Weight: 1.4kg
    • Dimension: 180*138.5*47.1mm
    • Installation Environment: Installation Environment: For mounting cameras on poles with diameters of φ50–300 mm (1.97–11.81 in).

    A91-N Pedestal Mount

    • Weight: 540g
    • Dimension: 80*80*104.5mm
    • Installation Environment: For installation on a base or platform

    A92-N Wall Mount

    • Weight: 1800g
    • Dimension: 140*200*279mm
    • Installation Environment: For wall or parapet installations
