Semi-Industrial LoRaWAN® Gateway
UG65
Transcend Connectivity, Embrace Possibility
UG65 is a high-performance 8-channel LoRaWAN® gateway that offers reliable connectivity for industrial applications.
- IP65 Rating
- NXP Quad-Core Processor
- Semtech SX1302 LoRa Chip
- Multiple Backhaul Connectivities
- Embedded Network Server
- Compatible with Multiple Network Servers
- Global LoRaWAN® Frequency Plans
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
Achieve Greatness with Outstanding Performance
Utilizes advanced hardware, the UG65 device delivers powerful performance for faster data processing.
- 512 MB DDR4 RAM
- NXP 64-bit Quad-Core Processor
New Generation of LoRa Chip
The UG65 device excels at efficiently managing high volumes of traffic while consuming minimal power.
- Semtech SX1302
- Full-Duplex
- Support SF5 & SF6
- LoRaWAN® Class A/B/C

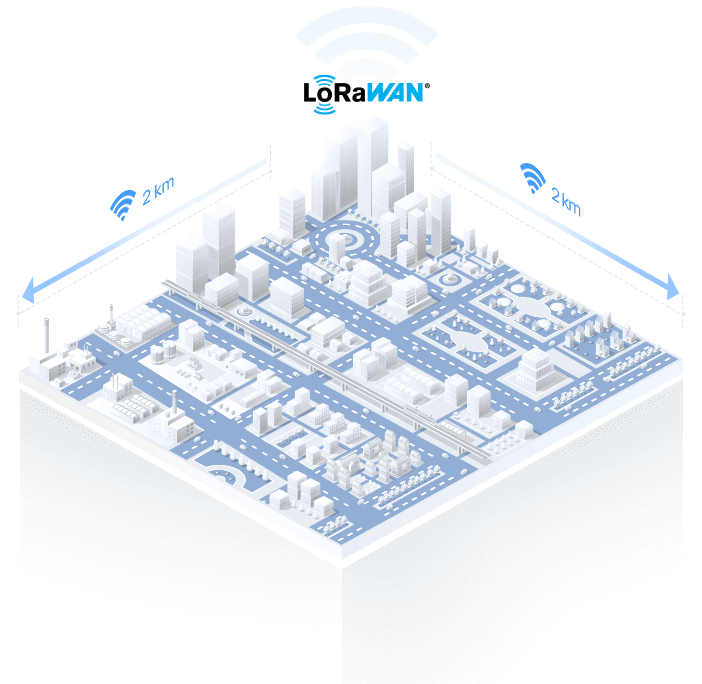

Unleash Powerful Signal Penetration
UG65 offers an impressive capability for long-range communication, allowing seamless connectivity over distances of up to 2 km in urban areas.
Connecting Thousands of Devices with Ease
UG65 supports receiving data from 8 end-devices simultaneously. And it supports up to 2000 end devices.
Flexible Connection with Internal and External Antennas
- Integrated internal LoRa, Cellular, and Wi-Fi antennas
- 1 external LoRa antenna is also available to strengthen signal coverage
*North America version uses external cellular and LoRa antennas.

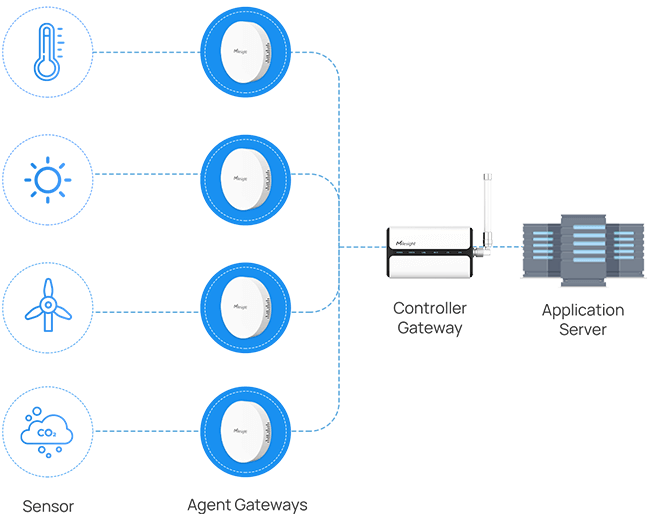

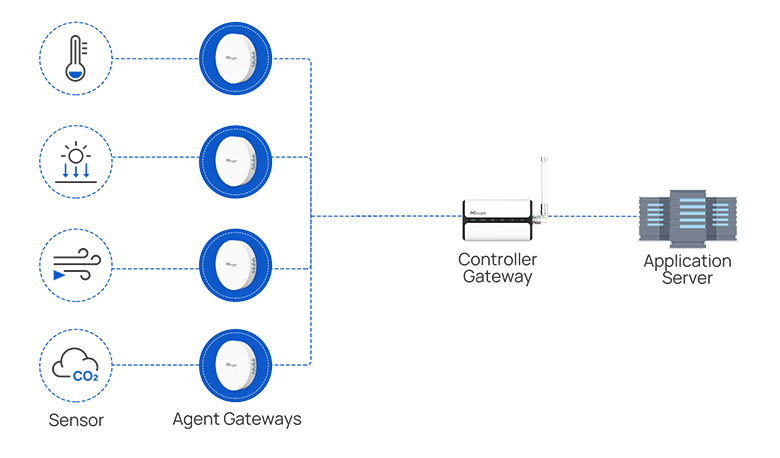

Gateway Fleet
The Gateway Fleet feature enables multiple agent gateways to transmit received data to one controller gateway, which facilitates the deployment and management of LoRaWAN® network.

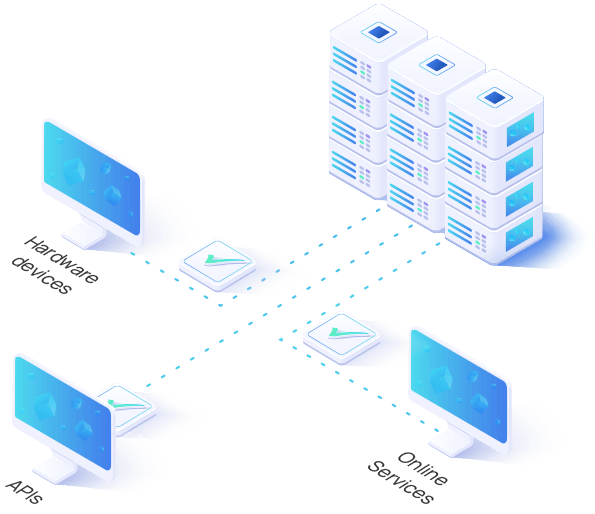

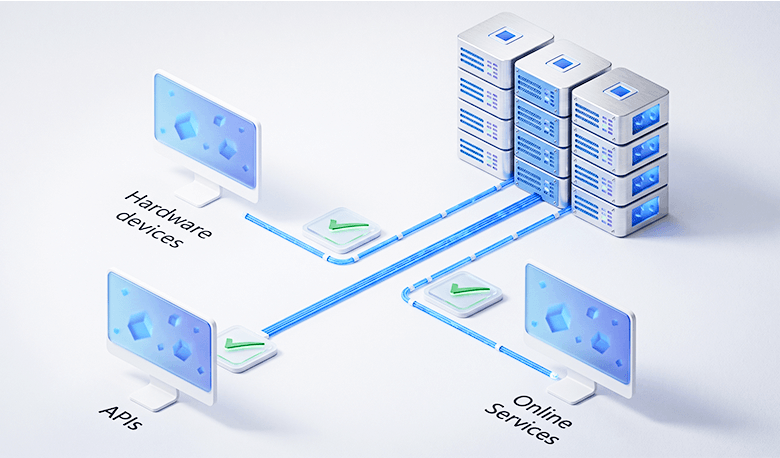

Simplify Your Processes with Node-RED
With compatibility with Node-RED, users can easily integrate devices, APIs, and online services effortlessly.

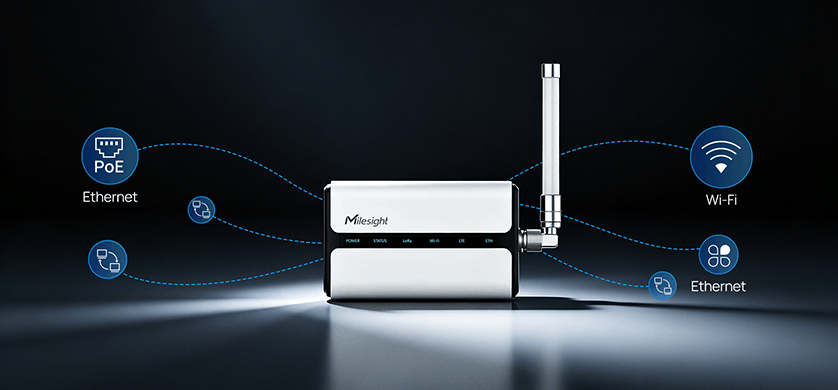

Enabling Multiple
Backhaul Connectivities
Stay connected via Ethernet, cellular, and Wi-Fi.
Certified for North American Cellular Networks
UG65 is fully certified for major North American networks, ensuring reliable LTE connectivity and easy deployment.
Deep Compatibility, Greater Flexibility
Milesight Gateways are deeply compatible with leading LoRaWAN® Network Servers (LNS). This ensures:
Fast Deployment – quick setup, minimal effort
Interoperability – proven compatibility across platforms
Lower Risk & Cost – reduce integration effort, easier scaling
Faster Time-to-Market – leverage existing ecosystems
With Milesight, you gain not just compatibility, but a truly interoperable solution ready for IoT ecosystem.
*Platform integration may vary – click the LNS icon below to learn more.

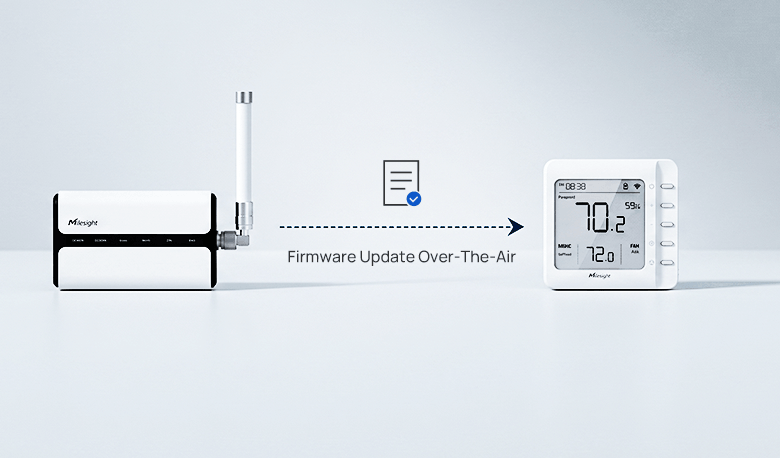

Remote Firmware Updates for End Devices After Deployment
The embedded Network Server of the UG65 supports Firmware Update Over-The-Air (FUOTA), allowing seamless remote firmware updates for connected LoRa® devices via a LoRa® wireless network after deployment.
Firmware Update Over-The-Air

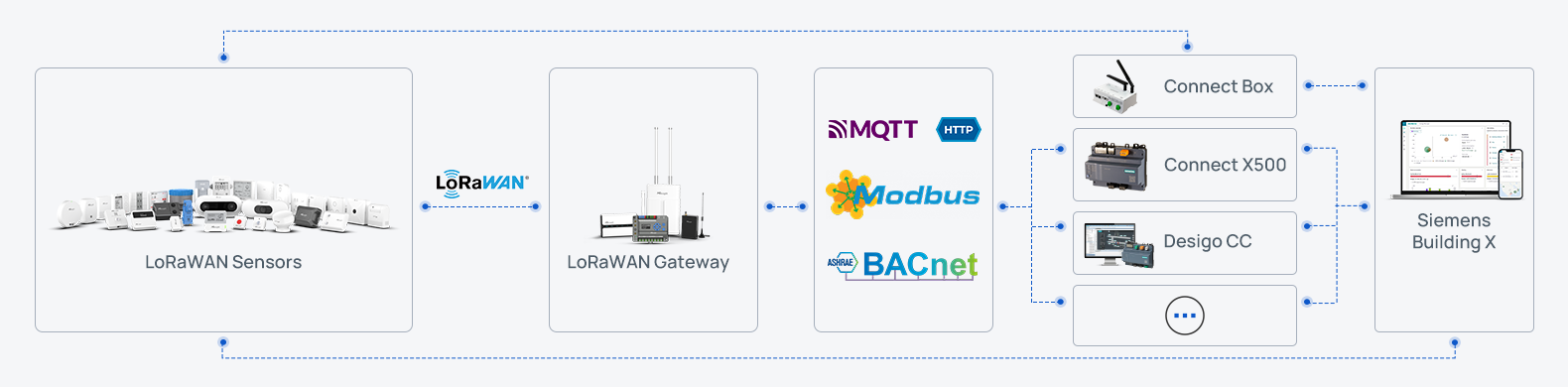

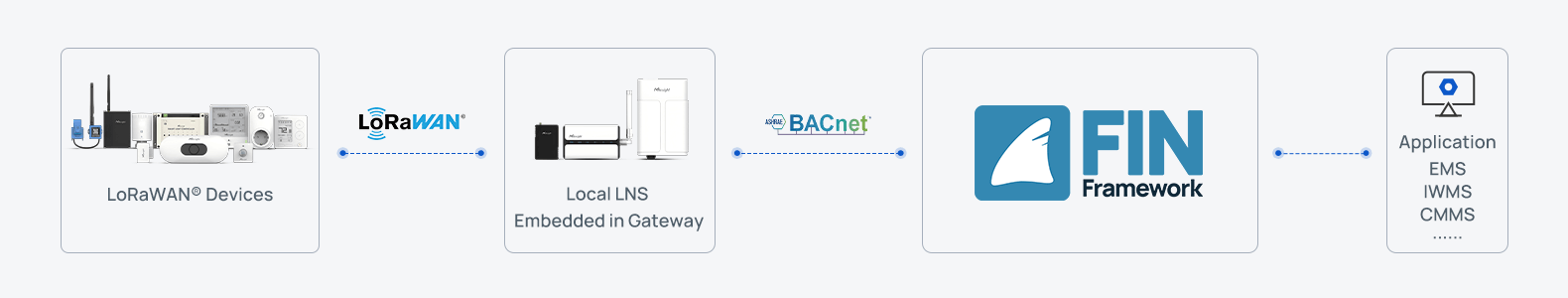

Integrating with Building Management System
With support for BACnet and Modbus, real-time data can be seamlessly integrated into existing Building Management System (BMS).

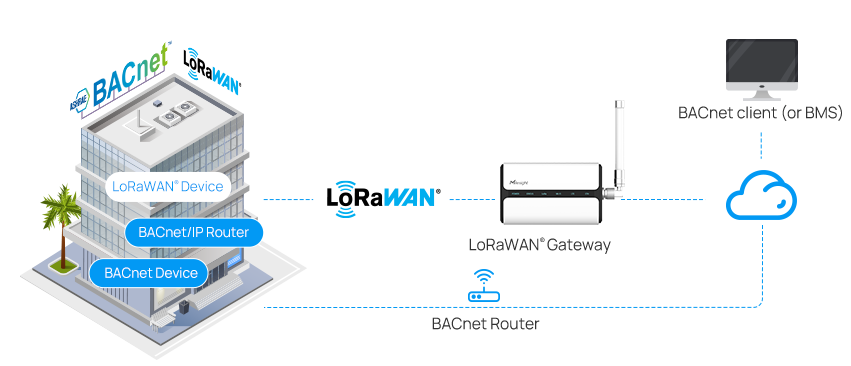

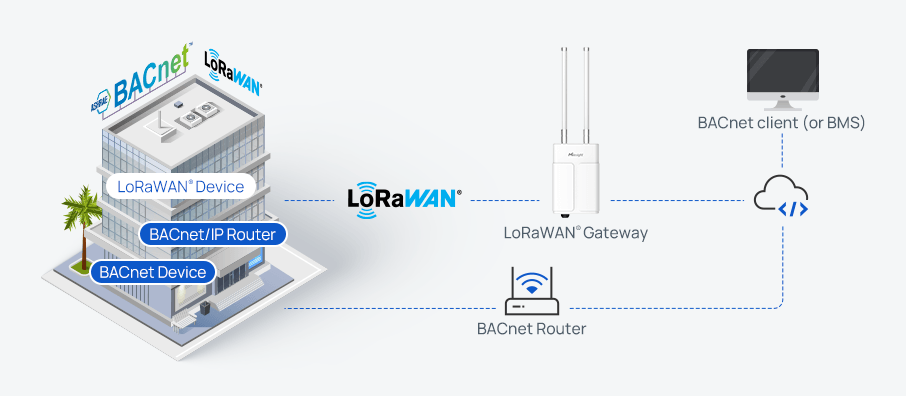

Using BACnet
BACnet over LoRaWAN®
- LoRaWAN® serves as the data channel to the control applications
- No changes to the BACnet protocol, network, or BACnet-enabled devices and management systems are needed
LoRaWAN® as a Complementary Network
- LoRaWAN® network is independent of the core BACnet infrastructure
- The LoRaWAN® network feeds data to the BMS through a virtual BACnet server
- LoRaWAN® data and sensors appear to be part of the BACnet system

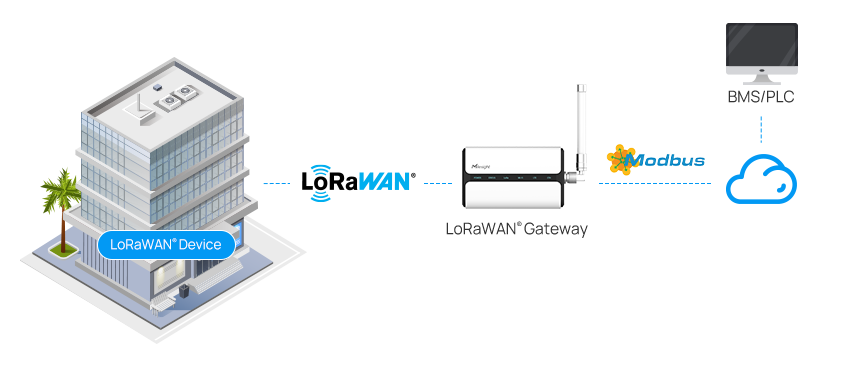

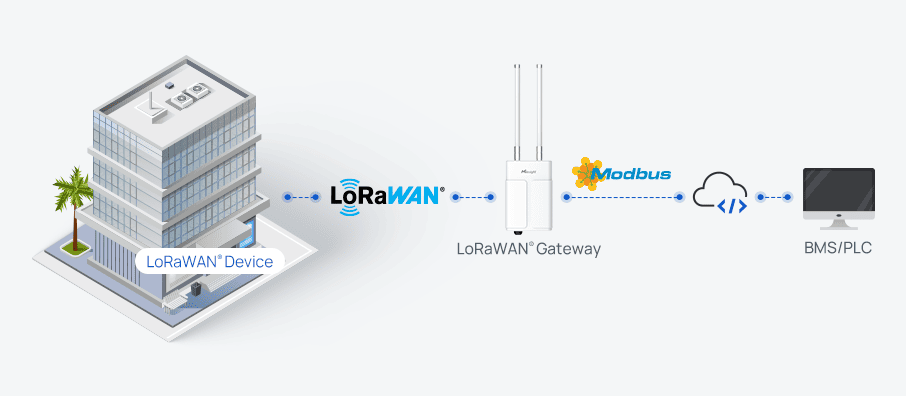

Using Modbus

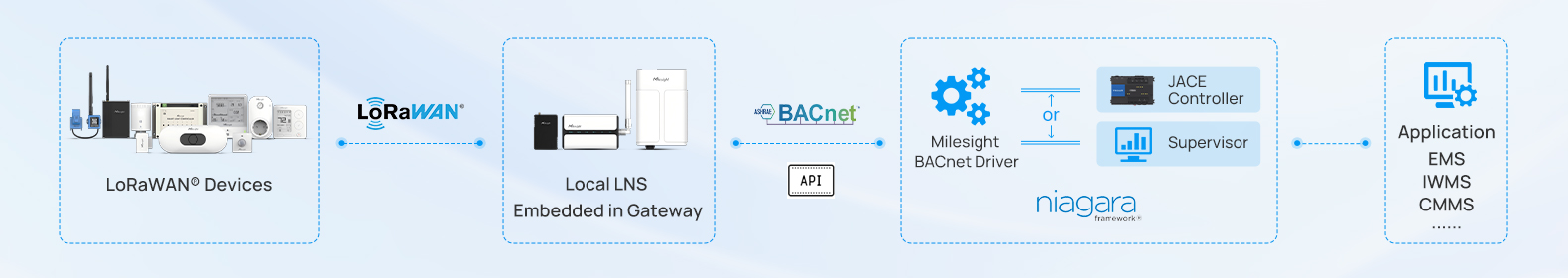

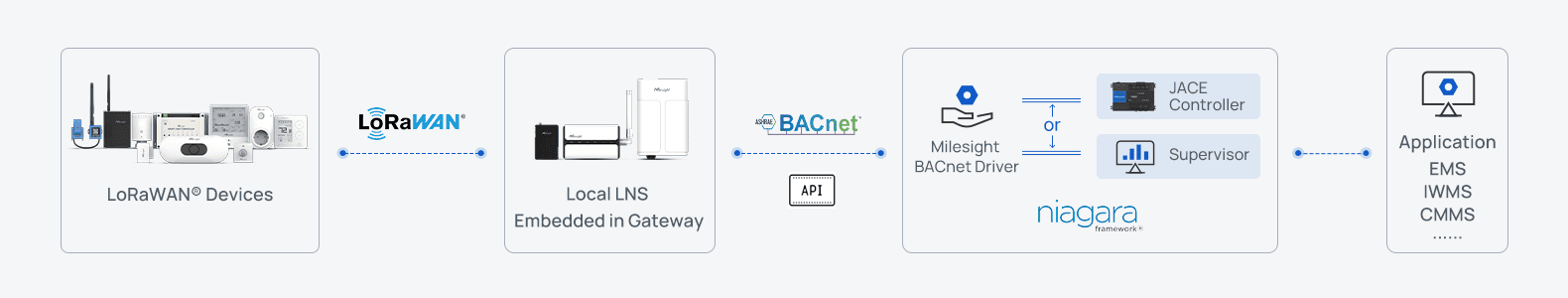

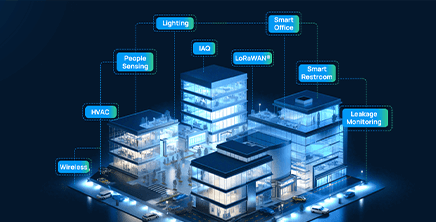

Unified Building Management with Milesight & Niagara
Easy Configuration
Scalability
Enhanced Security
Data Insights
Extensive Coverage
Watch Videos
Download Milesight BACnet Driver for FreePlug-and-Play Configuration and Remote Management

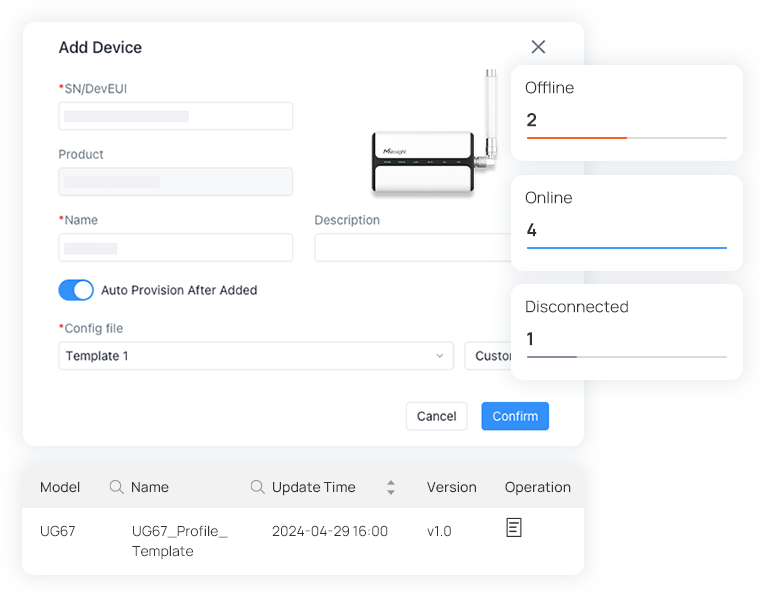

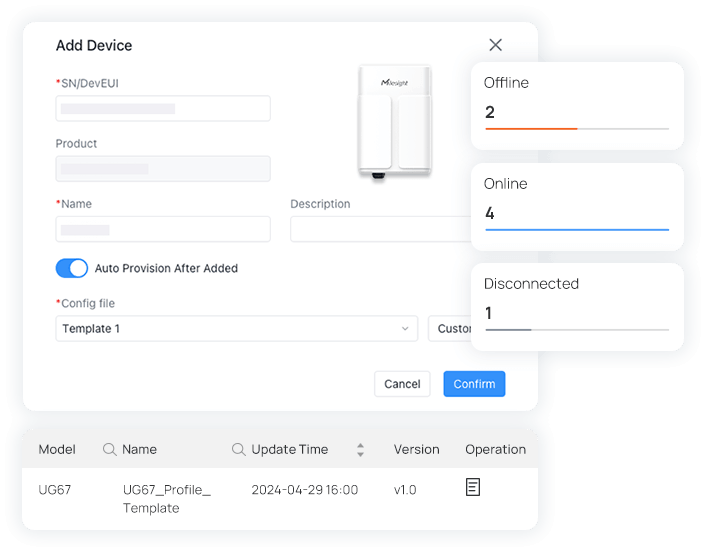

Milesight Development Platform
Milesight Development Platform simplifies your device deployment with intuitive addition processes, plug-and-play configurations, and seamless connectivity. Your devices will be set up automatically by applying settings from predefined templates upon initial activation. It also allows you to send data to custom applications using APIs or webhooks.
Learn More
Effortless Auto-P Configuration
UG65 integrates with the RPS (Redirection and Provisioning Service) service, enabling fast device deployment without user intervention. Upon powering up and connecting to the network, the device undergoes automatic configuration.
Remote Device Management

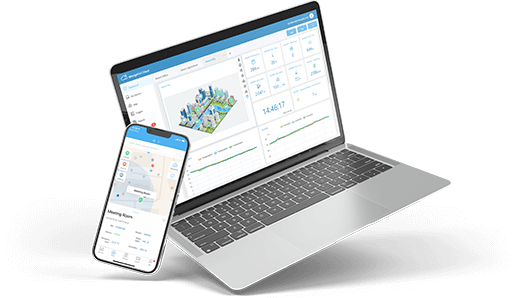

Milesight IoT Cloud
Milesight IoT Cloud streamlines device-to-cloud connection with data visualization and remote monitoring and control.

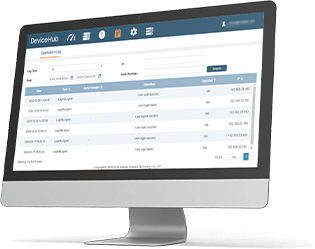

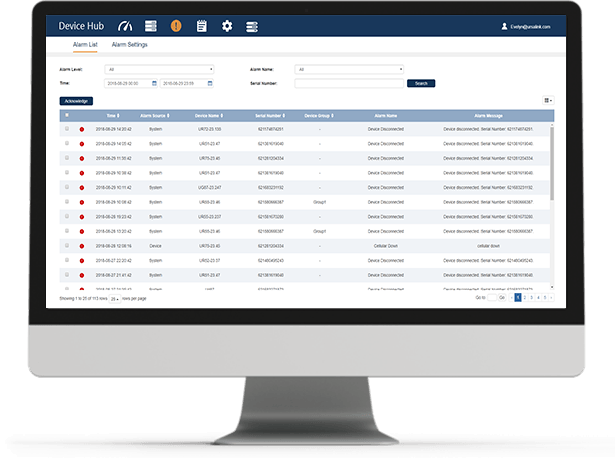

Milesight DeviceHub
Mileisight DeviceHub is a all-in-one platform that allows you to manage your devices and make customized settings remotely, while ensuring highest levels of privacy and security.
Gateway Online Demo
Milesight LoRaWAN® Gateway Online Demo offers more visibility into IoT data practices and increases transparency around your gateway governance and management.
Online Demo
Flexible Installation Ways
Wall Mounting

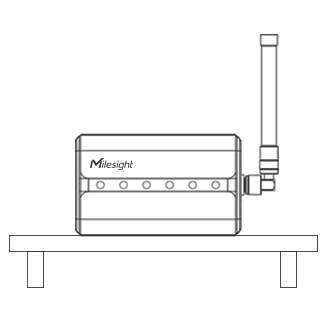

Desktop Mounting

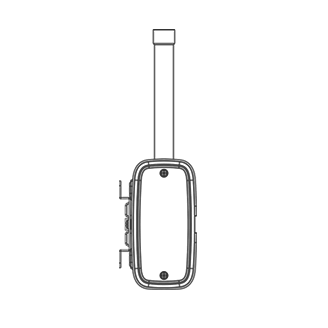

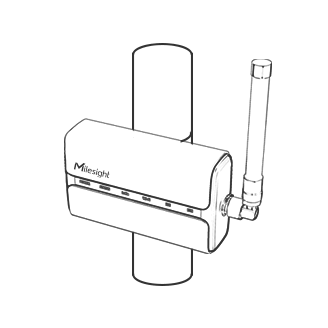

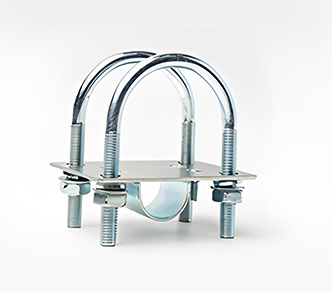

Pole Mounting
Specifications
- Hardware Specifications
- Software Specifications
| Hardware System | |
|---|---|
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN® | |
| Antenna | 1 × 50 Ω N-Female External Connector |
| Channel | 8 (Half/Full-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Tx Power | 27dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Ethernet Interface | |
| Port | 1 × RJ45 WAN Port (PoE PD supported) |
| Physical Layer | 10/100/1000 Base-T (IEEE 802.3) |
| Data Rate | 10/100/1000 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Ethernet Isolation | 1.5 kV RMS |
| Wi-Fi Interface | |
| Antenna | Internal Antenna |
| Standards | IEEE 802.11 b/g/n, 2.4GHz |
| Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) |
| Cellular Interface (Optional) | |
| Network | 4G LTE |
| Tx Power | Class 3 (23 dBm ±2 dB) |
| SIM Slot | 1 (mini SIM-2FF) |
| Others | |
| Reset Button | 1 × RST |
| USB | 1 × USB Type-C for Power Supply and Console |
| LED Indicators | 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH |
| Power Connector | 1 × DC Male Jack Connector (2.1 x 5.5 mm) |
| Built-in | Watchdog, RTC, Timer |
| Power Supply and Consumption | |
| Power Input | 1. DC 9-24 V by Power Connector 2. 802.3 af PoE 3. 5V/1A by USB Type-C Port |
| Power Consumption | Typical 2.9 W, Max 4.2 W |
| Physical Characteristics | |
| Ingress Protection | IP65 |
| Material & Color | PC+ABS (UL94 V0), White & Black |
| Weight | 548g |
| Dimensions | 180 x 110 x 55.5 mm (7.09 x 4.33 x 2.19 in) |
| Installation | Desktop, Wall or Pole Mounting |
| Environmental | |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77°F |
| Approvals | |
| Regulatory | CE, CE(RED), FCC, IC, Telec, JATE, RCM |
| Environmental | RoHS |
| LoRaWAN® | |
|---|---|
| Supported Devices | Around 2000 Class A/B/C Devices (10 min uplink interval) |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Packet Forwarder | |
| Noise Analyzer | Scan the noise of the frequencies for channel selection |
| Packet Filter | Add whitelist or blacklist to filter the packets |
| Data Retransmission1 | Re-transmit the data packets after network recovery |
| Embedded Network Server | |
| Decode and Encode | Inbuilt Milesight devices codec library, support custom codec setup |
| Gateway Fleet | Work as the network server of other Milesight blind-filling gateways |

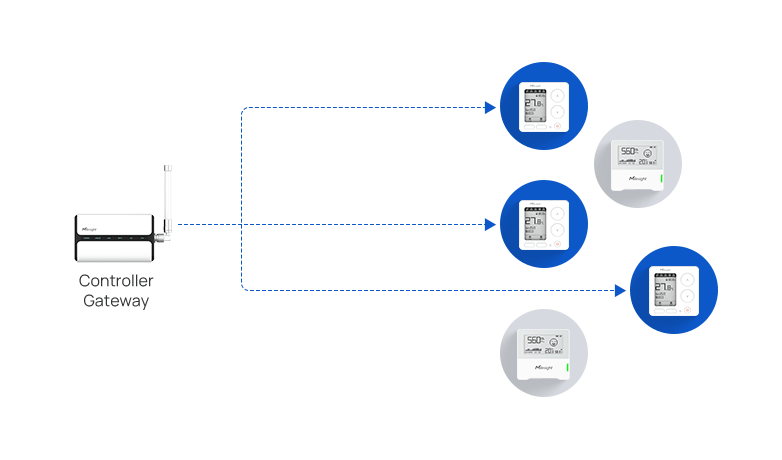

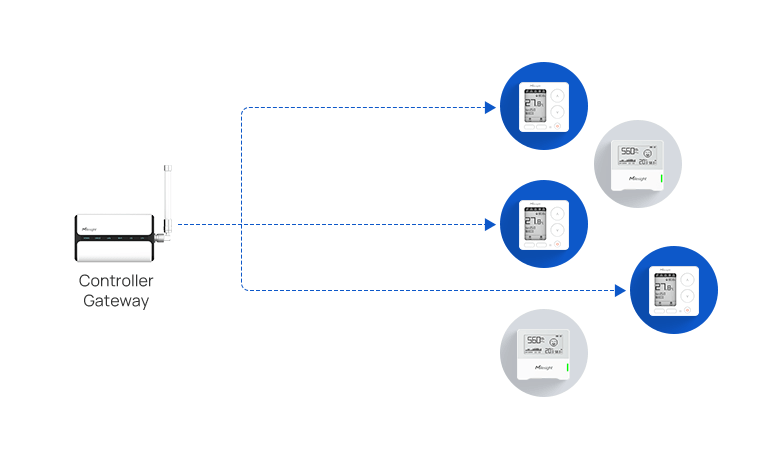

| Multicast | Support multicast downlink control |
| FUOTA | Upgrade FUOTA supported end devices |
| Integration | MQTT, HTTP(s), BACnet/IP, Modbus TCP, Modbus RTU over TCP |
| Network | |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, MQTTS, BACnet/IP, Modbus RTU over TCP, Modbus TCP, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN/WireGuard |
| Firewalls | Access Control, DMZ, Port Mapping (DNAT), MAC Binding, Filtering (IP&Domain) |
| DDNS | Supported >16 service providers, others can be configured manually |
| Multilevel Authority | Multiple Levels of User Authority |
| Reliability | WAN Failover |
| Diagnostics Tools | Ping, Traceroute, Tcpdump, QXDM, Log Server |
| Wi-Fi Interface | |
| Standards | IEEE 802.11 b/g/n, 2.4GHz |
| Mode | AP or Client mode |
| Security | AP: WPA-PSK/WPA2-PSK authentication, WEP/TKIP/AES encryption Client: WPA-PSK/WPA2-PSK/WPA-Enterprise/WPA2-Enterprise authentication, WEP/TKIP/AES encryption |
| Management | |
| Configuration | Web, CLI (SSH/Telnet), On-demand dial up, SNMP, HTTP API, MQTT API, Milesight Development Platform, DeviceHub |
| Update | Web, Milesight Development Platform, DeviceHub |
| Remote Management | Milesight Development Platform, DeviceHub |
| Event Alarm | Power On, Network Up/Down, VPN Up/Down, etc. |
| Others | |
| App | Python SDK, Node-RED |
1.Only parts of packet forwarders support this feature.
GA01 130cm LoRaWAN® Fiber-Glass N-N Antenna Kit
Customizable
- P/N:FNN1300
- Dimension:Φ25x1300mm
- Type:Omni

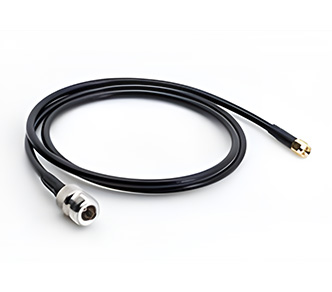

- Interface:Antenna: N-J; RF Cable: N-J-N-K
- Gain:860-868MHz, 8dBi; 902-928MHz,8.5dBi
- Color: White(Antenna), Black(Cable)
- Cable Length:1m
- Applicable Products:UG65/UG67
GA01 60cm LoRaWAN® Fiber-Glass N-N Antenna Kit
Optional
- P/N:FNN600
- Type:Omni
- Gain:4-5dBi@863-870MHz; 4-5dBi@902-928MHz
- Interface:Antenna: N-J; RF Cable: N-J-N-K
- Height:600 mm
- Cable Length:1m
- Color:White(Antenna), Black(Cable)
- Applicable Products:UG65
12000mAh IP67 UPS Battery Backup Kit (Type-C Version)
Optional
- P/N:Type-C
- Output Voltage:5V
- Output Current:2A
- Output Port:Type-C
- Applicable Products:UG65/UR41/UR75/UF51/UG56/X1/X5/UF31/UG63
