Uninterruptible Power Supply
High Capacity up to 12000 mAh
Compact Design with IP67 and IK08 Protection
UPS01
- High Capacity, Long Endurance, Plug and Play
- Data Protection
- Plug and Play
- Real-time Alarming
- Tricolor Indicators
- FEATURES
- MODELS
- DOWNLOAD
- Home
- IoT LoRaWAN® Series
- Accessories
High Capacity up to
12000 mAh
The UPS01 is building a successful power supply solution featured with 12000 mAh that is able to serve connectivity needs for the terminal devices up to 32 hours.
Data Protection
By offering resilient power supply, the UPS01 is poised to ensure seamless data transmission between the terminal devices and remote platform when power outage happens. Besides, the heating film also allows it to work in low-temperature environment for continuous power supply.

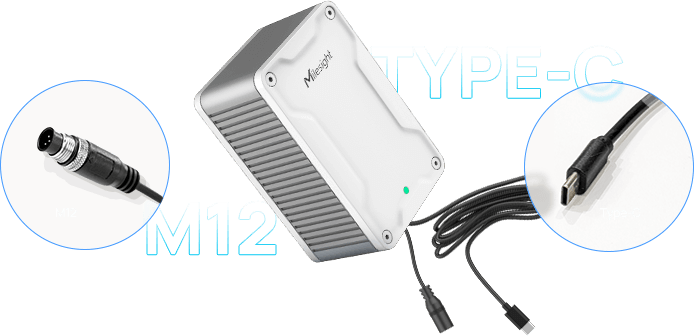

Plug and Play
The Type-C and M12 interface are indicative of the easy and quick operation of the UPS01 and eliminate trenching costs and forward.

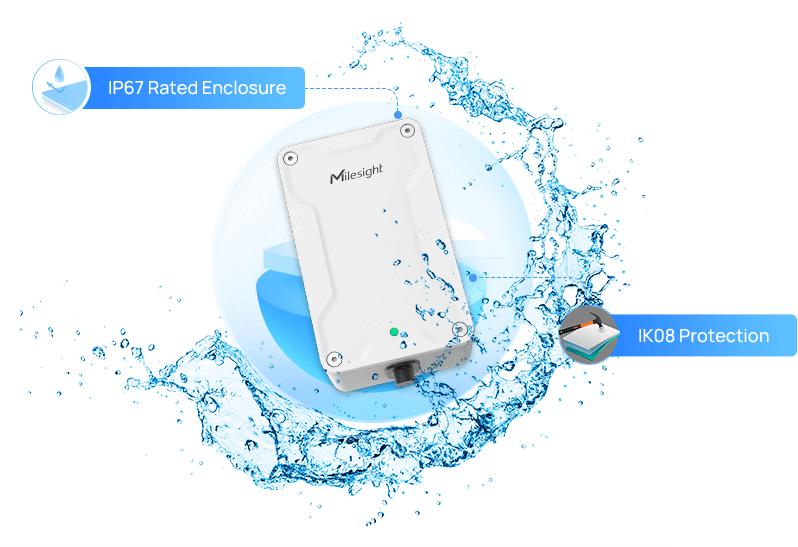

Compact Design with
IP67 and IK08 Protection
With a greater reliance on sophisticated technology , the UPS01 favors a rugged design with IP67 and IK08 and can be served in the most demanding environment and meet mission critical.
Real-time Alarming
The UPS01 owes its powerful function to cutting-edge technology and ensure the device and network resilience while sending alarms of power outage, saving manufacturers expense of unnecessary maintenance downtime and keeping your business operating without interruption.

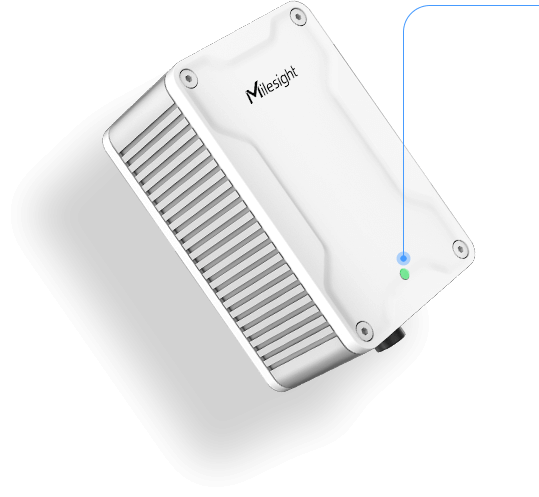

Tricolor Indicators
The Milesight UPS01 is equipped with tricolor indicators and smart internal logic for status display. By which it increases the operational efficiency and allows for quick data-decision making.
Typical Application

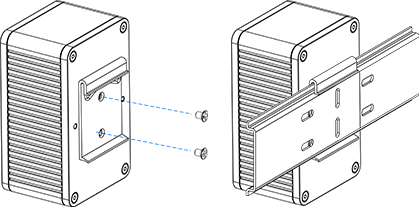

DIN Rail Mounting

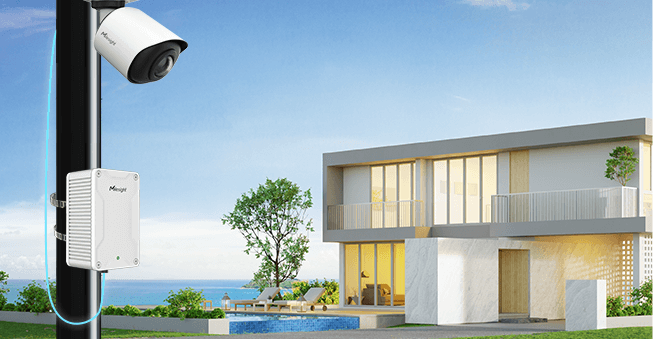

Pole Mounting
Wall Mounting
Specifications
- Type-C Version
- M12 Version
| Power | |
|---|---|
| Power Input | 9~20V⎓2A |
| Input Connector | DC Jack Female Connector |
| Power Output | 5V⎓4A |
| Output Connector | Type-C |
| Battery Capacity | 4 x 3000mAh Lithium-ion Rechargeable Batteries |
| Battery Supply Time1 | 6 ~ 32h |
| Others | |
| LED Indicator | 1×Traffic Light Indicator (Battery Capacity & Diagnose) |
| Button | 1×Reset Button (Internal) |
| Software Features | Power Monitoring, Alarm, Upgrade (Only with Milesight Devices ) |
| Physical Characteristics | |
| Cable Length | DC IN: 30 cm Type-C: 100 cm |
| Ingress Protection | IP67 & IK08 |
| Material & Color | Aluminum, White & Silver |
| Dimension | 96×60×45mm (3.78×2.36×1.77 in) (Without Cable) |
| Operating Temperature | Charge Temperature: -20°C to +45°C (-4℉ to +113℉) Discharge Temperature: -20°C to +60°C (-4℉ to +140℉) |
| Relative Humidity | 0% - 95% (Non-condensing) |

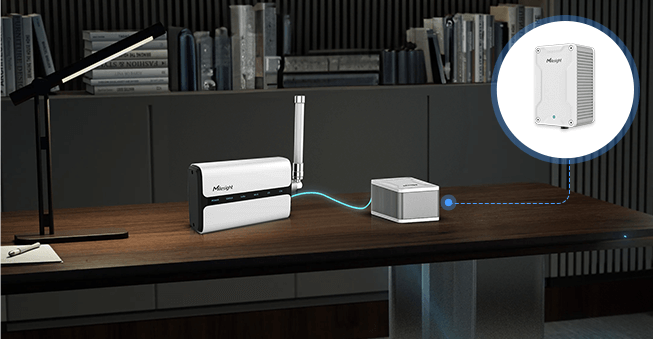

| Installation | Wall Mounting, DIN Rail Mounting, Pole Mounting, Desktop Mounting |
| Power | |
|---|---|
| Power Input | 9~20V⎓2A |
| Input Connector | DC Jack Female Connector |
| Power Output | 6~8.4V⎓1.5A |
| Output Connector | 4-Pin M12 A-Coded Female |
| Battery Capacity | 4 x 3000mAh Lithium-ion Rechargeable Batteries |
| Battery Supply Time1 | 6 ~ 32h |
| Others | |
| LED Indicator | 1×Traffic Light Indicator (Battery Capacity & Diagnose) |
| Button | 1×Reset Button (Internal) |
| Software Features | Power Monitoring, Alarm, Upgrade (Only with Milesight Devices ) |
| Physical Characteristics | |
| Cable Length | DC IN: 30 cm M12: 150 cm |
| Ingress Protection | IP67 & IK08 |
| Material & Color | Aluminum, White & Silver |
| Dimension | 96×60×45mm (3.78×2.36×1.77 in) (Without Cable) |
| Operating Temperature | Charge Temperature: -20°C to +45°C (-4℉ to +113℉) Discharge Temperature: -20°C to +60°C (-4℉ to +140℉) |
| Relative Humidity | 0% - 95% (Non-condensing) |
| Installation | Wall Mounting, DIN Rail Mounting, Pole Mounting, Desktop Mounting |
