Entrance & Exit AI LPR
Pro Dome Camera

Dome-shaped Model for LPR Solution

entrance exit ai lpr pro dome camera small
entrance exit ai lpr pro dome camera black small
entrance exit ai lpr pro dome camera black recessed mount small
  • Intelligent AI-powered LPR Algorithm
  • Black & White List and No-plate Vehicle Detection
  • Evidence Camera Linkage
  • LPR Smart Search
  • 140dB Super WDR
  • IP67 & IK10 Full Protection
  • Clamshell Design for Easy Installation
  • Versatile Interfaces
  • FEATURES
  • MODELS
  • DOWNLOAD

Introducing Milesight Intelligent Traffic

maxresdefault
maxresdefault

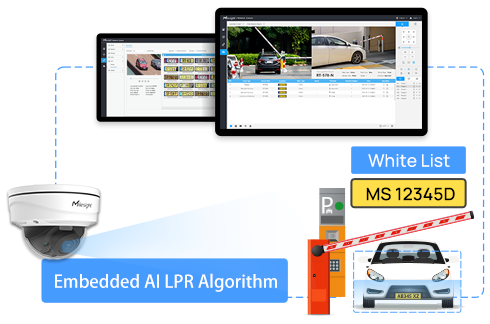

Easy and Flexible Deployment

Standalone Barrier Control

With built-in AI LPR algorithms and embedded black/white list, the camera enables a standalone and easy-to-deploy solution for gate or barrier control.

Milesight Back-ends Integration

Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.

Third-party VMS Integration

Various CGI/APIs, interfaces and protocols like TCP, HTTP make it easy to integrate with third-party VMS or platforms.

easy deployment

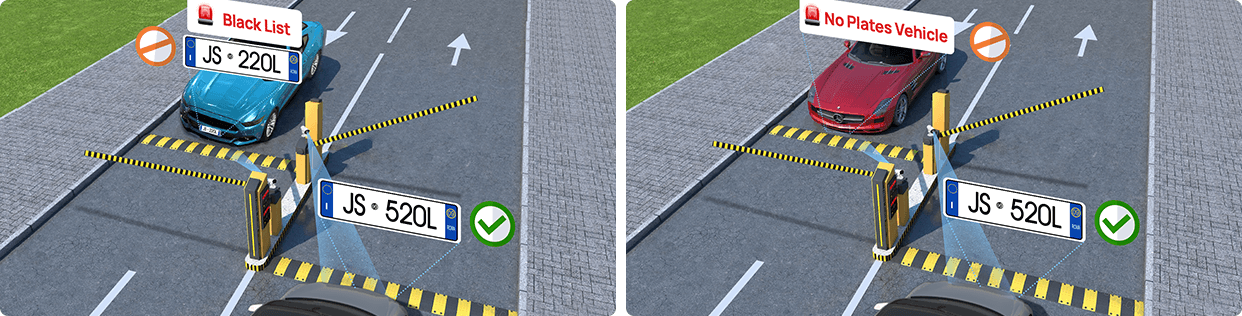

Black/White List and No-plate Vehicle Detection

With the built-in AI LPR algorithm and embedded black and white lists, Milesight Entrance & Exit AI LPR Cameras enable to achieve standalone solutions for license plate recognition as well as no-plate vehicle detection. Alarm is triggered as soon as the corresponding rule-compliant license plate is detected, enabling efficient and accurate access control at any gate, such as a campus or an apartment.

plate management

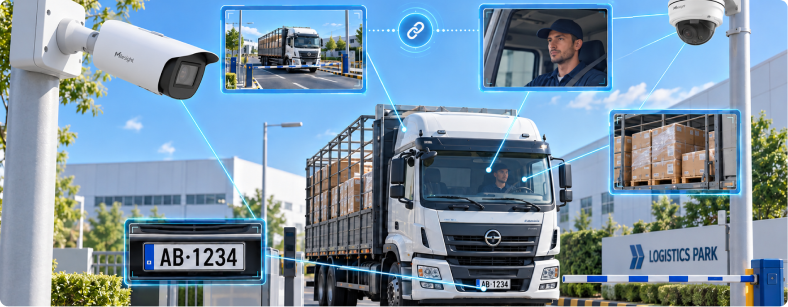

Evidence Camera Linkage

Milesight Entrance & Exit AI LPR Camera can link with any regular cameras to capture the evidence. With the seamless trigger between the LPR camera and the regular camera, users can easily provide solid and convincible evidence with LPR results together with overview snapshots and critical details, such as driver's face and loaded materials in trucks.

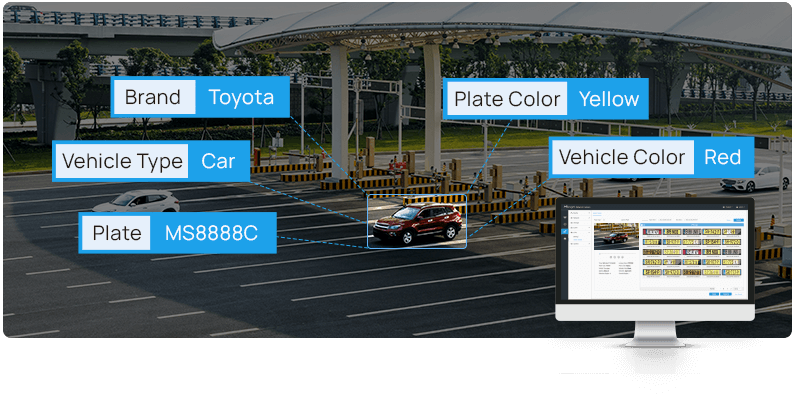

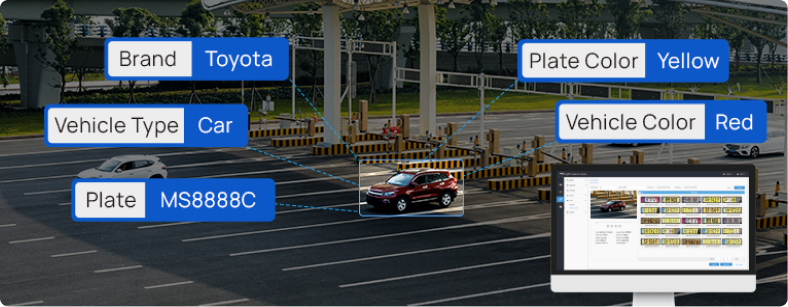

LPR Smart Search

Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.

lpr smart search

Intelligent AI-powered
LPR Algorithm

Based on built-in AI algorithm, Milesight Entrance & Exit AI LPR Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and efficiency for access control at both entrances and exits.

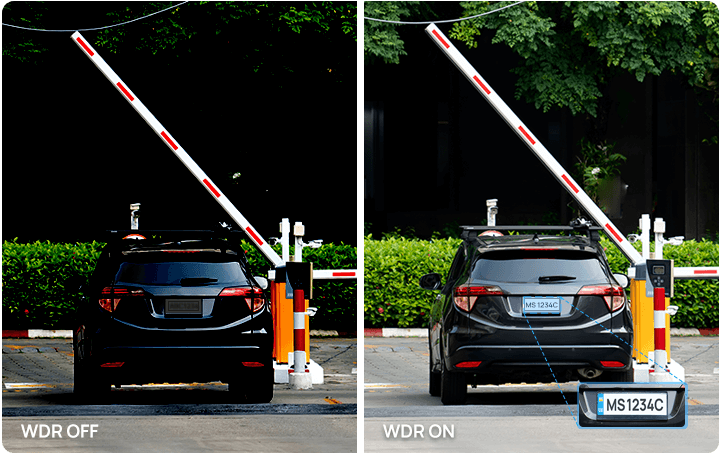

140dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under extreme back light and high contrast conditions, ensuring better capture of road traffic details.

wdr

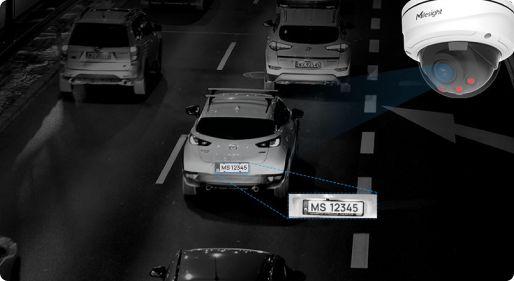

Smart IR II Technology

The IR LEDs technology upgraded to provide better image clarity and quality in the dark night. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the zoom ratio.

ultra low light

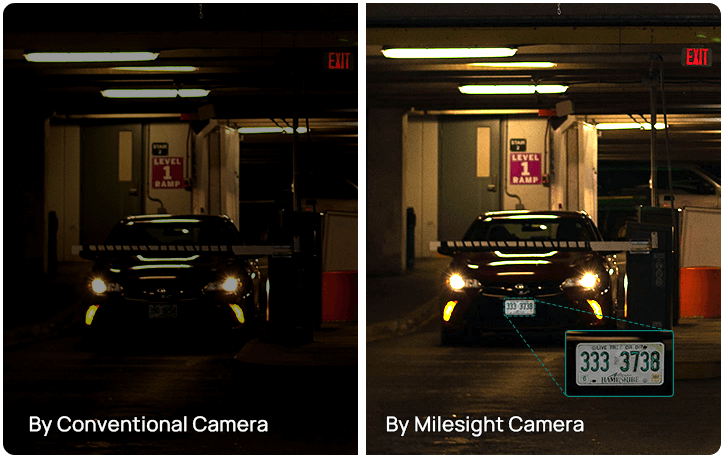

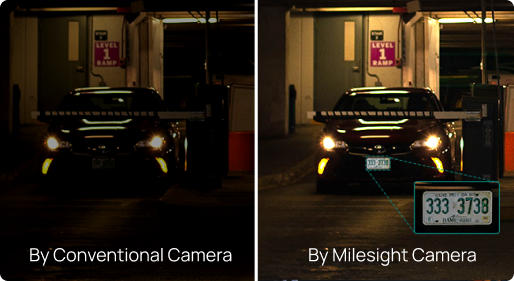

0.005Lux Ultra Low-light

Milesight Entrance & Exit AI LPR Pro Dome Camera is able to deliver detailed clear images in low and near-infrared light conditions down to 0.005Lux (Color) and 0Lux (B/W), ensuring superior performance for 24/7 traffic monitoring.

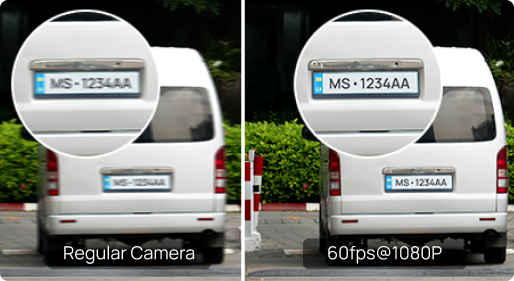

60fps High Frame Rate

With the industry leading frame rate reaching 60fps, Milesight Entrance & Exit AI LPR Camera can easily catch vehicle and plate images with no latency despite of the high-speed movement.

efficient installation

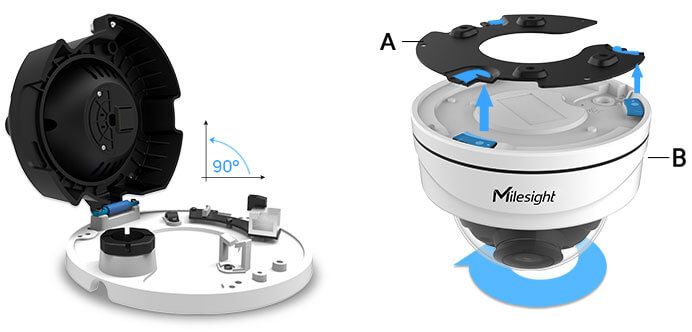

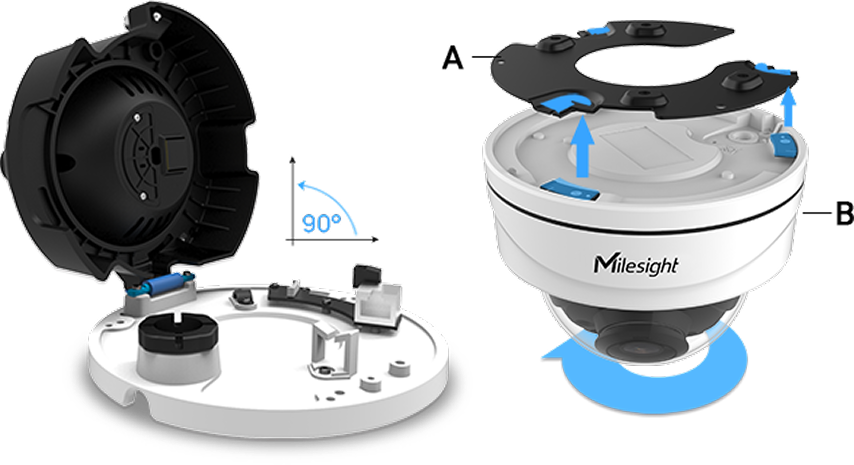

Efficient & Simple
Installation

Milesight creatively introduces the clamshell design to the dome camera, which enlarges the space to make cable connection a piece of cake. Meanwhile, Milesight provides a light thin mounting bracket to further reduce the installation troubles to the least.

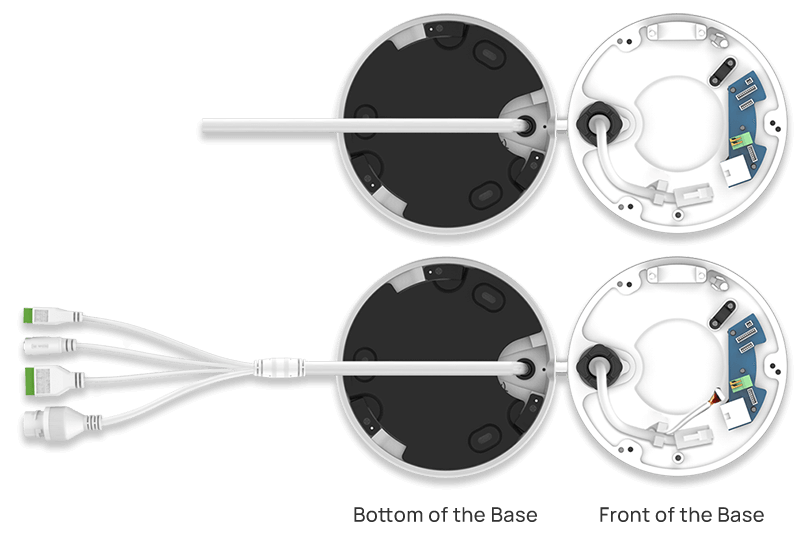

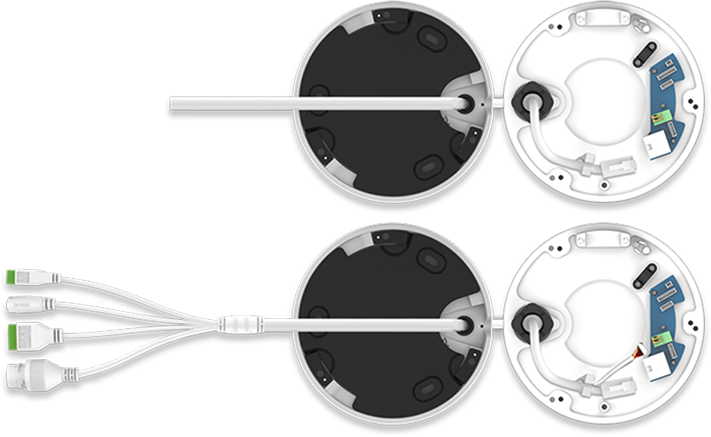

Versatile Interfaces

The multi-interface cable is available with rich interfaces including PoE port, DC, Alarm I/O and Audio Output to offer more choices for easy cable management and various needs.

versatile interfaces

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

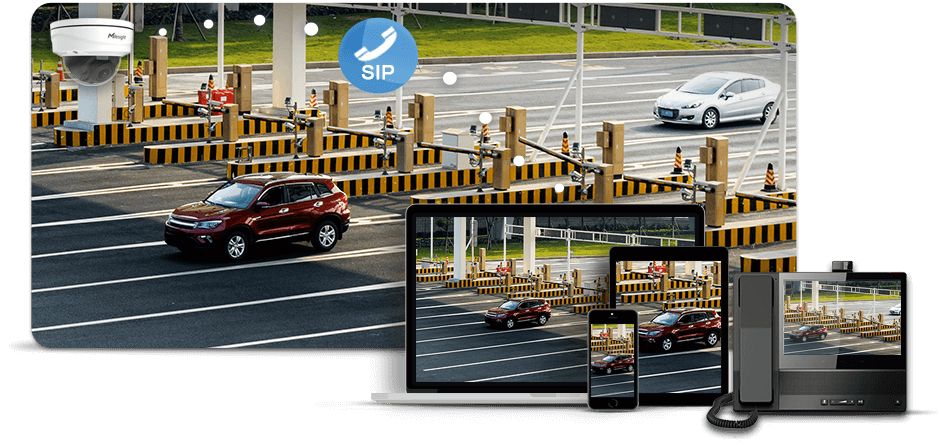

SIP/VoIP Support

Milesight AI Camera features industry leading SIP/VoIP function and video
streaming for mobile phones and video phones.

sip voip

Specifications

NDAA

Non-NDAA

Camera
NameEntrance & Exit AI LPR Pro Dome Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.4
B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Illumination DistanceUp to 50m
S/N>55dB
Lens
LensMotorized 2.7~13.5mm@F1.4
Field of ViewH115°~H34°/D135°~D39°/V62°~V19°
MountΦ14
Focus ControlAuto/Manual
Entrance & Exit Management
Max. Vehicle Speed120km/h
Recognition Accuracy>98%
Coverage2 lanes
Country/Region SupportedMore than 80 countries and regions
ANPR DistanceUp to 25m during the day; Up to 20m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic FunctionEvidence Camera Linkage
White/Black ListUp to 20,000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone and 1 Audio Output interface
Alarm I/O1/1
Video
Max. Image Resolution1920x1080
Primary Stream60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & M & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General
Working Temperature-40℃∼60℃
Working Humidity0∼95%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6W MAX, 8W MAX(With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight1100g
DimensionsΦ143mmX108.4mm
Warranty3/5 Years

*Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
L - LPR Supported
P - PoE Supported
C/E - AI Series

Camera
NameEntrance & Exit AI LPR Pro Dome Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Illumination DistanceUp to 50m
S/N>55dB
Lens
LensMotorized 2.7~13.5mm@F1.4
Field of ViewH115°~H34°/D135°~D39°/V62°~V19°
MountΦ14
Focus ControlAuto/Manual
Entrance & Exit Management
Max. Vehicle Speed120km/h
Recognition Accuracy>98%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
ANPR DistanceUp to 25m during the day; Up to 20m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture
Smart Traffic FunctionEvidence Camera Linkage
White/Black ListUp to 1,000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/OBuilt-in Microphone and 1 Audio Output interface
Alarm I/O1/1
Video
Max. Image Resolution1920x1080
Primary Stream60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General
Working Temperature-40℃∼60℃
Working Humidity0∼95%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption8W MAX, 10W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight1100g
DimensionsΦ143mmX108.4mm
Warranty3/5 Years

*Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
L - LPR Supported
P - PoE Supported
C/E - AI Series
