AI Outdoor Parking Management
Pro Bullet Plus Camera
1 Camera, 2 Parking Detection Modes
Designed for Off-grid & Remote Security
Win Early-bird Offer
1 Camera, 2 Parking Detection Modes
Designed for more efficient and intelligent outdoor parking management, the camera offers two detection modes to meet diverse needs.
Simultaneous detection and management of up to 100 parking spaces in 98%+ detection accuracy.
Simultaneous detection and management of up to 4 parking spaces with license plate and vehicle feature recognition results included.
The camera employs advanced image processing technologies for outstanding scene adaptability. With a wide FoV motorized zoom lens and 4K ultra-high resolution, every detail is visible. Furthermore, the 1/1.8" STARVIS starlight sensor and frame accumulation technology enable safe and reliable outdoor monitoring, even at night.
To maximize usability and compatibility, Milesight AI Outdoor Parking Management Camera supports CGI/API, which makes it easy to integrate openly with third-party platforms. Network protocols, such as HTTP(s), provide a wide range of options for data processing. The transmission of parking information to third-party parking systems helps form a complete solution to enable intelligent parking management.
Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under extreme back light and high contrast conditions, ensuring better capture of vehicle details.

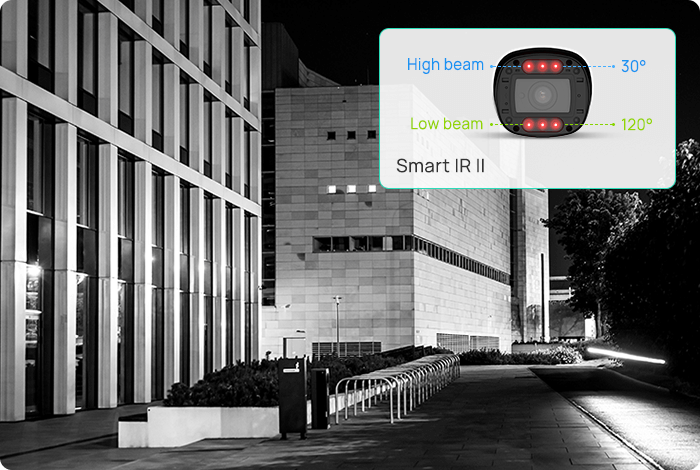

The IR LEDs technology upgraded to provide videos with a viewing range of up to 65m, which reaches better image clarity and quality. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the zoom ratio.
Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

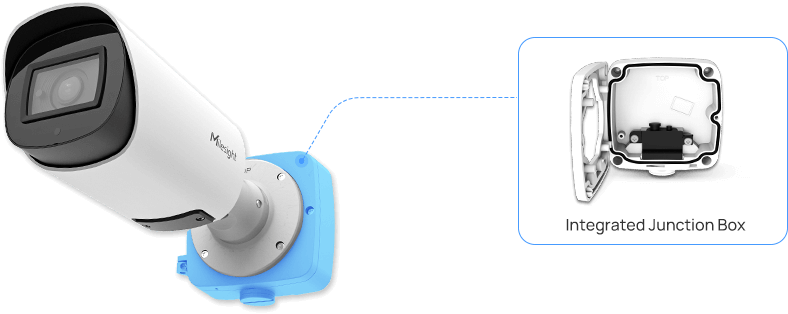

The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
Camera | |
---|---|
Image Sensor | 1/1.8″ Progressive Scan CMOS |
Min. Illumination | Color: 0.009Lux @F1.4, B/W: 0Lux with IR on |
WDR | 120dB Super WDR |
Shutter Time | 1/100000s∼1s |
Day/Night Mode | Day/Night/Auto/Customize/Schedule |
Illumination Distance | Up to 65m |
S/N | >55dB |
Parking Management | |
Parking Application Mode | Occupancy Detection/Parking Detection |
Parking Space Detection | Up to 4 Parking Spaces for Parking Detection with LPR; Up to 100 Parking Spaces@10m for Occupancy Detection |
Detection Accuracy | >98% |
Data Report | Triggered Report: when parking space is occupied or released; Interval Report: regular report of entire parking situation |
Mounting Height | 4~8m (For Parking Detection with LPR); >3.5m (For Occupancy Detection) |
Lens | |
Lens | Motorized 3.6~10mm@F1.4 |
Field of View | H116°~H48°/D134°~D55°/V65°~V27° |
Mount | Φ14 |
Focus Control | Auto/Manual |
Video | |
Max. Image Resolution | 3840x2160 |
Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
ROI | Up to 8 areas |
Image Settings | Saturation/Brightness/Contrast/Sharpness |
Audio | |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/44.1/48KHz |
Audio Bit Rate | 16~256kbps |
Two-way Audio | Support |
Interface | |
Ethernet | 1*RJ45 10M/100M Ethernet Port |
Audio I/O | 1/1 |
Alarm I/O | 1/1 |
Network | |
Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
System | |
Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
SIP/VoIP Support | Yes, Voice&Video-over-IP |
Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
System Compatibility | ONVIF Profile G & S & T, API |
General | |
Working Temperature | -40℃∼60℃ |
Working Humidity | 0∼90%(Non-condensing) |
Power Supply | PoE (802.3af) / DC 12V±10% |
Power Consumption | 8W MAX, 17W MAX(With IR on) |
Weather Proof | Up to IP67-rated for weather-resistant performance |
Housing | Vandal-proof IK10-rated metal housing |
Surge Protection | 4KV |
Dimensions | 301mmX108mmX126mm |
Weight | 1630g |
Warranty | 3/5 Years |
* Naming Convention
F - Motorized Vari-focal Lens
P - PoE Supported
C - AI Series
