Industrial LoRaWAN® Gateway
Bridging the Gap for Reliable IoT Connectivity
UG56
Bridge the Gap. Be Connected
UG56 is a high-performance 8-channel LoRaWAN® gateway that offers reliable connectivity for industrial applications.
- Industrial-Grade Design
- Listen Before Talk
- Gateway Fleet
- Free Embedded Network Server
- Multiple Backhaul Connectivities
- Global LoRaWAN® Frequency Plans
- FEATURES
- MODELS
- DOWNLOAD

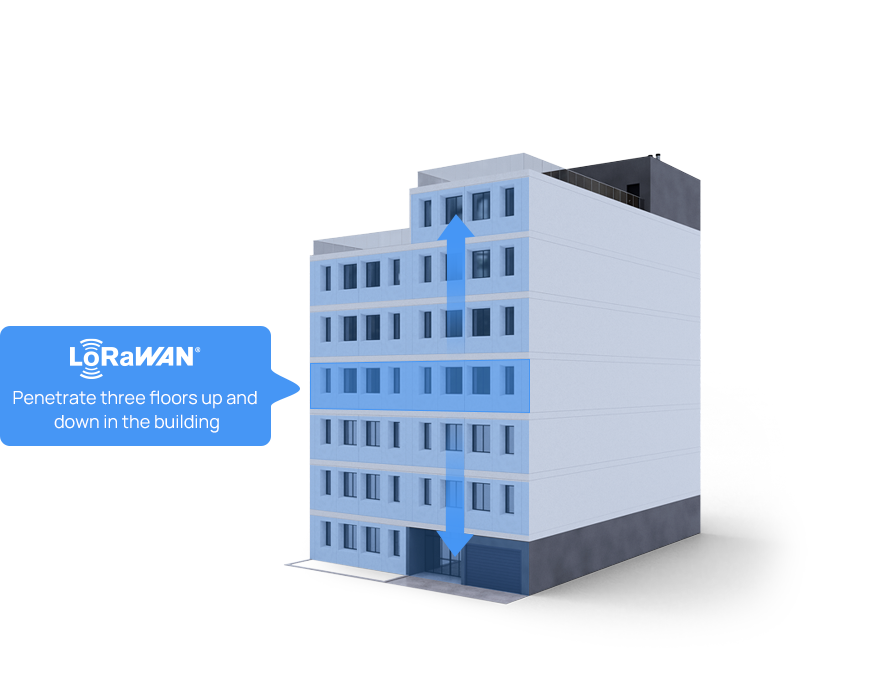

Penetrating Obstructions Through and Through
Penetrate three floors up and down in the building, and cover a radius of up to 2 km in urban areas and 15 km in rural areas.
Towards Massive Connectivity for IoT Deployments
Adopting Semtech SX1302 LoRa chip, UG56 supports connection with more than 2000 LoRaWAN® nodes.
- 8 Channels
- Quad-core CPU
Optimizing Coverage and Placement Concurrently

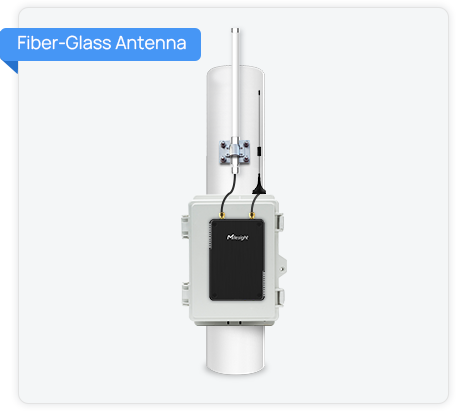

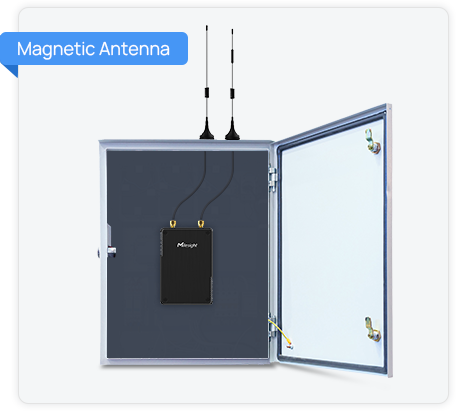

The compact size makes it possible to embed UG56 into a small equipment cabinet. Users can install the magnetic antenna or fiber-glass antenna (optional) at a signal-optimized place to cover more areas.
Gateway Fleet
The Gateway Fleet feature enables multiple agent gateways to transmit received data to one controller gateway, which facilitates the deployment and management of LoRaWAN® network.
Listen Before Talk
UG56 supports Listen Before Talk which makes it possible for multiple devices to share the same channel, reduce channel conflict and improve the overall transmission environment.
Enabling Multiple Backhaul Connectivities
Stay connected via Ethernet, cellular, and Wi-Fi.
High Compatibility with Multiple Network Servers
Compatibility with LoRaWAN® Network Servers (LNS) is crucial for reliable gateway operation. It is designed for seamless integration with a wide range of LNS platforms, ensuring smooth deployment and maximum flexibility.
* Platform integration may vary – click the LNS icon below to learn more.
Remote Firmware Updates for End Devices After Deployment
The embedded Network Server of the UG56 supports Firmware Update Over-The-Air (FUOTA), allowing seamless remote firmware updates for connected LoRa® devices via a LoRa® wireless network after deployment.
Firmware Update Over-The-Air
Integrating with Building Management System

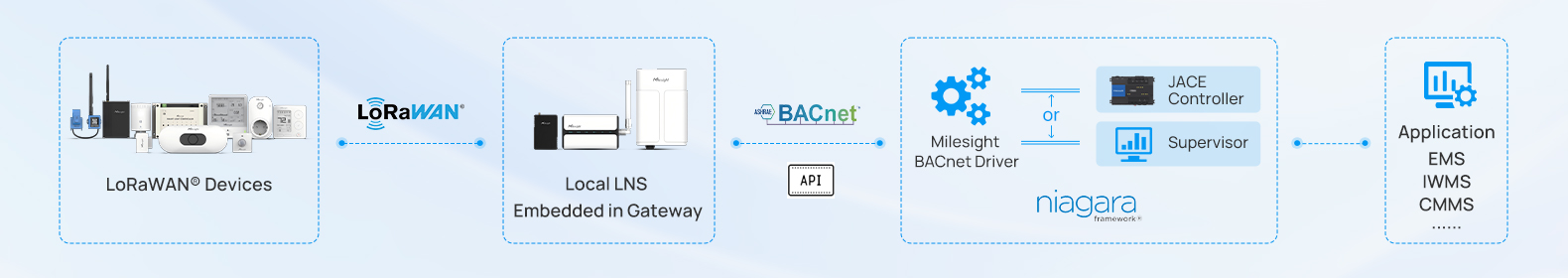

With support for BACnet and Modbus, real-time data can be seamlessly integrated into existing Building Management System (BMS).
Using BACnet

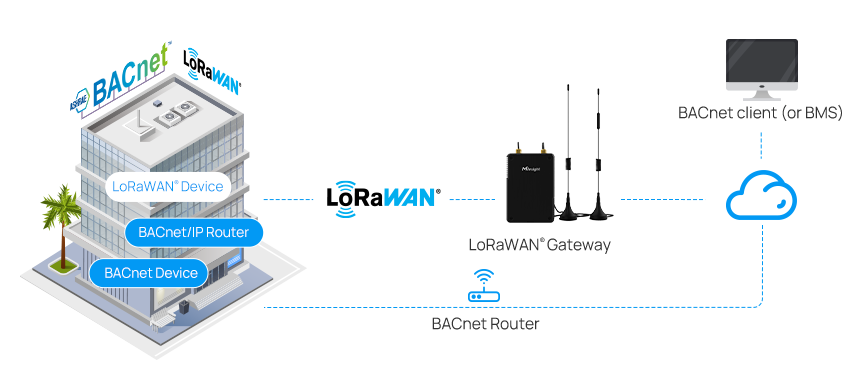

BACnet over LoRaWAN®
- LoRaWAN® serves as the data channel to the control applications
- No changes to the BACnet protocol, network, or BACnet-enabled devices and management systems are needed
LoRaWAN® as a Complementary Network
- LoRaWAN® network is independent of the core BACnet infrastructure
- The LoRaWAN® network feeds data to the BMS through a virtual BACnet server
- LoRaWAN® data and sensors appear to be part of the BACnet system

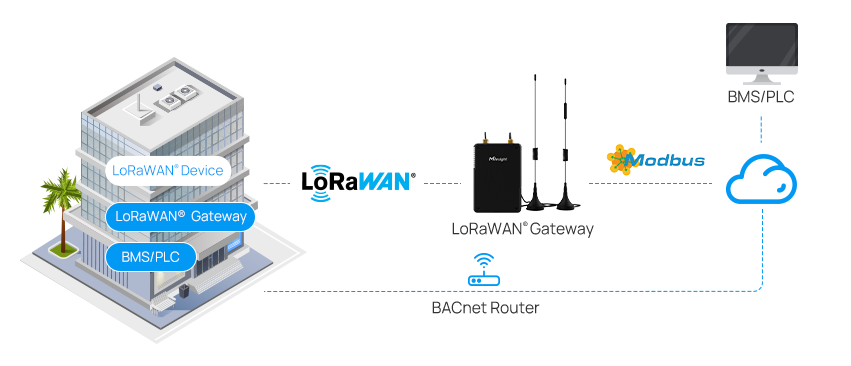

Using Modbus
Device Management & Application Development
Milesight IoT Cloud

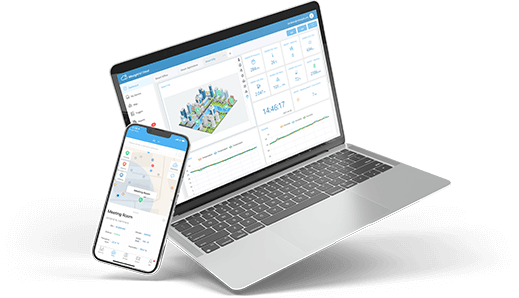

Milesight IoT Cloud streamlines device-to-cloud connection with data visualization and remote monitoring and control.

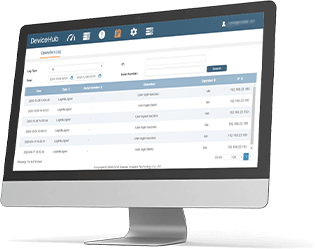

Milesight DeviceHub
Mileisight DeviceHub is a all-in-one platform that allows you to manage your devices and make customized settings remotely, while ensuring highest levels of privacy and security.
Effortless Auto-P Configuration
UG56 integrates with the RPS (Redirection and Provisioning Service) service, enabling fast device deployment without user intervention. Upon powering up and connecting to the network, the device undergoes automatic configuration.
Plug-and-Play Configuration and Remote Management
Milesight Development Platform simplifies your device deployment with intuitive addition processes, plug-and-play configurations, and seamless connectivity. Your devices will be set up automatically by applying settings from predefined templates upon initial activation. It also allows you to send data to custom applications using APIs or webhooks.
Learn MoreSimplify Your Processes with Node-RED
With compatibility with Node-RED, users can easily integrate devices, APIs, and online services effortlessly.
Flexible Installation Ways

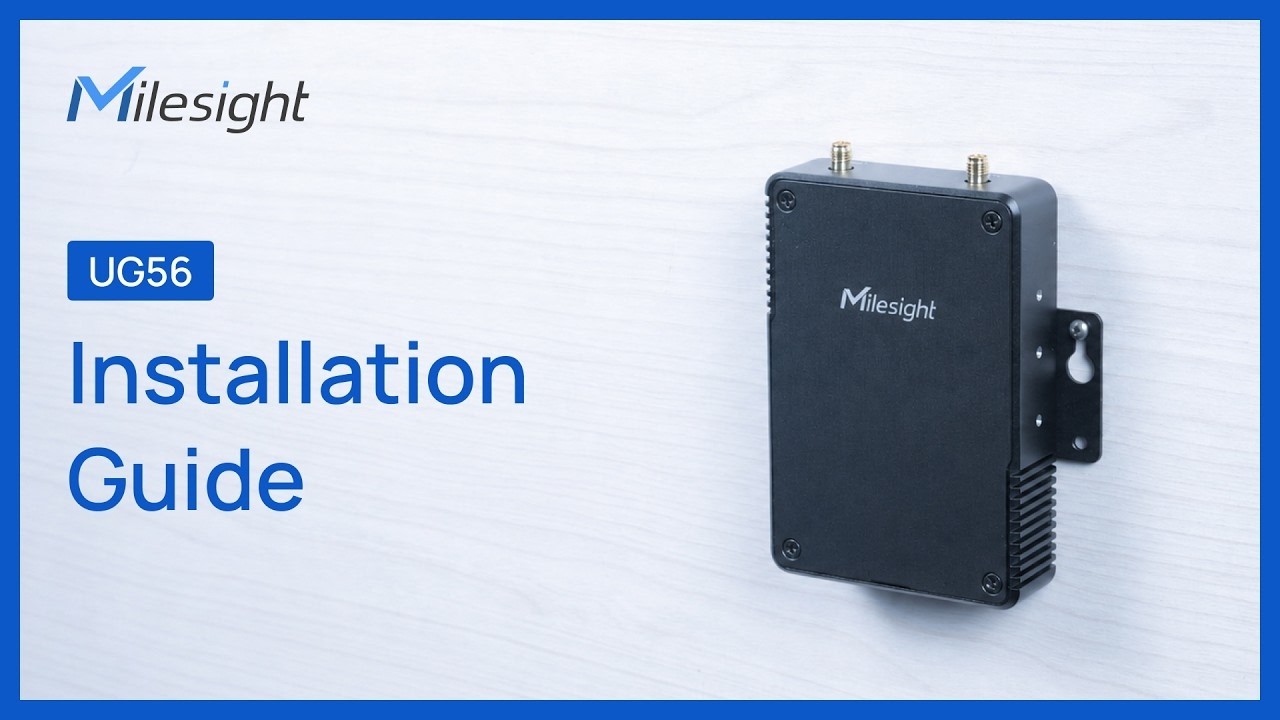

Wall Mounting
Desktop Mounting
Specifications
- Hardware Specifications
- Software Specification
| Hardware System | |
|---|---|
| CPU | Quad-core 1.3 GHz, 64-bit ARM Cortex-A35 |
| Memory | 512 MB DDR3 RAM |
| Flash | 8 GB eMMC |
| Extendable Storage | 1 × Micro SD Slot (Internal) |
| LoRaWAN® | |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Channel | 8 (Half-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140 dBm Sensitivity @292bps |
| Tx Power | 27 dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| LBT1 | Support |
| Ethernet Interface | |
| Port | 1 × RJ45 (PoE PD supported) |
| Physical Layer | 10/100 Base-T (IEEE 802.3) |
| Data Rate | 10/100 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Ethernet Isolation | 1.5 kV RMS |
| Wi-Fi Interface | |
| Antenna | Internal Antenna |
| Standards | IEEE 802.11b/g/n, 2.4 GHz |
| Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) |
| Cellular Interface (Optional) | |
| Network | 4G LTE |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| SIM Slot | 1 (Mini SIM-2FF) |
| Others | |
| Reset Button | 1 × RST (Internal) |
| USB | 1 × USB Type-C for Power Supply and Console |
| LED Indicators | 1 × SYSTEM, 1 × LoRa |
| Built-in | Watchdog, Timer |
| Power Supply and Consumption | |
| Power Input | 1. 802.3 af PoE 2. 5V/2A by Type-C Port |
| Power Consumption | Typical 1.8 W, Max 6.9 W |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Housing & Color | Metal, Black |
| Weight | 186g |
| Dimensions | 110 x 75 x 24 mm (4.33 x 2.95 x 0.94 in) |
| Installation | Desktop, Wall Mounting, DIN Rail Mounting2 |
| Environmental | |
| Operating Temperature | -20°C to +60°C (-4℉ to +140℉) |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
1.AU915 and US915 do not support LBT.
2.Only new hardware devices support DIN Rail mounting. Please contact Milesight for it before purchase.
| LoRaWAN® | |
|---|---|
| Supported Devices | Around 2000 Class A/B/C Devices (10 min uplink interval) |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Packet Forwarder | |
| Noise Analyzer | Scan the noise of the frequencies for channel selection |
| Packet Filter | Add whitelist or blacklist to filter the packets |
| Data Retransmission | Re-transmit the data packets after network recovery |
| Embedded Network Server | |
| Decode and Encode | Inbuilt Milesight devices codec library, support custom codec setup |
| Gateway Fleet | Work as the network server of other Milesight blind-filling gateways |
| Multicast | Support multicast downlink control |
| FUOTA | Upgrade FUOTA supported end devices |
| Integration | MQTT, HTTP(s), BACnet/IP, Modbus TCP, Modbus RTU over TCP |
| Network | |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, MQTTS, BACnet/IP, Modbus RTU over TCP, Modbus TCP, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN/WireGuard |
| Firewalls | Access Control, DMZ, Port Mapping (DNAT), MAC Binding, Filtering (IP&Domain) |
| DDNS | Supported >16 service providers, others can be configured manually |
| Multilevel Authority | Multiple Levels of User Authority |
| Reliability | WAN Failover |
| Diagnostics Tools | Ping, Traceroute, Tcpdump, QXDM, Log Server |
| Wi-Fi Interface | |
| Standards | IEEE 802.11 b/g/n, 2.4GHz |
| Mode | AP or Client mode |
| Security | AP: WPA-PSK/WPA2-PSK authentication, WEP/TKIP/AES encryption Client: WPA-PSK/WPA2-PSK/WPA-Enterprise/WPA2-Enterprise authentication, WEP/TKIP/AES encryption |
| Management | |
| Configuration | Web, CLI (SSH/Telnet), SMS, On-demand dial up, SNMP, HTTP API, MQTT API, Milesight Development Platform, DeviceHub |
| Update | Web, Milesight Development Platform, DeviceHub |
| Device Management | Milesight Development Platform, DeviceHub |
| Event Alarm | Power On, Network Up/Down, VPN Up/Down, etc. |
| Others | |
| App | Python SDK, Node-RED |
1.Only Parts of packet forwarders support this feature.
