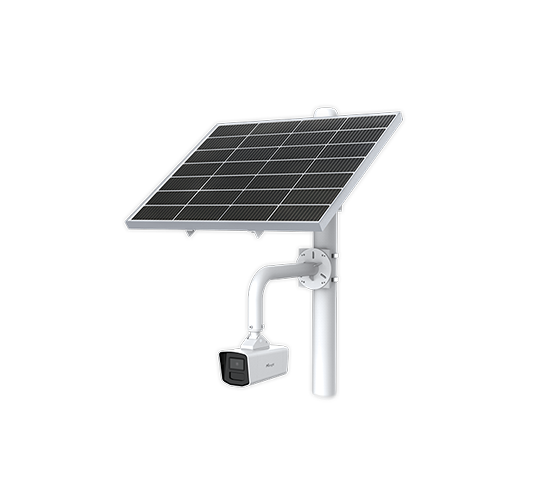

All-in-one Security Kit, Green and Efficient!
Unlock the power of 24/7 remote monitoring with this groundbreaking kit. It not only keeps a vigilant eye on your assets from anywhere but also takes action—stopping crime, preventing illegal dumping, and securing job sites with unmatched efficiency. Even in the most remote locations, experience peace of mind like never before.
Address off-grid security challenges with Milesight innovative all-in-one kit. Designed to overcome network and power limitations, this solution leverages 4G/Wi-Fi connectivity and solar energy to provide a fully wireless system. By eliminating the need for complex wiring and traditional power sources, it cuts down on installation costs, reduces labor, and saves valuable time.
Equipped with a high-capacity battery, this system powers through 17 days of continuous recording, with night-time IR and AI features. Even in cloudy or rainy conditions, your security remains unbroken, ensuring round-the-clock protection and reliable video streaming when it matters most.
With only 2 watts power consumption, this ultra-low power system prioritizes both security and the environment. The annual energy savings are equivalent to planting a tree, allowing you to protect your property while contributing to environmental sustainability with our eco-friendly design.
Configuration
Recording
AI Detection
Data Transmission
Performance
Continuous
On
(Full Frame Rate)
On/Off
Eco
Continuous
On
(Dynamic Frame Rate)
On/Off
Sleep
Scheduled Image Capture
Off
Off
Milesight Solar-Powered Camera offers flexible configuration to meet your security and power needs:
Performance Settings
Delivers full functionality for high-demand security situations, ensuring comprehensive monitoring and recording at maximum frame rates for the most accurate and detailed footage.
Eco Settings
Incorporates dynamic frame rate technology to optimize power consumption. The camera operates at high frame rates when events are detected and reduces to lower frame rates during inactivity, balancing effective monitoring with energy efficiency.
Sleep Settings
With two sleep modes—scheduled sleep and low-power sleep—this system maximizes efficiency by extending battery life up to 165 days. When needed, it can be instantly reactivated within 24 seconds to return to full performance mode, ensuring your security is always on standby and ready to deliver real-time protection.
The comprehensive design of Milesight all-in-one kit ensures complete, standalone and AI-enabled functionality, making it ideal for remote and off-grid security
Solar Panel
Up to 2*100W solar panels
Battery
Up to 962Wh ternary lithium battery
GPS
Built-in high-accuracy GPS module
4G/Wi-Fi Connectivity
Fast & reliable data transmission
Camera
AI Events
Reliability

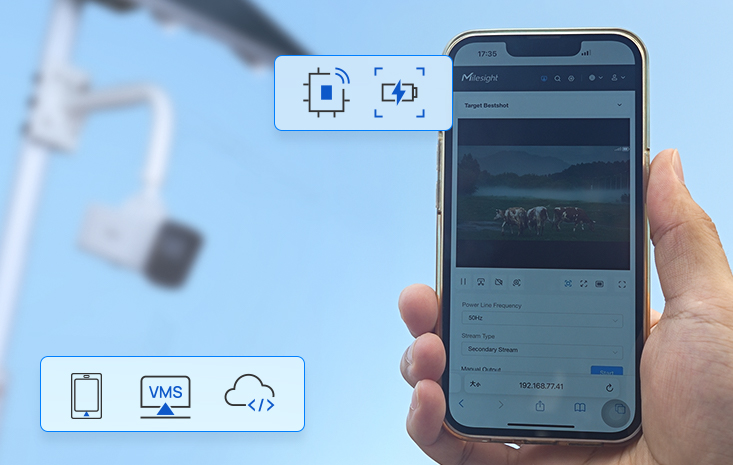

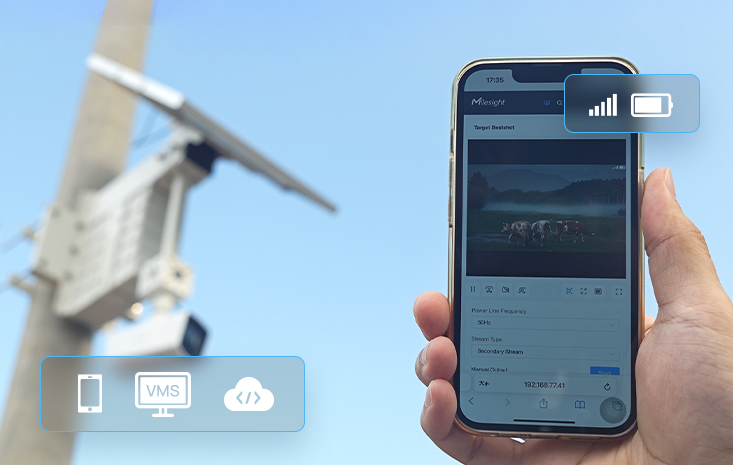

Milesight all-in-one kit comes integrated with the SiteGuard Suite, a complete back-end system featuring a cloud platform, client software, and mobile app. This powerful suite allows for remote monitoring, alerts, and management without the need for on-site presence.
Construction Sites
Leverage advanced AI for perimeter protection and integrate with audio interfaces for 24/7 theft prevention. Additionally, when paired with the Milesight SiteGuard system, you can utilize time-lapse photography to effectively monitor construction progress.
Illegal Dumping
Detect unauthorized trash dumping, including firewood collection and other antisocial activities. Enhance site management and ensure proper disposal practices.
Community Safety
Enhance community security with flexible installation options. Our product supports direct connection to electricity supply in utility poles. This versatility simplifies installation, reduces costs, and secure assets and actively deter intruders through effective, proactive defense.
Remote Security
Install effortlessly without existing infrastructure. Enjoy remote monitoring capabilities for continuous protection and oversight without needing to visit the site, ideal for areas with limited access.

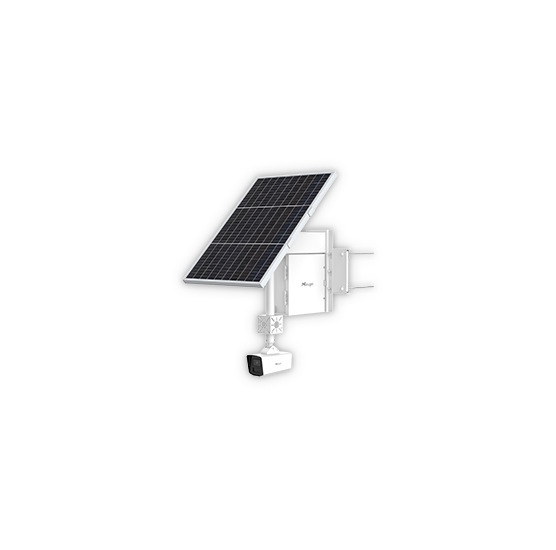

Milesight delivers a complete solar camera kit, including solar panel, battery pack, mounting accessories and camera body. With built-in SIM/SD card slot and unified interface design, everything is plug & play.
| Image | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm |
| IR Distance | Up to 20 m (65.62 ft) |
| S/N | >55dB |
| Lens | |
| Lens | 2.8mm/6mm |
| Mount | M12 |
| Field of View | 2.8mm: H111°/D128°/V61° 6mm: H52.8°/D60.4°/V29.7° |
| DORI | |
| DORI | 2.8mm: D: 64.7 m, O: 25.4 m, R: 12.7 m, I: 6.4 m 6mm: D: 128 m, O: 50.4 m, R: 25.2 m, I: 12.6 m |
| Video | |
| Max. Image Resolution | 4MP (2688*1520) |
| Primary Stream | 60Hz: 15fps@(2688*1520, 2304*1296, 1920*1080, 1280*720) 50Hz: 12fps@(2688*1520, 2304*1296, 1920*1080, 1280*720) |
| Secondary Stream | 60Hz: 15fps@(1280*720, 704*576, 640*480) 50Hz: 12fps@(1280*720, 704*576, 640*480) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas (Mask) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Web Access | WIFI/VPN/Milesight VMS |
| Interface | |
| Alarm I/O | Input *1, Output *1 |
| Audio I/O | Input *1, Output *1 |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| RS485 | 1 |
| Wireless Network | |
| WLAN | 802.11n/802.11g |
| Cellular | 4G LTE NA: LTE-FDD(B2/4/5/12/13/14/66/71) AU: LTE-FDD(B1/2/3/4/5/7/8/28) ; LTE-TDD(B40) JP: LTE-FDD(B1/3/8/18/19/26); LTE-TDD(B41) EU: LTE-FDD(B1/3/7/8/20/28A); LTE-TDD(B38/40/41) |
| SIM Card | Nano SIM |
| Intelligent Analytics | |
| Available Object Types | Human, Vehicle (Bicycle/Car/Motorcycle/Bus/Truck) |
| Video Analysis | Intrusion Detection, Line Crossing, Object Left, Advanced Motion Detection, Tamper Detection |
| System | |
| GPS | Built-in High-accuracy GPS Module |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Event Trigger | Intelligent Analytics, External Input, etc. |
| Event Action | HTTP Post, FTP Upload, SMTP Upload, SD Card Record, External Output, Snapshot, Play Audio, Alarm to SIP Phone, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F) |
| Working Humidity | 0~95% (Non-condensing) |
| Power Supply | DC 12V±10% |
| Power Consumption | Sleep Mode: 0.19 W Basic: 1.71 W (Event + 4G Module OFF) 1.65 W (Event + 4G Module OFF + Dynamic FPS On) Max: 3.89 W (Illuminator + Event + 4G streaming ON) |
| Surge Protection | 4KV |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Camera Dimensions | 120*120*260 mm |
| Camera Weight | 2.2kg |
| Certification | |
| EMC | CE-EMC (EN 55032,EN 55035) FCC (PART 15B) RCM (AS/NZS CISPR 32) |
| Safety | CE-LVD (EN IEC 62368-1) RCM (AS/NZS 62368.1) |
| FR | CE-RED (EN 300 328,EN301489-1,EN301489-17,EN 62133) FCC (Part 15.247) RCM (AS/NZS 4268,AS/CA S042.1,AS/CA S042.4,AS/NZS 2772.2) Telec (MIC Item 19 of Article 2 Paragraph 1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Solar Power System | |
|---|---|
| Name | S100 Solar Power System |
| Solar Panel Modules in Kit | Default: 1 units; Optional: 2 units |
| Charge | |
| PV Power | 100W |
| PV Input Voltage | 18V |
| Material | Monocrystalline silicon |
| Energy Storage | |
| Battery Type | NMC |
| Battery Capacity | 50AH |
| Total Energy | 555Wh |
| Battery Life | 9 days (without data transmission), 6 days (with data transmission) |
| Deep Cycles | ＞1000 |
| Nominal Voltage | 11.1V |
| Discharge | |
| Output Voltage | 9~12.6V DC |
| Maximum Output Current | 10A |
| Discharge Depth | 95%DOD |
| Function | |
| Battery Heating | Charging current > 2A and lower than -5℃ turns on |
| Protection Type | Overcurrent/ Overvoltage/Short Circuit/ Undervoltage/ Temperature |
| Charging Temperature Range | 0℃~60℃ |
| Discharging Temperature Range | -20℃~65℃ |
| Status Indicator | LED (charging status, battery status, output status) |
| Interface | |
| Communication | RS485 |
| Output Method | M12 5-pin Connector |
| Output Line Length | 1.5m |
| Supported Cables | Dual Device Power Splitter Cable Bridge Data & Power Cable (RS485 & DC Output) Main Power Cable |
| General Parameters | |
| Waterproof | IP66 |
| Humidity Range | 4-100% (no condensation) |
| Cooling Method | Natural Heat Dissipation |
| Hazardous Material Classification | 9 |
| Shell Material | Galvanized Steel + Plastic |
| Fixed Way | Hanging Rod / Wall Mounting |
| Product Dimensions | 765*630*69 mm 825*690*105 mm (with Package) |
| Weight | 13kg |
| Warranty | 2 years |
| Certificate | UN38.3/MSDS/CE/ROHS |
| Solar Power System | |
|---|---|
| Name | S100 Solar Power System |
| Solar Panel Modules in Kit | Default: 1 units; Optional: 2 units |
| Charge | |
| PV Power | 100W |
| PV Input Voltage | 18V |
| Material | Monocrystalline silicon |
| Energy Storage | |
| Battery Type | NMC |
| Battery Capacity | 90AH |
| Total Energy | 962Wh |
| Battery Life | 17 days (without data transmission), 11 days (with data transmission) |
| Deep Cycles | ＞1000 |
| Nominal Voltage | 11.1V |
| Discharge | |
| Output Voltage | 9~12.6V DC |
| Maximum Output Current | 10A |
| Discharge Depth | 95%DOD |
| Function | |
| Battery Heating | Charging current > 2A and lower than -5℃ turns on |
| Protection Type | Overcurrent/ Overvoltage/Short Circuit/ Undervoltage/ Temperature |
| Charging Temperature Range | 0℃~60℃ |
| Discharging Temperature Range | -20℃~65℃ |
| Status Indicator | LED (charging status, battery status, output status) |
| Interface | |
| Communication | RS485 |
| Output Method | M12 5-pin Connector |
| Output Line Length | 1.5m |
| Supported Cables | Dual Device Power Splitter Cable Bridge Data & Power Cable (RS485 & DC Output) Main Power Cable |
| General Parameters | |
| Waterproof | IP66 |
| Humidity Range | 4-100% (no condensation) |
| Cooling Method | Natural Heat Dissipation |
| Hazardous Material Classification | 9 |
| Shell Material | Galvanized Steel + Plastic |
| Fixed Way | Hanging Rod / Wall Mounting |
| Product Dimensions | 765*630*112.5 mm 825*690*140 mm (with Package) |
| Weight | 16kg |
| Warranty | 2 years |
| Certificate | UN38.3/MSDS/CE/ROHS |
