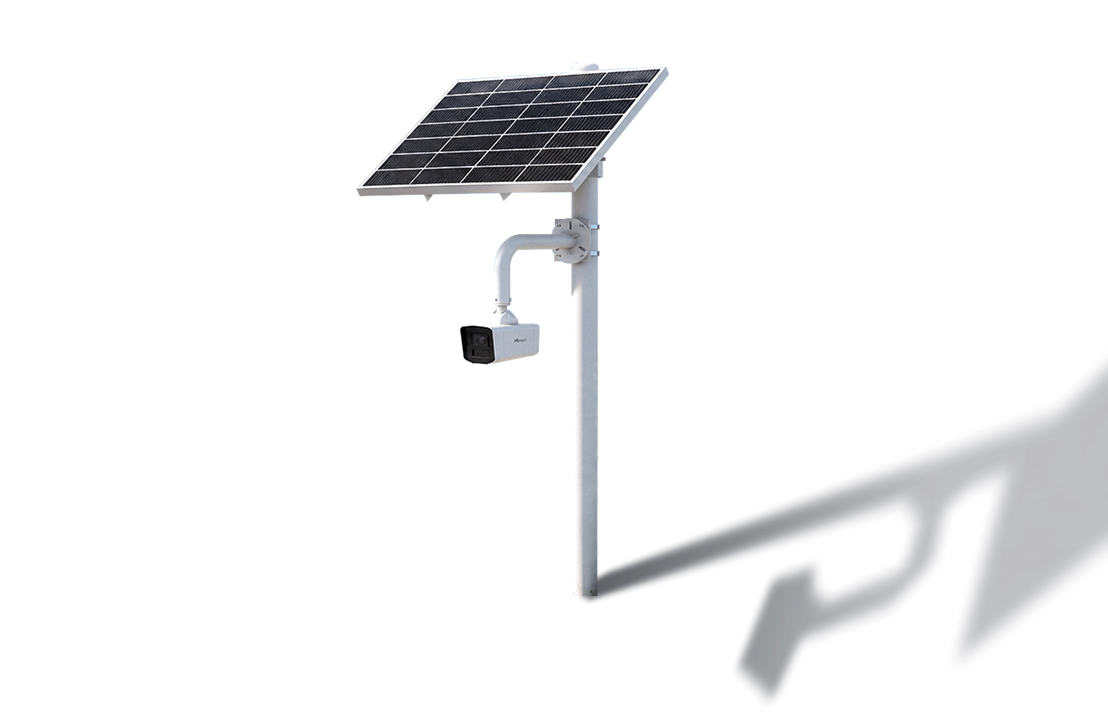

4G Solar-powered ANPR
Road Traffic Camera

  • 8~32mm Motorized Lens
  • Up to 120km/h ANPR
  • Up to 50m IR & ANPR Distance
  • Traffic Violation Detection
  • Traffic Flow Statistics
  • 4G + Solar-powered Flexible Deployment
  • 11 Days Battery Life Guaranteed, Even on Rainy Days
  • Up to 342 Days Battery Life in Standby Mode
  • Global 4G + Dual-mode Wi-Fi (AP/STA)
  • P2P Tunnel & Multiple VPN Protocols
Get in Touch
4g solar powered anpr road traffic camera
SP112/42L
S100 Solar Power System
  • SPECIFICATION
  • ACCESSORIES
  • DOWNLOAD

High-Speed, Long-Range ANPR

  • Up to 120km/h ANPR for fast-moving vehicles.
  • Up to 50m IR illumination and ANPR recognition range for long-distance capture.

Intelligent Traffic Detection & Analytics

traffic analystic

Traffic Violation Detection: Accurately detect and alert violation events such as
Unlicensed Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, etc.

Traffic Flow Statistics: Vehicle counting results by vehicle type are displayed in the
camera's live view, with exportable reports for deeper traffic insights.

Deploy Anywhere with
Reliable Performance

4G + Solar-Powered
Flexible Deployment

11 Days Battery Life Guaranteed,
Even on Rainy Days

Up to 342 Days Battery
Life in Standby Mode

IP67 & -40°C~+60°C,
Built for Harsh Environments

rainy days

Advanced Vehicle Intelligence for Richer Insights

  • Advanced AI ANPR with ≥98% Accuracy

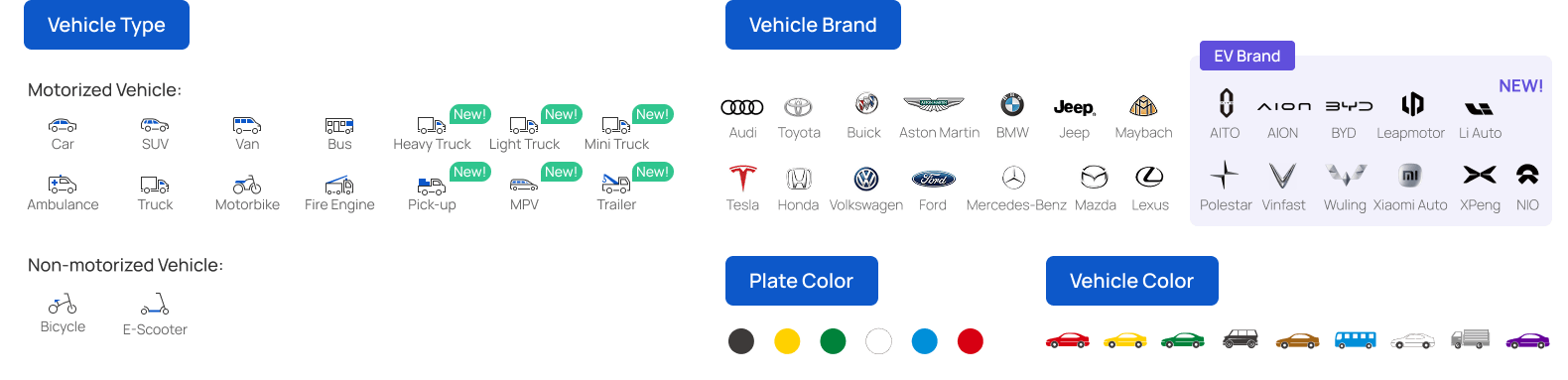

  • Comprehensive Vehicle Attributes Recognition
vehicle attributes

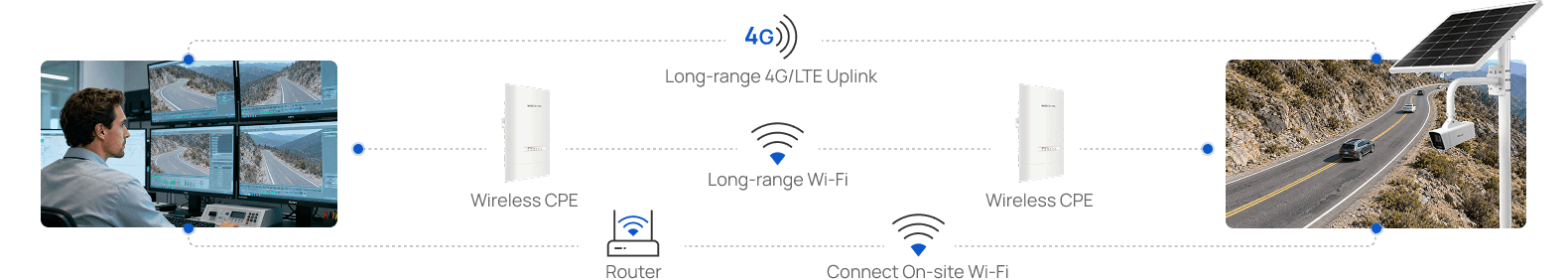

Flexible Connectivity for Remote Surveillance

  • Global 4G LTE:

    Stay connected in remote areas with global LTE support and flexible Nano SIM & eSIM options.

  • Dual-Mode Wi-Fi (AP/STA):

    Supports local configuration via AP mode and connection to on-site Wi-Fi networks via STA mode, enabling flexible deployment with reduced cellular data usage.

  • Long-Range Wireless Deployment with CPE:

    Extend network coverage across large areas with wireless CPE for simplified installation and reliable remote connectivity.

connectivity

Connect to Your Preferred Security Ecosystem

ecosystem
DTC
Direct Cloud Integration

Connect directly to cloud VMS through the embedded agent in the camera with plug-and-play deployment.

P2P Tunnel
Remote VMS Access Without Fixed IP

Enable easy remote access to third-party VMS in 4G networks without static public IP or complex network configuration.

VPN
Secure Enterprise Connectivity

Build secure VPN connections between remote cameras and customer networks for reliable enterprise deployment.

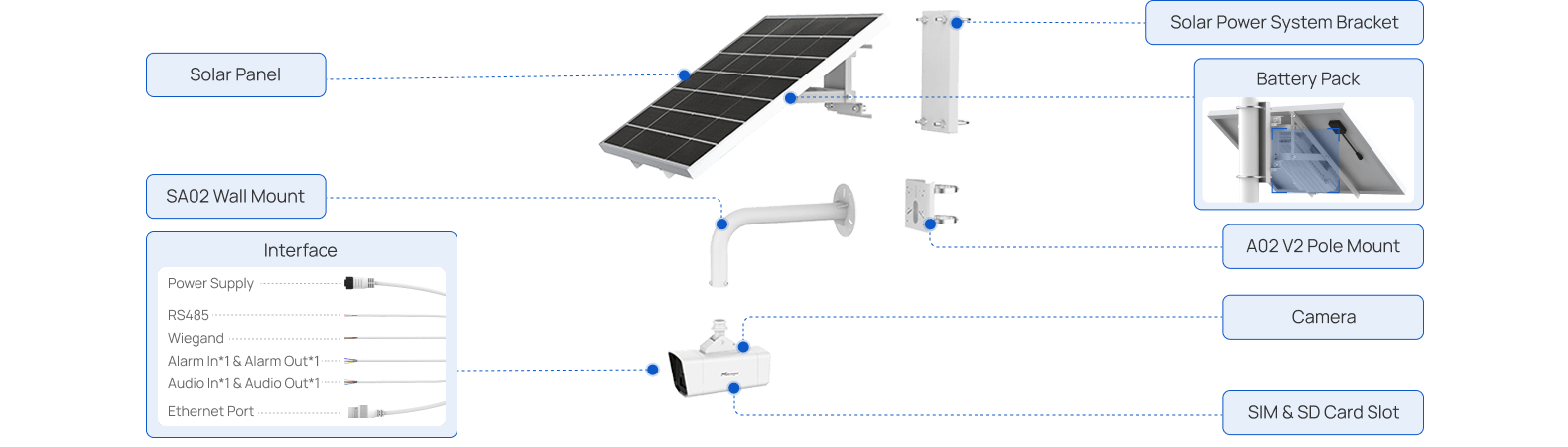

Complete Off-Grid Camera Kit, Ready to Deploy

camera kit
View More
View Less

Specifications

  • Camera

  • Solar Power System

  • SP111/41L
  • S100B55
  • S100B96
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR Wave Length850nm/740nm
IR DistanceUp to 20 m (65.62 ft)
S/N>55dB
Lens
Lens6mm/16mm
MountM12
Field of View6mm: H52.8°/D60.4°/V29.7°
16mm: H19.4°/D22.2°/V11°
Video
Max. Image Resolution4MP (2688*1520)
Primary Stream60Hz/50Hz: 15fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
Secondary Stream60Hz/50Hz: 15fps@(1280*720, 704*576, 640*480)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 4 areas (Mask)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Web AccessWIFI/VPN/Milesight VMS
Interface
Alarm I/OInput *1, Output *1
Audio I/OInput *1, Output *1
Ethernet1*RJ45 10M/100M Ethernet Port
RS4851
Wireless Network
WLAN802.11n/802.11g
Cellular4G LTE
NA: LTE-FDD(B2/4/5/12/13/14/66/71)
AU: LTE-FDD(B1/2/3/4/5/7/8/28) ; LTE-TDD(B40)
JP: LTE-FDD(B1/3/8/18/19/26); LTE-TDD(B41)
EU: LTE-FDD(B1/3/7/8/20/28A); LTE-TDD(B38/40/41)
SIM CardNano SIM
Intelligent Analytics
ANPR Distance6mm: Up to 10m
16mm: Up to 20m
CoverageUp to 2 lanes
Recognition Accuracy≥ 95%
Max. Vehicle SpeedVehicles with a speed of ≤ 70 km/h (43.5 mile/h)
Attributes IdentificationVehicle Type, No-plate Vehicle Capture, White/Black List Management
Country Region SupportedMore than 20 countries and regions
White/Black ListUp to 20,000 records inside the camera
System
GPSBuilt-in High-accuracy GPS Module
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering,
AGC, Anti-flicker, Corridor Mode, Deblur
Event TriggerIntelligent Analytics, External Input, etc.
Event ActionHTTP Post, FTP Upload, SMTP Upload, SD Card Record, External Output, Snapshot, Play Audio, Alarm to SIP Phone, etc.
System CompatibilityONVIF Profile G & M & S & T, API
General
Working TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Working Humidity0~95% (Non-condensing)
Power SupplyDC 12V±10%
Power ConsumptionSleep Mode: 0.19 W
Basic: 1.72 W (ANPR + 4G Module OFF)
Max: 3.51 W (Illuminator + ANPR + 4G streaming ON)
Surge Protection4KV
Weather ProofUp to IP67-rated for Weather-resistant Performance
Camera Dimensions120*120*260 mm
Camera Weight2.2kg
Warranty3 years
Certification
EMCCE-EMC (EN 55032,EN 55035)

FCC (PART 15B)

RCM (AS/NZS CISPR 32)
SafetyCE-LVD (EN IEC 62368-1)

RCM (AS/NZS 62368.1)
FRCE-RED (EN 300 328,EN301489-1,EN301489-17,EN 62133)

FCC (Part 15.247)

RCM (AS/NZS 4268,AS/CA S042.1,AS/CA S042.4,AS/NZS 2772.2)

Telec (MIC Item 19 of Article 2 Paragraph 1)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

Solar Power System
NameS100 Solar Power System
Solar Panel Modules in KitDefault: 1 units;
Optional: 2 units
Charge
PV Power100W
PV Input Voltage18V
MaterialMonocrystalline silicon
Energy Storage
Battery TypeNMC
Battery Capacity50AH
Total Energy555Wh
Battery LifePerformance Mode: 5 days
Power Saving Mode: 6.5 days
Standby Mode: 197 days
（*Without video transmission）
Deep Cycles＞1000
Nominal Voltage11.1V
Discharge
Output Voltage9~12.6V DC
Maximum Output Current10A
Discharge Depth95%DOD
Function
Battery HeatingCharging current > 2A and lower than -5℃ turns on
Protection TypeOvercurrent/ Overvoltage/Short Circuit/ Undervoltage/ Temperature
Charging Temperature Range0℃~60℃
Discharging Temperature Range-20℃~65℃
Status IndicatorLED (charging status, battery status, output status)
Interface
CommunicationRS485
Output MethodM14 5-pin Connector
Output Line Length1.5m
Supported CablesDual Device Power Splitter Cable (M14-> M14*2)
Bridge Data & Power Cable (M14-> RS485 & DC Output)
Main Power Cable (M14-> M12)
General Parameters
WaterproofIP66
Humidity Range4-100% (no condensation)
Cooling MethodNatural Heat Dissipation
Hazardous Material Classification9
Shell MaterialGalvanized Steel + Plastic
Fixed WayHanging Rod / Wall Mounting
Product Dimensions765*630*69 mm

825*690*105 mm (with Package)
Weight13kg
Warranty2 years
CertificateUN38.3/MSDS/CE/ROHS

Solar Power System
NameS100 Solar Power System
Solar Panel Modules in KitDefault: 1 units;
Optional: 2 units
Charge
PV Power100W
PV Input Voltage18V
MaterialMonocrystalline silicon
Energy Storage
Battery TypeNMC
Battery Capacity90AH
Total Energy962Wh
Battery LifePerformance Mode: 9 days
Power Saving Mode: 11 days
Standby Mode: 342 days
（*Without video transmission）
Deep Cycles＞1000
Nominal Voltage11.1V
Discharge
Output Voltage9~12.6V DC
Maximum Output Current10A
Discharge Depth95%DOD
Function
Battery HeatingCharging current > 2A and lower than -5℃ turns on
Protection TypeOvercurrent/ Overvoltage/Short Circuit/ Undervoltage/ Temperature
Charging Temperature Range0℃~60℃
Discharging Temperature Range-20℃~65℃
Status IndicatorLED (charging status, battery status, output status)
Interface
CommunicationRS485
Output MethodM14 5-pin Connector
Output Line Length1.5m
Supported CablesDual Device Power Splitter Cable (M14-> M14*2)
Bridge Data & Power Cable (M14-> RS485 & DC Output)
Main Power Cable (M14-> M12)
General Parameters
WaterproofIP66
Humidity Range4-100% (no condensation)
Cooling MethodNatural Heat Dissipation
Hazardous Material Classification9
Shell MaterialGalvanized Steel + Plastic
Fixed WayHanging Rod / Wall Mounting
Product Dimensions765*630*112.5 mm

825*690*140 mm (with Package)
Weight16kg
Warranty2 years
CertificateUN38.3/MSDS/CE/ROHS

A02 V2 Pole Mount

  • Weight: 1kg
  • Dimension: 180*138.5*47mm
  • Installation Environment: For strapping cameras on poles between φ67–127 mm (2.6–5 inches) in diameter

SA02 Wall Mount

  • Weight: 2.2kg
  • Dimension: 150*260*400mm
  • Installation Environment: For wall or parapet installations

S100B55 Solar Power System

  • Weight: 13kg
  • Dimension: 765*630*69mm(825*690*105mm with Package)
  • Installation Environment: Generating and providing electricity for cameras, equipped with wall-mount and pole-mount brackets by default

S100B96 Solar Power System

  • Weight: 16kg
  • Dimension: 765*630*112.5mm(825*690*140mm with Package)
  • Installation Environment: Generating and providing electricity for cameras, equipped with wall-mount and pole-mount brackets by default

S100 Expansion Module

  • Weight: 15kg
  • Dimension: 825*690*140 mm (Packaging Dimensions)
  • Installation Environment: Model: SA100;For expanding solar energy receiving area to improve conversion efficiency. Includes a 100W Solar Panel and Mounting Bracket.

Solar Power System Bracket

  • Weight: 3.5kg
  • Dimension: 220*217.5*30 mm
  • Installation Environment: Model: BJ-N;For easier solar-powered system installation.
