Milesight OpenVision Camera
Serverless Architecture, Seamless Deployment at Any Site
Built-in Nx Server
Seamless Integration
with Nx Cloud
with Nx Cloud
Up to 1 TB
Edge Storage
Edge Storage
Comprehensive
VCA Intelligence
VCA Intelligence
Plug and Play Simplicity
- FEATURES
- MODELS
- DOWNLOAD
What is Milesight
OpenVision Camera
By embedding the Network Optix VMS Server directly into the camera, the Milesight OpenVision Camera Series delivers a VMS-on-edge architecture that preserves the full capabilities of a traditional backend VMS, while streamlining hardware requirements and lowering operational costs.
Common Challenges in Traditional Video Deployments
Complex System Setups
Too many boxes, too much hassle
Footage Loss
When the network drops, so does your evidence
Inefficient Searches
Hours wasted scrolling through endless clips
High Server-Related Costs
Endless maintenance, constant updates, rising bills

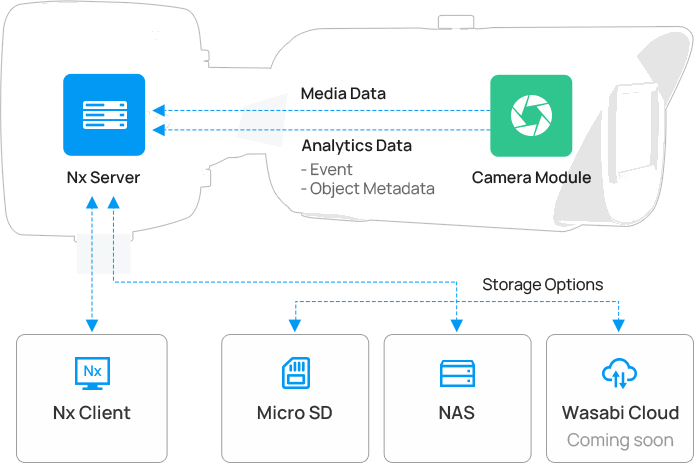

Camera as a Server, Ready to Work Instantly
Nx Witness Server
Eliminates the need for external NVRs or servers
Stays aligned with the latest Nx Witness releases
through in-client updates
Flexible Storage Options
Micro SD Up to 1 TB
NAS
Nx Cloud Storage
Milesight Plugin Pre-installed
Enables advanced AI analytics event
and metadata for Milesight cameras
Seamless Nx Cloud Integration
Enables instant connection to Nx Cloud
(Enterprise) via QR CodeProvides remote access without port forwarding
Built-in AI Analytics Capabilities

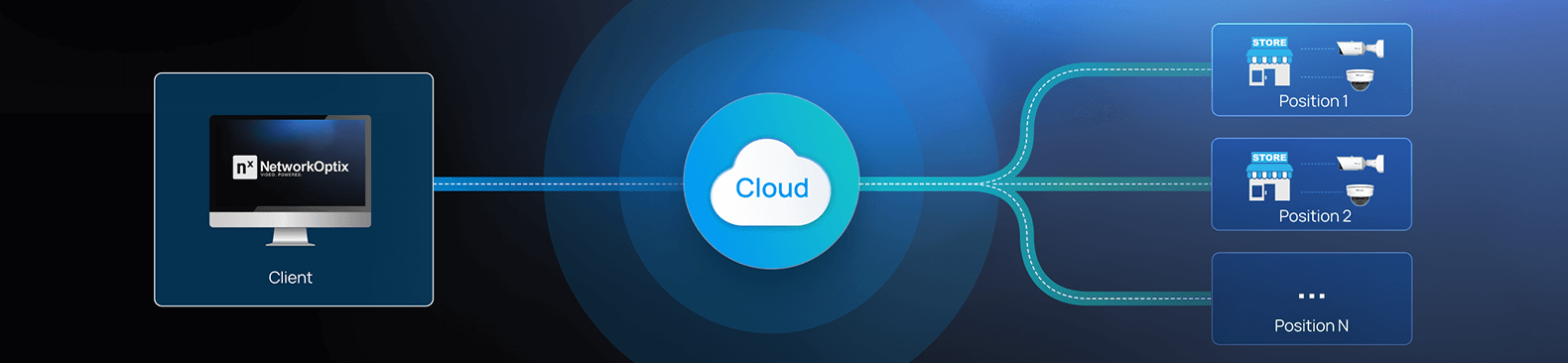

Simplified Management for
Distributed Deployments
Managing dozens or even hundreds of distributed locations often means dealing with fragmented systems, inconsistent configurations, and time‑consuming maintenance.
With OpenVision, each sites operates independently at the edge, while remaining fully visible and manageable from a single Nx interface. Live view, playback, events, and analytics are all centralized, without relying on on-site servers or complex infrastructure.
Learn More
Top clothing color:
White
Line-crossing
People CountingIn: 66 Out: 16
Meet the OpenVision Camera Series
OpenVision Bullet Camera
- 1/1.8" STARVIS2 Starlight Pro CMOS Sensor
- Motorized 2.8~12mm P-Iris Lens
- Edge AI analytics for event and attribute recognition
- Designed for distributed locations and
multi-site deployments - IP67 & IK10
OpenVision Dome Camera
- 1/1.8" STARVIS2 Starlight Pro CMOS Sensor
- Motorized 2.8~12mm P-Iris Lens
- Edge AI analytics for event and attribute recognition
- Designed for distributed locations and
multi-site deployments - IP67 & IK10
OpenVision TrueColor Dual-sensor
180° Panoramic Network Camera
- Seamless dynamic stitched panoramic view
at 180° (H) × 58° (V) - Independent Strobe Light for Proactive Deterrence
- Smart Hybrid Light for Optimal Visibility and Security
- Designed for outdoor and fast-changing
deployment environments - IP67 & IK10
Seamless Compatibility: Milesight & Network Optix
Feature-rich & Advanced Video Management
Download BrochureSpecifications
Bullet
Dome
Dual-sensor 180° Panoramic
Fisheye
5MP
- MS-C5366-RFIPKG1
8MP
- MS-C8266-RFIPKG1
5MP
- MS-C5372-RFIPKG1
8MP
- MS-C8272-RFIPKG1
8MP
- MS-C8477-HPKG1
12MP
- MS-C12174-YPKG1
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.004Lux@F1.2 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D: 86~242M O: 33.5~95M R: 16.5~47.5M I: 8~23.5M |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 6 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 70m |
| Illuminator On/Off Control | Auto/Manual |
| Lens | |
| Lens | Motorized 2.7mm~13.5mm@F1.2 |
| Field of View | H93.5°~32.5°/ D121°~40.5°/ V68°~24.5° |
| Mount | Φ17 |
| Focus Control | Auto/Manual |
| Close Focus Distance | Min. 1m |
| Aperture | Max. F1.2 |
| Iris Type | P-Iris |
| Camera Angle Adjustment | Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360° |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 60fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(2048x1536, 1600x1200, 1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(2048x1536, 1600x1200, 1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280*720), 30fps@(704*576, 640*480, 640*360) 50Hz: 10fps@(1280*720), 25fps@(704*576, 640*480, 640*360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas(Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Rotation | Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, DNR, AWB, Defog, AGC, Anti-flicker, Deblur, LDC |
| Additional Zoom | Up to 40X |
| Network | |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, LLDP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Power Port | DC5521 |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 (Alarm Output 2: wet contact, 10mA 12V DC) |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256Kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Hat. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Helmet Detection | Detects whether individuals are wearing safety helmets. Triggers an alarm when a person is identified without a helmet, enhancing safety compliance on-site. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload, Snapshot, SMTP Upload, SD Card Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| TPM 2.0 | Support |
| Watermark | Support |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| VMS Support | Nx witness, Milestone XProtect, Genetec Security Center, Digifort VMS, AXXON One, Arteco uSee, Arteco Omnia, 3dEYE Video Portal, Camcloud Cloud Video Surveillance, Salient CompleteView VMS, CathexisVision, Mirasys VMS, Digiever CMS, Watchful OS etc. |
| Edge | |
| Edge Storage | Support microSD Card Local Storage, up to 1TB (UHS-I Micro SD, A2 standard or above); Support SD Card Health Information Query |
| Edge VMS | If all AI features are enabled, the system supports registering a maximum of 2 cameras (requires a 2x NX channel license), with a total bandwidth of up to 11Mbps. If all AI features are disabled, the system supports registering a maximum of 3 cameras (requires a 3x NX channel license), with a total bandwidth of up to 11Mbps. Note: Please make sure to enable the "Allow optimize camera settings" option in the Nx Witness Client. |
| NX Merge | Max. 16 Cameras |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| CPU | Dual-core 64-bit Arm CA53 processor |
| Memory | 2GB RAM, 4GB Flash |
| Power Supply | PoE+ (802.3at) / DC 10V~DC 28V (Note: When both the power adapter and PoE are connected, please disconnect either one. This will not cause the device to restart; it will continue to work normally.) |
| Power Consumption | Min.: 3W (DC), 4W (PoE+) Max.: 14W (DC), 16W (PoE+) |
| Surge Protection | 6KV |
| Net Weight | 1600g |
| Gross Weight | 2400g |
| Dimensions | 301mm X 108mm X 126mm |
| Warranty | 3/5 Years |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
Notice: Nx license is not included by default.
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.004Lux@F1.2 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D: 98.5~212M O: 38.5~83M R: 19~41.5M I: 9.5~20.5M |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 6 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 80m |
| Illuminator On/Off Control | Auto/Manual |
| Lens | |
| Lens | Motorized 2.8mm~12mm@F1.2 |
| Field of View | H105°~46.5°/D122.5°~53.5°/V55.5°~26° |
| Mount | Φ17 |
| Focus Control | Auto/Manual |
| Close Focus Distance | W: 1m; T: 1.5m |
| Aperture | Max. F1.2 |
| Iris Type | P-Iris |
| Camera Angle Adjustment | Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360° |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280*720), 30fps@(704*576, 640*480, 640*360) 50Hz: 10fps@(1280*720), 25fps@(704*576, 640*480, 640*360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas(Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Rotation | Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, DNR, AWB, Defog, AGC, Anti-flicker, Deblur, LDC |
| Additional Zoom | Up to 32X |
| Network | |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, LLDP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Power Port | DC5521 |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 (Alarm Output 2: wet contact, 10mA 12V DC) |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256Kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Helmet Detection | Detects whether individuals are wearing safety helmets. Triggers an alarm when a person is identified without a helmet, enhancing safety compliance on-site. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload, Snapshot, SMTP Upload, SD Card Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| TPM 2.0 | Support |
| Watermark | Support |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| VMS Support | Nx witness, Milestone XProtect, Genetec Security Center, Digifort VMS, AXXON One, Arteco uSee, Arteco Omnia, 3dEYE Video Portal, Camcloud Cloud Video Surveillance, Salient CompleteView VMS, CathexisVision, Mirasys VMS, Digiever CMS, Watchful OS etc. |
| Edge | |
| Edge Storage | Support microSD Card Local Storage, up to 1TB (UHS-I Micro SD, A2 standard or above); Support SD Card Health Information Query |
| Edge VMS | If all AI features are enabled, the system supports registering a maximum of 2 cameras (requires a 2x NX channel license), with a total bandwidth of up to 11Mbps. If all AI features are disabled, the system supports registering a maximum of 3 cameras (requires a 3x NX channel license), with a total bandwidth of up to 11Mbps. Note: Please make sure to enable the "Allow optimize camera settings" option in the Nx Witness Client. |
| NX Merge | Max. 16 Cameras |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| CPU | Dual-core 64-bit Arm CA53 processor |
| Memory | 2GB RAM, 4GB Flash |
| Power Supply | PoE+ (802.3at) / DC 10V~DC 28V (Note: When both the power adapter and PoE are connected, please disconnect either one. This will not cause the device to restart; it will continue to work normally.) |
| Power Consumption | Min.: 4W (DC), 4.5W (PoE+) Max.: 15.5W (DC), 17.5W (PoE+) |
| Surge Protection | 6KV |
| Net Weight | 1600g |
| Gross Weight | 2400g |
| Dimensions | 301mm X 108mm X 126mm |
| Warranty | 3/5 Years |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
Notice: Nx license is not included by default.
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.004Lux@F1.2 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D: 86~242M O: 33.5~95M R: 16.5~47.5M I: 8~23.5M |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 3 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 50m |
| Illuminator On/Off Control | Auto/Manual |
| Lens | |
| Lens | Motorized 2.7mm~13.5mm@F1.2 |
| Field of View | H93.5°~H32.5°/D121°~D40.5° /V68°~V24.5° |
| Mount | Φ17 |
| Focus Control | Auto/Manual |
| Close Focus Distance | Min. 1m |
| Aperture | Max. F1.2 |
| Iris Type | P-Iris |
| Camera Angle Adjustment | Pan: 0°~355°, Tilt: 0°~80°, Rotation: 0°~355° |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 60fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(2048x1536, 1600x1200, 1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(2048x1536, 1600x1200, 1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280*720), 30fps@(704*576, 640*480, 640*360) 50Hz: 10fps@(1280*720), 25fps@(704*576, 640*480, 640*360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Rotation | Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, DNR, AWB, Defog, AGC, Anti-flicker, Deblur, LDC |
| Additional Zoom | Up to 40X |
| Network | |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, LLDP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Power Port | DC5521 |
| Audio I/O | Built-in Microphone and 1 Audio Output Interface |
| Alarm I/O | 1/1 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Hat. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment. |
| Sound Classification | Supports recognition of specific sounds including Gunshot, Glass Break, and Screaming. Triggers real-time alarms allowing you to respond quickly to any potential issues. |
| Helmet Detection | Detects whether individuals are wearing safety helmets. Triggers an alarm when a person is identified without a helmet, enhancing safety compliance on-site. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload, Snapshot, SMTP Upload, SD Card Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| TPM 2.0 | Support |
| Watermark | Support |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| VMS Support | Nx witness, Milestone XProtect, Genetec Security Center, Digifort VMS, AXXON One, Arteco uSee, Arteco Omnia, 3dEYE Video Portal, Camcloud Cloud Video Surveillance, Salient CompleteView VMS, CathexisVision, Mirasys VMS, Digiever CMS, Watchful OS etc. |
| Edge | |
| Edge Storage | Support microSD Card Local Storage, up to 1TB (UHS-I Micro SD, A2 standard or above); Support SD Card Health Information Query |
| Edge VMS | If all AI features are enabled, the system supports registering a maximum of 2 cameras (requires a 2x NX channel license), with a total bandwidth of up to 11Mbps. If all AI features are disabled, the system supports registering a maximum of 3 cameras (requires a 3x NX channel license), with a total bandwidth of up to 11Mbps. Note: Please make sure to enable the "Allow optimize camera settings" option in the Nx Witness Client. |
| NX Merge | Max. 16 Cameras |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| CPU | Dual-core 64-bit Arm CA53 processor |
| Memory | 2GB RAM, 4GB Flash |
| Power Supply | PoE (802.3af) / DC 10V~DC 28V (Note: When both the power adapter and PoE are connected, please disconnect either one. This will not cause the device to restart; it will continue to work normally.) |
| Power Consumption | Min.: 3W (DC), 4W (PoE) Max.: 8.5W (DC), 10.5W (PoE) |
| Surge Protection | 6KV |
| Net Weight | 1250g |
| Gross Weight | 1550g |
| Dimensions | Φ143mm X 108.4mm |
| Warranty | 3/5 Years |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
Notice: Nx license is not included by default.
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.004Lux@F1.2 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D: 98.5~212M O: 38.5~83M R: 19~41.5M I: 9.5~20.5M |
| S/N | |
| Illuminator | |
| Illuminator Number | 3 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 60m |
| Illuminator On/Off Control | Auto/Manual |
| Lens | |
| Lens | Motorized 2.8mm~12mm@F1.2 |
| Field of View | H105°~46.5°/D122.5°~53.5°/V55.5°~26° |
| Mount | Φ17 |
| Focus Control | Auto/Manual |
| Close Focus Distance | W: 1m; T: 1.5m |
| Aperture | Max. F1.2 |
| Iris Type | P-Iris |
| Camera Angle Adjustment | Pan: 0°~355°, Tilt: 0°~80°, Rotation: 0°~355° |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280*720), 30fps@(704*576, 640*480, 640*360) 50Hz: 10fps@(1280*720), 25fps@(704*576, 640*480, 640*360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Rotation | Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, DNR, AWB, Defog, AGC, Anti-flicker, Deblur, LDC |
| Additional Zoom | Up to 32X |
| Network | |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, LLDP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Power Port | DC5521 |
| Audio I/O | Built-in Microphone and 1 Audio Output Interface |
| Alarm I/O | 1/1 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment. |
| Sound Classification | Supports recognition of specific sounds including Gunshot, Glass Break, and Screaming. Triggers real-time alarms allowing you to respond quickly to any potential issues. |
| Helmet Detection | Detects whether individuals are wearing safety helmets. Triggers an alarm when a person is identified without a helmet, enhancing safety compliance on-site. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload, Snapshot, SMTP Upload, SD Card Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| TPM 2.0 | Support |
| Watermark | Support |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| VMS Support | Nx witness, Milestone XProtect, Genetec Security Center, Digifort VMS, AXXON One, Arteco uSee, Arteco Omnia, 3dEYE Video Portal, Camcloud Cloud Video Surveillance, Salient CompleteView VMS, CathexisVision, Mirasys VMS, Digiever CMS, Watchful OS etc. |
| Edge | |
| Edge Storage | Support microSD Card Local Storage, up to 1TB (UHS-I Micro SD, A2 standard or above); Support SD Card Health Information Query |
| Edge VMS | If all AI features are enabled, the system supports registering a maximum of 2 cameras (requires a 2x NX channel license), with a total bandwidth of up to 11Mbps. If all AI features are disabled, the system supports registering a maximum of 3 cameras (requires a 3x NX channel license), with a total bandwidth of up to 11Mbps. Note: Please make sure to enable the "Allow optimize camera settings" option in the Nx Witness Client. |
| NX Merge | Max. 16 Cameras |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| CPU | Dual-core 64-bit Arm CA53 processor |
| Memory | 2GB RAM, 4GB Flash |
| Power Supply | PoE (802.3af) / DC 10V~DC 28V (Note: When both the power adapter and PoE are connected, please disconnect either one. This will not cause the device to restart; it will continue to work normally.) |
| Power Consumption | Min.: 4W (DC), 5W (PoE) Max.: 9.5W (DC), 11W (PoE) |
| Surge Protection | 6KV |
| Net Weight | 1250g |
| Gross Weight | 1550g |
| Dimensions | Φ143mm X 108.4mm |
| Warranty | 3/5 Years |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
Notice: Nx license is not included by default.
| Camera | |
|---|---|
| Image Sensor | Dual 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.0005Lux@(F1.0, AGC ON) B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| DORI Distance | Detect: 62.7m Observe: 24.7m Recognize: 12.3m Identify: 6.2m |
| Day/Night Mode | Day/Night/Auto/Customize |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 4 x IR Lights, 2 x White Lights |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 30m (IR Light), Up to 25m (White Light) |
| Illuminator On/off Control | Auto/Manual |
| Lens | |
| Lens | 4mm@F1.0 |
| Mount | M16 |
| Field of View | H180°/ V58° |
| Close Focus Distance | Min. 3m |
| Aperture | F1.0 |
| Camera Angle Adjustment | Pan:0°, Tilt: 0°~90°, Rotation: 0° |
| Video | |
| Max. Image Resolution | 5120x1520 |
| Primary Stream | 60Hz: 30fps@(5120x1520), 50Hz: 25fps@(5120x1520) |
| Secondary Stream | 60Hz: 30fps@(1280x380, 960x288, 736x224, 640×190) 50Hz: 25fps@(1280x380, 960x288, 736x224, 640×190) |
| Tertiary Stream | 60Hz: 30fps@(1920x576), 50Hz: 25fps@(1920x576) |
| ePTZ Stream | 60Hz: 30fps@(1920x1080), 50Hz: 25fps@(1920x1080) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Mask Areas |
| ROI | Up to 8 Areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Rotation | Rotating 180° |
| Image Enhancement | BLC, HLC, DNR, Defog, AWB, AGC, Anti-flicker, Deblur |
| Interface | |
| Ethernet | 1*RJ45 10M/ 100M Ethernet Port |
| Power Port | Support |
| Audio Interface | 1*Audio Out Interface |
| Alarm I/O | 1/1 |
| Network | |
| Protocol | IPV4/IPV6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, VPN, SIP, LLDP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Built-in Microphone | Support |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Object Counting & | Count the number of objects crossing the line, optionally human and vehicle, |
| Report | and support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Hat. |
| Helmet Detection | Detects whether individuals are wearing safety helmets. Triggers an alarm when a person is identified without a helmet, enhancing safety compliance on-site. |
| Sound Classification | Supports recognition of specific sounds including Gunshot, Glass Break, and Screaming. Triggers real-time alarms allowing you to respond quickly to any potential issues. |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card,etc. |
| Event Action | Snapshot, SMTP Upload, SD Card Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| TPM 2.0 | Support |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | Milesight API |
| VMS Support | NX Witness |
| Edge VMS | |
| Edge Storage | Support microSD Card Local Storage, up to 1TB (UHS-I Micro SD, A2 standard or above); Support SD Card Health Information Query |
| Edge VMS | If all AI features are enabled, the system supports registering a maximum of 1 cameras (requires a 1x NX channel license), with a total bandwidth of up to 12Mbps. If all AI features are disabled, the system supports registering a maximum of 2 cameras (requires a 2x NX channel license), with a total bandwidth of up to 12Mbps. Note: Please make sure to enable the "Allow optimize camera settings" option in the Nx Witness Client. |
| NX Merge | Max. 16 Cameras |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| CPU | Dual-core 64-bit Arm CA53 processor |
| Memory | 2GB RAM, 4GB Flash |
| Power Supply | PoE+(802.3at)/ DC 12V/2A+20% (Note: When both the power adapter and PoE are connected, please disconnect either one. This will not cause the device to restart; it will continue to work normally.) |
| Power Consumption | Min.: 4.2W(DC 12V), 5W(PoE+) Max.: 12.7W(DC 12V), 15W(PoE+) |
| Net Weight | Approx. 1.4Kg |
| Gross Weight | Approx. 1.7Kg |
| Dimensions | Φ160mm X 128mm |
| Warranty | 3/ 5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
Notice: Nx license is not included by default.
| Camera | |
|---|---|
| Image Sensor | 1/1.6" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F2.0 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize |
| DORI Distance | D: 34.67m; O: 13.87m; R: 6.93m; I: 3.47m (Wall Mount) D: 50.55m; O: 20.22m; R: 10.11m; I: 5.05m (Ceiling Mount) >55dB |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 4 (IR) |
| IR Wave Length | 850nm |
| Illumination Distance | 20m |
| Illuminator On/Off Control | Auto/Manual |
| Lens | |
| Lens | 1.7mm@F2.0 |
| Mount | M12 |
| Field of View | Ceiling Mount: 360°; Wall Mount: 180°; Flat Mount: 360° |
| Aperture | F2.0 |
| Iris Type | Fixed |
| Image | |
| Image Rotation | Support Digital Rotation (0°~359°, 1° step) |
| Deblur | Yes |
| Privacy Masking | Up to 8 Areas |
| ROI | Up to 8 Areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | Fisheye View: WDR, BLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, Anti-flicker, Deblur |
| Fisheye | |
| Mount Mode | Ceiling Mount, Wall Mount, Pedestal Mount |
| Decoding Mode | On-board Decoding |
| Display Mode | Fisheye View |
| Transfer Mode | Bundle-Stream Mode, Multi-Channel Mode |
| Video | |
| Max. Image Resolution | 3520x3520 |
| Primary Stream | Fisheye View: 60Hz: 30fps@(3520x3520, 3024x3024, 2560x2560, 2048x2048) 50Hz: 25fps@(3520x3520, 3024x3024, 2560x2560, 2048x2048) |
| Secondary Stream | Fisheye View: 60Hz:30fps@(720x720,480x480) 50Hz:25fps@(720x720,480x480) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Network | |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTSPS/SRTP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M/1000M Ethernet Port |
| Alarm I/O | 2/2 |
| Audio I/O | 1/1 |
| Audio | |
| Built-in Microphone | Yes, 4 built-in microphones |
| Built-in Speaker | Yes, 1 built-in speaker |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Real-time capture of humans and vehicles. Recognizes attributes: upper/lower clothing color, hat, vehicle type (bicycle, car, motorcycle, bus, truck, e-scooter). |
| Object Counting & Report | Supports line crossing counting for humans and vehicles; regional people counting for up to 4 areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment. |
| Sound Classification | Detects gunshot, glass-break, and screaming. |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, Play Audio, External Output, HTTP Notification, etc. |
| One-Click Disarm | Yes |
| System | |
| Storage | Supports dual Micro SD/SDHC/SDXC card slots, each up to 1TB, with independent hardware and partitioned storage. |
| TPM2.0 | Secure element (FIPS 140-3 level 3, CC EAL 4+) |
| Watermark | Yes |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, Milesight API |
| VMS Support | NX witness |
| Edge VMS | |
| Edge Storage | Support 2*microSD Card Local Storage, up to 2TB (UHS-I Micro SD, A2 standard or above); Support SD Card Health Information Query |
| Host | If all AI features are enabled, the system supports registering a maximum of 1 cameras (requires a 1x NX channel license), with a total bandwidth of up to 14Mbps. If all AI features are disabled, the system supports registering a maximum of 2 cameras (requires a 2x NX channel license), with a total bandwidth of up to 14Mbps. Note: Please make sure to enable the "Allow optimize camera settings" option in the Nx Witness Client. |
| NX Merge | Max. 16 Camera |
| General | |
| Working Temperature | -40℃~60℃ (-40°F to 140°F) |
| Working Humidity | 0~90% (Non-condensing) |
| CPU | Dual-core 64-bit Arm CA53 processor |
| Memory&Flash | 2GB RAM, 4GB eMMC |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Min.: 5.6W (DC), 7.2W (PoE) Max.: 9.9W (DC), 11.9W (PoE) |
| Surge Protection | 4KV |
| Net Weight | 733.7g (1.62 lb) |
| Gross Weight | 1000.6g (2.21 lb) |
| Dimensions | 140mm x 140mm x 61mm |
| Warranty | 5 Years |
| Certifications | |
| EMC | CE-EMC (EN IEC 61000-3-2:2019+A2:2024, EN 61000-3-3:2013+A2:2021+AC:2022-01, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020) FCC 47 CFR Part 15 Subpart B |
| Safety | CE-LVD (EN IEC 62368-1:2024 + A11:2024) |
| Environment | CE RoHS: Directive 2011/65/EU amended by (EU) 2015/863 |
| Protection | IP67 (IEC 60529:2019) IK10 (IEC 62262:2021) |
Notice: Nx license is not included by default.
Technical Documents
Firmware
Technical Documents
Milesight-OpenVision-360°-Panoramic-Fishseye-Network-Camera-Datasheet-NDAA-en Milesight-OpenVision-TrueColor-Dual-sensor-180°-Panoramic-Network-Camera-Datasheet-NDAA-en Milesight-OpenVision-Pro-Bullet-Plus-Camera-Datasheet-en Milesight-OpenVision-Pro-Dome-Camera-Datasheet-en Milesight-OpenVision-360°-Panoramic-Fisheye-Network-Camera-Quick-Start-Guide Milesight AI TrueColor Dual-sensor 180° Panoramic Camera Quick Start Guide Milesight AI Pro Bullet Plus Camera Quick Start Guide Milesight AI Pro Dome Camera Quick Start Guide Milesight-OpenVision-Camera-How-To-Guide
Firmware
OpenVision Camera (63.x.x.x)
Version: OV_63.8.0.6-r1-NX
