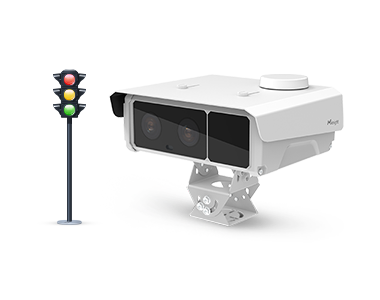

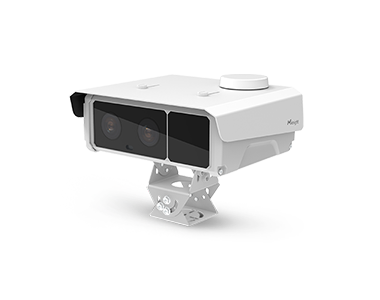

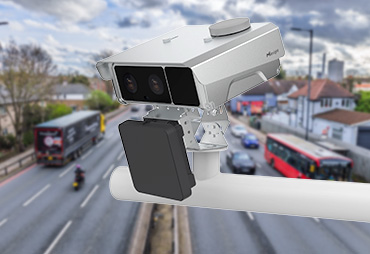

DualVision trafficx
Radar Camera

  • Up to 320km/h Speed Measurement & ANPR
  • 2*5MP Dual-lens for Overview and ANPR Image
  • AI Chip + AI ISP + AI-Powered ANPR
  • 99% Capture Rate & 98% ANPR Accuracy
  • Traffic Violation Detection
  • 50m ANPR Distance
  • 2-3 Lanes Coverage
  • Global Shutter for Blur-Free Capture
  • Up to 1TB On-Edge Storage
  • 4G LTE (Optional) + Built-in GPS
Get in Touch
product
  • SPECIFICATION
  • ACCESSORIES
  • DOWNLOAD
  • VIDEO

Up to 320km/h Speed Measurement & ANPR

Equipped with an integrated 24GHz radar and capable of ANPR speed detection at up to 320 km/h, this camera is purpose-built for precise and reliable speed enforcement - even in the most demanding high-speed traffic conditions.

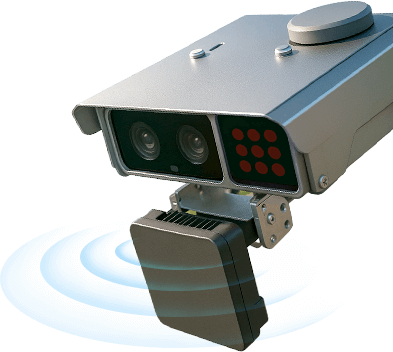

trafficx radar 1

Crystal Clear Image of Fast-Moving Vehicle

99 %

Capture Rate

98 %

ANPR accuracy

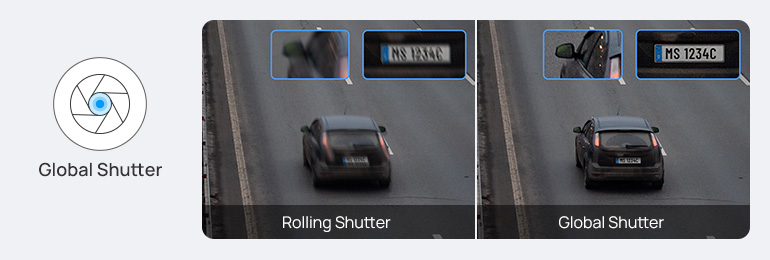

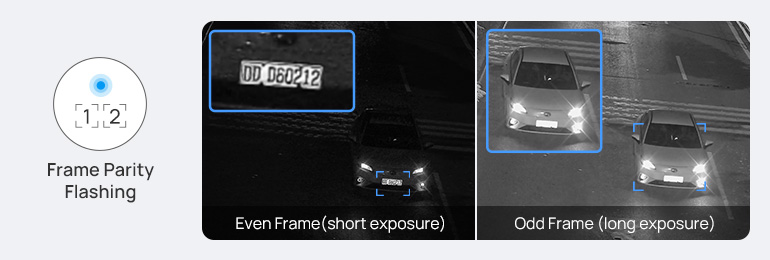

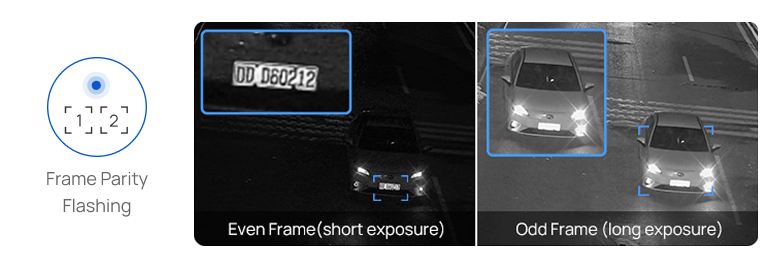

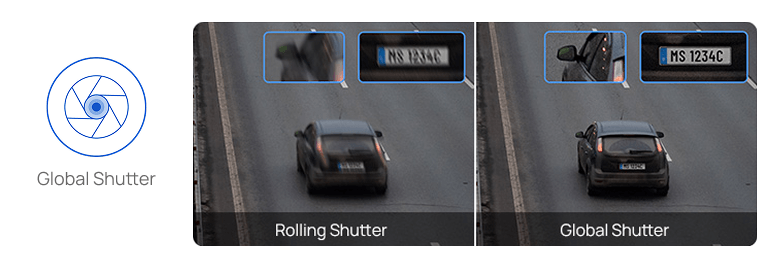

Experience crystal-clear imaging of fast-moving vehicles with unparalleled precision. Engineered to deliver a 99% capture rate and an impressive 98% ANPR accuracy, this camera excels at fast-moving vehicle capturing and precise ANPR. Featuring a Global Shutter sensor and advanced Frame Parity Flashing technology, it effectively ensures every detail is captured sharply and accurately without motion blur or overexpose. DualVision TrafficX Radar Camera sets the new standard for high-speed traffic monitoring with uncompromising image quality.

global shutter frame parity fllashing

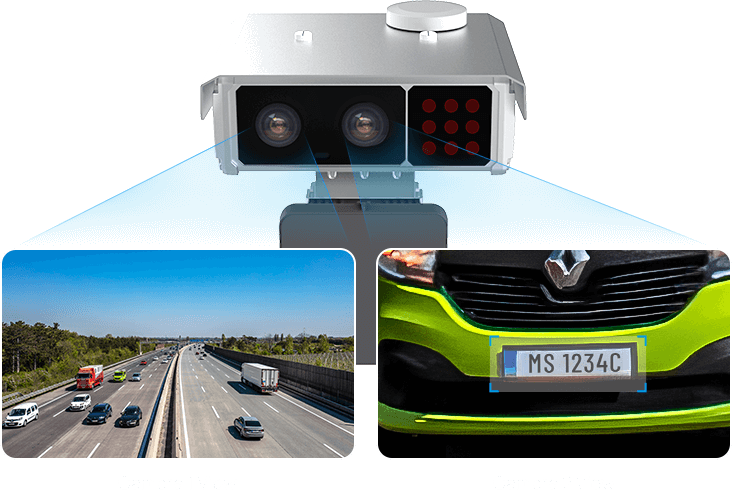

dual views

Double Vision, Solid Evidence

  • Dual 5MP lenses provide two distinct perspectives: a vehicle close-up for precise ANPR and a wide-angle view for comprehensive situational awareness, which delivers perfectly synchronized evidence, capturing detailed vehicle identifiers ( plate color, vehicle MMC, etc) and broader traffic context.
  • Integrated IR light ensures crystal clear snapshot and footage for reliable enforcement, even in low light conditiones.

Powered by
vioguard
:
Various Traffic Violation Detection Capabilities

Powered by VioGuard – Milesight's cutting-edge traffic violation detection technology, Milesight DualVision Radar TrafficX Camera delivers highly accurate and automated enforcement for a wide range of traffic violations, including Speeding Violation Detection, Illegal Lane Change Detection, Reverse Driving Detection, Not Following Directional Sign Detection, Bus Lane Violation Detection, and more. By automatically detecting, capturing, and recording violation evidence, it helps law enforcement agencies improve operational efficiency, streamline traffic management, and enhance overall road safety.

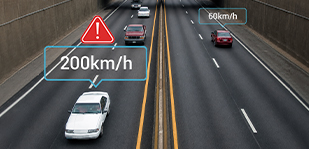

Speeding Violation
2

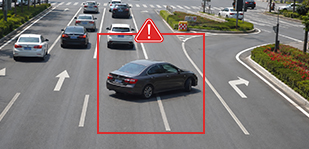

Illegal Lane Change
3
Reverse Driving
4

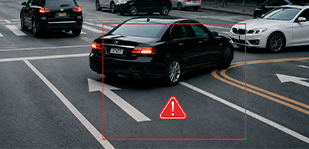

Not Following Directional Sign
5

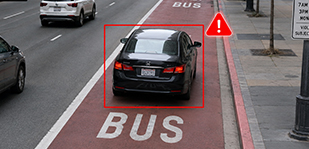

Bus Lane Violation
6

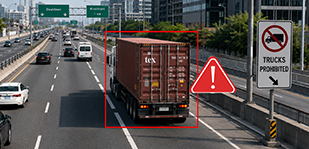

Truck Restricted Lane Violation
7

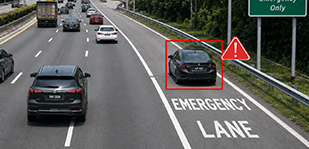

Emergency Lane Violation
8

Triple AI Intelligence for Comprehensive
Vehicle and Plate Recognition

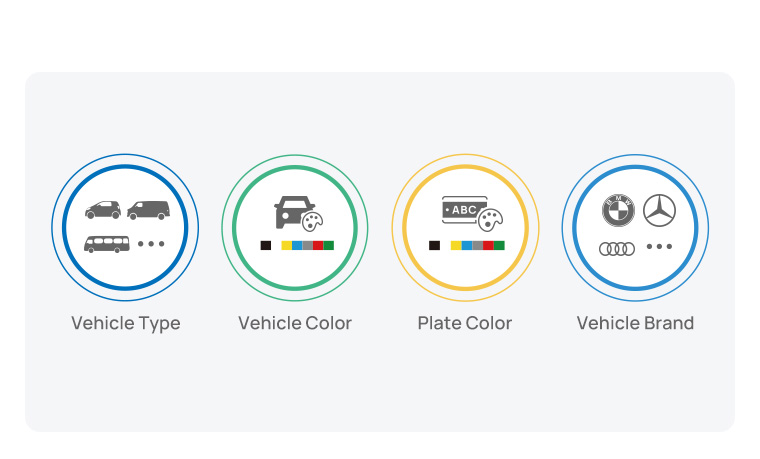

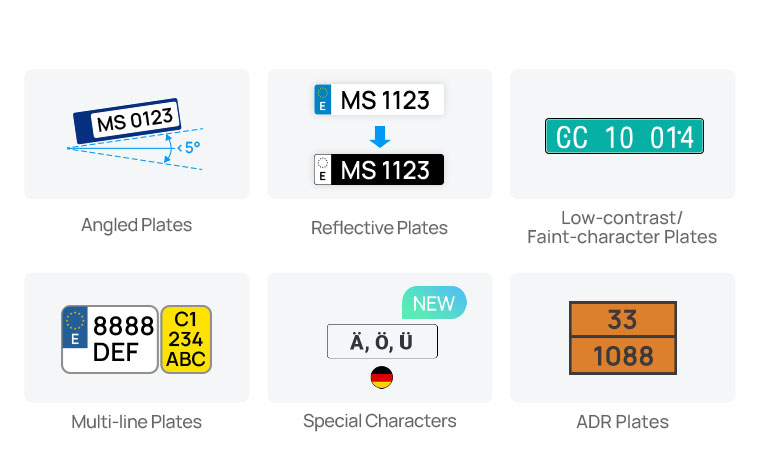

Powered by triple AI—an AI Chip, AI ISP, and AI-powered ANPR Algorithm—Milesight TrafficX Camera accurately recognizes license plate numbers and colors, as well as vehicle types, brands, colors, and travel directions. It also handles a wide variety of challenging plates, including reflective, low-contrast, multi-line, and ADR plates.

AI Chip + AI ISP + AI-Powered ANPR

More Advanced Features Tailored for Speed and Safety Enforcement

Premium and Robust Hardware

316 Stainless Steel Bracket & Aviation Plug Connector

Violation Management

Reverse Driving detection, No-plate Detection, Vehicle Attributes Event Detection, Overspeed Violation, etc

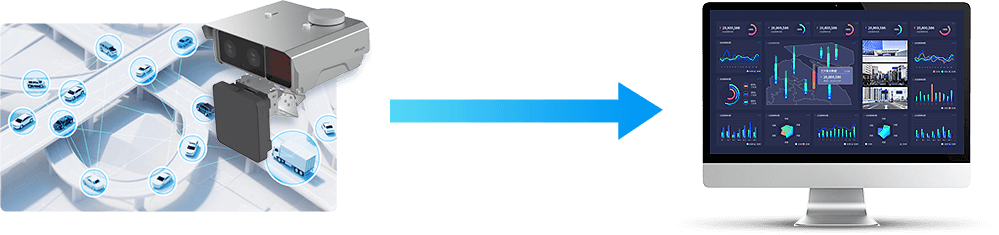

Open Compatibility

CGl/APls and TCP/HTTP/MQTT Protocols for Easy Integration

Easy Network Connection

Built-in 4G Module (Optional)

High Protection Level

IP67 for Weather-resistant Performance

Large Storage

Support SD Card Local Storage up to 1TB

View More
View Less

Specifications

  • 5MP

  • TS5510-GVH
Camera
Image SensorColor, 2/3" Global Shutter
Min. IlluminationColor: 0.001 Lux@(F1.4, AGC ON)
Shutter Time30 us- 40000 us
Day/Night ModeDay/Night/Auto
Supplement LightIR: IR Strobe Light (9 light beads @ 850nm, 16 light beads @ 740nm)
IR Distance: 60m
IR Wave Length: 850nm (Default), 740nm (Optional)
Road Traffic Management
Max. ANPR RangeUp to 50m
Max. Vehicle Speed320 km/h

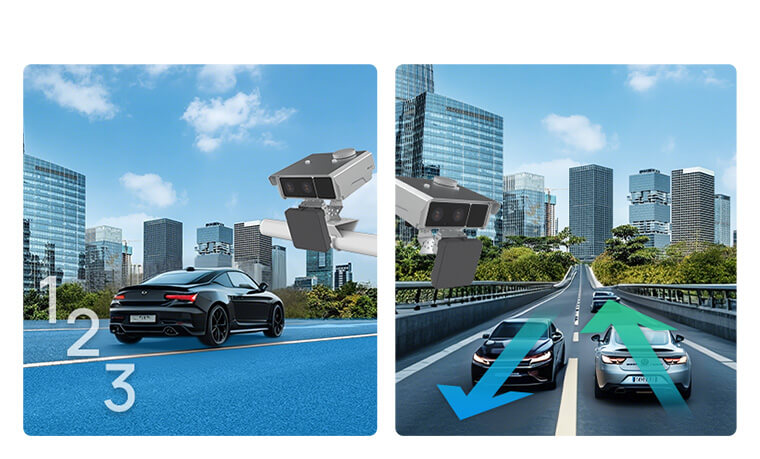

CoverageRecommended for 2~3 lanes
Capture RateUp to 99%
Recognition AccuracyUp to 98%
Country Region SupportedMore than 74 countries and regions
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection
Violation ManagementSpecial Lane Occupation Detection, Illegal Lane Change Detection, Reverse Driving, Speed Monitoring, Vehicle Attributes Event Detection
Vehicle CountingSupport
White/Black ListUp to 20,000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M/1000M Ethernet Port
RS485Support
Input4 * Optoisolated Input
Output2 * Strobe Output
1 * Relay Output
Lens
Lens15-50mm, Motorized zoom and focus
MountCustom mount
Field of Viewhorizontal FOV 41.4° to 10.3°, vertical FOV 26.8° to 8.42°, diagonal FOV 32° to 13.3°
Video
Max. Resolution2464x2056
Max. FPS30fps
Video CompressionH.265/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps (CBR/VBR Adjustable)
Image SettingBrightness/Contrast/Saturation
Privacy MaskingUp to 24 Areas (per Sensor)
Radar
Working Frequency24GHz
Capture Rate>99% (Traffic jam >95%)
Lane Coverage2~3 Lanes (Recognition ≥95% individually）
Tracking TargetUp to 32
Speed Detection Accuracy±2km/h
HousingUp to IP67-rated for weather-resistant performance
Installation Height4~10m
Wireless Network
(Optional)
Cellular4G LTE
NA: B2/B4/B5/B12/B13/B25/B26
EU: B1/B3/B7/B8/B20/B28
AU: B1/B2/B3/B4/B5/B7/B8/B28/B66
SIM CardNano SIM
System
System CompatibilityAPI, HTTP, TCP, MQTT, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
General
GPSBuilt-in High-accuracy GPS Module
Working Temperature-50°C ~ 70°C
Working Humidity0~95% (Non-condensing)
Power ConsumptionMin.: 14.4W
Max.: 21.2W
Weather ProofUp to IP67-rated for Weather-resistant Performance
Power Supply24 V DC/AC
Weight5.6Kg
8.4Kg (with Package)
Dimensions282.7mmx295mmx276.5mm (with Radar Unit)
Warranty3 Years
Certifications
EMCCE-EMC (EN 55032, EN 55035), FCC (PART 15B)
SafetyCE-LVD (EN IEC 62368-1)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

* Naming Convention
G - Global Shutter
V - Radar Version
H - AI Series

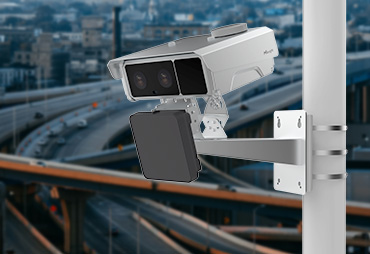

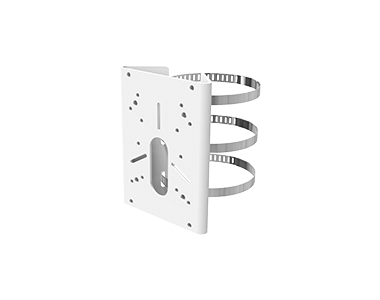

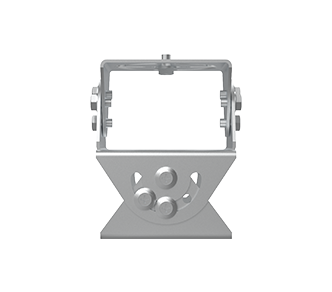

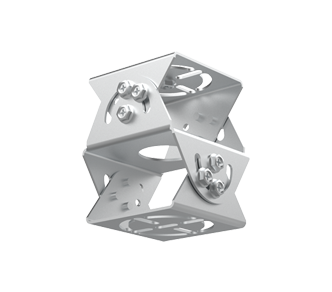

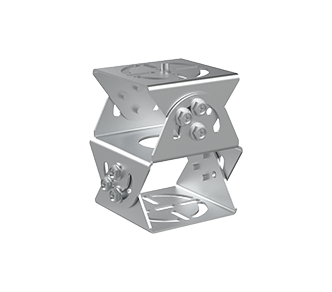

A02-N Pole Mount

  • Weight: 1.4kg
  • Dimension: 180*138.5*47.1mm
  • Installation Environment: Installation Environment: For mounting cameras on poles with diameters of φ50–300 mm (1.97–11.81 in).

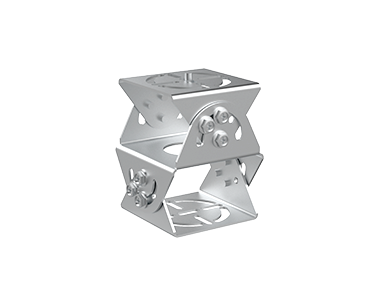

A91-N Pedestal Mount

  • Weight: 540g
  • Dimension: 80*80*104.5mm
  • Installation Environment: For installation on a base or platform

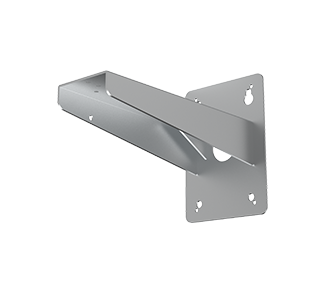

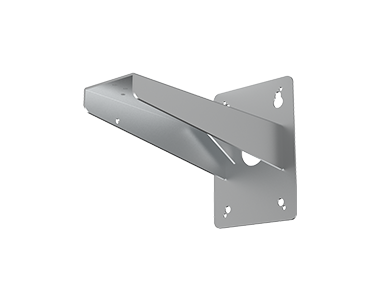

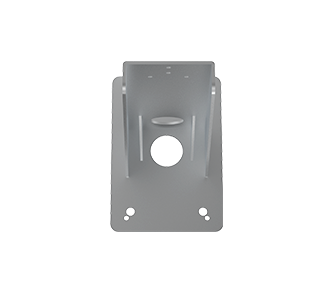

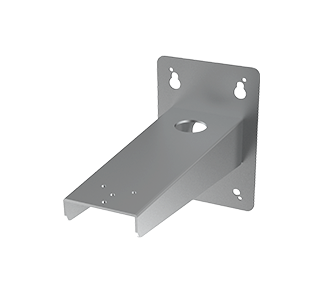

A92-N Wall Mount

  • Weight: 1800g
  • Dimension: 140*200*279mm
  • Installation Environment: For wall or parapet installations

IR Flash Supplement Light

  • Weight: 5.3kg
  • Dimension: 452*279*279 mm
  • Installation Environment: For low-light environments requiring supplemental illumination.
