Next Generation Parking Management Leveraging 5G & AI
5G's spectrum is higher in frequency than the bands used in 4G and earlier generations of cellular networks. Thanks to the high bandwidth and massive network capacity of 5G networks, the camera is qualified to stream ultra high definition videos up to 4K even 8K, supporting upload and download ultra high resolution footages within few seconds.

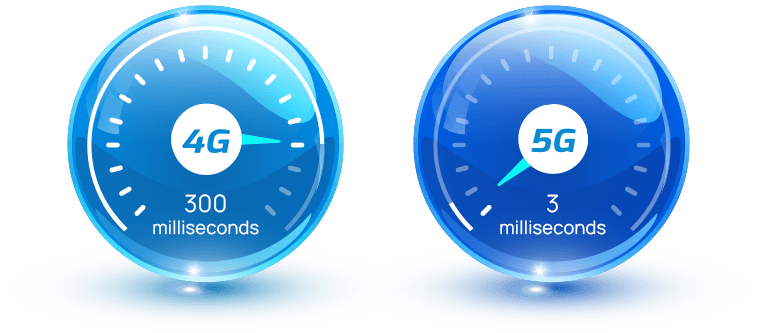

5G technology differs from previous generations of cellular technology in that the response time required for a set of data to be transmitted between two points is significantly reduced. Benefit brought by higher data speed of 5G technology, it can greatly reduce the network latency and camera response time, providing a smooth real-time monitoring with almost no lagging time.
Empowered by 5G and AI technology, the camera has enriched connectivity feature for unparalleled flexibility and scalability. Compared with traditional video surveillance, smart video surveillance expands the scope of security monitoring, bringing new possibilities for industries such as Smart City, Smart Retail, Smart Medical, Smart Transportation and other fields.
Leveraging the high transmitted power of 5G, the camera can transmit or receive video signals over Internet wirelessly by simply powering the camera and inserting a SIM card. Days of complicated cable and fiber connections are gone. Compared with add-on routers, the built-in 5G module provides a more flexible while reliable security solution.
Designed for more efficient and intelligent outdoor parking management, the camera offers two detection modes to meet diverse needs.

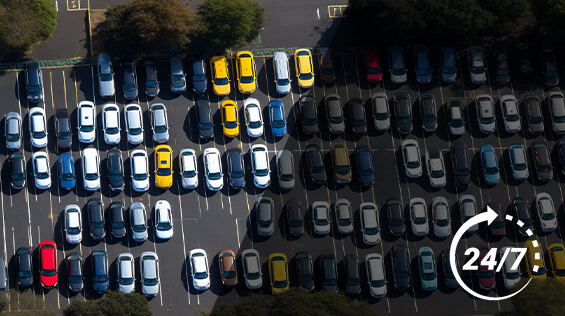

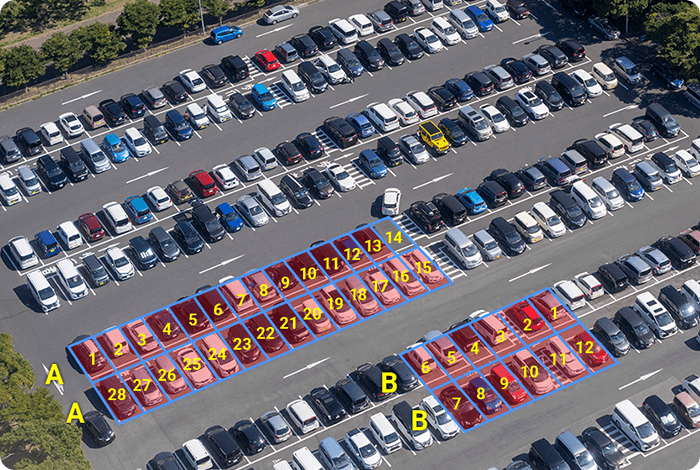

Simultaneous detection and management of up to 100 parking spaces in 98%+ detection accuracy.
Simultaneous detection and management of up to 6 parking spaces with license plate and vehicle feature recognition results included.
Further identify and record illegal parking behavior, up to 2 violation zones for parking violation detection, each zone supports multiple vehicles.
The camera employs advanced image processing technologies for outstanding scene adaptability. With a wide FoV motorized zoom lens and 4K ultra-high resolution, every detail is visible. Furthermore, the 1/1.8" STARVIS starlight sensor and frame accumulation technology enable safe and reliable monitoring, even at night.
To maximize usability and compatibility, Milesight AI Management Camera supports CGI/API, which makes it easy to integrate openly with third-party platforms. Network protocols, such as HTTP(s), provide a wide range of options for data processing. The transmission of parking information to third-party parking systems helps form a complete solution to enable intelligent parking management.

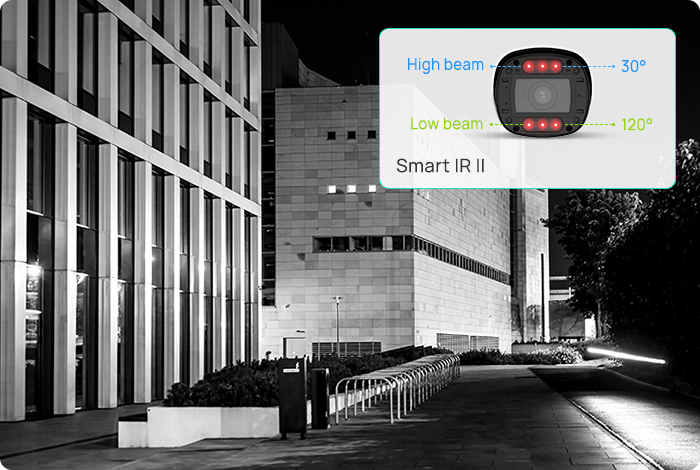

The IR LEDs technology upgraded to provide videos with a viewing range of up to 65m, which reaches better image clarity and quality. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the zoom ratio.
Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

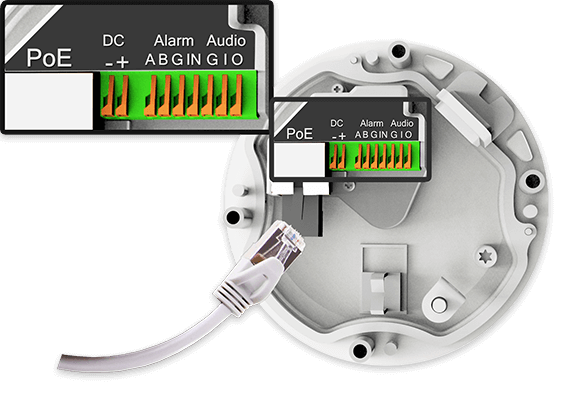

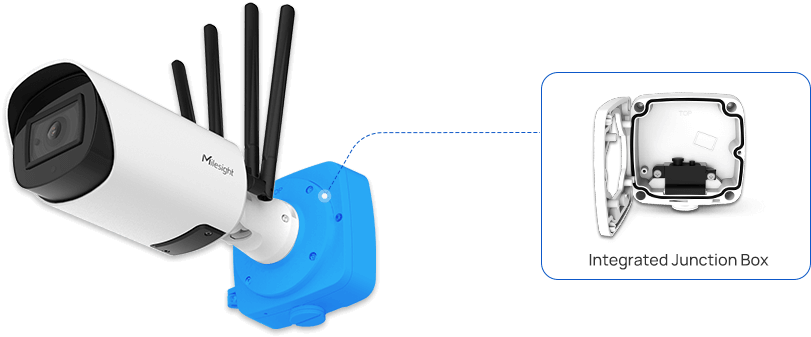

The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| Illumination Distance | Up to 65m |
| S/N | >55dB |
| Parking Management | |
| Parking Application Mode | Occupancy Detection/Parking Detection |
| Parking Space Detection | Up to 4 Parking Spaces for Parking Detection with LPR; Up to 100 Parking Spaces@10m for Occupancy Detection |
| Detection Accuracy | >98% |
| Data Report | Triggered Report: when parking space is occupied or released; Interval Report: regular report of entire parking situation |
| Mounting Height | 4~8m (For Parking Detection with LPR); >3.5m (For Occupancy Detection) |
| Lens | |
| Lens | Motorized 3.6~10mm@F1.4 |
| Field of View | H116°~H48°/D134°~D55°/V65°~V27° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Mobile Communication Parameter | |
| Wireless Communication | Support 5G/4G/3G |
| Frequency Bands | 5G NR: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n 71/n75/n76/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/ B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B48 LAA: B46 WCDMA: B1/B2/B4/B5/B8/B19 |
| Wireless Transmission Speed | SA: DL 2.4Gbps; UL 900Mbps NSA: DL 3.4Gbps; UL 550Mbps LTE: DL 1.6Gbps; UL 200Mbps |
| SIM Card | Nano SIM |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| Storage | microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |

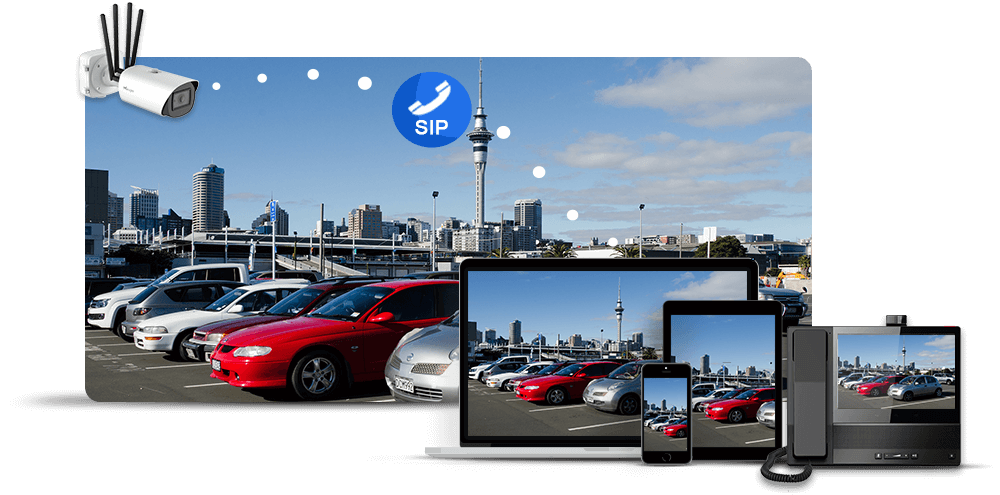

| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | MQTT, ONVIF Profile G & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | Min.: 5.22W (DC 12V), 6.28W(PoE) Max.: 11.22W (DC 12V), 12.91W(PoE) |
| Weather Proof | 4KV |
| Surge Protection | Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance |
| Dimensions | 301mmX108mmX126mm |
| Weight | 1630g |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| RF | CE-RED (EN 301908-1, EN 301908-2, EN 301908-13, EN 301908-25, EN301489-1, EN301489-52, EN 62133) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
