Feature-Rich Sensor Hub for Connecting Sensors
The UC50x Series features multiple industrial interfaces to monitor and control field sensors or devices simultaneously.
The UC50x Series is equipped with SDI-12 interface, making it incredibly easy to connect a wide range of instruments used for environmental monitoring. This includes weather sensors, hydrological sensors, agricultural sensors, etc. With SDI-12 support, the UC50x series expands its versatility and adaptability across multiple domains.
Solar-powered or battery-powered? It all depends on your needs.

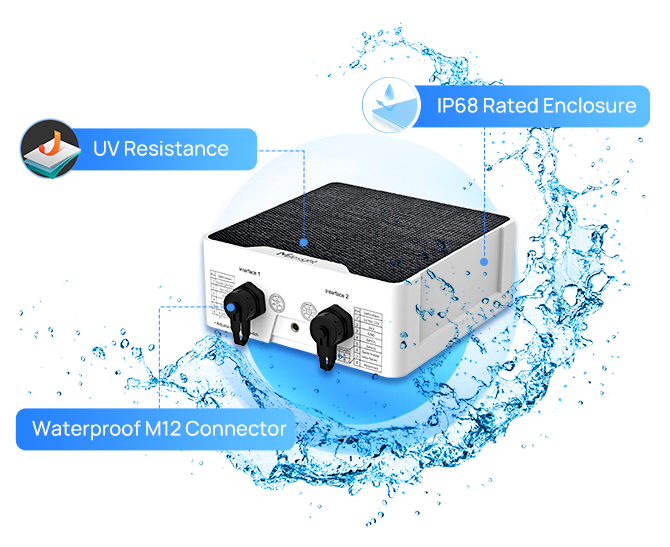

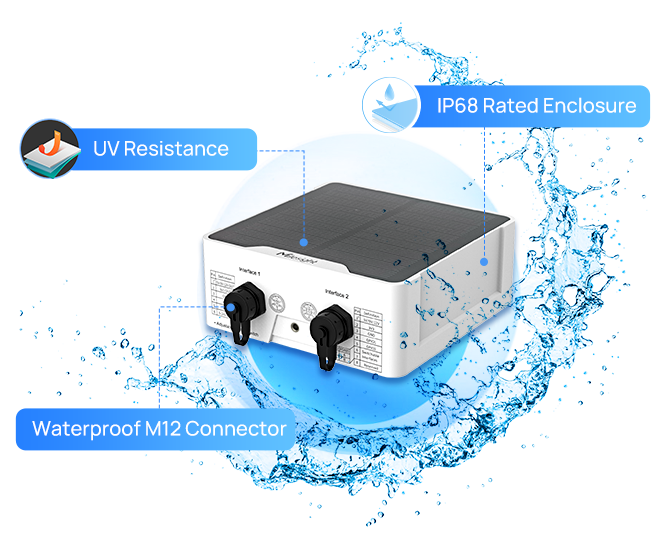

The UC50x Series is equipped with an IP68 rated enclosure and an M12 connector that offer robust protection against water ingress, corrosion, and vibrations. This combination of features ensures long-term, dependable operation in challenging all-weather environments.
Note: IP68 Test Conditions – 1m depth for 7 days.
The UC50x Series enables data threshold reporting, triggering alerts and notifications when sensor readings exceed previously set thresholds. This facilitates proactive monitoring and ensures a timely response to abnormal situations, promoting prompt resolution and preventing potential issues.
The UC50x Series provides flexibility in antenna placement, ensuring optimal signal strength and range, even in environments with obstacles or challenging RF conditions.
*Note: The UC50x offers LTE version and LoRaWAN® version. External Antenna Version optional is available for the LoRaWAN® version only.
The UC50x series simplifies data interpretation and utilization for users by directly converting received sensor values into meaningful measurements for connected devices, eliminating the need for manual conversion.
Bridge Modbus data between serial and Ethernet networks via LoRaWAN®

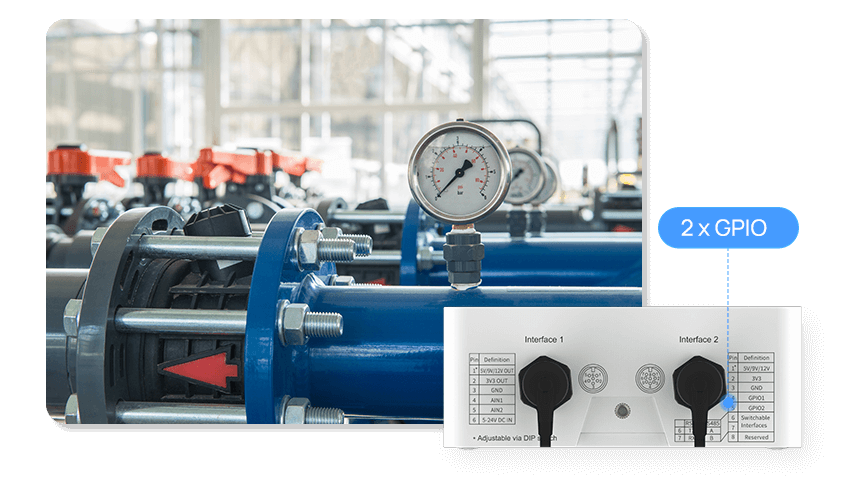

With its GPIO interface, the UC50x series can function as a pulse counter, allowing you to monitor gas, water, and electricity consumption or production effortlessly.
Stable Transmission: Reliable data transmission via cellular base stations
Low Deployment Cost: Low deployment cost due to the presence of existing cellular base stations
Cumulative Reporting:
Accumulate up to 12 data packets in each report saving transmission cost and power consumption
Ultra-high Compatibility:
Integrate with various 3rd party platforms through MQTT\TCP\UDP communication.
Support cumulative number report function for power saving
Support multiple network protocols to be compatible with IoT platform
Data can be stored in the device and cannot be manually deleted, further securing
the traceability of the reported information.
LoRaWAN® Version: Up to 600
LTE Version: 600 ～ 10000

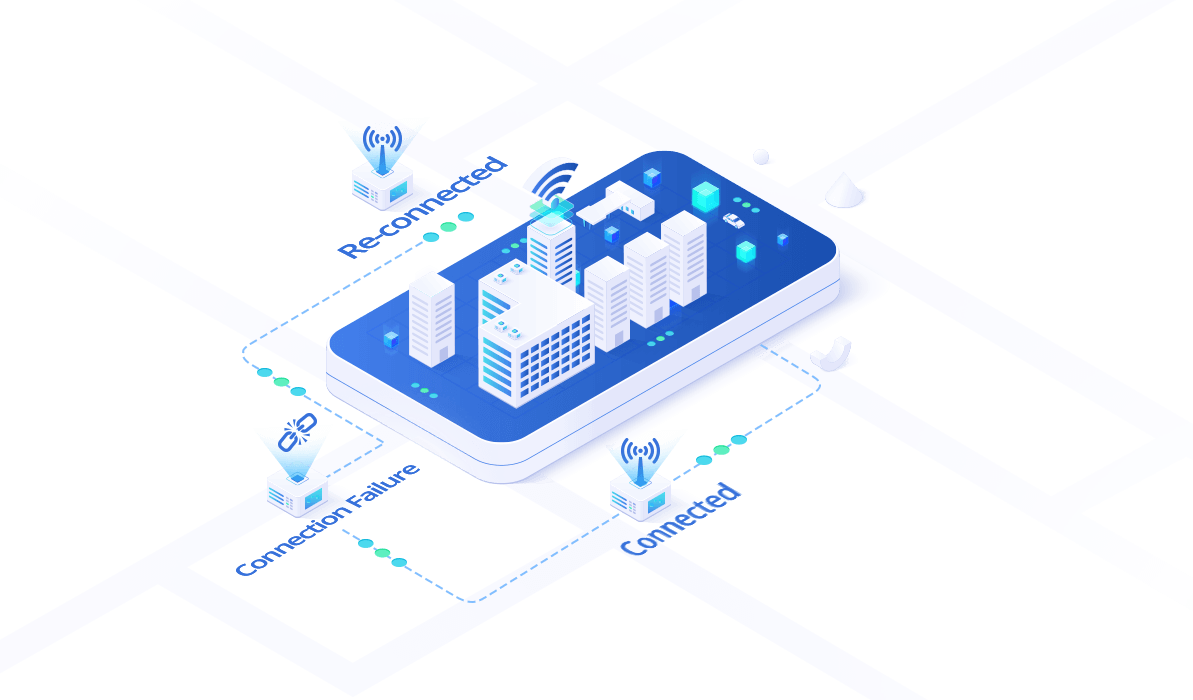

With support for data retransmission, the device guarantees that the web server gets all the data even if the network is down occasionally.
*Note: LoRaWAN® Version Only
Install the
Milesight ToolBox
Enable NFC and run ToolBox,
then attach your phone to the device
Verify the password
and start configuring
Wall Mounting
Pole Mounting
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWAN® |
| Antenna | Internal Antenna or External Antenna (Hardware Optional) External Antenna (EA) Version: 1 × 50 Ω SMA Female Connector |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Work Mode | UC501: OTAA/ABP Class A, Class C UC502: OTAA/ABP Class A |
| Data Interfaces | |
| Interface Type | M12 A-Coded Male |
| IO | |
| Ports | 2 × GPIO |
| Logical Level | Low: 0~0.8 V, High: 2.5~3.3 V |
| Maximum Current | 20 mA |
| Work Mode | Digital Input, Digital Output, Pulse Counter (Software Switchable) |
| Input Frequency | Suggested value: ≤ 4000 Hz |

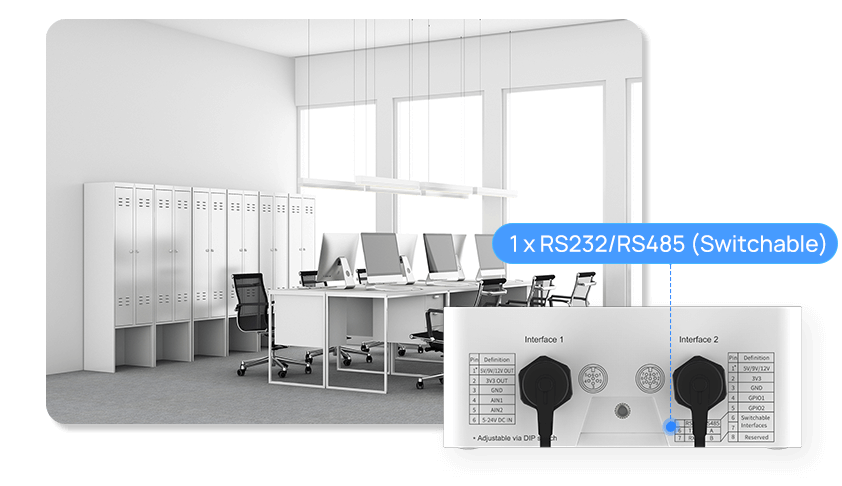

| Serial Port | |
| Ports | 1 × RS232 or RS485 (Software Switchable) |
| Baud Rate | 1200~115200 bps |
| Protocol | Transparent (RS232/RS485), Modbus RTU (RS485) |

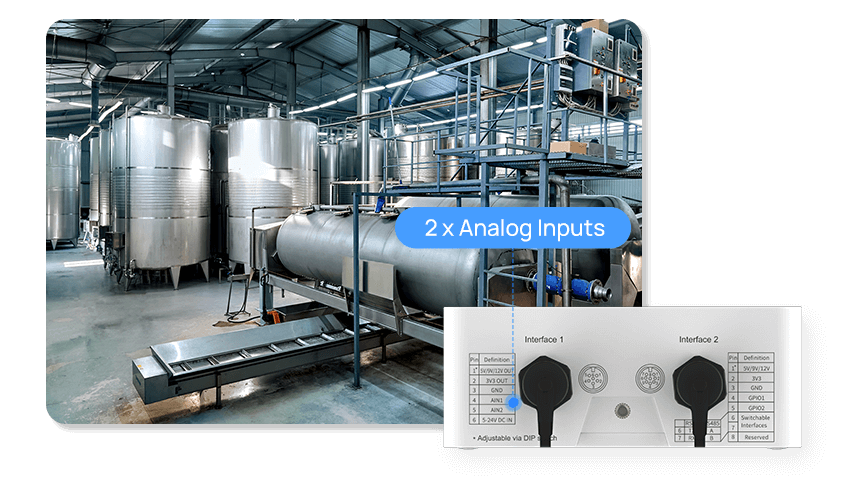

| Analog Input | |
| Ports | 2 × Analog Input |
| Resolution | 12 bit |
| Input Range | 4~20 mA or 0~10 V (Switchable) |
| SDI-12 | |
| Ports | 1 × SDI-12 |
| Protocol | SDI-12 V1.4, Transparent |
| Power Output | |
| Ports | 2 × 3.3 V, 2 × 5/9/12 V(Switchable) |
| Power Time Before Data Collection | Continuous (3.3V), 0~10 minutes (5/9/12V) |
| Others | |
| Button | 1 × Power/Reset Button (Internal) |
| USB | 1 × Type-C (Internal) for Configuration and Console |
| LED Indicator | 1 × Reboot/Reset (Internal) |
| Software | |
| Power On & Off | Mobile App via NFC, PC Software via USB Type-C, Power Button (Internal) |
| Configuration | Mobile App via NFC, PC software via USB Type-C, Downlink |
| Advanced Feature | Threshold Alarm, Change Alarm, Multicast (UC501 Only), Data Storage (600 entries), Data Retrievability, Data Retransmission |
| Physical Characteristics | |
| Power Supply | UC501: 1. 2 × 2550 mAh ICR18650 Chargeable Batteries 2. Embedded Solar Power (6V, 1.7W) 3. DC 5-24V by M12 Connector UC502: 1. 3 × 9000 mAh Replaceable ER26500 Li-SOCl2 Batteries 2. DC 5-24V by M12 Connector |
| Operating Temperature | UC501: -20°C~60°C UC502: -30°C~70°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Ingress Protection | IP68 (1m underwater, 7 days) |
| Dimension | 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) (Connectors Excluded) |
| Installation | Wall or Pole Mounting |
| Approvals | |
| Regulatory | CE, FCC, ISED |
| Environmental | RoHS |
| Wireless Transmission | |
|---|---|
| Antenna | Internal Antenna |
| Cellular Band | NB-IoT/Cat.M Version: Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/ B66/B71/B85 |
| SIM Slot | 1 (Nano SIM-4FF), 1.8V |
| Application Mode | TCP/UDP/MQTT/AWS |
| Data Interfaces | |
| Interface Type | M12 A-Coded Male |
| IO | |
| Ports | 2 × GPIO |
| Logical Level | Low: 0~0.8 V, High: 2.5~3.3 V |
| Maximum Current | 20 mA |
| Work Mode | Digital Input, Digital Output, Pulse Counter (Software Switchable) |
| Input Frequency | Suggested value: ≤ 4000 Hz |
| Serial Port | |
| Ports | 1 × RS232 or RS485 (Software Switchable) |
| Baud Rate | 1200~115200 bps |
| Protocol | Transparent (RS232/RS485), Modbus RTU (RS485) |
| Analog Input | |
| Ports | 2 × Analog Input |
| Resolution | 12 bit |
| Input Range | 4~20 mA or 0~10 V (Switchable) |
| SDI-12 | |
| Ports | 1 × SDI-12 |
| Protocol | SDI-12 V1.4, Transparent |
| Power Output | |
| Ports | 2 × 3.3 V, 2 × 5/9/12 V(Switchable) |
| Power Time Before Data Collection | Continuous (3.3V), 0~10 minutes (5/9/12V) |
| Others | |
| Button | 1 × Power/Reset Button (Internal) |
| USB | 1 × Type-C (Internal) for Console |
| LED Indicator | 1 × Reboot/Reset (Internal) |
| Software | |
| Power On & Off | Mobile App via NFC, Power Button (Internal) |
| Configuration | Mobile App via NFC or Downlink |
| Advanced Feature | Threshold Alarm, Change Alarm, Cumulative Report, Data Storage (Up to 10,000 entries), Data Retrievability, Data Retransmission |
| Physical Characteristics | |
| Power Supply | UC501: 1. 2 × 2550 mAh ICR18650 Chargeable Batteries 2. Embedded Solar Power (6V, 1.7W) 3. DC 5-24V by M12 Connector UC502: 1. 3 × 9000 mAh Replaceable ER26500 Li-SOCl2 Batteries 2. DC 5-24V by M12 Connector |
| Operating Temperature | UC501: -20°C~60°C UC502: -30°C~70°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Ingress Protection | IP68 (1m underwater, 7 days) |
| Dimension | 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) (Connectors Excluded) |
| Installation | Wall or Pole Mounting |
| Approvals | |
| Regulatory | CE |
