X1 Sensing Camera

Enable Pictures to Inspire Unlimited Sensing Insights

SC541

SC541-HL

WiFi/WiFi-Halow

Inspire Sensing Insights through Images
Easy-to-Get Wireless Deployment
Long Service Life with Low Power Consumption
Multi-Object Catching & Multi-Capturing Modes

Collaborate with AIoT Sensing Platform
Compact Design & Powerful Camera Capacity
Well Compatible with the Third Party Platforms
Support Close Focus Lens and Super Close Focus Lens
Support Both Wi-Fi and Wi-Fi Halow Communication Versions

FEATURES
MODELS
DOWNLOAD

Home
X Infinity
X1 Sensing Camera

Bridging the Niche with a
New Connectivity Option

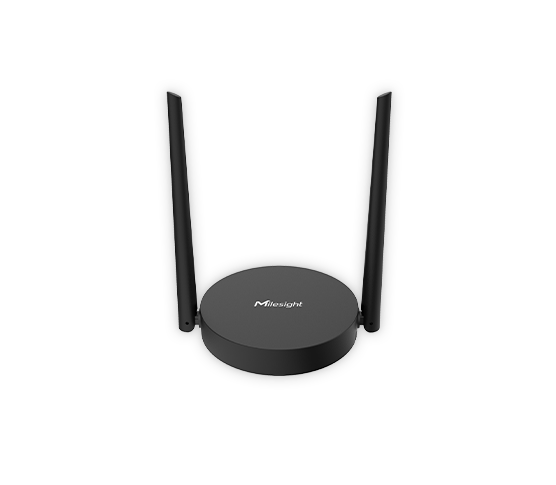

Experience the next generation of wireless connectivity option for picture transmission solutions. With the Milesight Wi-Fi Halow product portfolio — HL31 WiFi Halow Gateway and X1 Sensing Camera(Wi-Fi Halow Version), you can unlock the full potential of a connected world.

Unleash Limitless Possibilities with
Advanced Imaging Insights

Unlock new dimensions of understanding with the X1 sensing camera. With its advanced imaging capabilities, the X1 captures stunning detail that transforms your perception of reality to new heights. Discover the beauty of clarity and explore new possibilities with this game-changing device.

Unleash Limitless Possibilities with
Advanced Imaging Insights

Sensing through Images

Technology changes the world. And that's why X1 Sensing Camera is born. Featuring a highly-detailed 2MP camera with great lighting adaptability, it builds a connection between objects, people, and scenarios through images to realize easy upgrades or enable unlimited sensing insights for more possibilities.

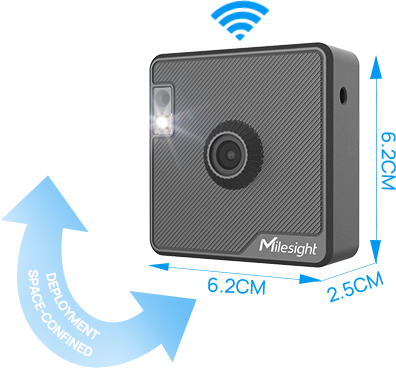

Easy-to-Get Wireless
Deployment

Wired or Wireless, it is never a question. Transmitting through Wi-Fi/Wi-Fi Halow, it can be wirelessly deployed to bring a flexible and easy installation experience without the bothering of jumbled wires.

Low Power Consumption

Being designed to offer extended service life with small energy resources, it can be powered up by batteries and keep stable performance at long running, which is efficient for value-added capacity while omitting unnecessary maintenance.

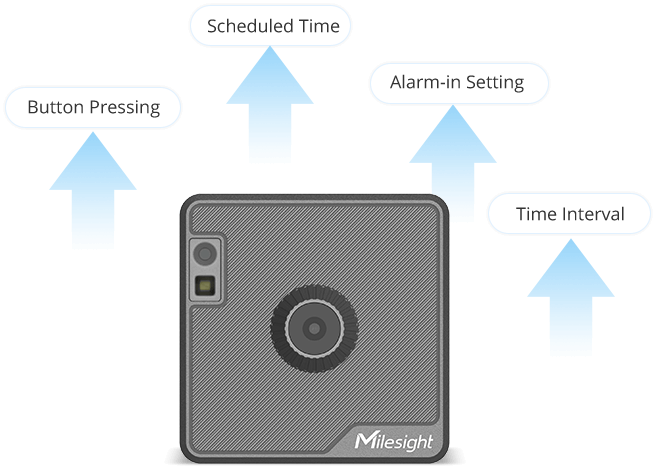

Multiple Targets Capturing and Modes

Differentiating from one-to-one devices, the X1 Sensing Camera is able to cover multiple targets by producing detailed images. What's more, it can be preset or triggered flexibly to capture target images in 4 modes including Scheduled Capture (Interval & Timed), Alarm-in Capture, and Button Capture.

Compact Design with
Strong Capacity

With an ultra mini size more or less equal to half a cell phone, it is an exquisite device neatly blending in with the surrounding while featuring powerful capacity. The lighting environment has little influence to the sensor because of the supplement light, and the 2MP resolution guarantees detailed information capturing.

Collaborate with AIoT Sensing Platform

Forming a mighty management insight on the Milesight AIoT Sensing Platform by integrating captured information. The X1 Sensing Camera can be extended to be applied in more scenarios and brings more valuable performance.

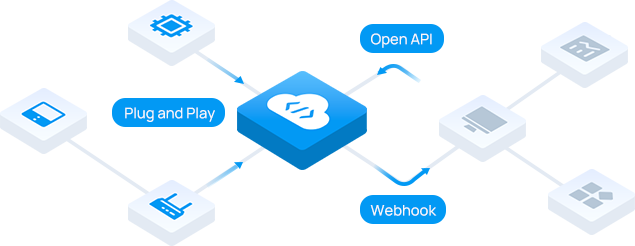

Strong Compatibility

Collaborating with Milesight AIoT Sensing Platform, it can work seamlessly with third-party software or platforms, which allows users to integrate different tools and services, creating a more unified and efficient workflow.

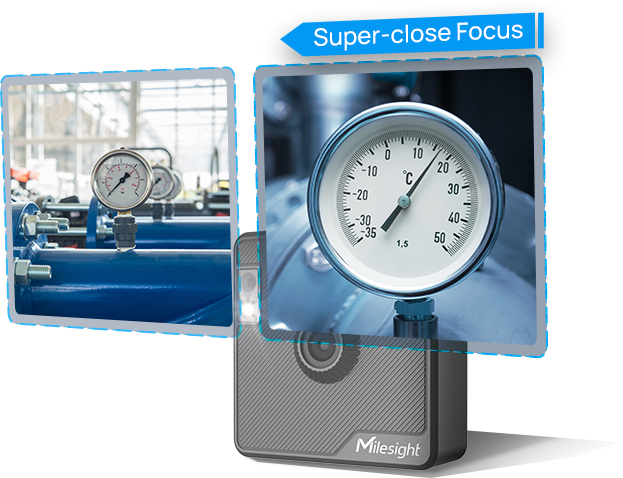

More Lens Options

To cater to various close-range capture requirements, especially in metering management scenarios where close focusing is crucial, you can choose either a close-focus lens or a super close-focus lens for even closer capture.

Typical Applications

Metering Solution

To replace manual inspection of facilities especially the pressure meter in complicated industry environments, it achieves data collecting and environment monitoring by the image capturing to greatly improve the maintenance prediction and environment security judgment, laying a foundation for digital analysis.

Learn More...

Challenges

No images to trace and verify
Complicated upgrade environments
Rapid delivery time
No images to trace and verify
Complicated upgrade environments
Rapid delivery time

Benefits

Zero-transforming upgrade
Zero-risk installation
Zero-invasion deployment
Zero-difficulty compatibility
High-value image performance
High-efficiency management
High-quality security

Flexible Deployment

The best distance between the device and the target to be captured is 5-10cm (PN: 0510) / 10-20cm (PN: 1020).

Step1: Connect the SMB antenna to the SMB antenna Connector of the device with the device model SC541-HL.

Step2: The device can be fixed to universal camera brackets through different bracket holes.

Specifications

SC541
SC541-HL

Lens
Lens Type	PN: 1020 (For close capture) PN: 0510 (For super-close capture)
Resolution	1920 x 1080 Pixels
Aperture	F2.4@PN: 1020 F2.0@PN: 0510
Focal Length	4.8mm@PN: 1020 1.79mm@PN: 0510
Field of View	77°@PN: 1020 120°@PN: 0510
Picture Capture
Mounting Distance	10 ~ 20 cm@PN: 1020 5 ~ 10 cm@PN: 0510
Capture Mode	Scheduled Capture (Interval & Timed) / Alarm-in Capture / Button Capture
Picture Format	JPEG
Storage	Store up to 40 pictures (About 3MB Flash)
Wireless Transmission
Wi-Fi	IEEE 802.11 b/g/n, 2.4GHz (AP & STA)
Protocol	MQTT
Interface
Type-C Interface	1 x Type-C
LED	1 x Status (Blue)
Button	1 x External Button (Awake/Capture/Reset Device)
Antenna	Built-in Antenna
Alarm-in Interface	Logical Level: Low: <0.5V, High: 3V ~ 5V Trigger Condition: High Level lasted over 150us
Physical Characteristics
Power Supply	5V / 1A by Type-C Port; 2 x AA Alkaline Batteries¹
Battery Life²	Up to 2 Years (3 Captures per Day, Supplement Light Off, 25°C)
Installation	Universal Camera Bracket Mounting (1/4-20UNC)
Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Relative Humidity	0 ~ 95% (Non-condensing)
Color & Material	PC + ABS, Charcoal Grey
Ingress Protection	IP30
Dimension	62 x 62 x 25 mm
Weight	48g(Without Batteries)
Warranty³	2 Years

¹ The two Li/FeS₂ batteries are provided as standard, and two alkaline batteries are not provided and need to be purchased by yourself.
² Tested under laboratory conditions and for guideline purposes only.
³ For detailed information, visit our website at https://www.milesight.com.

Lens
Lens Type	PN: 1020 (For close capture) PN: 0510 (For super-close capture)
Resolution	1920 x 1080 Pixels
Aperture	F2.4@PN: 1020 F2.0@PN: 0510
Focal Length	4.8mm@PN: 1020 1.79mm@PN: 0510
Field of View	77°@PN: 1020 120°@PN: 0510
Picture Capture
Mounting Distance	10 ~ 20 cm@PN: 1020 5 ~ 10 cm@PN: 0510
Capture Mode	Scheduled Capture (Interval & Timed) / Alarm-in Capture / Button Capture
Picture Format	JPEG
Storage	Store up to 40 pictures (About 3MB Flash)
Wireless Transmission
Wi-Fi	IEEE 802.11 b/g/n, 2.4GHz (AP for Configuration Only)
Wi-Fi HaLow	863.5~867.5 MHz or 902.5~927.5 MHz
Protocol	MQTT
Interface
Type-C Interface	1 x Type-C
LED	1 x Status (Blue)
Button	1 x External Button (Awake/Capture/Reset Device)
Antenna	1 × 50 Ω SMB Female Connector (Center PIN: SMB Female)
Alarm-in Interface	Logical Level: Low: <0.5V, High: 3V ~ 5V Trigger Condition: High Level lasted over 150us
Physical Characteristics
Power Supply	5V / 1A by Type-C Port; 2 x Li/FeS₂ AA Batteries (3000mAh in Total)¹
Battery Life²	Up to 3 Years (3 Captures per Day, Supplement Light Off, 25°C)
Installation	Universal Camera Bracket Mounting (1/4-20UNC)
Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Relative Humidity	0 ~ 95% (Non-condensing)
Color & Material	PC + ABS, Black
Ingress Protection	IP30
Dimension	62 x 62 x 25 mm
Weight	54g (Without Batteries) 85g (With Batteries)
Warranty³	2 Years

Documents

SC541 Datasheet SC541 User Guide Payload Decoder Firmware & SDK Download
