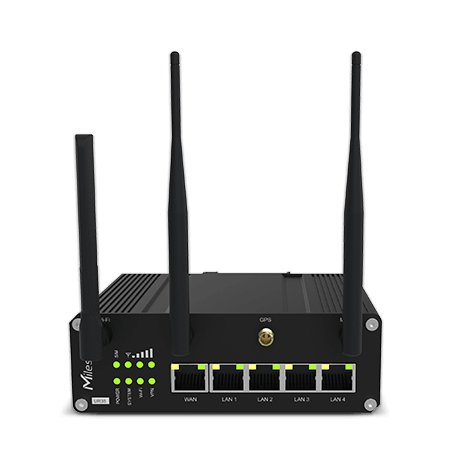

Industrial Cellular Router
Compact but Reliable Industrial Grade Router
Pro Series

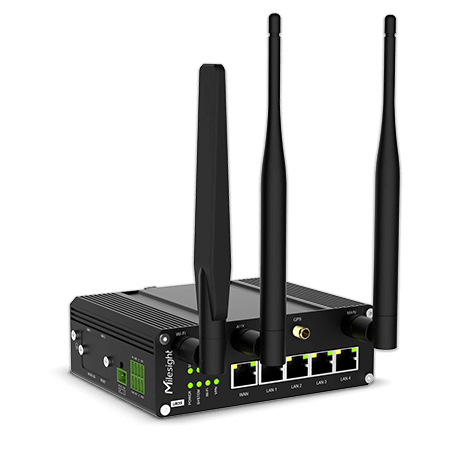

UR35
Enjoy Reliable Cellular Connectivity
With reliable capacity, UR35 brings mission-critical communications for broad applications.
- Industrial Grade Design for Harsh Environment
- Rugged But Exquisite Design
- Embedded Python SDK for Secondary Development
- Ultra-High Protection System
- Rich Interfaces for Multiple Applications
- Stable Cellular, Ethernet and Wi-Fi Transmission
- Open VPN Tunnel and Various Interface
- Remote Management on MilesightVPN and DeviceHub
- FEATURES
- MODELS
- DOWNLOAD
- Home
- 5G & Cellular Products
- UR35

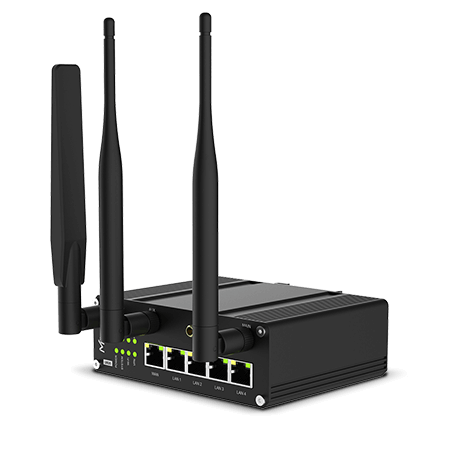

Exquisite Design
With an exquisite design, UR35 is specially designed to bring stable but flexible performance. The compact size allows it to easily fit into small cabinets or machines when space is limited.
Embedded Python SDK
UR35 is scalable for secondary development with Python SDK embedded. It can be extended to be more applicable and customized to truly meet actual demands.
Ultra-Reliable Protection
System
- Quick Network BackupAutomated failover/failback backup among Ethernet, Cellular(dual SIM), and Wi-Fi
- Embedded WatchdogEmbedded with hardware watchdog to automatically recover from various failures
- Security ProtectionEquipped with multiple security protection measures such as ACL, DMZ, SYN-Flood protection, and data filtering to ensure that the network is secured.
Rich Interfaces
Scaling up M2M and IoT applications is made possible by the UR35's rich serial interfaces, which include RS232, RS485, and Digital Input/Output.
Stable Internet Access
Integrating embedded cellular modem and dual SIM function, the UR35 provides a 3G/4G cellular network with reliable download and uplink speed. It also has 4 PoE PSE Ethernet ports and supports Wi-Fi that is complying with 802.11b/g/n standards for uninterrupted internet access.
Industrial Grade Design
To fulfill the market demand, UR35 is built with NXP industrial grade processor IP30 rated hardened enclosure, industrial components, and wide operation range from -40°C to 70°C (-40℉ to +158℉) for even harsh environments. It also features a broad supply voltage range of 9V to 48V DC.
VPN Tunnels And
Various Protocols
Featuring with multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M/IoT deployments.
- Network Protocols Such as SNMP, TR069, MOTT, and VRRP
- VPN tunnels Such as ZeroTier/lPsec/OpenVPN/GRE/L2TP/ PPTP/DMVPN/WireGuard
Remote Management
- MilesightVPNUR35 supports connection and management with MilesightVPN
- Easy Connection via Authentication Code
- Connection Status Overview
- Remote and Secure Access to Field Devices

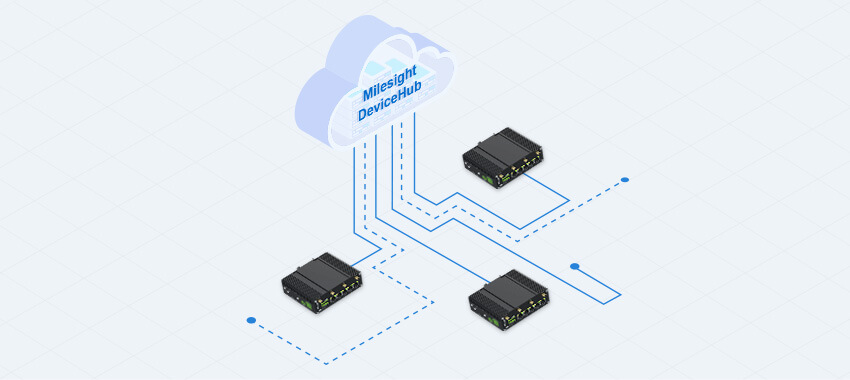

- Milesight DeviceHubMilesight DeviceHub offers a high-efficiency and low-maintenance solution to easily deploy Milesight Industrial Cellular Routers across multiple locations, reducing complexity and increasing productivity.
- Central Management
- Device Status Monitoring
- Remote & Bulk Configuration
Milesight Development Platform
Milesight Development Platform streamlines integration and simplifies device deployment and management, enabling you to focus on application development for your projects based on an open architecture.
Learn MoreFlexible Installation
Desktop Mount

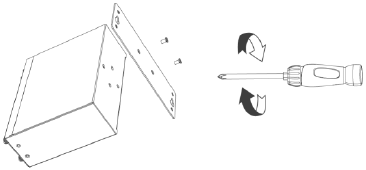

Wall Mount

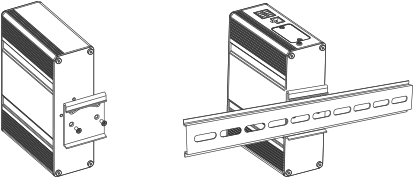

DIN Rail Mount
Specifications
- Hardware Specification
- Software Specifications
| Hardware System | |
|---|---|
| CPU | ARM Cortex-A7,528 MHz |
| Memory | 128 MB DDR3 RAM and 128MB Flash |
| Extendable Storage | 1 × Micro SD Slot |
| Cellular Interface | |
| Network | 4G LTE (CAT 4)/WCDMA/GSM (Differ as regions) |
| Antenna Connector | 2 × 50 Ω SMA Connectors (Center PIN: SMA Female) |
| SIM | 2 × SIM Slot (Mini SIM-2FF), 1.8V/3V |
| Ethernet Interface | |
| Numbers | 5 × RJ45 10/100 Mbps |
| Property | 1 × WAN + 4 × LAN |
| Mode | Full or half duplex (Auto-Sensing) |
| Ethernet Isolation | 1.5 kV RMS |
| PoE (Optional) | 4 × 802.3 af/at PoE PSE on LAN Ports |
| Wi-Fi Interface (Optional) | |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: RP-SMA Female) |
| Standards | IEEE 802.11 b/g/n,2.4GHz |
| Tx Power | 802.11b: 16 dBm +/-1.5 dBm (11 Mbps) 802.11g: 14 dBm +/-1.5 dBm (54 Mbps) 802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7) |
| GNSS (Optional) | |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Technology | GPS/GLONASS/BDS/Galileo/QZSS |
| Positioning Accuracy | 2.5m CEP (Open Air) |
| Serial Port | |
| Numbers | 1 × RS232 + 1 × RS485 (2 × RS485 Hardware Customizable) |
| Connector | 3.5mm Terminal Block |
| Baud Rate | 300bps to 230400bps |
| DI/DO | |
| Numbers | 1 × DI + 1 × DO, Galvanic Isolation |
| Connector | 3.5mm Terminal Block |
| Digital Input | Dry Contact |
| Digital Output | Wet Contact, maximum 0.3A@30VDC |
| Others | |
| Reset Button | 1 × RESET |
| LED Indicators | 1 × POWER, 1 × SYSTEM, 1 × SIM, 1 × Wi-Fi, 1 × VPN, 3 × Signal strength |
| Power Connector | 1 × 2-pin 5.08 mm Terminal Block, with Surge-Protection and Reverse Polarity Protection |
| Built-in | Watchdog, Timer |
| Power Supply and Consumption | |
| Power Input | 9-48 VDC(48V is need for PoE) |
| Power Output (Optional) | 4 × 802.3 af/at PoE PSE on LAN Ports Per Port 30W Max., Total 60W Max. |
| Power Consumption | Typical 3.9 W, Max 4.6 W (In Non-PoE mode) |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Housing & Color | Metal, Black |
| Weight | 485 g |
| Dimension | 135 x 103 x 45 mm (5.31 x 4.06 x 1.77 in) |
| Installation | Desktop, Wall Screw Mounting, DIN Rail Mounting |
| Environmental | |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
| Approvals | |
| Regulatory | CE, FCC, RCM, JATE, Telec |
| Environmental | RoHS |
| EMC | EN 55032, EN 55035 |
| EMS | IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 3 IEC 61000-4-5 Level 3 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 4 IEC 61000-4-11 Level 3 |
| Radio Frequency | EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328 |
| Safety | EN62368-1 |
| Network | |
|---|---|
| Network Protocols | IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, MQTT, MQTTS, TR069, etc. |
| Routing | Static Routing, RIP, OSPF |
| DDNS | Supported >16 service providers, others can be configured manually |
| QoS | Upload/Download Bandwidth Limit |
| IP Passthrough | Support to assign WAN IP address to the device on LAN |
| Reliability | VRRP, WAN Failover, Dual SIM Backup |
| Diagnostics Tools | Ping, Traceroute, TCPDUMP, QXDM, Log Server, Cellular AT Command Debugger, Firewall iptables Debugger |
| Wi-Fi Interface (Optional) | |
| Modes | AP or Client mode |
| Security | WEP/WPA-PSK/WPA2-PSK/WPA-EAP/WPA2-EAP authentication, TKIP/AES encryption |
| Wi-Fi Users | Up to 15 simultaneous connections |
| MAC Filter | Blacklist, Whitelist |
| GNSS (Optional) | |
| Protocol | NMEA0183, PMTK |
| Mode | Support reading by Serial Port, MQTT, TCP Client/Server, UDP Server |
| Security | |
| Firewalls | Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain) |
| VLAN | Port and tag-based VLAN separation |
| AAA | Radius, Tacacs+, LDAP, Local Authentication, 802.1x |
| Multilevel Authority | Multiple Levels of User Authority |
| VPN | |
| OpenVPN | Multiple Clients and a Server Support |
| IPsec | Multiple Clients and a Server Support |
| GRE | GRE Tunnel Support |
| L2TP | L2TP Client Support |
| PPTP | PPTP Client Support |
| DMVPN | DMVPN Spoke Support |
| WireGuard | Support |
| ZeroTier | Support |
| Others | |
| Serial Mode | Transparent(TCP Client/Server, UDP Server, MQTT Client), Modbus Server/Client, Modbus Gateway (Modbus RTU to Modbus TCP) |
| Digital Input | Support reading by SMS, Email, CLI, Modbus TCP/RTU Server, MQTT |
| Digital Output | Support triggering by DI, SMS, CLI, Modbus TCP/RTU Server, MQTT |
| App | Python SDK |
| Management | |
| Configuration | Web, CLI (SSH/Telnet), SMS, On-demand dial up, SNMP v1/v2c/v3, TR069, DeviceHub, Milesight Development Platform, HTTP(s) API |
| Update | Web, DeviceHub, Milesight Development Platform |
| Device Management | DeviceHub, Milesight Development Platform, MilesightVPN |
| SNMP | SNMP v1/v2/v3, Support SNMP Trap |
| TR069 | Support |
| SMS | Send/Receive SMS, SMS Control, SMS Configuration |
| Event Alarm | System Restart/Reboot, Network Up/Down, Link Switch, etc. |
