Mini LoRaWAN® Gateway

Small in Size, Big on Connectivity

UG63
  • Eye-Catching Design
  • Massive Connectivity
  • Blind Spot Coverage
  • Gateway Fleet
  • Listen Before Talk
  • FEATURES
  • MODELS
  • DOWNLOAD
  • Home
  • IoT LoRaWAN® Series
  • UG63

Mini yet Powerful

UG63 is armed with Semtech LoRa Chip - SX1302 which enables UG63 to support 8-channel communication. In addition, it can provide LoRaWAN® network for more than 2000 end nodes.

Eye-Catching Design

Sticking to minimalism, the UG63 Mini LoRaWAN® Gateway is as small as a disk. Coupled with an elegant and aesthetic appearance, UG63 is in perfect accord with the office surroundings.

Massive Connectivity

Adopting Semtech SX1302 LoRa chip, UG63 supports connection with more than 2000 LoRaWAN® nodes.

  • 8 Channels
  • Full Duplex
  • Global Frequency Plans
    (CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923)

Gateway Fleet

The Gateway Fleet feature enables multiple agent gateways transmitting received data to one controller gateway, which facilitates the deployment and management of LoRaWAN® network.

Blind Spot Coverage

Besides the general features of a LoRaWAN® gateway, the Gateway Fleet makes UG63 particularly suited for providing network coverage for indoor blind spots.

Listen Before Talk

The Listen Before Talk (LBT) protocol makes it possible for multiple transmitting nodes to share the same transmitting channel, which allows the device to bypass the Duty Cycle requirement imposed by European standards.

Low Power Consumption

High Compatibility

With a built-in network server, the UG63 also supports Semtech's latest packet forwarder, and is compatible with multiple network server platforms like TTN, ChirpStack, Senet, and Orbiwise.

  • Embedded Network Server
  • LoRa Basics™ Station
  • Compatible with Mainstream Network Servers

Cloud Data Management
Milesight IoT Cloud

  • Data Visualization Dashboard:
    All figures in a glance
  • Automatic Triggers:
    Interactive collaboration with Milesight IoT sensors
    to realize scene-based automation
  • Regular Reports & Real-Time Alerts:
    Data-based insights
  • Android & iOS App:
    Manage devices at your fingertips

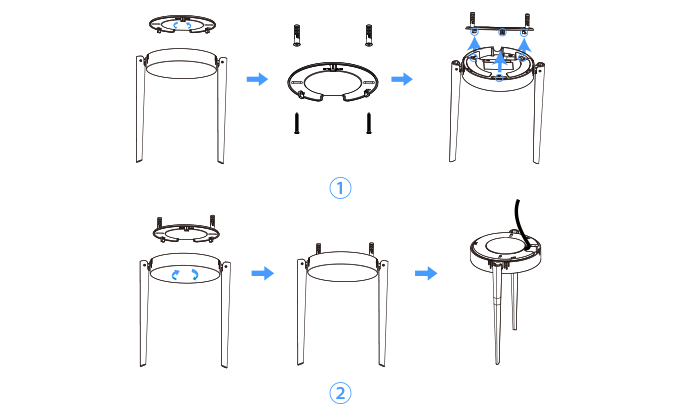

Flexible Installation Ways

  • Desktop Mounting
  • Ceiling or Wall Mounting

Success Stories

Specifications

Hardware System
CPU528 MHz, ARM Cortex-A7
Memory256 MB DDR4 RAM
Flash4 GB eMMC
LoRaWAN
Antenna2 × Internal Antennas
Channel8 (Half/Full-duplex)
Frequency BandCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity-140dBm Sensitivity @292bps
Output Power27dBm Max
ProtocolV1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
LBTSupport
Ethernet Interface
Port1 × RJ45 (PoE PD supported)
Physical Layer10/100 Base-T (IEEE 802.3)
Data Rate10/100 Mbps (Auto-Sensing)
InterfaceAuto MDI/MDIX
ModeFull or Half Duplex (Auto-Sensing)
Others
Reset Button1 × RST
Console Port1 × Type-C
LED Indicators1 × SYS, 1 × LoRa
Built-inWatchdog, RTC, Timer
Software
Network ProtocolsPPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN TunnelOpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
ManagementWeb, CLI, DeviceHub, Milesight IoT Cloud
Power Supply and Consumption
Power Input1. 1 × 802.3af standard PoE input
2. 5V by Type-C Port
Power ConsumptionMax 3.3 W
Physical Characteristics
Ingress ProtectionIP30
DimensionsФ 115 x 21 mm (Ф 4.52 x 0.83 in)
Color & MaterialWhite, PC + ABS
InstallationDesktop, Wall or Ceiling Mounting
Environmental
Operating Temperature-20°C to +50°C (-4℉ to +122℉)
Storage Temperature-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation1.5 kV RMS
Relative Humidity0% to 95% (non-condensing) at 25°C/77℉
Approvals
RegulatoryCE, FCC
EnvironmentalRoHS

1 Tested under laboratory conditions and for guideline purposes only.
2 For detailed information, visit our website at https://www.milesight.com.
