AI Road Traffic Speed
Dome Camera

  • Flexible Pan, Tilt and Zoom Tasks
  • 36X(5.7~205.2mm) AF Lens
  • On-Edge AI ANPR
  • Traffic Violation Detection
  • Traffic Flow Statistics
  • 1/8'' Sensor & 0.002Lux Starlight
  • 60fps High Frame Rate
  • Evidence Camera Linkage
  • LPR Smart Search
  • Smart Rain-Sensing Wiper (Optional)
Get in Touch
product
TS4441-X36RPE
TS4441-X36RE
  • SPECIFICATION
  • ACCESSORIES
  • DOWNLOAD

Flexible PTZ with Easy 3D Positioning Control

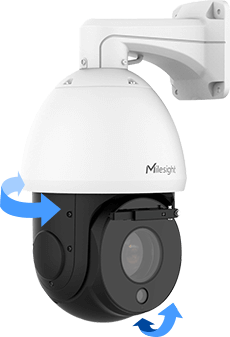

Flexible Pan, Tilt and Zoom Tasks

Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 95° tilt to survey a wide range of territory. The user can easily set up to 8 patrols with 48 presets for each and maximum 4 patterns for all-round monitoring. Moreover, the user is able to schedule specific PTZ tasks by date and time.

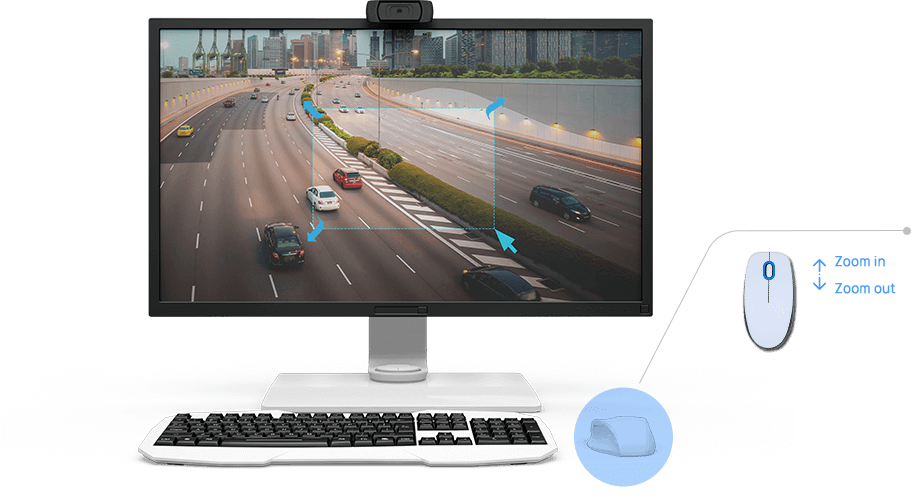

3D Positioning

With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.

ptz pic 2

36X Optical Zoom

The 36X Optical Zoom can zoom in to distant vehicles while still maintaining clarity, delivering high quality video over the entire image.

Smart Rain-Sensing Wiper (Optional)

The rain sensor is used to detect the rain, realizing a smarter control of the wiper function. The speed and frequency of the wiper are intelligently adjusted according to the rain. With smart rain-sensing wiper, Milesight Speed Dome Camera can clear rainwater automatically, providing sharp images even in rainy days.

rain sensing wiper

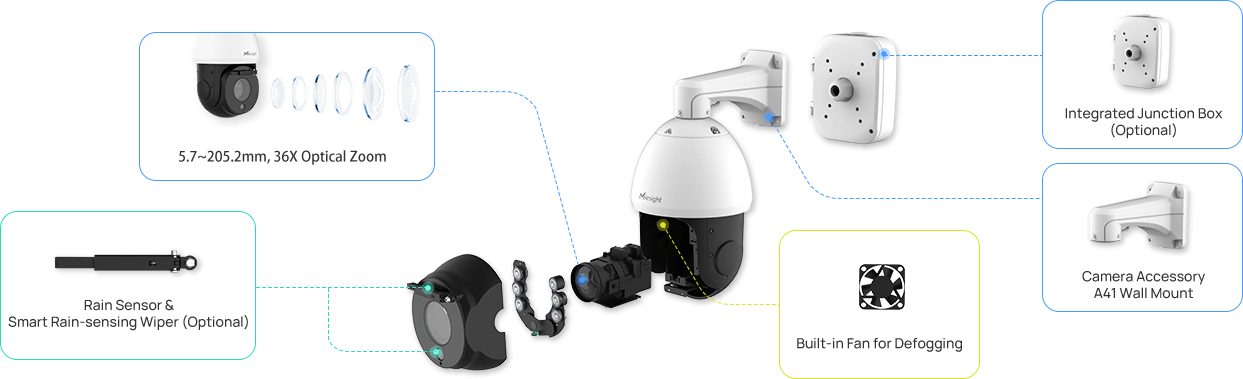

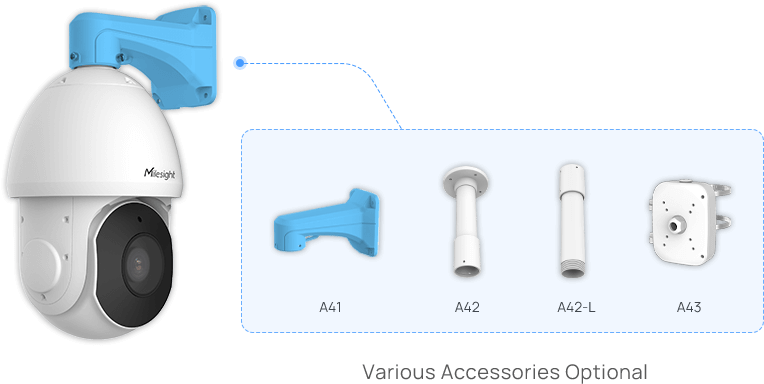

Various Accessories Optional

Various accessories are available to fulfill different installation needs, such as Pendant Mount or Wall Mount, achieving the hassle-free installation for traffic projects.

Comprehensive Traffic Violation Detection & Traffic Analytics

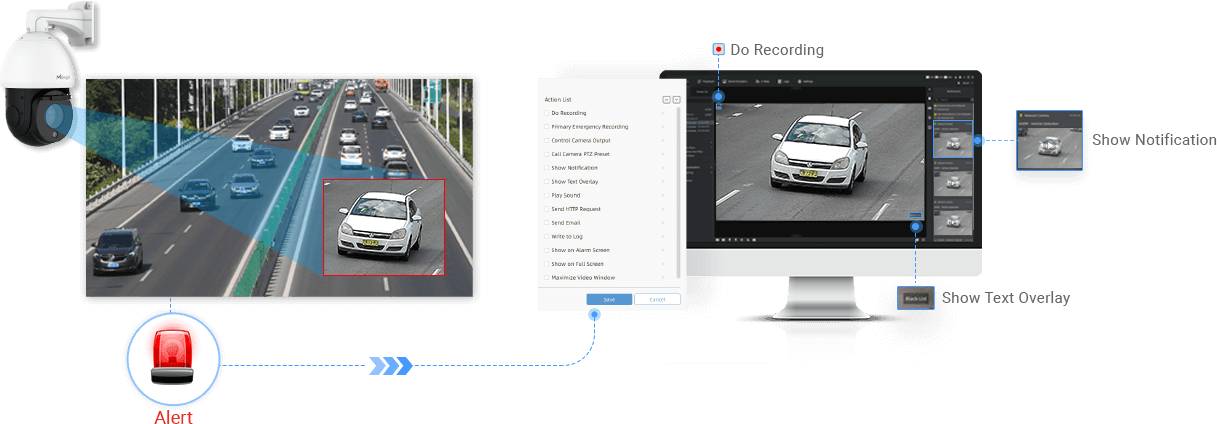

Traffic Violation Detection

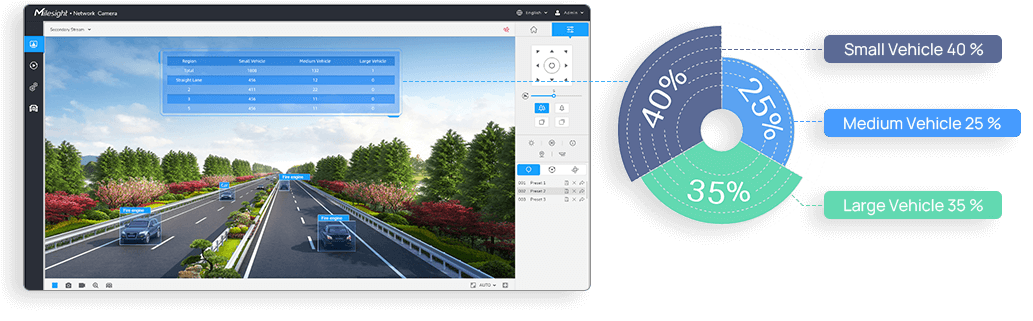

Traffic Flow Analysis
no plate detection
No Plate Vehicle Detection
reverse driving detection
Reverse Driving Detection
special lane occupation detection
Special Lane Occupation Detection
blocklist vehicle detection
Allowlist/Blocklist Detection
traffic flow analysis

Smarter Evidence Capture & Search

pic 3

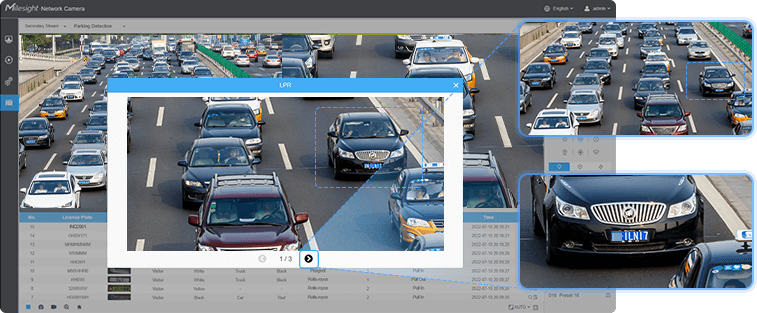

Evidence Camera Linkage

Milesight TrafficC ANPR camera can be linked with standard security cameras for enhanced evidence capture. Seamless triggering between the LPR camera and standard cameras combines LPR results with overview snapshots and critical details, such as the driver's face and cargo carried by trucks, providing users with solid and compelling evidence.

pic 4

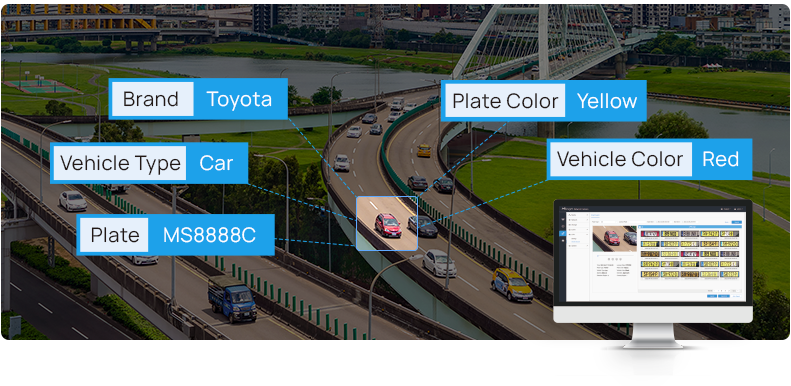

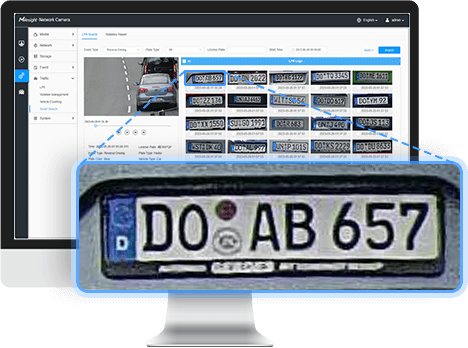

LPR Smart Search

Quickly find relevant video footage by searching with partial details of a target vehicle, such as its brand, type, color, license plate color, plate number, or direction of travel. This enables efficient event investigation and intelligent entrance and exit management. Both manual and automatic export are supported for easier data management.

pic 6
pic 7

Superior Image Performance

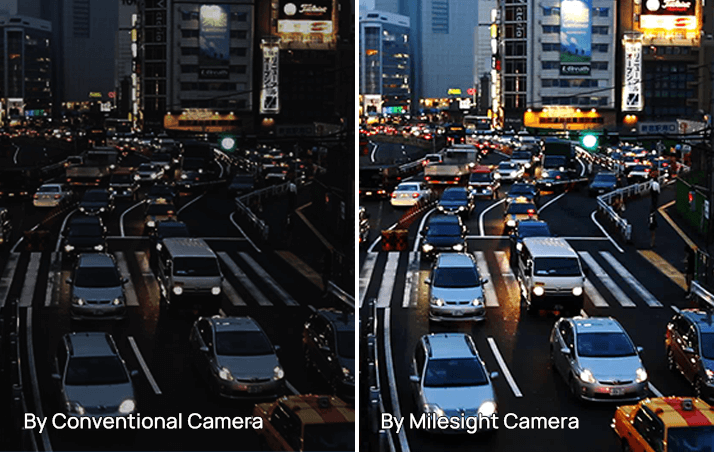

1/8'' Sensor & 0.002Lux Starlight
60fps High Frame Rate
View More
View Less

Specifications

  • 4MP

  • TS4441-X36RPE
  • TS4441-X36RE
Camera
NameAI Road Traffic Speed Dome Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.55, B/W: 0Lux with IR on
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR Wave Length850nm
Illumination DistanceUp to 180m
S/N>55dB
Lens
Focal Length5.7∼205.2mm, 36X Optical Zoom
Zoom SpeedApprox. 7s(Wide-Tele)
Field of ViewH63°∼H3°/D69°∼D3°/V38°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1500/1500mm (Wide/Tele)
ApertureF1.55∼F4.8
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed120km/h
Capture Rate0.99
Recognition Accuracy0.98
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
ANPR DistanceUp to 120 m (PoE); Up to 180 m (AC/DC power)
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture
Smart Traffic FunctionEvidence Camera Linkage, Vehicle Counting Based on Vehicle Type, Specific Lane Management
White/Black ListUp to 20,000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O4/2
RS485Support
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s
Tilt Range/Tilt Speed-5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution2688x1520
Primary Stream60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network
Network StorageNAS (Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, LLDP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
General
Working Temperature-40℃~60℃
Working Humidity0~95% (Non-condensing)
Power SupplyPoE (802.3at) / AC 24V (3A±10%)/ DC 24V
Power ConsumptionMin.: 13.4W (AC 24V/ DC 24V), 15.1W(PoE)
Max.: 24.5W (AC 24V/ DC 24V), 26.8W(PoE)
Weather Proof/HousingUp to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional)
HeaterSupport
Wiper(Optional)Support
Surge Protection6KV
Dimensions/WeightΦ205mmX308mm/4Kg
Warranty2 Years/3 Years(Optional)
Certifications
EMCCE-EMC (EN 55032, EN 55035), FCC (PART 15B)
SafetyCE-LVD (EN IEC 62368-1)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series

Camera
NameAI Road Traffic Speed Dome Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.55, B/W: 0Lux with IR on
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR Wave Length740nm
Illumination DistanceUp to 120m
S/N>55dB
Lens
Focal Length5.7∼205.2mm, 36X Optical Zoom
Zoom SpeedApprox. 7s(Wide-Tele)
Field of ViewH63°∼H3°/D69°∼D3°/V38°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1500/1500mm (Wide/Tele)
ApertureF1.55∼F4.8
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed120km/h
Capture Rate0.99
Recognition Accuracy0.98
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
ANPR DistanceUp to 100m
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture
Smart Traffic FunctionEvidence Camera Linkage, Vehicle Counting Based on Vehicle Type, Specific Lane Management
White/Black ListUp to 20,000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O4/2
RS485Support
PTZ
Pan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s
Tilt Range/Tilt Speed-5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution2688x1520
Primary Stream60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, LLDP, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
General
Working Temperature-40℃~60℃
Working Humidity0~95% (Non-condensing)
Power SupplyAC 24V (3A±10%) / DC 24V
Power ConsumptionMin.: 13.4W (AC 24V/ DC 24V)
Max.: 24.5W (AC 24V/ DC 24V)
Weather Proof/HousingUp to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional)
HeaterSupport
Surge Protection6KV
Dimensions/WeightΦ205mmX308mm/4Kg
Warranty2 Years/3 Years(Optional)
Certifications
EMCCE-EMC (EN 55032, EN 55035), FCC (PART 15B)
SafetyCE-LVD (EN IEC 62368-1)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series

A02 V2 Pole Mount

  • Weight: 1kg
  • Dimension: 180*138.5*47mm
  • Installation Environment: For strapping cameras on poles between φ67–127 mm (2.6–5 inches) in diameter

A03 External Corner Bracket

  • Weight: 900g
  • Dimension: 180*152.5*76mm
  • Installation Environment: For mounting cameras on an external corner

A41 Wall Mount

  • Weight: 400g
  • Dimension: 200*129*100mm
  • Installation Environment: For wall or parapet installations

A42 Pendant Mount

  • Weight: 650g
  • Dimension: Φ 116.5*255mm
  • Installation Environment: Used to install cameras on a ceiling or vertical structure

A42-L Extension Lever

  • Weight: 330g
  • Dimension: Φ 47.5*255mm
  • Installation Environment: Used as extensions for pendant mount

A43 Junction Box

  • Weight: 1000g
  • Dimension: 195*164*80mm
  • Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
