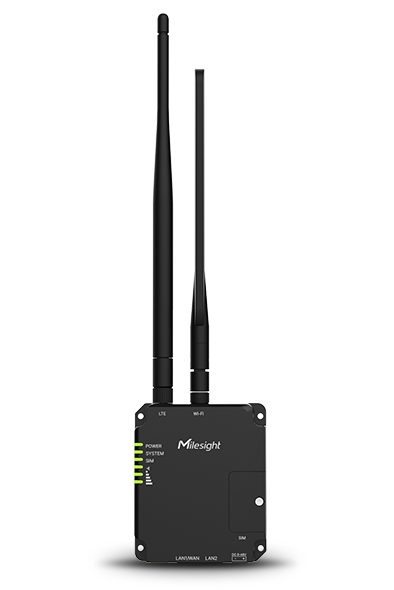

UR32L/UR32S

UR32L

UR32S

Industrial Grade Design
Rugged And Pocket-Sized Design
Global 4G LTE Network
Wi-Fi Client and AP Mode (UR32S)

Open VPN Tunnel and Various Protocols
Ultra-High Protection System
Stable Cellular and Ethernet Internet Access
Remote Management on MilesightVPN and DeviceHub

FEATURES
MODELS
ACCESSORIES
DOWNLOAD

Home
5G & Cellular Products
UR32L

Enjoy Reliable Cellular Connectivity

With a compact size, UR32 Lite series is specially designed to be LOW-COST and HIGHLY-EFFICIENT.

Industrial Grade Design

To fulfill the market demand, UR32 Lite series is built with NXP industrial grade processor, IP30 rated heavy cast aluminum enclosure, industrial components, and a wide operation range from -40°C to 70°C (-40℉ to +158℉) for even harsh environments. It also features a broad supply voltage range of 9V to 48V DC.

Multi-Network Connectivity

The UR32L/UR32S integrates 4G/3G cellular and Ethernet connectivity for stable, flexible network access. UR32S additionally supports Wi-Fi for extended wireless connectivity.

4G LTE up to 150 Mbps downlink / 50 Mbps uplink
Global 4G/3G frequency band compatibility
Dual Ethernet ports for reliable wired connection
Wi-Fi Client and AP modes (UR32S)

Compact Design

With a compact design, UR32 Lite series is specially designed to bring cost-effective performance. The small and lightweight enclosure allows it to easily fit into small cabinets or machines when space is limited.

Ultra-Reliable Protection
System

Quick Network Backup
Automated failover/failback backup among Ethernet and Cellular
Embedded Watchdog
Embedded with hardware watchdog to automatically recover from various failures.
Secured Mechanism
Centralized authentication and authorization of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority.

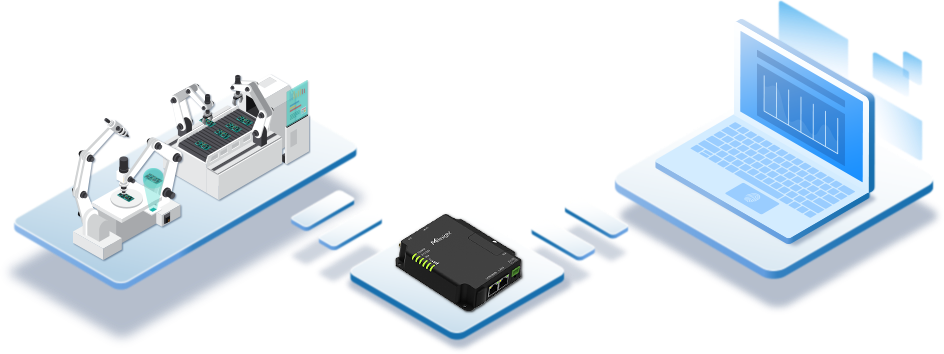

VPN Tunnels And Various Protocols

Featuring with multiple network protocols and VPN tunnels, UR32 Lite series provides secure and reliable solutions for a range of M2M/IoT deployments.

Network Protocols Such as SNMP, TR069, MOTT, and VRRP
VPN tunnels Such as ZeroTier/lPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN/WireGuard

MilesightVPN

UR32 Lite series supports connection and management with MilesightVPN

Easy Connection via Authentication Code
Connection Status Overview
Remote and Secure Access to Field Devices

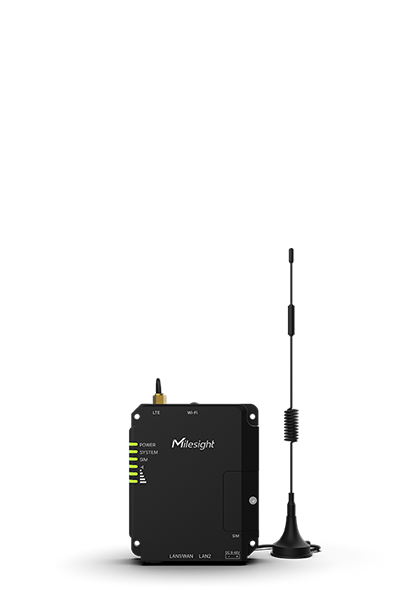

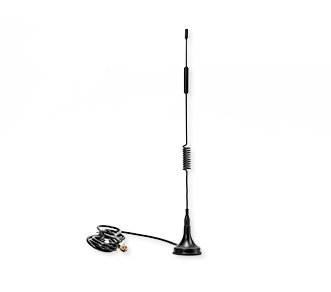

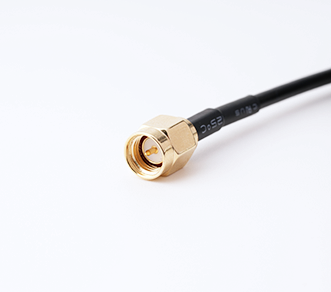

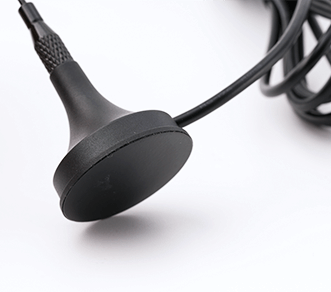

Magnetic Version

DeviceHub

Milesight DeviceHub offers a high-efficiency and low maintenance solution to easily deploy Milesight Industrial Cellular Routers across multiple locations, reducing complexity and increasing productivity.

Central Management
Device Status Monitoring
Remote & Bulk Configuration

Milesight Development Platform

Milesight Development Platform streamlines integration and simplifies device deployment and management, enabling you to focus on application development for your projects based on an open architecture.

Learn More

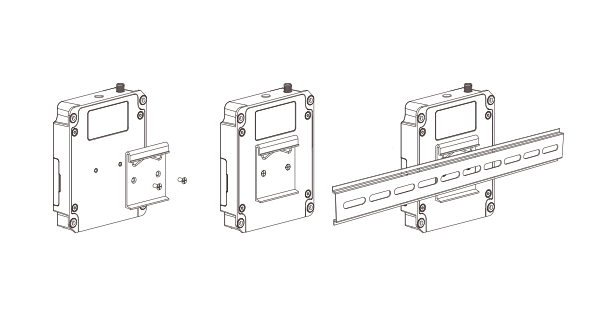

Flexible Installation

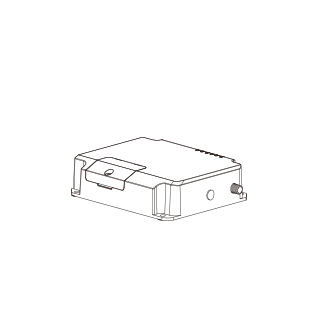

Desktop Mount

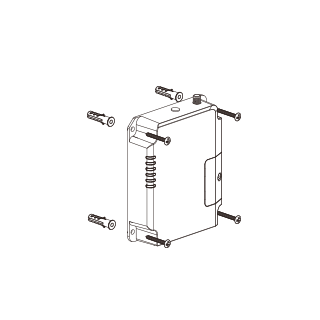

DIN Rail Mount

Wall Mount

Specifications

Hardware Specifications
Software Specifications

Hardware System
CPU	ARM Cortex-A7,528 MHz
Memory	128 MB DDR3 RAM and 128MB Flash
Cellular Interface
Network	4G LTE (CAT 4)/WCDMA/GSM (Differ as regions)
Antenna Connector	1 × 50 Ω SMA Connectors (Center PIN: SMA Female)
SIM Slots	1 × SIM Slot (Mini SIM-2FF), 1.8V/3V
Tx Power	LTE: Class 3 (23 dBm ± 2 dB)
Ethernet Interface
Numbers	2 × RJ45 10/100 Mbps
Property	1 × WAN + 1 × LAN or 2 × LAN
Mode	Full or half duplex (Auto-Sensing)
Ethernet Isolation	1.5 kV RMS
PoE (Optional)	2 × 802.3 af/at PoE PSE on LAN Ports
Others
Reset Button	1 × RESET
LED Indicators	1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength
Power Connector	1 × 2-pin 5.08 mm Terminal Block, with Surge-Protection and Reverse Polarity Protection
Built-in	Watchdog, Timer
Power Supply and Consumption
Power Input	9-48 VDC (48V is needed for PoE output)
Power Output (Optional)	2 × 802.3 af/at PoE PSE on LAN Ports Per Port 30W Max., Total 60W Max.
Power Consumption	Typical 1.8 W, Max 2.2 W (In Non-PoE mode)
Physical Characteristics
Ingress Protection	IP30
Housing & Color	Metal, Black
Dimension	108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
Installation	Desktop, Wall or DIN Rail Mounting
Environmental
Operating Temperature	-40°C to +70°C (-40°F to +158°F) Reduced Cellular Performance Above 60°C
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	0% to 95% (non-condensing) at 25°C/77°F
Approvals
Regulatory	CE, FCC, RCM, Telec
Environmental	RoHS
EMC	EN 55032, EN 55035
EMS	IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 2 IEC 61000-4-5 Level 2 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 1 IEC 61000-4-11 Level 3
Radio Frequency	EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413
Safety	EN62368-1

Network
Network Protocols	IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, MQTT, MQTTS, TR069, etc.
Routing	Static Routing, Priority Based Routing, RIP, OSPF
DDNS	Supported >16 service providers, others can be configured manually
QoS	Upload/Download Bandwidth Limit
IP Passthrough	Support to assign WAN IP address to the device on LAN
Reliability	VRRP, WAN Failover
Diagnostics Tools	Ping, Traceroute, TCPDUMP, QXDM, Log Server, Cellular AT Command Debugger, Firewall iptables Debugger
Security
Firewalls	Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain)
VLAN	Port and tag-based VLAN separation
AAA	Radius, Tacacs+, LDAP, Local Authentication, 802.1x
Multilevel Authority	Multiple Levels of User Authority
VPN
OpenVPN	Multiple Clients and a Server Support
IPsec	Multiple Clients and a Server Support
GRE	GRE Tunnel Support
L2TP	L2TP Client Support
PPTP	PPTP Client Support
DMVPN	DMVPN Spoke Support
WireGuard	Support
ZeroTier	Support
Management
Configuration	Web, CLI (SSH/Telnet), SMS, On-demand dial up, SNMP v1/v2c/v3, TR069, DeviceHub, Milesight Development Platform, HTTP(s) API
Update	Web, DeviceHub, Milesight Development Platform
Device Management	DeviceHub, Milesight Development Platform, MilesightVPN
SNMP	SNMP v1/v2/v3, Support SNMP Trap
TR069	Support
SMS	Send/Receive SMS, SMS Control, SMS Configuration
Event Alarm	System Restart/Reboot, Network Up/Down, Link Switch, etc.
