| Camera |
|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.0008Lux@F1.2
B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm/ 740nm |
| IR Distance | Up to 30 m |
| S/N | >55dB |
| Lens |
|---|
| Lens | Motorized 2.8mm~12mm@F1.2 |
| Mount | Φ16 |
| Field of View | H:107.3°-47.8°; V:57.3°-27°; D:124.9°-54.9° |
| Focus Control | Auto / Manual |
| Aperture | F1.2 |
| Iris Type | Fixed |
| Video |
|---|
| Max. Resolution | 4MP (2688*1520) |
| Primary Stream | Performance Mode：
60Hz: max 30fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
50Hz: max 25fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
Power Saving Mode/Standy Mode：
60Hz: max 15fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
50Hz: max 12fps@(2688*1520, 2304*1296, 1920*1080, 1280*720) |
| Secondary Stream | Performance Mode：
60Hz: max 30fps@(1280*720, 704*576, 640*480)
50Hz: max 25fps@(1280*720, 704*576, 640*480)
Power Saving Mode/Standy Mode：
60Hz: max 15fps@(1280*720, 704*576, 640*480)
50Hz: max 12fps@(1280*720, 704*576, 640*480) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Video Bit Rate | 16Kbps~8Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Web Access | WiFi/VPN/Milesight P2P Tunnel |
| Audio |
|---|
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |

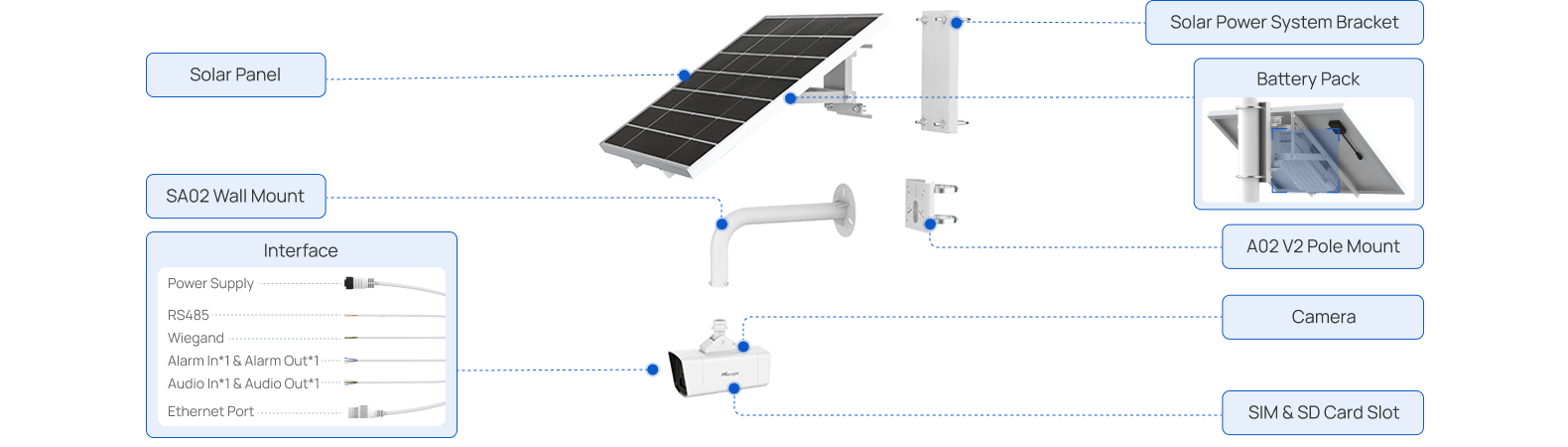

| Interface |
|---|
| Alarm I/O | Input *1, Output *1 |
| Audio I/O | Input *1, Output *1 |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| RS485 | 1 |
| Wiegand | 1 |

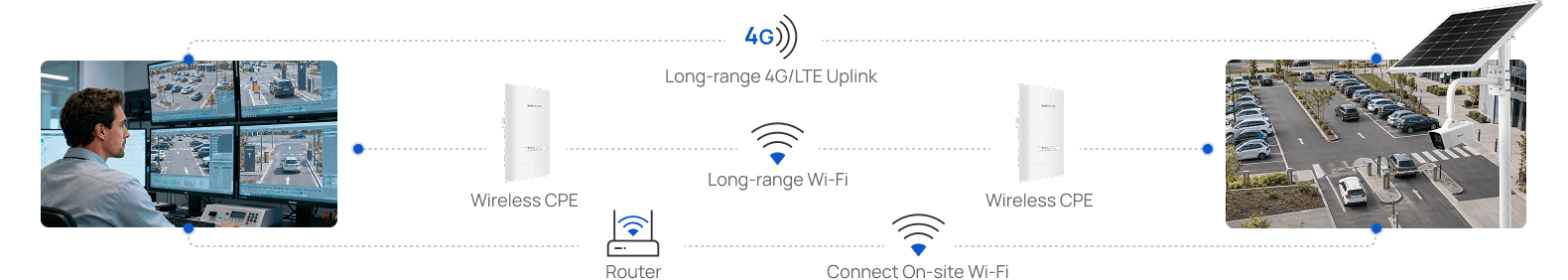

| Network |
|---|
| WLAN | 802.11n/802.11g
Note: Up to 80m in Wi-Fi STA mode and up to 30m in Wi-Fi AP mode. |
| Cellular | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8 |
| SIM Card | Nano SIM |
| eSIM | Support
Note: Cannot be used simultaneously with physical SIM. |
| Protocol | VPN(General VPN/Milesight VPN/Wireguard VPN/IPSec VPN/Tailscale VPN), Milesight P2P Tunnel, IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DHCP, FTP, NTP, SMTP, SNMP, SIP, QoS, IGMP, ICMP, TLS 1.2, TLS 1.3 |
| Entrance & Exit Management |
|---|
| Max. Vehicle Speed | 60km/h |
| Capture Rate | 0.99 |
| Recognition Accuracy | 0.98 |
| Coverage | 2 lanes |
| Country/Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 15m |

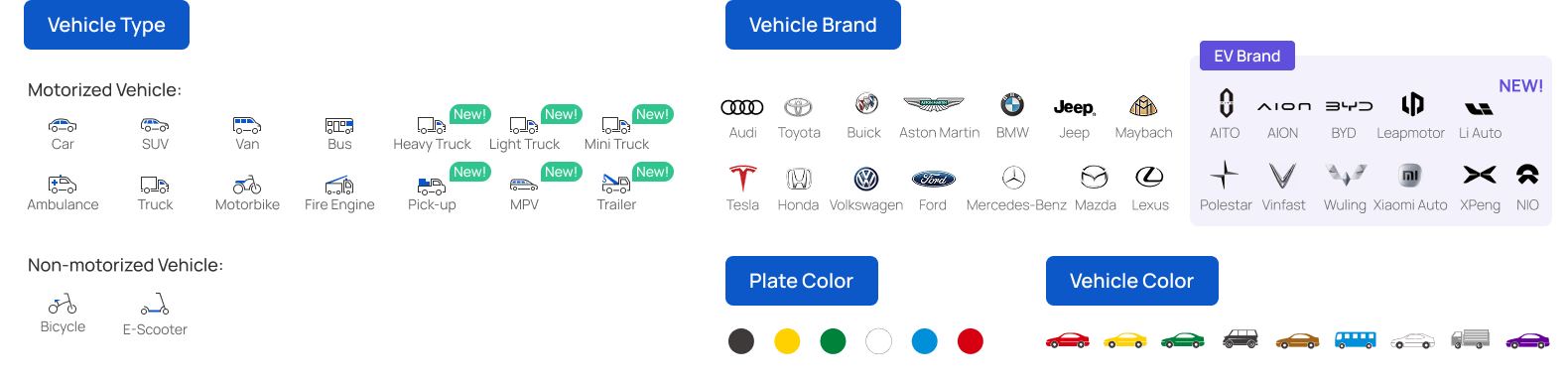

| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection
* Vehicle Color and Plate Color identification are not supported in low-light or night conditions. |
| White/Black List | Up to 100,000 records inside the camera |

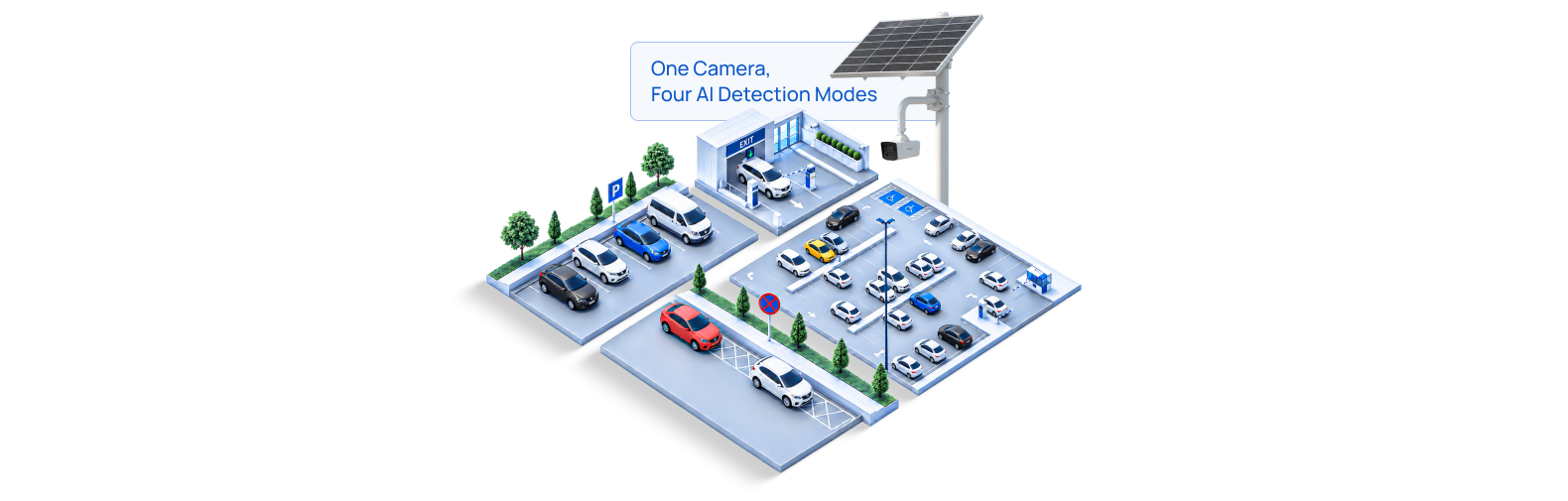

| Parking Management |
|---|
| Parking Space Detection | Up to 4 Parking Spaces for Parking Detection with LPR;
Up to 100 Parking Spaces for Occupancy Detection;
Up to 2 Violation Zones for Parking Violation Detection |
| Detection Accuracy | >98% |
| Data Report | Triggered Report: when parking space is occupied or released;
Interval Report: regular report of entire parking situation |
| System |
|---|
| Work Mode | Performance Mode: Ensures optimal video image quality and AI algorithm effectiveness.
Power Saving Mode: Adjusts video image quality, frame rate, bitrate, and other parameters to save power.
Standby Mode: Support remote wake-up and timing snapshot tasks only. |
| Wake Up Method | Call, MQTT or TCP |
| GPS | Built-in High-accuracy GPS Module |
| Storage | Support microSD/SDHC/SDXC card local storage (up to 1TB) with secure encryption support. |
| Event Trigger | Intelligent Analytics, External Input, etc. |
| Event Action | HTTP Post, FTP Upload, SMTP Upload, SD Card Record, External Output, Snapshot, Play Audio, Alarm to SIP Phone, etc. |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General |
|---|
| Camera Mounting-adjustment Angle | Pan: 0°~ 360°; Tilt: -35°~ 70° |
| Working Temperature | -40 °C to 60 °C (-40°F to 140°F) |
| Working Humidity | 0~95% (Non-condensing) |
| Power Supply | DC 12V±10% |
| Power Consumption | Performance Mode: Min. 2.43W, Max. 5.61W
Power Saving Mode: Min. 1.93W, Max. 5.45W
Standby Mode: 0.03W |
| Power Manager | Supports power consumption reporting and data export. |
| Surge Protection | 4KV |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Camera Dimensions | 120*120*260 mm |
| Weight | 2.31kg |
| Certifications |
|---|
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B), RCM (AS/NZS CISPR 32:2015+A1(2020)) |
| RF | CE-RED (EN 301 489-1, EN301 489-17, EN301 489-19, EN301 489-52, EN 301 908-1, EN 301 908-3, EN 301 908-13, EN 301511, EN 303413, EN 300328, EN50663, EN62479), FCC(PART 15.247), RCM(AS/CA S042.1, AS/CA S042.4, AS/NZS 2772.2) |
| Safety | CE-LVD (EN IEC 62368-1), RCM(ASNZS 62368) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU), IP67(IEC 60529), IK10(IEC 62262) |
