Modbus to LoRaWAN® Converter
Milesight UC100 loT Controller can read up to 32 Modbus RTU devices and support Modbus transparent transmission, serving as a converter from Modbus RS485 to LoRaWAN®. Designed for remote control and data acquisition, it supports multiple trigger conditions and actions, and can work autonomously even when the network is unavailable.
UC100 IoT LoRaWAN® Controller is an easy and intelligent device dedicated to collecting data from on-site Modbus RTU devices, and transmitting them to the Internet via LoRaWAN®.

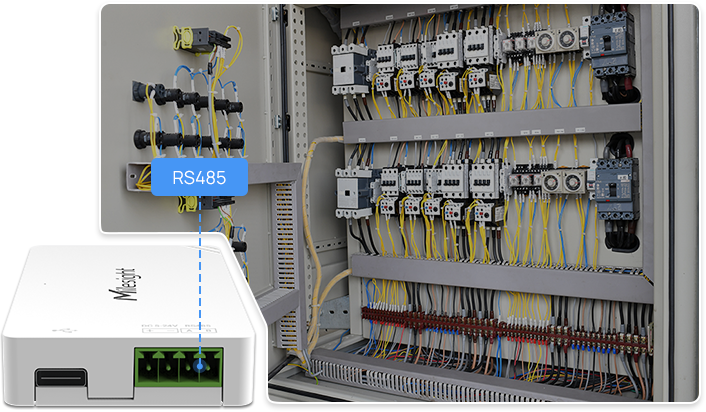

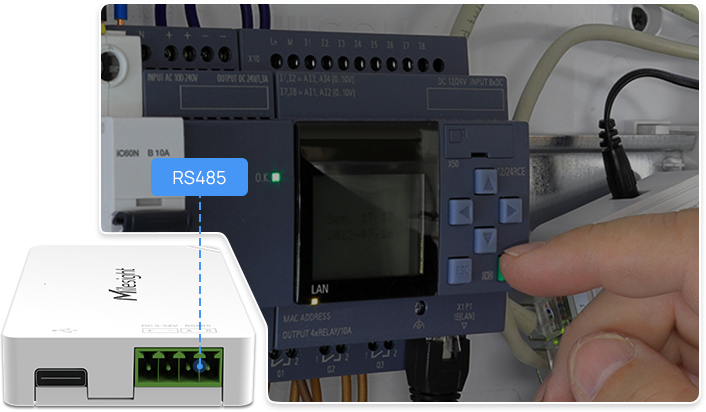

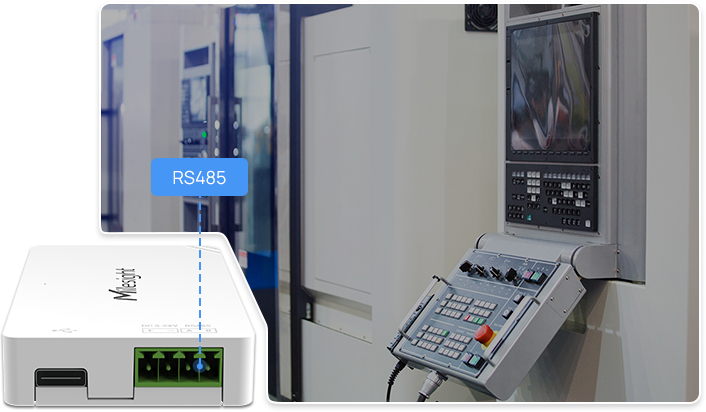

Offering a RS485 interface for connecting a range of field sensors or devices.
Users are able to set up 16 commands based on custom trigger conditions
(If-Then Statements) & actions to realize intelligent task.
Milesight RS485 to LoRaWAN® Controller UC100 can execute the commands autonomously even when the network is unavailable.

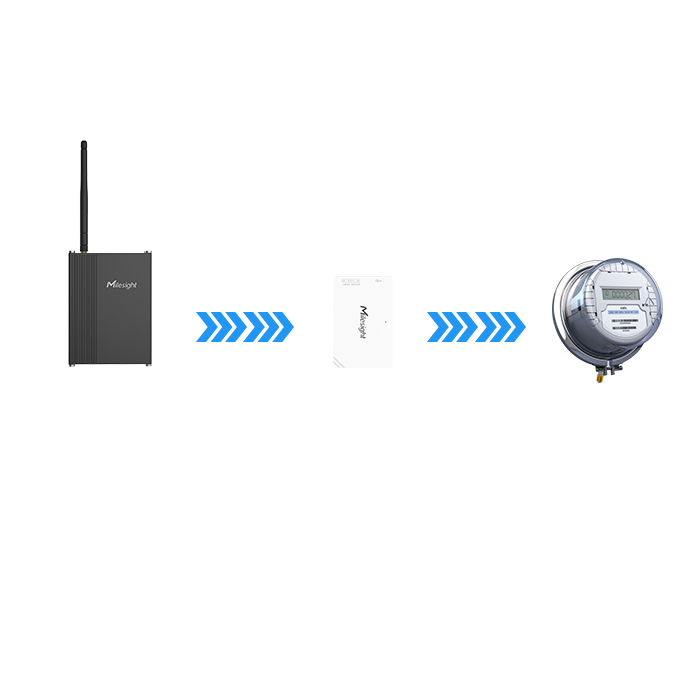

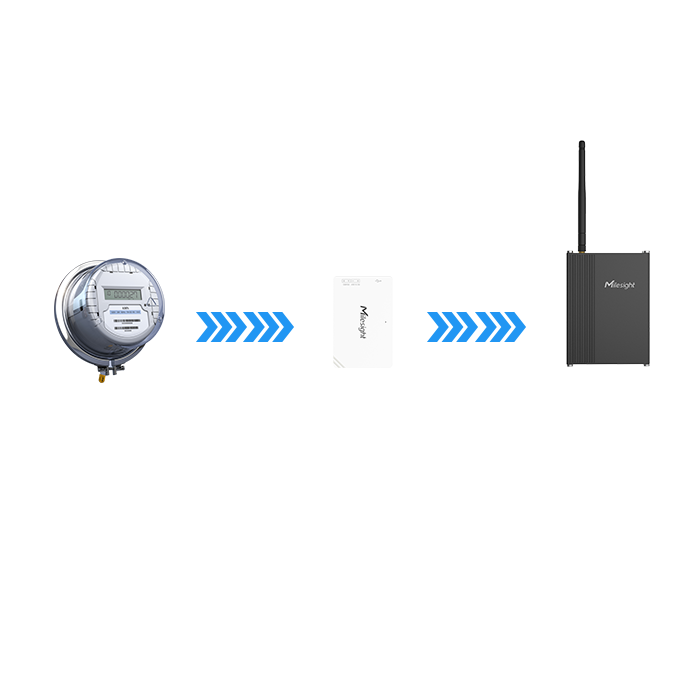

Milesight D2D (Device to Device) protocol featuring LoRa enables the communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.
Note: currently, only the internal antenna version is supported on Milesight IoT Cloud.
Milesight Development Platform simplifies your device deployment with intuitive addition processes, plug-and-play configurations, and seamless connectivity. Your devices will be set up automatically by applying settings from predefined templates upon initial activation. It also allows you to send data to custom applications using APIs or webhooks.
Note: currently, only the external antenna version is supported on the Milesight Development Platform.
Learn MoreThe UC100 supports Firmware Update Over-The-Air (FUOTA) via the LoRa® network, allowing remote firmware upgrades after deployment.
Firmware Update Over-The-Air
Wall Mounting
Desktop Mounting
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868 MHz)/22dBm (915 MHz)/19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class C |
| Data Interface | |
| Port | 1 × RS485 |
| Connector | 2-pin 3.5 mm Terminal Block |
| Terminal Resistor | 1 × 120 Ω Resister Switch |
| Baud Rate | 1200~115200 bps |
| Protocol | Modbus RTU, Passthrough |
| Others | |
| USB | 1 × Type-C for Power Supply, Configuration and Console |
| Reset Button | 1 × Reset Button (Internal) |
| LED Indicator | 1 × System |
| Power Connector | 1 × 3.5mm 2-pin Terminal Block, with Surge-Protection and Reverse Polarity Protection |
| Software | |
| Configuration | USB Type-C or Downlink |
| Advanced Feature | Threshold Alarm, Change Alarm, Data Storage (1000 entries), Data Retrievability, Data Retransmission, Milesight D2D Controller, Milesight D2D Agent, IF-THEN Command |
| Physical Characteristics | |
| Power Supply | 1. DC 5-24 V by Power Connector 2. DC 5V/1A by Type-C Port |
| Power Consumption | < 0.5 W |
| Material & Color | PC+ABS, White |
| Weight | 28.9g |
| Ingress Protection | IP30 |
| Operating Temperature | -20°C ~ 60°C (-4°F~140°F) |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Dimensions | 70 × 45 × 13 mm (2.75 × 1.77 × 0.51 in) (Connectors Excluded) |
| Installation | Desktop, Wall Screw Mounting |
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Antenna | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868 MHz)/22dBm (915 MHz)/19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class C |
| Data Interface | |
| Port | 1 × RS485 |
| Connector | 2-pin 3.5 mm Terminal Block |
| Terminal Resistor | 1 × 120 Ω Resister Switch |
| Baud Rate | 1200~115200 bps |
| Protocol | Modbus RTU, Passthrough |
| Others | |
| USB | 1 × Type-C for Power Supply, Configuration and Console |
| Reset Button | 1 × Reset Button (Internal) |
| LED Indicator | 1 × System |
| Power Connector | 1 × 3.5mm 2-pin Terminal Block, with Surge-Protection and Reverse Polarity Protection |
| Software | |
| Configuration | USB Type-C or Downlink |
| Advanced Feature | Threshold Alarm, Change Alarm, Data Storage (800 entries), Data Retrievability, Data Retransmission, Milesight D2D Controller, Milesight D2D Agent, IF-THEN Command, FUOTA |
| Physical Characteristics | |
| Power Supply | 1. DC 5-24 V by Power Connector 2. DC 5V/1A by Type-C Port |
| Power Consumption | < 0.5 W |
| Material & Color | PC+ABS, White |
| Weight | 32.1g |
| Ingress Protection | IP30 |
| Operating Temperature | -20°C ~ 60°C (-4°F~140°F) |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Dimensions | 70 × 45 × 13 mm (2.75 × 1.77 × 0.51 in) (Connectors Excluded) |
| Installation | Desktop, Wall Screw Mounting |
Customizable
