Indoor Parking Guidance Camera
Navigating with Light, Parking with Ease
Visualize Vacancy, Park with Efficiency
- AI Parking Space Occupancy Detection (≥99.9% High Accuracy )

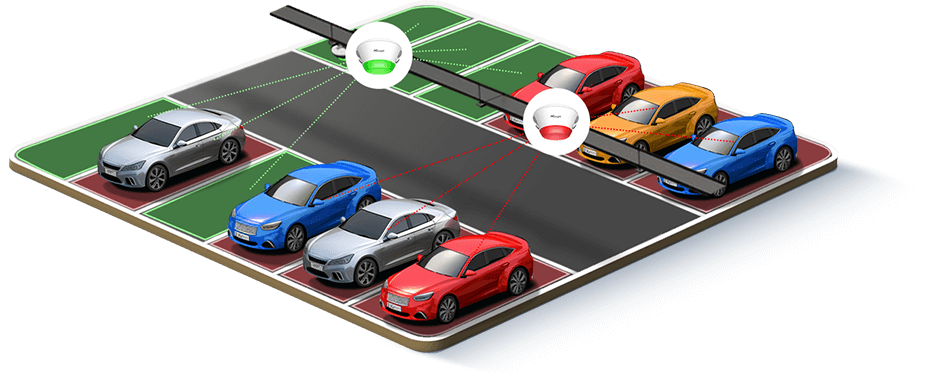

- Dual Lens Covering up to 6 Spaces
- Multi-color Customizable Indicator

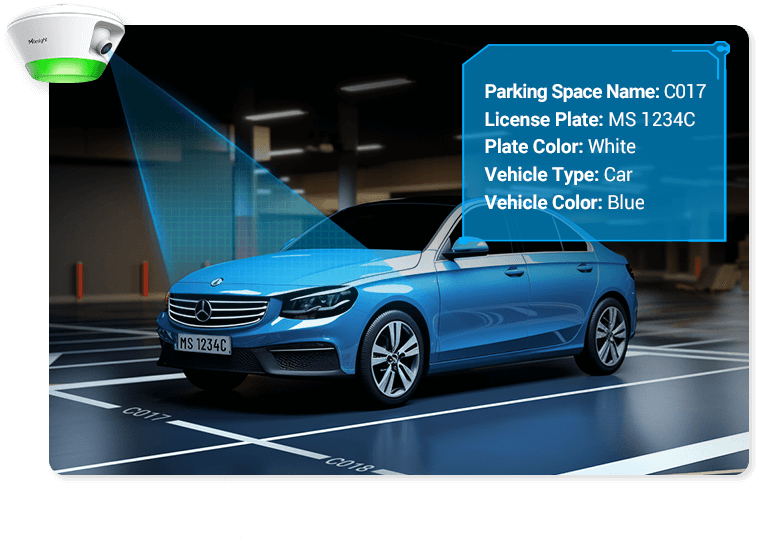

- AI LPR & Vehicle Feature Recognition
- Audio Output for External Speaker

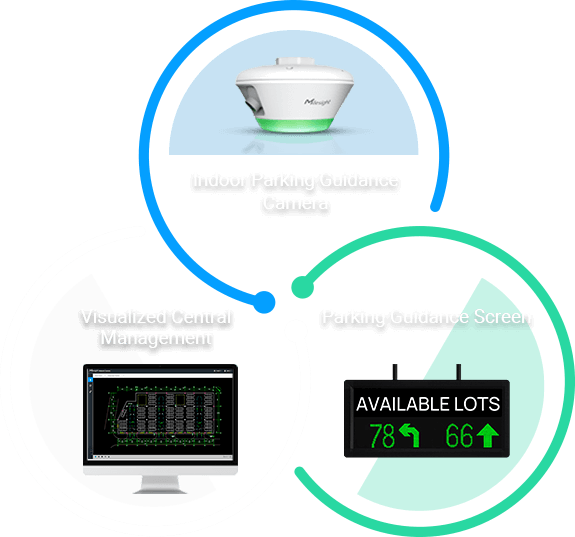

- Flexible Integration with CGI/APIs
- IP65 Rated Robust Performance
- Daisy-chain for Easy Installation
- FEATURES
- MODELS
- DOWNLOAD
- Home
- Parking Management
- Indoor Parking Guidance Camera

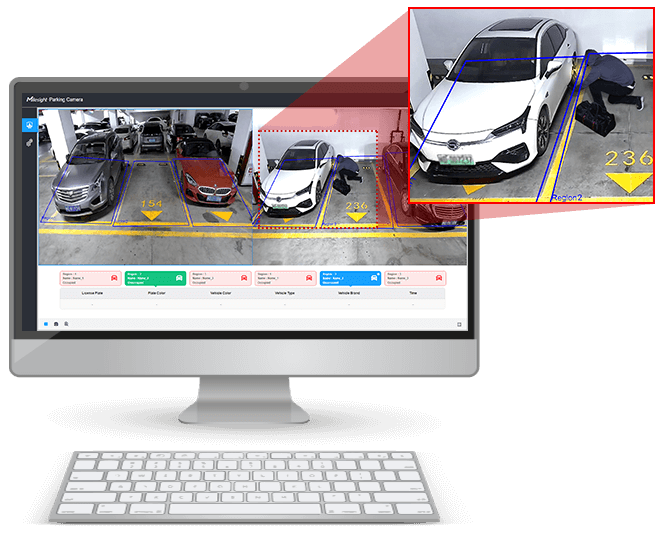

AI Parking Space
Occupancy Detection

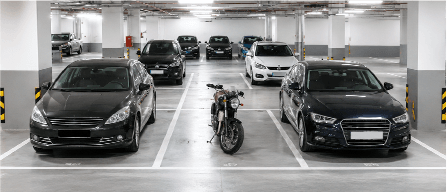

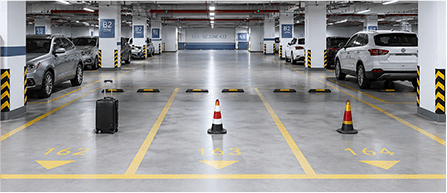

Empowered by AI deep learning algorithms, Milesight Indoor Parking Guidance Camera can accurately detect parking space occupancy with an impressive accuracy of over 99.9%. This remarkable capability significantly enhances parking management efficiency.

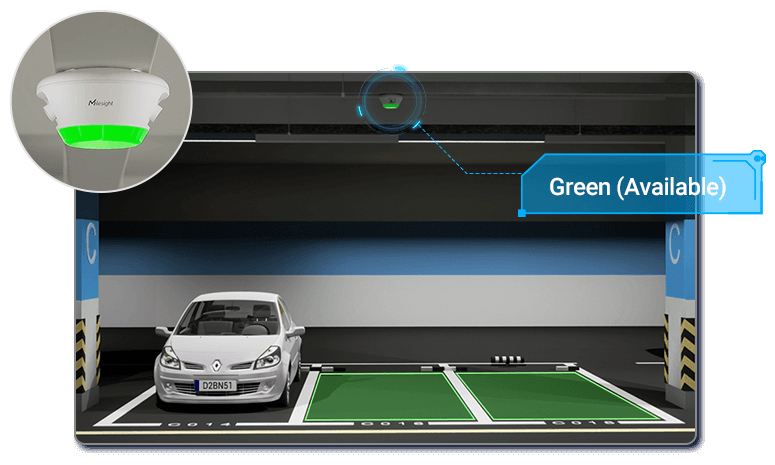

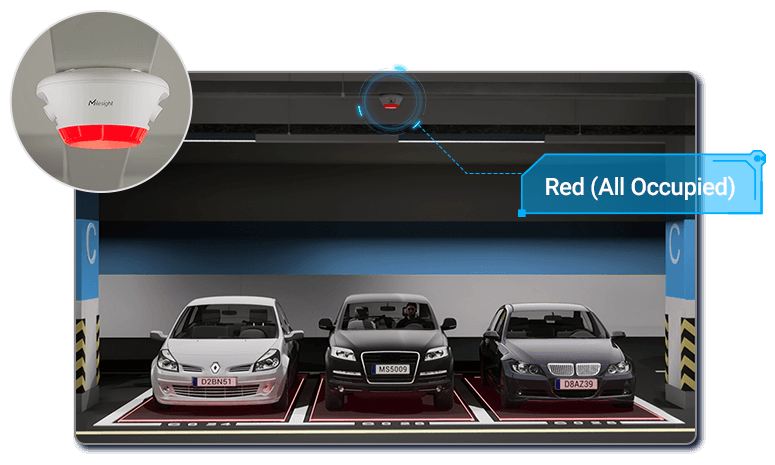

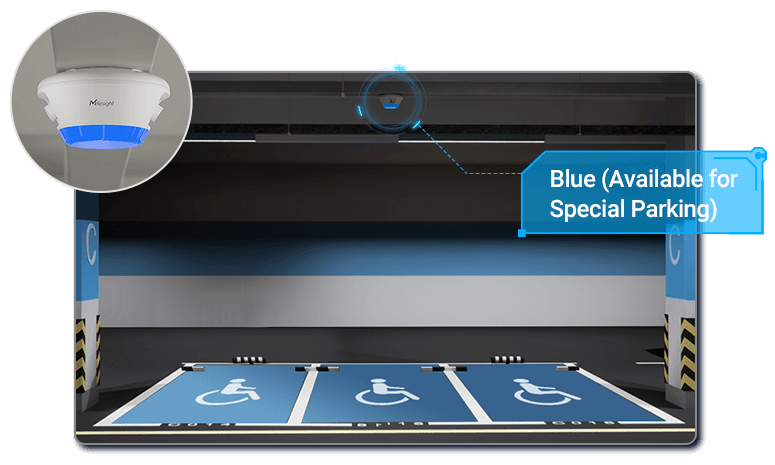

Multi-color
Customizable Indicator

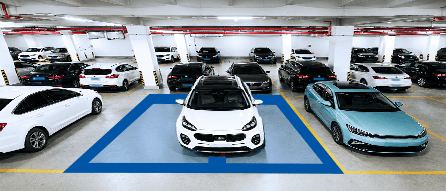

Milesight Indoor Parking Guidance Camera comes with indicator light that switches automatically based on real-time occupancy status of parking space. With customizable light colors, the device provides visual cues that make finding available parking spaces a breeze. And it also supports special parking spaces, such as handicap or VIP spot status detection and guidance for an easier and more convenient parking experience.
Daisy-chain for Easy Installation (Optional)
Support daisy-chain cabling for up to 6 cameras to be connected in sequence, minimizing installation time and reducing costs for a cost-effective parking management solution.
Note: This method requires a specific optional AC adapter.
Perfect for Both Indoor & Semi-open Parking Lots
Equipped with industry-leading IP65-rated weather-proofing, Milesight Indoor Parking Guidance Camera is well protected against adverse impacts to ensure the robust performance and remain fully operational in indoor and semi-open parking lots. Besides, the LED is highly bright and intuitive to provide clear guidance even in the semi-open scenarios.

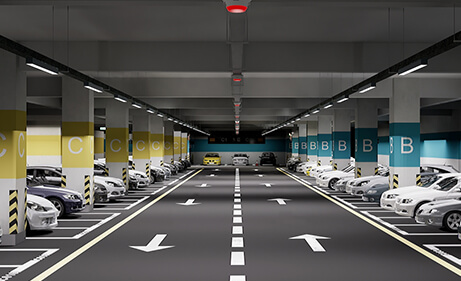

Indoor Parking Lots

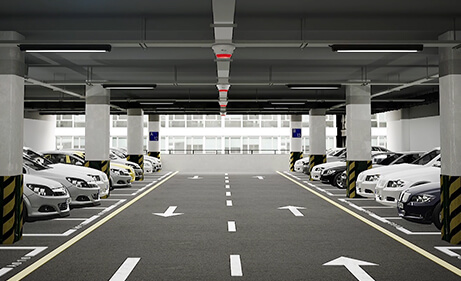

Semi-open Parking Lots
Versatile Application Scenarios
With the great availability and high-performing features, Milesight Indoor Parking Guidance Camera is the perfect choice for all types of public indoor parking facilities such as shopping centers, hospitals and office buildings.
Shopping Centers
Hospitals
Office Buildings
Specifications
NDAA
- PM3322-E
| Camera | |
|---|---|
| Model | PM3322-E{NDAA} |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| WDR | 120dB Super WDR |
| Min. Illumination | Color: 0.008Lux@F1.6 |
| Shutter Time | 1/100000s~1s |
| LED Indicator | Default color is Red (all occupied), Green (available), Blue (available for special parking). The default color can be switched to Orange, Yellow, Cyan and Purple as needed. Supports indicator flashing. |
| Parking Management | |
| Parking Occupancy Detection Accuracy | ≥99.9% |
| LPR Accuracy | ＞98% |
| Attribute Recognition Accuracy | ＞95% |
| Parking Space Detection | Up to 6 Parking Spaces for Parking Detection with attributes recognition |
| Attributes Identification | License Plate, Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand |
| Country Region Supported | More than 60 countries and regions |
| Lens | |
| Lens | 2.8mm*2@F1.6 |
| Field of View | H106°/D127°/V56° |
| Angle Adjustment | Pan: 0° to 60° Tilt: 0° to 30° |
| Video | |
| Max. Image Resolution | 2048x1536 |
| Video Compression | H.264/H.265 |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 2*RJ45 10M/100M Ethernet Port |
| Audio Out | 1 |
| RS485 | Support |
| Network | |
| Protocol | MQTT, TCP/IP, HTTP, HTTPS, RTSP, UPnP, DDNS, SNMP |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (48V~0.3A)*2 (Non-standard) ; DC 12V±10% Note: There are two ways to connect the power supply. One is by using an optional AC Adapter to cascade up to 6 devices, supporting simultaneous power supply and networking without using the DC interface; the other is to deploy through a regular network port for networking and a DC port for power supply, without the AC Adapter. |
| Power Consumption | Min.: 4.3W (DC 12V), 4.7W(PoE) Max.: 6.4W (DC 12V), 6.95W(PoE) |
| Weather Proof | Up to IP65-rated for Weather-resistant Performance |
| Surge Protection | 6KV |
| Weight | 500g |
| Dimensions | Φ160mmX97.5mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
