8.1.2.3 Privacy Mask

Privacy mask enables to cover certain areas on the live video to prevent certain spots in the surveillance area from being viewed and recorded.

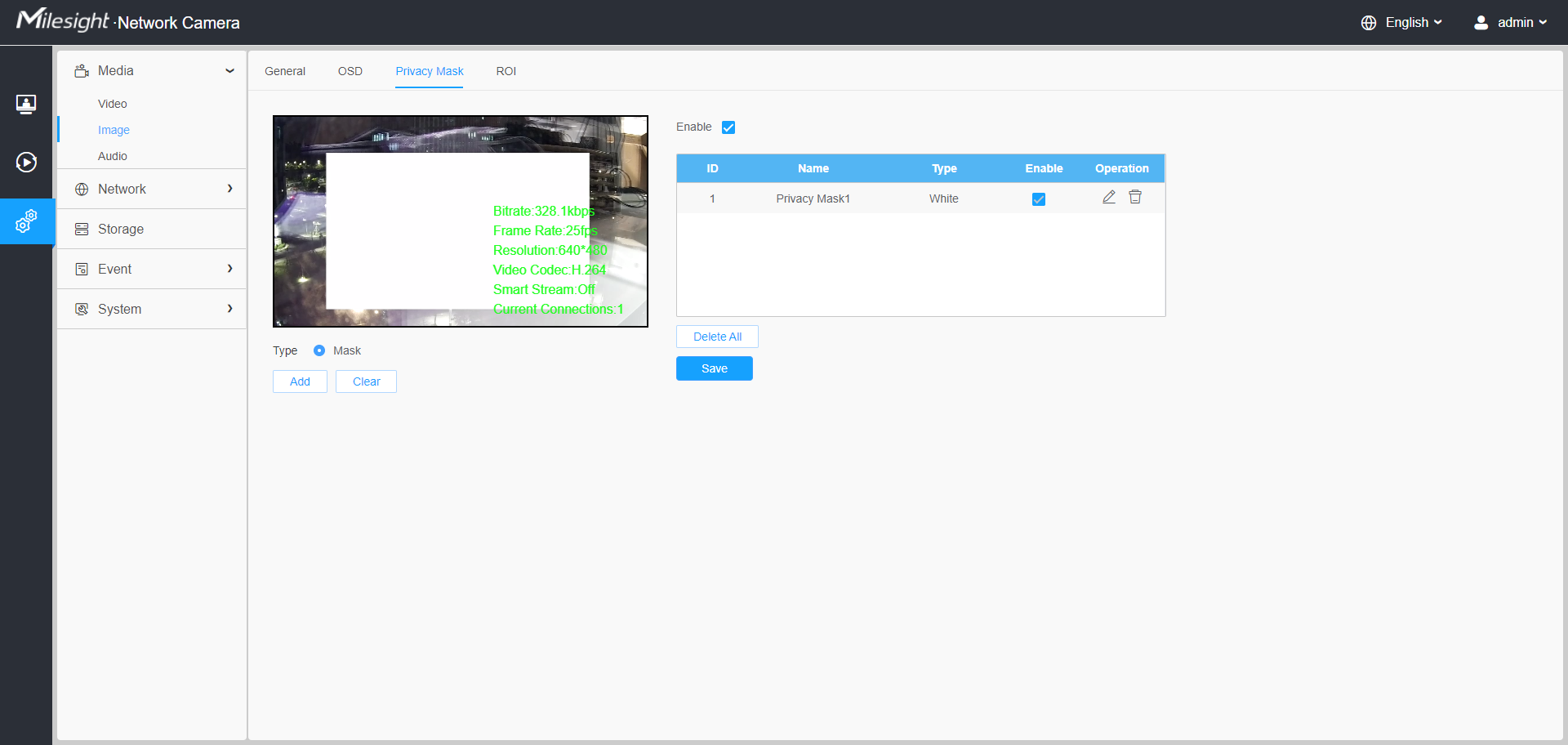

[Privacy Mask]



You can select the color to use for the cover certain areas on the live video.

Note:
  • For the MS-Cxxxx-xPC model, up to 24 mask areas and 4 mosaic areas are supported.
  • For the MS-Cxxxx-xPA model, up to 24 mask areas are supported.
  • For the MS-Cxxxx-xPD model, up to 4 mask areas are supported.
Table 1. Description of the buttons
Parameters Function Introduction
Enable

Check the check box to enable the Privacy Mask function.

Type

Select the color to use for the privacy areas, there are eight colors available: White, Black, Blue, Yellow, Green, Brown, Red and Purple.

Drew a privacy area on the live video as needed.

Clear the area you drew on the live video.

Delete All

Clear all areas you drew before.

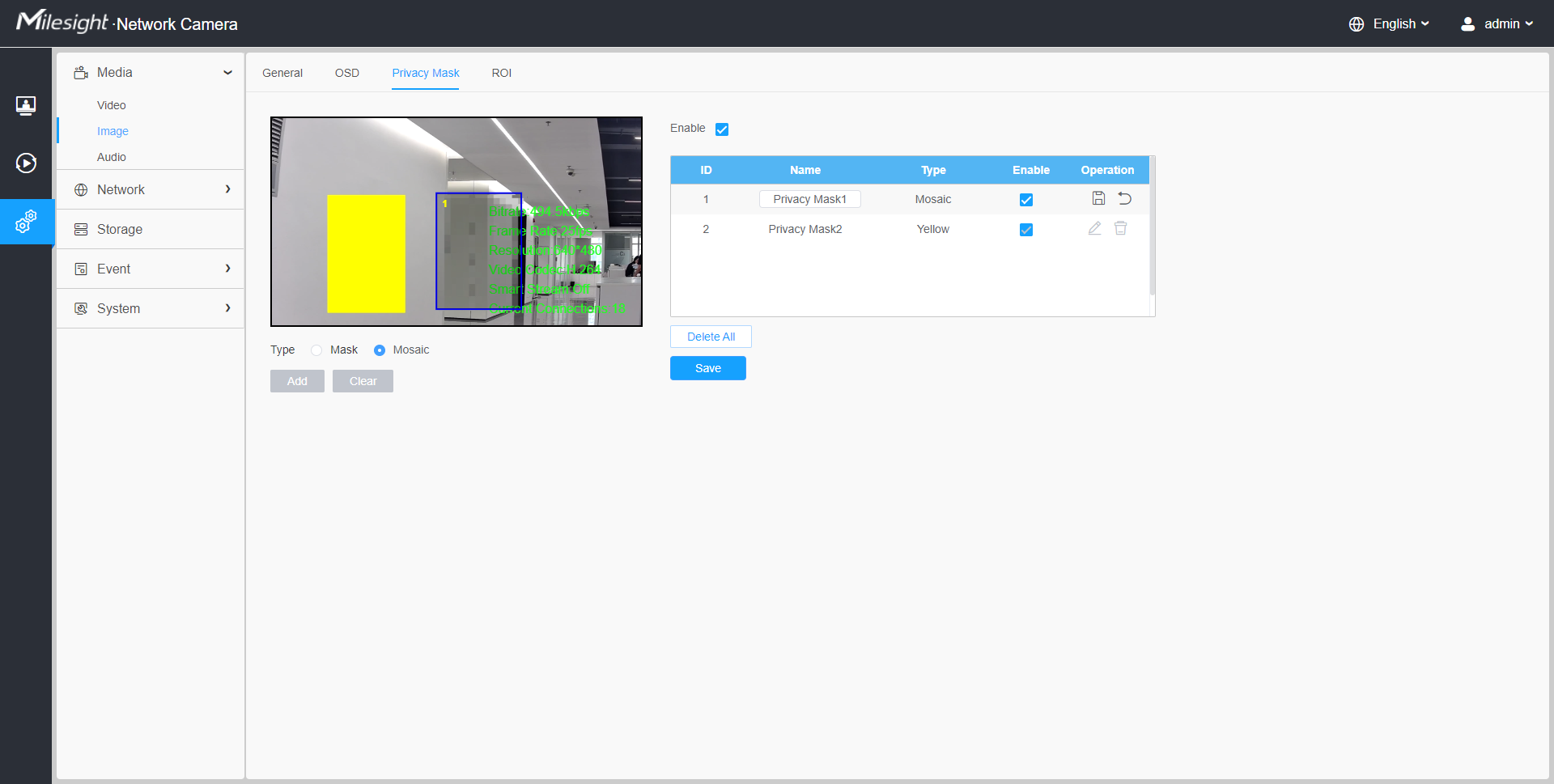

[Mosaic type of Privacy Mask]

You can select the color type and mosaic type to use for the cover certain areas on the live video. The mosaic type can maintain the continuity of the picture and improve the visual effect. Up to 28 mask areas are supported, which includes 24 mask areas and 4 mosaic areas.

Note: Make sure your camera model is MS-Cxxxx-xPC.


Table 2. Description of the buttons
Parameters Function Introduction
Enable Check the check box to enable the Privacy Mask function.

Type

Select the type to use for the privacy areas, there are two types available: Mask and Mosaic.

Drew an privacy area on the live video as needed.

Clear the area you drew on the live video.

Operation

/ Enable/disable the selected ROI areas.

Change the color of Mask area, there are eight colors available: White, Black, Blue, Yellow, Green, Brown, Red and Purple

Delete the privacy mask area
