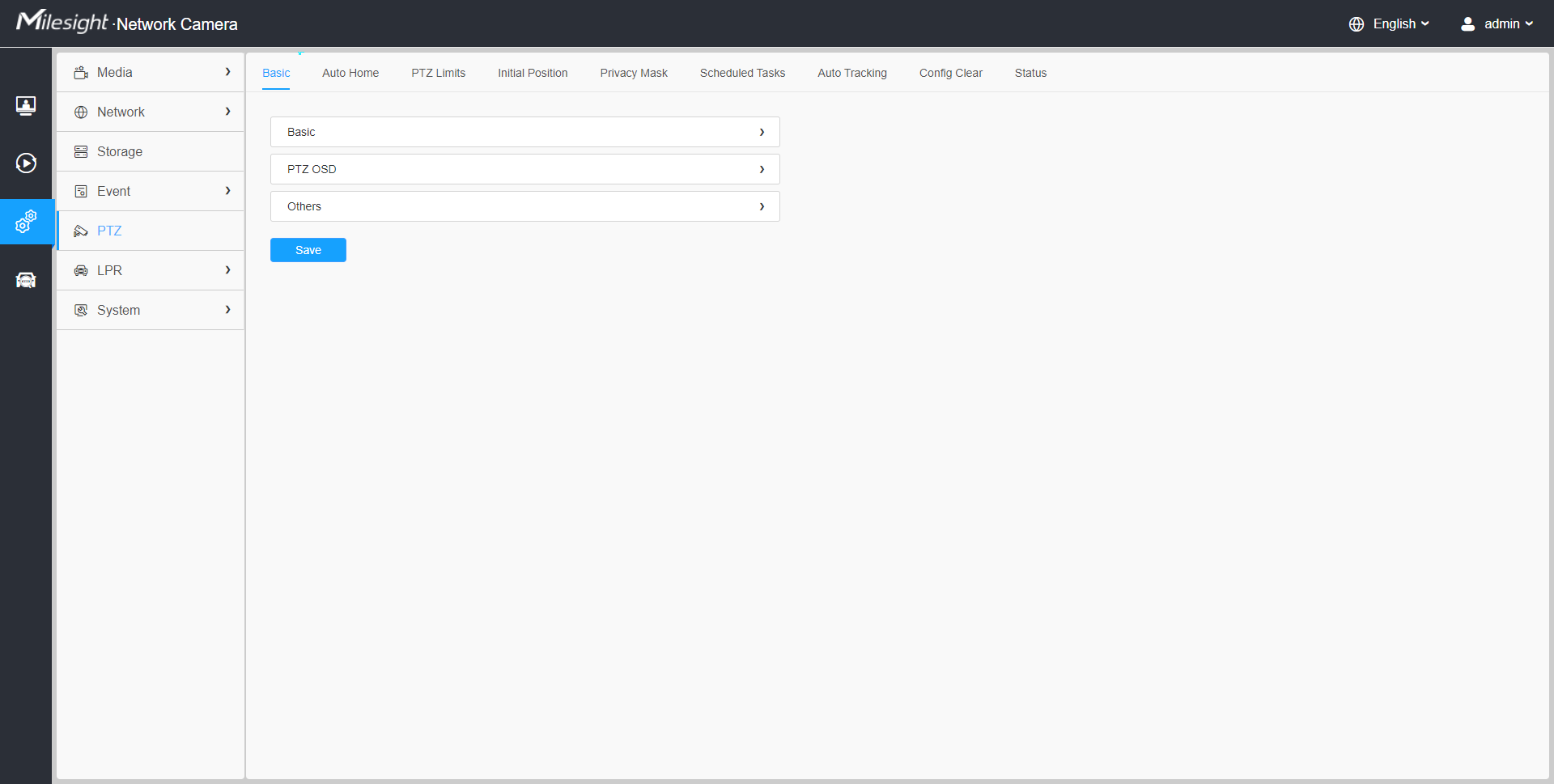

8.5.1 Basic

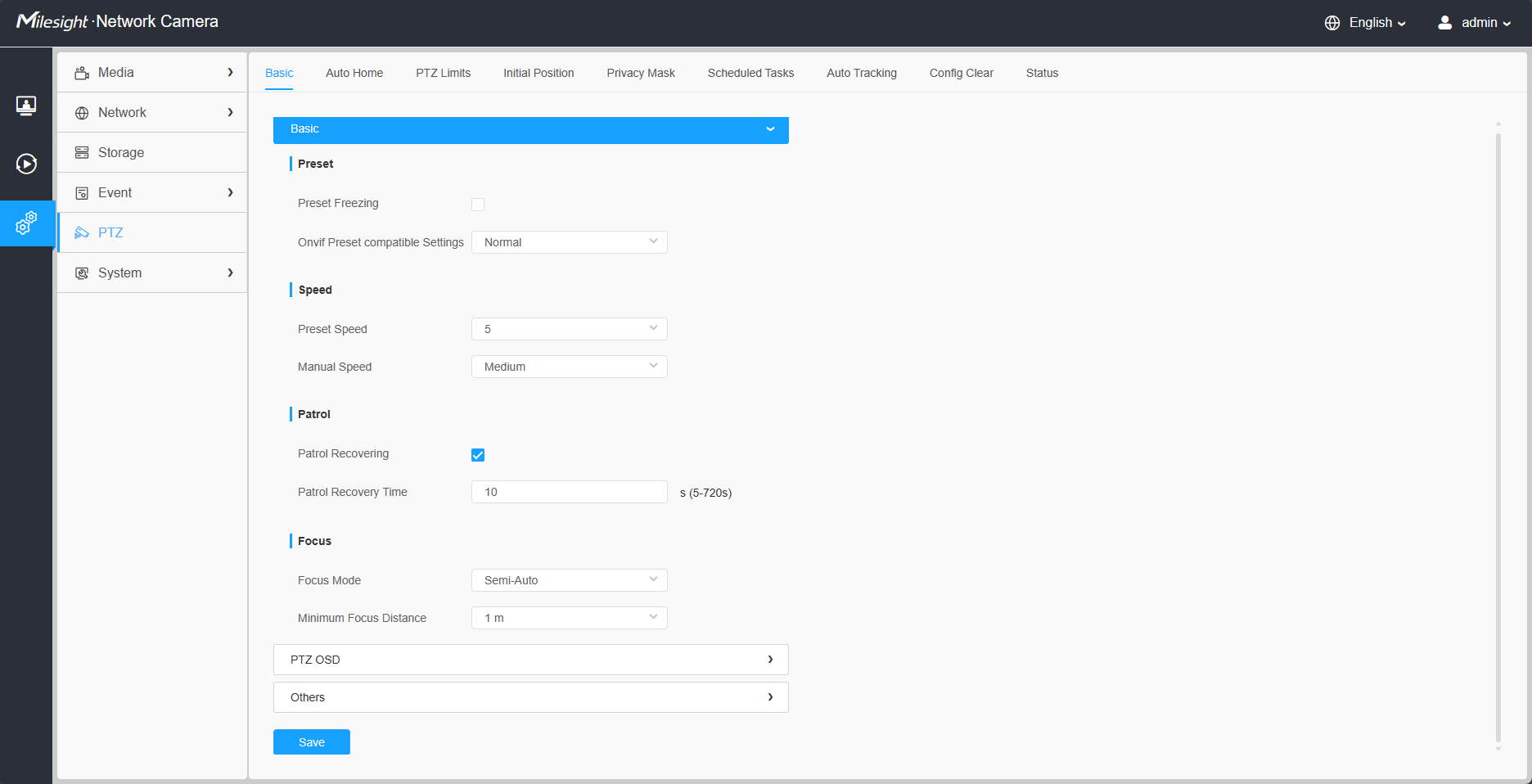

[Basic]



Table 1. Description of the buttons

Parameters

Function Introduction

Preset

If you enabled Preset Freezing, the live view of preset position will be showed directly instead of showing both the moving path to the position and the live view. It can also reduce the use of bandwidth in the digital network system.

Speed Preset Speed: It determines the speed of calling presets. Level 1~10 are available.
Manual Speed: It determines the PTZ speed of Manually control. Low/ Medium/ High are available.
Note: Only for Speed Dome.
Scan Speed: It determines the speed of Auto Scan. Level 1~10 are available.
Note: Only for Speed Dome.
Patrol Patrol Recovering: Click to enable Patrol Recovering.
Patrol Recovery Time: Set time for Patrol Recovering, which is between 5 to 720 seconds.
Focus Focus Mode: Three focus modes are available: Auto/ Semi-Auto/ Manual.
Minimum Focus Distance: Set the minimum focus distance to adjust the step length of each focus. 1 meter, 1.5 meters, 3 meters, 6 meters, 10 meters and 20 meters are available. The default minimum focus distance is 1 meter.

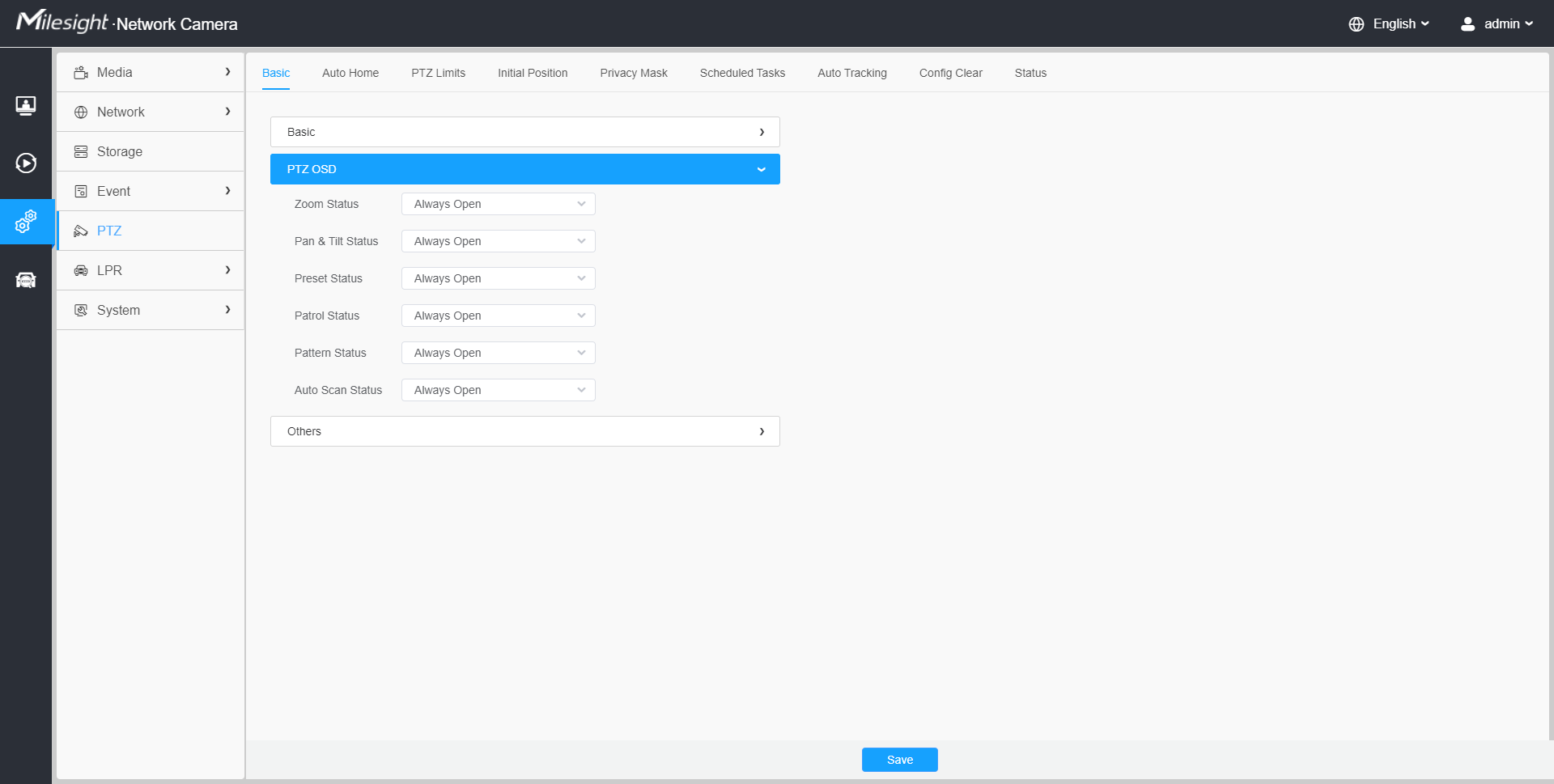

[PTZ OSD]



Table 2. Description of the buttons

Parameters

Function Introduction
Zoom Status 2s/ 5s/ 10s/Always Open/ Always Close are available.
Pan & Tilt Status 2s/ 5s/ 10s/Always Open/ Always Close are available.
Preset Status 2s/ 5s/ 10s/Always Open/ Always Close are available.
Patrol Status Always Open/ Always Close are available.
Pattern Status Always Open/ Always Close are available.
Auto Scan Status Always Open/ Always Close are available.

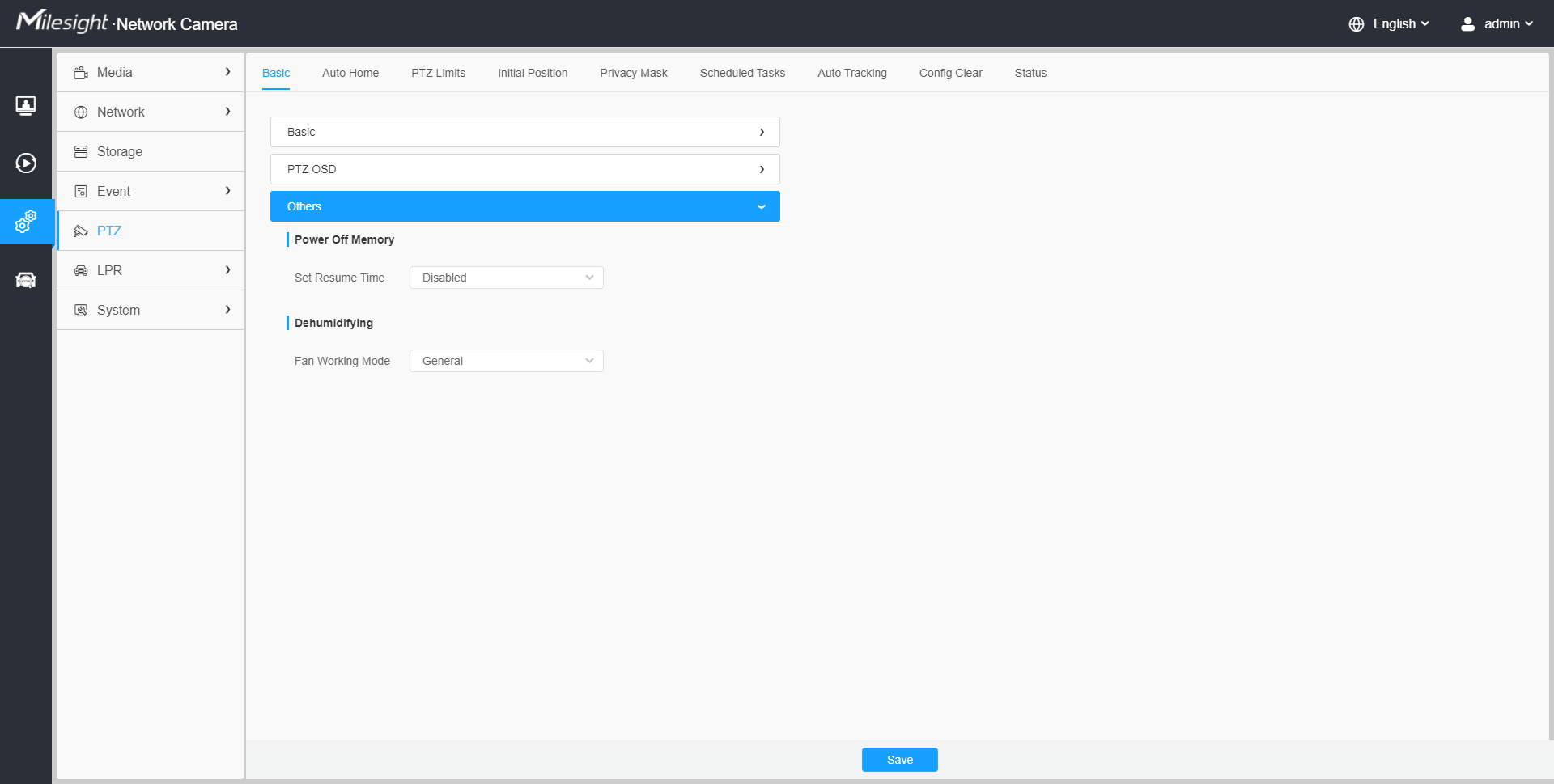

[Others]



Table 3. Description of the buttons

Parameters

Function Introduction
Power Off Memory

If the camera stop working for a longer time than predefined, the position of it will be recorded. And it will resume to the position after going back to the normal work from power off.

You can set the resume time to 30 seconds, 60 seconds, 300 seconds or 600 seconds to record its position.
Dehumidifying Fan Working Mode: Three fan working modes are available: General/ Enhancement/ Constant.

General: The fans are turned on from 4am to 7am and 5pm to 8pm every day.

Enhancement: The fans are turned on from 5pm to 7am every day.

Constant: The fans work 24 hours a day.
