UG67 Quick Start Guide

Packing List

After unboxing, please check the package contents against the following list to ensure all items are included. If any of the below items are missing or damaged, please contact your sales representative.

1 × UG67 Gateway

1 × PoE Injector

 1 × Mounting Bracket
4 × Wall Mount Kits 2 × LoRaWAN ® Antennas (60cm) 1 × Antenna Coaxial Cable (1m)
1 × M12 DC Power Cable (30cm)

1 × Ethernet Cable Gland

1 × Short Mounting Backboard Kit (Include Φ 67-127mm hose clamps)
1 × Warranty Card 1 × Quick Guide Card

Hardware Introduction

This chapter describes the hardware design of the device.

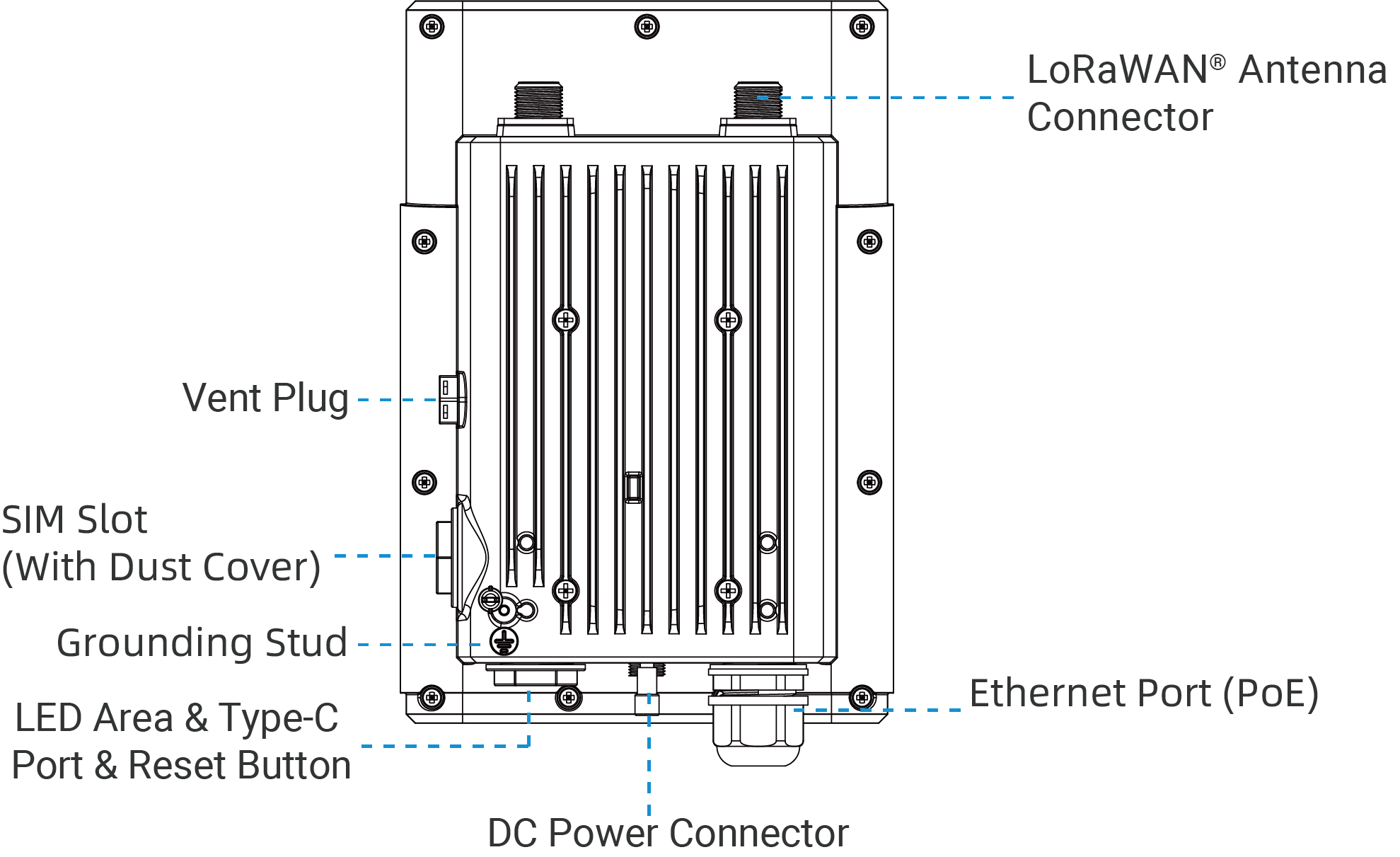

Hardware Overview

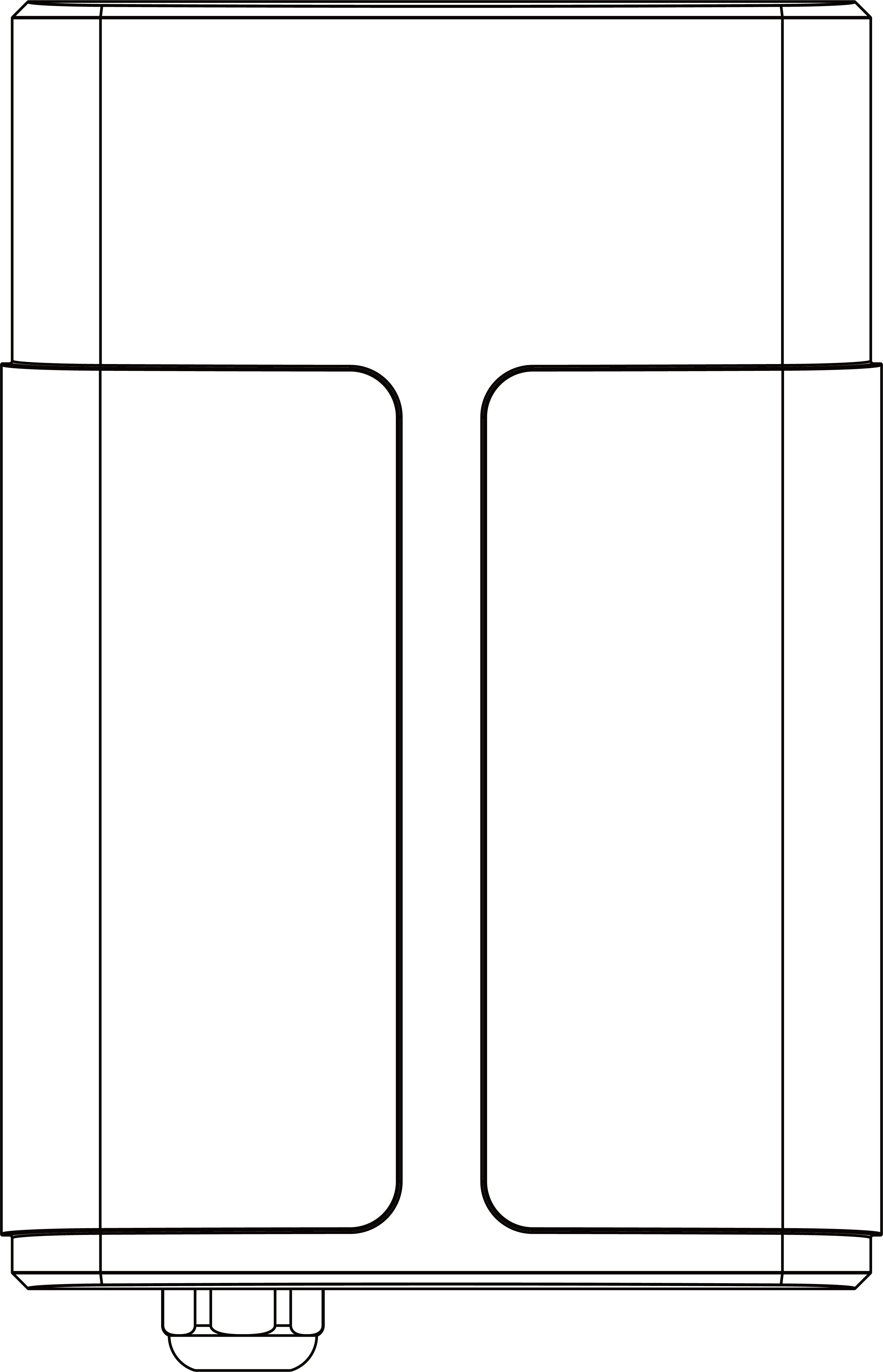

The following figure shows the main components of the device.

Part Description
LoRaWAN® Antenna Connector Allows connection of external antennas to enhance wireless communication range and reliability. ANT1 is used for TX and ANT2 is used for RX.
Vent Plug Equalizes the internal pressure and prevents moisture build-up.
SIM Slot Allows to insert a SIM card to connect to the cellular network.
LED Area & Type-C Port & Reset Button There are three interfaces:

LED Area: See LED Patterns.
Type- C Port: Used for device console.
Reset Button:  Allows to reset the device to factory defaults. For details see LED Patterns.
DC Power Connector Connect DC power source or solar panel to supply power to the device.
Ethernet Port (PoE) Allows connection to an ISP for network access, and supports the PoE PD feature, enabling it to receive power over Ethernet.
Grounding Stud Used to connect to an earth ground to protect the device from power surges.

LED Patterns

LED Status Description
SYS Off The power is switched off
Green Static On The power is switched on and the system is working well
Red Static On The power is switched on and the system malfunctions
Static On → Quickly Blinks Factory Reset: Press and hold the reset button for more than 5 seconds
LoRa Off Packet forwarder is running off
On Packet forwarder is running well
LTE Off SIM card is registering or failed to register (or there are no SIM cards inserted)
Slowly Blinks SIM card has been registered and is ready for dial-up
Quickly Blinks SIM card has been registered and is dialing up now
Static On SIM card has been registered and dialed up successfully
Ethernet Port - Link Indicator (Yellow) Off Disconnected or connection failure
Static On Connected
Blinks Transmitting data
Ethernet Port - Rate Indicator (Green) Off Other modes
On 1000 Mbps

DC Power Connector Definition

The following table shows the pin definition of the DC power connector.
Pin Cable Color Description Figure
1 Black GND

2 White Reserved
3 Yellow Reserved
4 Red +12V

Device Dimensions

The following figure shows the device dimensions (unit:mm).

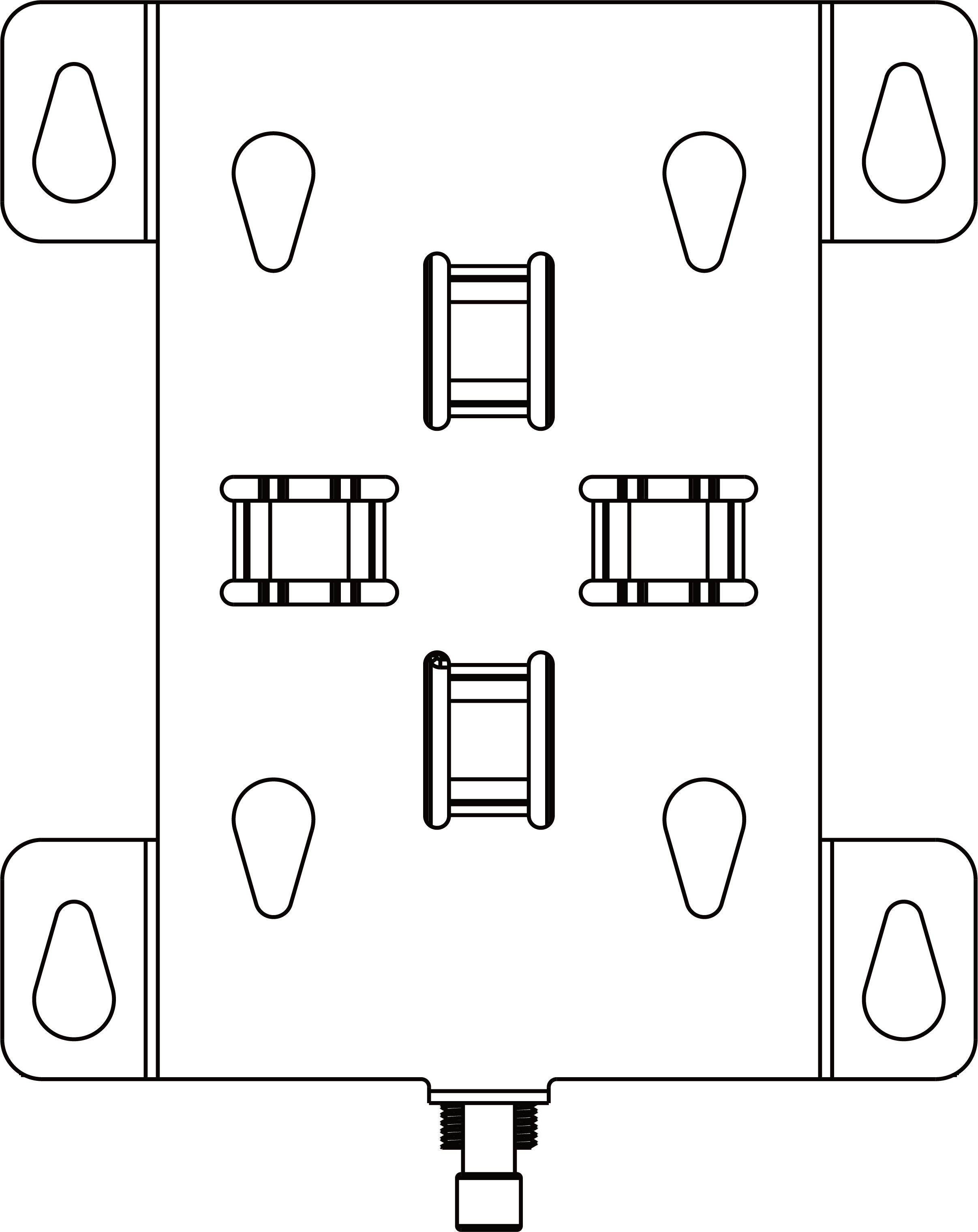

The following figure shows the mounting bracket dimension (unit: mm).

Powering Options

This chapter describes the powering supply option supported by UG67 gateways. Please select one of the following options to power the gateway.

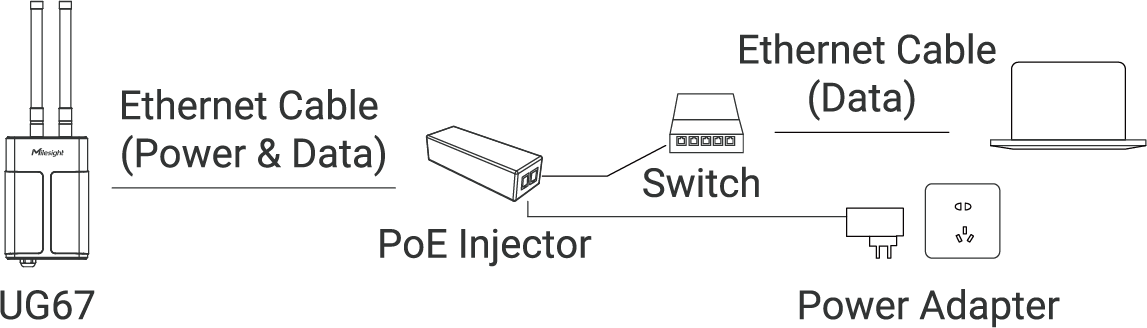

Powered by Active PoE
The Ethernet port can receive power by connecting to an 802.3af standard PoE switch or PoE injector.
Tip: It is recommended to install the PoE surge protector or lightning arresters when using outdoors.


Powered by DC Power Connector
The gateway can be powered by a DC power connector (6-12V DC).

Installation Instructions

This chapter provide instructions on how to install the accessories and the device.

Warning: Before installation, ensure the device is powered off!

SIM Card Installation (Cellular Version Only)

This section describes how to install a SIM card into the gateway. If not needed, please skip this section.

Prerequisites:
  • The gateway supports cellular feature (model name includes -Lxxx).
  • Extra tools: Wrench, a SIM card (Mini-2FF).
Steps:

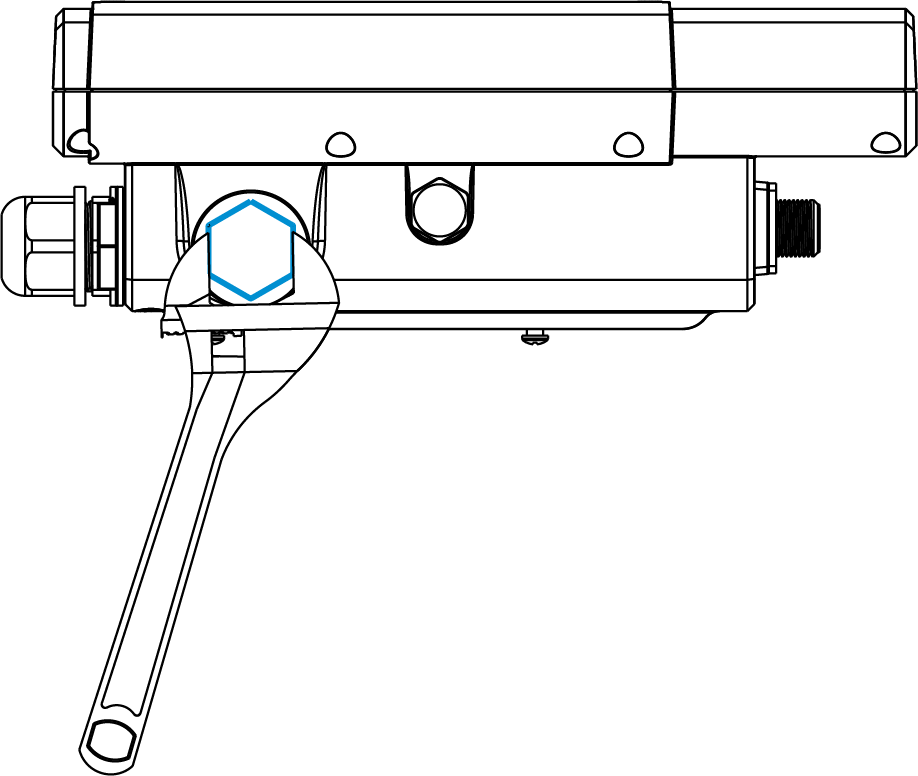

  1. Loosen the SIM dust cover from the gateway with the wrench.

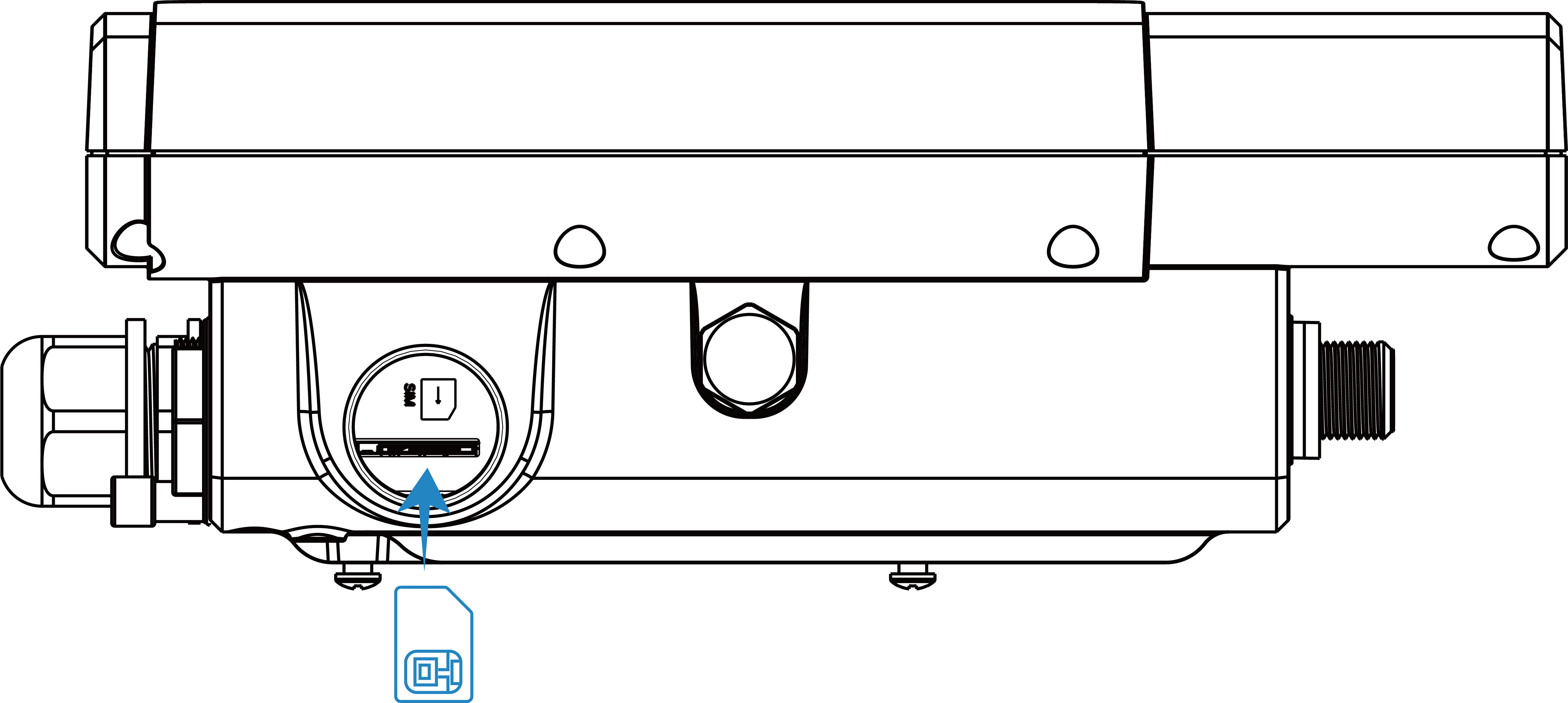

  2. Insert the SIM card into the SIM slot in the correct orientation.

    To remove the SIM card, press it and it will pop up automatically.

  3. Secure the SIM dust cover to the gateway and tighten it with a wrench (tightening torque: 0.7 N.m).

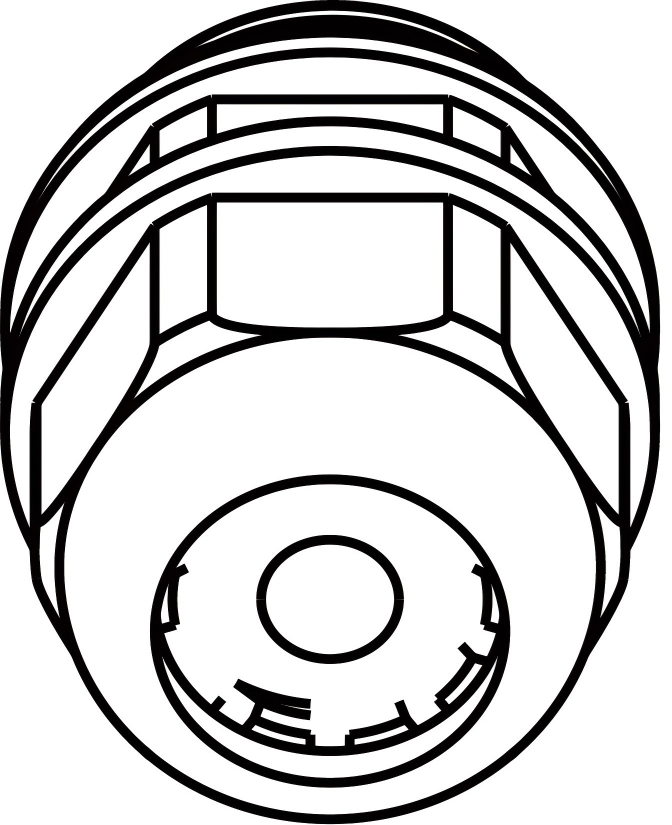

Ethernet Cable and Cable Gland Installation

This section describes how to install the cable gland to prevent from water.

Install when Ethernet Port is Used

Prerequisites: Wrench, Ethernet Cable Gland, Round Ethernet Cable ( Recommended length: no more than 100 meters)

Steps:

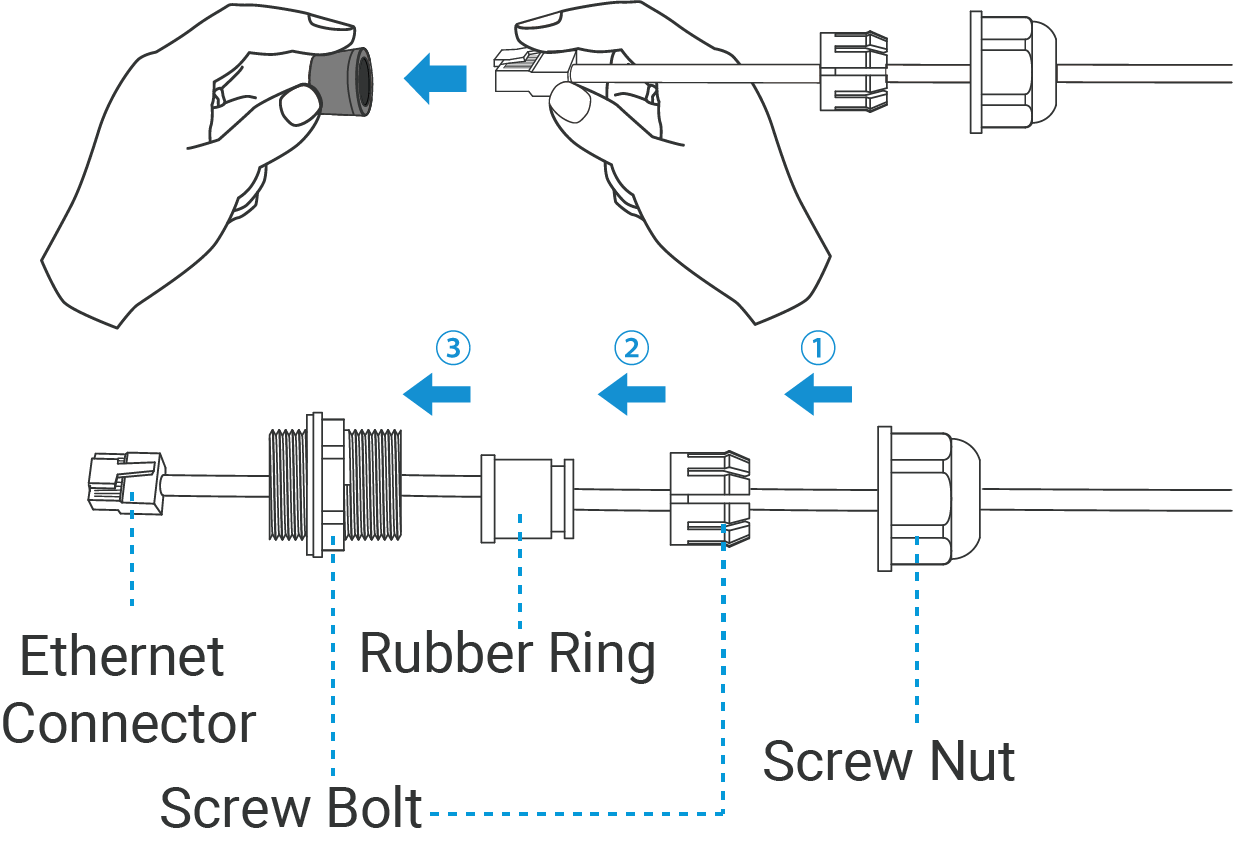

  1. Remove the cable gland plug from the cable gland assembly, and separate the cable gland.
  2. Pass the Ethernet cable through the cable gland assembly.

  3. Connect the Ethernet cable to the Ethernet port of the gateway.

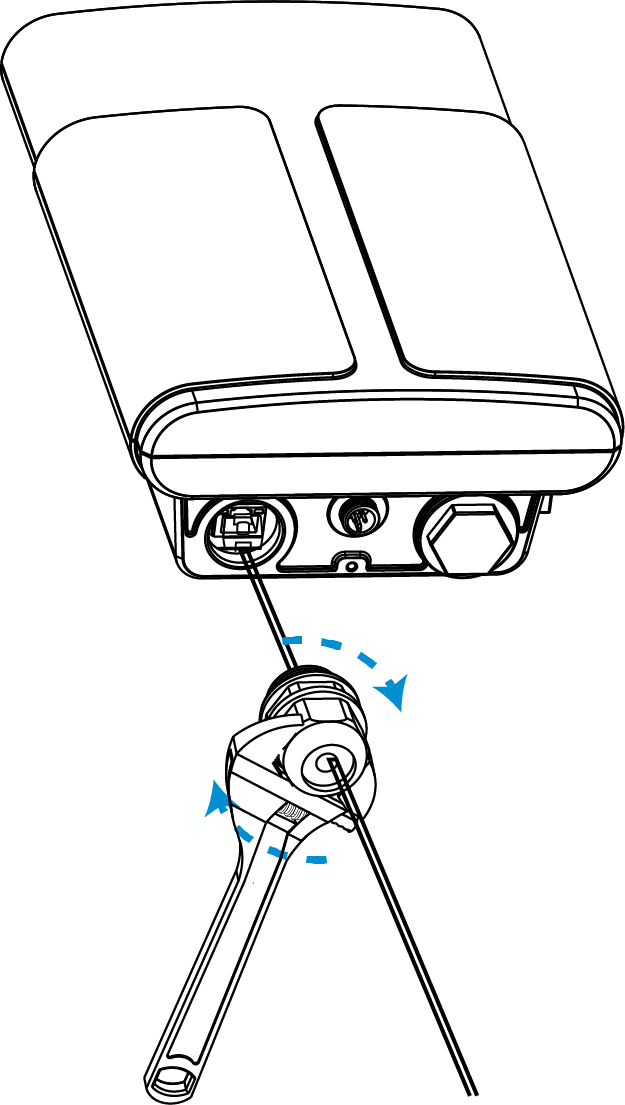

  4. Secure the cable gland to the gateway and tighten it with a wrench (tightening torque: 1.1 N.m).

Install when Ethernet Port is not used

Prerequisites: Wrench, Ethernet Cable Gland (With Plug Installed)

Steps:
  1. Tighten the screw nut of the cable gland.
  2. Secure the cable gland to the gateway and tighten it with a wrench (tightening torque: 1.1 N.m).

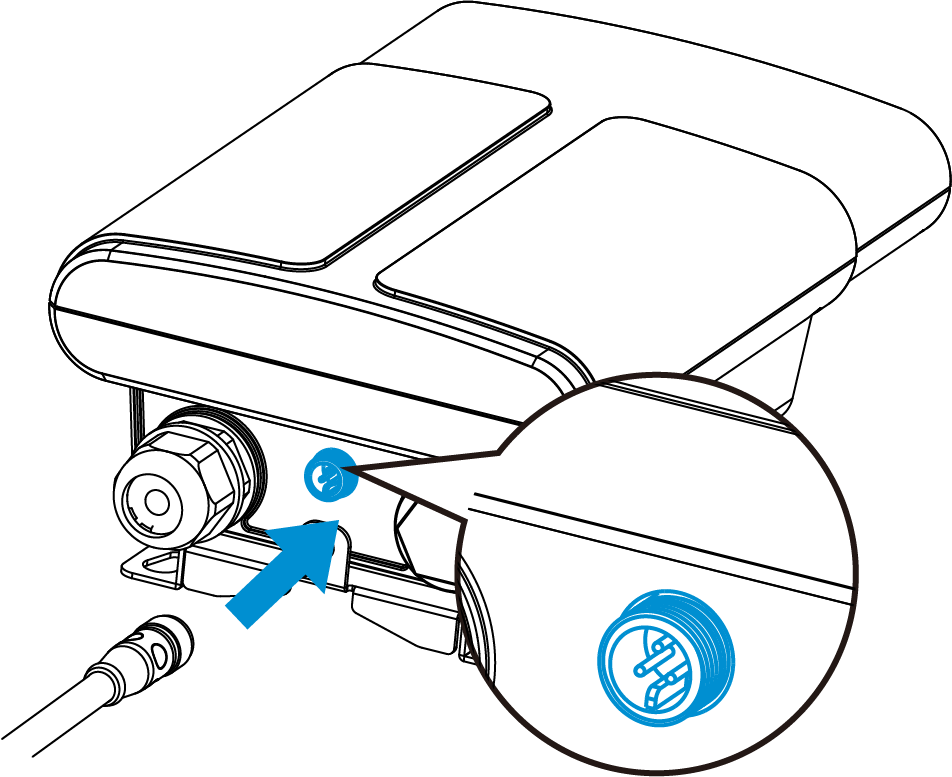

Power Cable Installation

This section describes how to install the power cable to the gateway. If not needed, please skip this section.

Prerequisites: M12 DC Power Cable

Steps:
  1. Remove the protective cap of power connector.
  2. Rotate the power cable into the power connector and tighten it by hand.

  3. Connect the other side of power cable to the DC power source or solar panel as required.

Gateway Installation

This section describes how to install the gateway. The gateway supports wall mounting or pole mounting.
Installation Location
  • The antennas must extend beyond the wall or pillar surface and not be close to the poles or walls. If there are still walls nearby, please keep the antennas at least 35cm away from them.
  • Ensure there are no obstacles or metal objects around.
  • For better coverage, it is recommended to position the gateway at a higher location, but not the highest position.

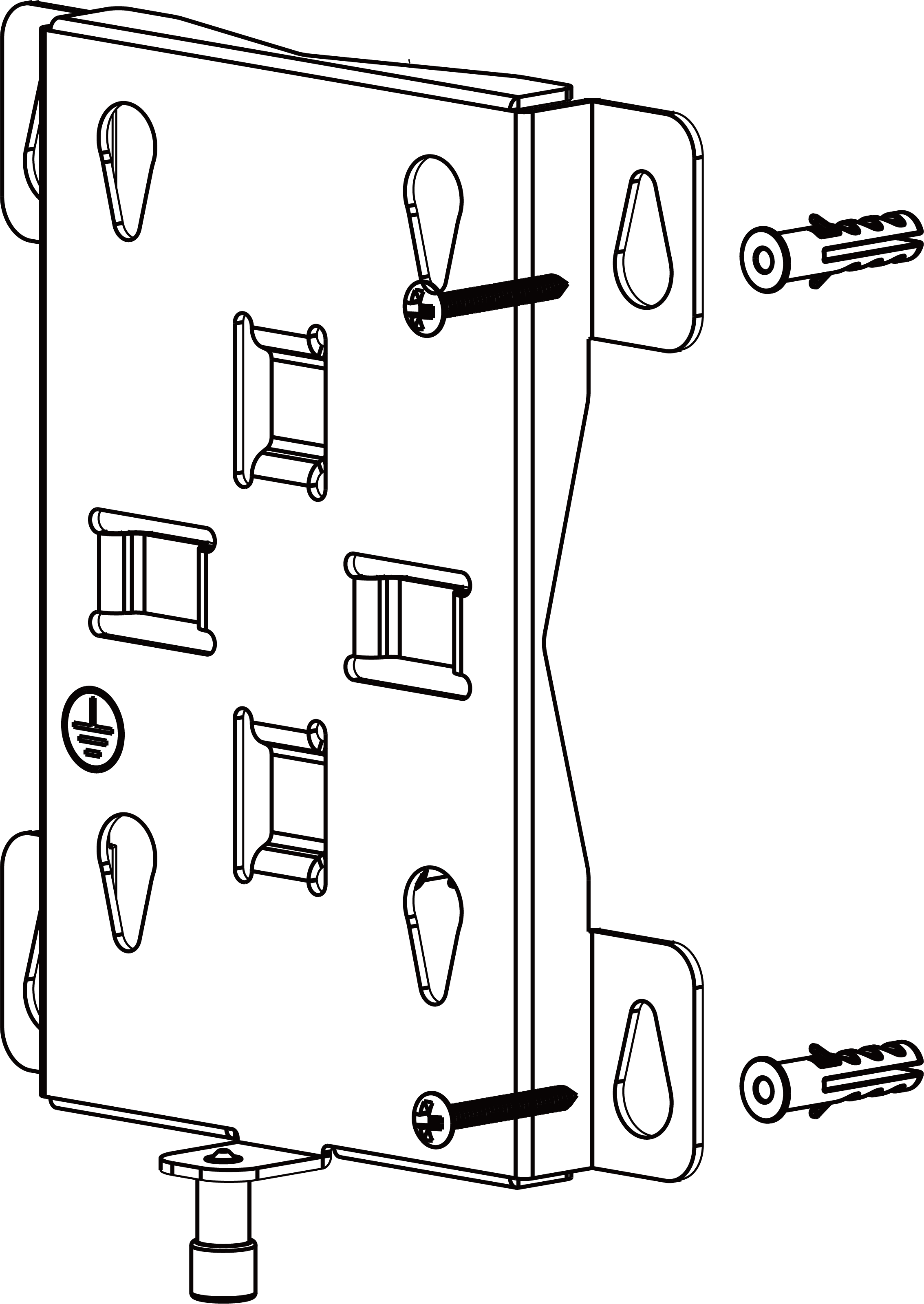

Wall Mounting
Requirements:
  • The wall structure shall be sufficiently solid and stable to ensure firm screw fixation and overall mounting stability.
  • Screw mounting positions must avoid internal wall electrical wiring, water pipes and other concealed utilities to prevent structural damage and potential safety hazards.

Prerequisites: Screwdriver, Mounting Bracket, all Mount Kit, Pencil, Electrical Drill

Steps:

  1. Align the mounting bracket horizontally to the target surface, use a pencil to mark four mounting holes.
    Note: The connecting lines of adjacent points are at right angles.
  2. Drill four holes in the wall according to the mounting holes.
  3. Insert the wall plugs into the holes.
  4. Secure the mounting bracket to the wall plugs using the wall mounting screws.

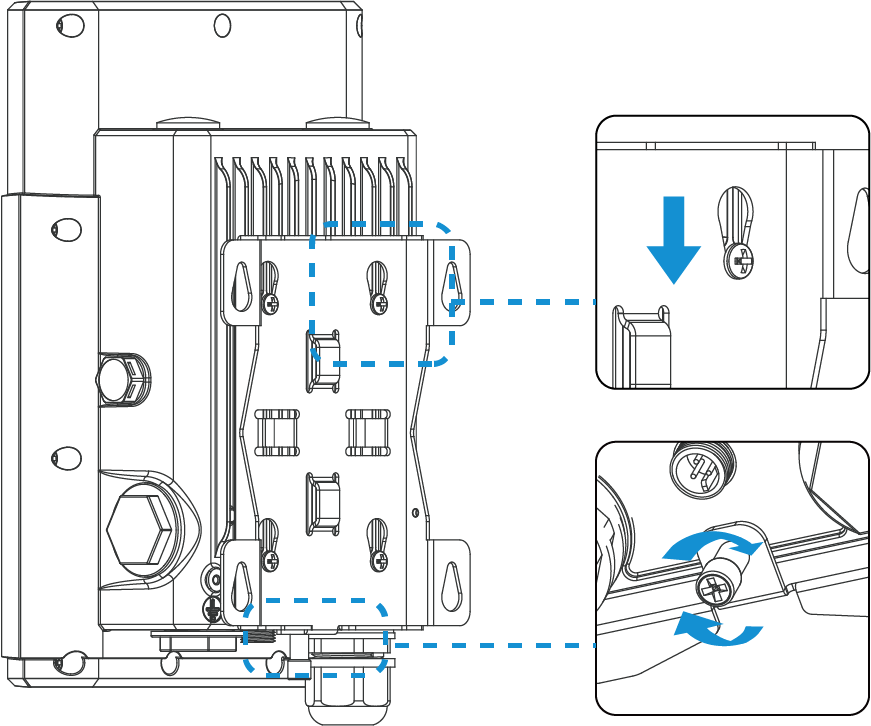

  5. Hang the gateway to the mounting bracket and secure it to the bracket by tightening the bottom fixing screw by hand.

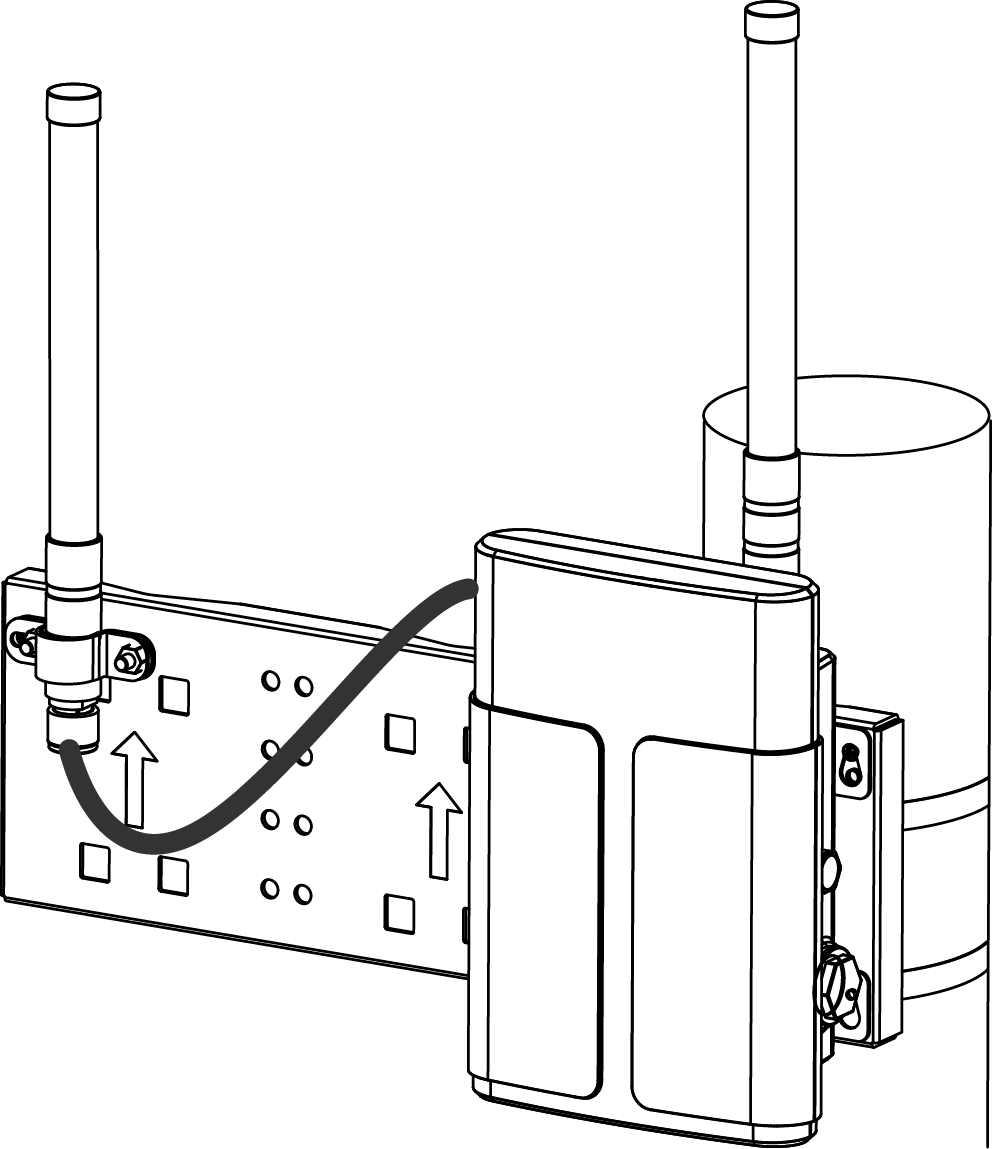

Pole Mounting

Prerequisites: Screwdriver, Mounting Bracket, Short Mounting Backboard Kit

Steps:

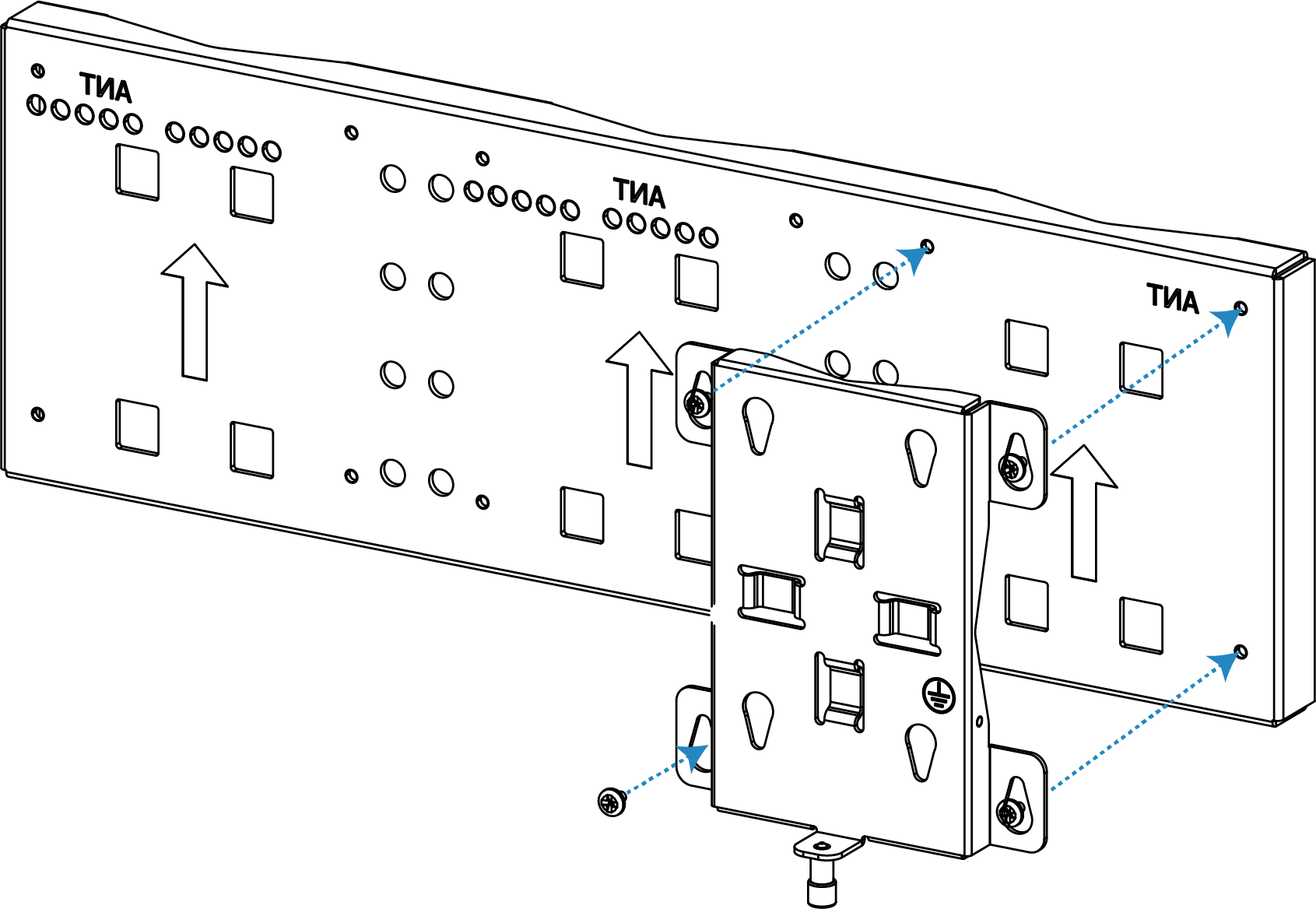

  1. Secure the mounting bracket to short mounting backboard with four screws.

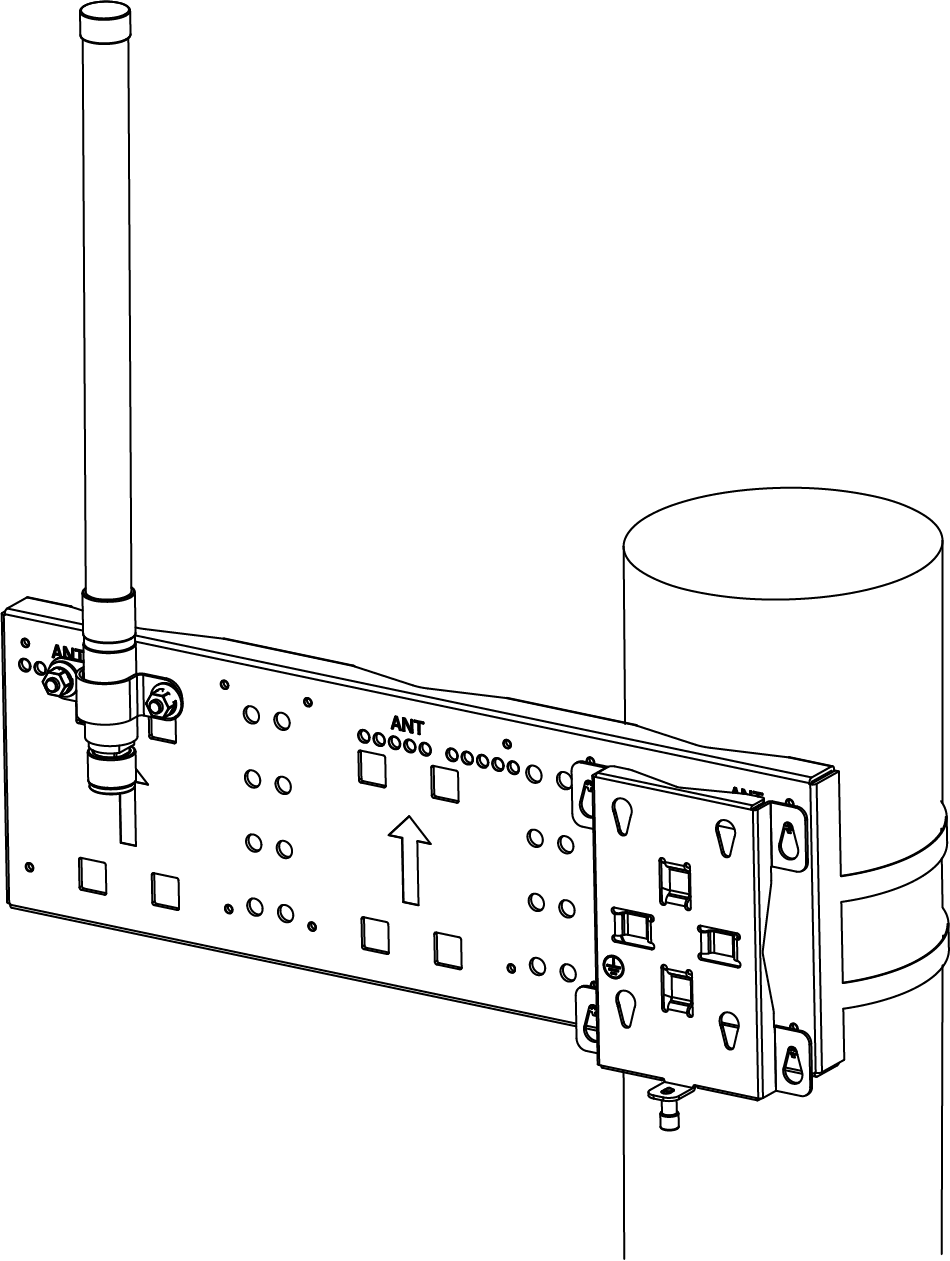

  2. Install one antenna on the short mounting backboard as follows.

    1. Attach the U-strap clamp with one antenna to the short mounting backboard.
    2. Insert the two screws through the other side of the backboard to secure the U-strap clamp with the antenna to the backboard.
    3. Screw flat washers, spring washers, and nuts onto the U-strap clamp.
  3. Straighten out the hose clamps and slid them through the rectangular rings in the mounting bracket and short mounting backboard, then wrap them around the pole.

  4. Hang the gateway to the mounting bracket and secure it to the bracket by tightening the bottom fixing screw by hand.

  5. Secure one antenna to ANT2 connector of the gateway directly, then connect the remaining antenna on the short mounting backboard to the gateway with the coaxial cable.

Antenna Installation

This section describes how to install the antennas to the device.

Install Antenna to Short Mounting Backboard

When the gateway is installed to a pole using short mounting backboard, refer to Pole Mounting steps.

Install Antenna using U-Bolt Clamp

Prerequisites: LoRaWAN ® Antennas, U-Bolt Clamp Kit, Antenna Coaxial Cable

Steps:
  1. Secure one antenna to ANT2 connector of the gateway directly.
  2. Secure the other antenna to a pole using the U-Bolt Clamp Kit.
    Note: Make sure the two antennas are at least 35 cm apart to avoid interference.

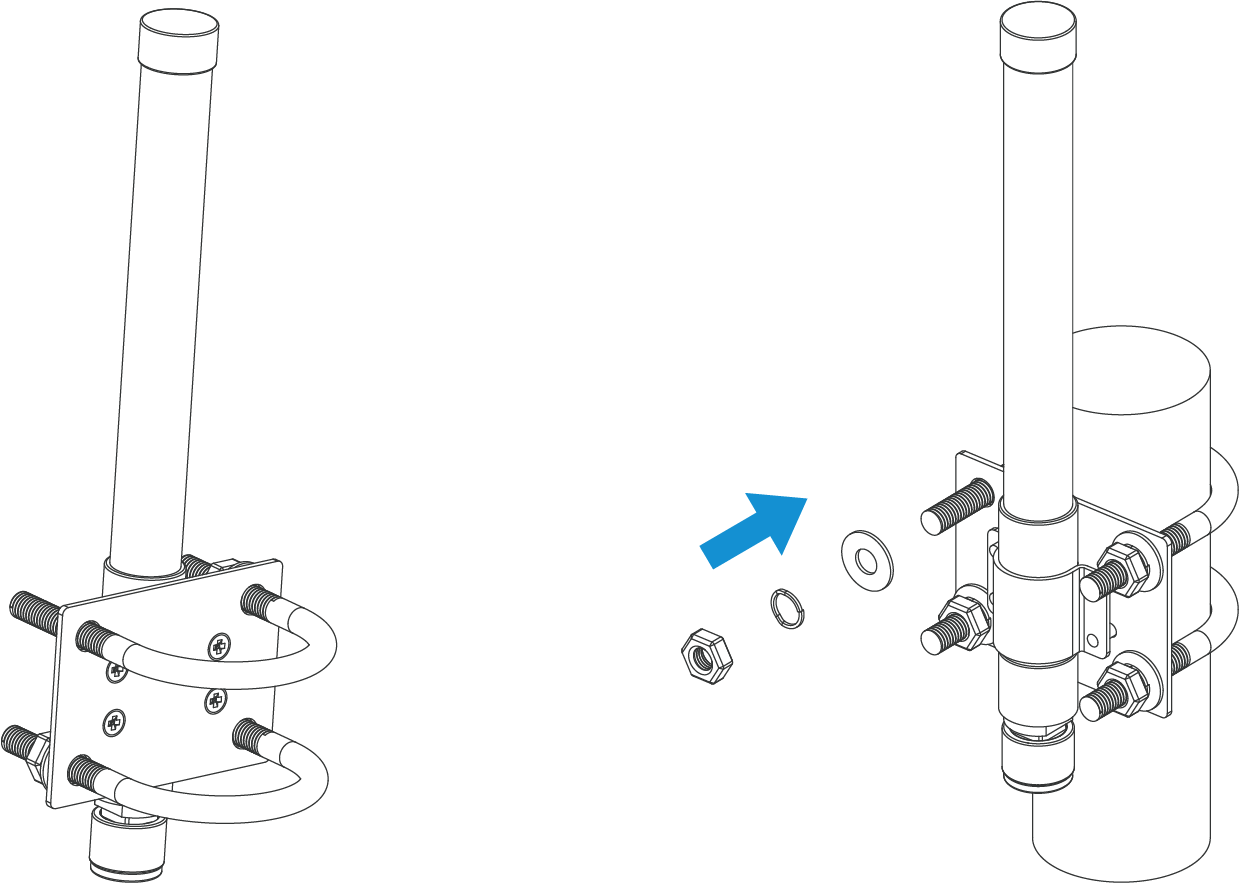

    1. Pass the antenna through the antenna clamp and secure it with four screws.
    2. Wrap the U-bolt around a pole and secure the clamp with nuts and other accessories.

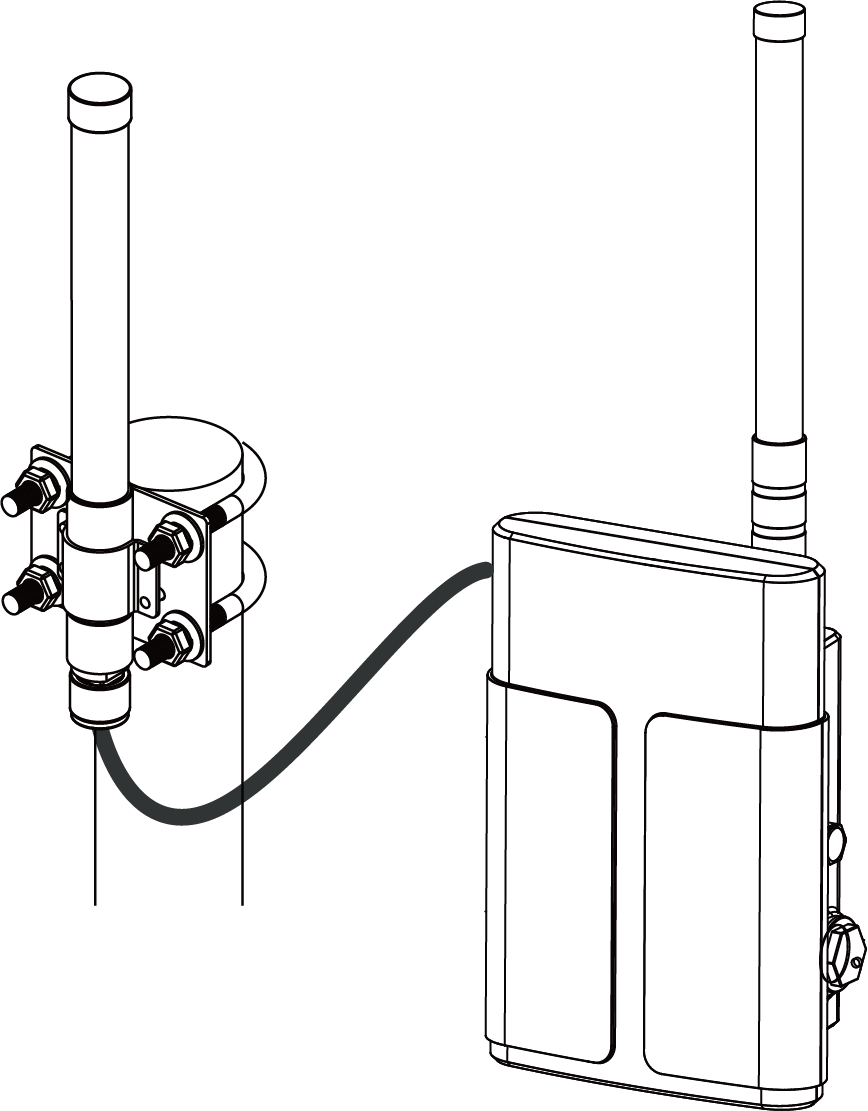

  3. Connect the antenna on the pole to the gateway with the coaxial cable.

Weather Protection

To protect the gateway from outdoor bad weather, it is necessary to cover all cable connectors and antenna connectors with tapes.

Prerequisites: Electrical Insulation Tapes, 3M Waterproof Tapes

Steps:
  1. Ensure the antennas and cables are installed tightly, then clean the surfaces of connectors.
    Note: Install the antenna lightning arresters to the connectors before wrapping tapes if required.
  2. Wrap a layer of electrical insulation tape tightly around the connectors and overlap the previous wrap by 50%.
  3. Wrap a layer of 3M waterproof tape tightly around the connectors and overlap the previous wrap by 50%. Note that the tapes should be stretched to double their length when using.
  4. Wrap a layer of electrical insulation tape with natural uncoiling force around the connectors and overlap the previous wrap by 50%, ensure them to cover the head and tail of the connectors.
    Antenna Connector:

    Ethernet Cable:

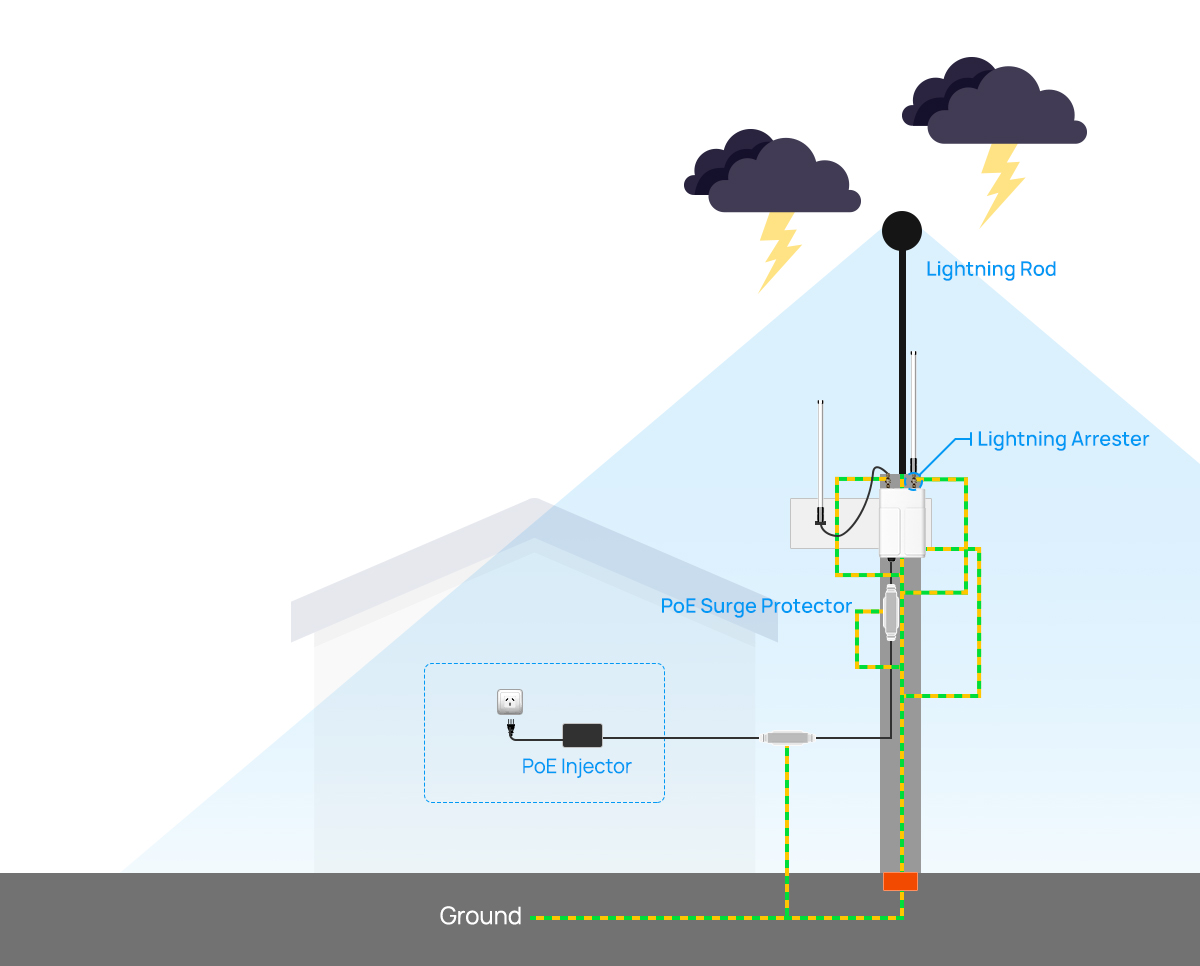

Lightning Protection

Take lighting protection measures, including but not limited to:
  • Connect the gateway to the earth ground.
  • Add lightning arresters on the antenna connectors.
  • Add PoE surge protectors between gateway and the PoE injector/switch as required.
  • Ensure the gateway with antennas is positioned lower than the highest point of the building and within the protection range of the lighting rod.
  • If there is not lightning rod around, ensure the location of the gateway is not in the influence area of the lightning, or fix a lightning rod above the antennas.
  • The cross-setcional area of the earthing wire should be more than 10 AWG.


Access the Gateway

  1. Enable the Wireless Network Connection on your computer, search for the corresponding for Wi-Fi SSID, and connect to it. Default Wi-Fi credentials:

    SSID: Gateway_XXXXXX (last 6 digits of the Wi-Fi MAC address)
    Password: iotpassword

  2. Open a web browser (Chrome is recommended) and type in https://192.168.1.1 to access the web GUI.
  3. Log in to the web GUI using the default credentials:

    Username: admin
    Password: password

  4. After logging the web GUI for the first time, it is necessary to change the default password.

    1. Enter a New Password. The password must contain at least one letter and one number, and be 5 to 31 characters long.
    2. Enter Confirm New Password.
    3. Click Save.
    4. Log in to the web GUI using the new credentials.

FCC Statement

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and.

(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
