Hardware Introduction
Packing List
 |
 |
 |
| 1 × VS125 Device | 4 × Ceiling Mounting Kits | 1 × Multi-interface Cable |
 |
 |
|
| 1 × Warranty Card | 1 × Quick Guide |
Cellular Version Only Accessories:
 |
 |
||
| 1 x Power Adapter | 1 x SIM-eject Tool |
PoE Version Only Accessories:
|
|||
| 1 x Power Adapter |
Note:
- The device supports mounting kits and people counter accessories. For more
information, please scan the QR code.
- If any of the above items is missing or damaged, please contact your sales representative.
Hardware Overview

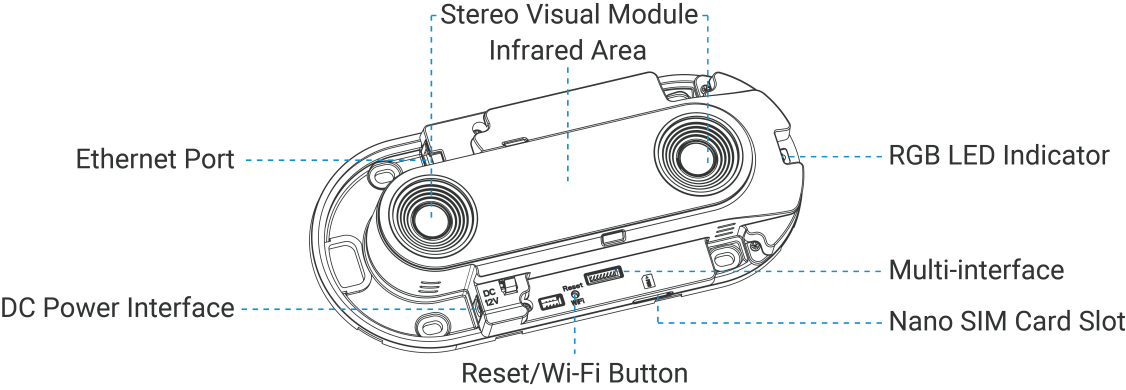

- Cellular Version:
-

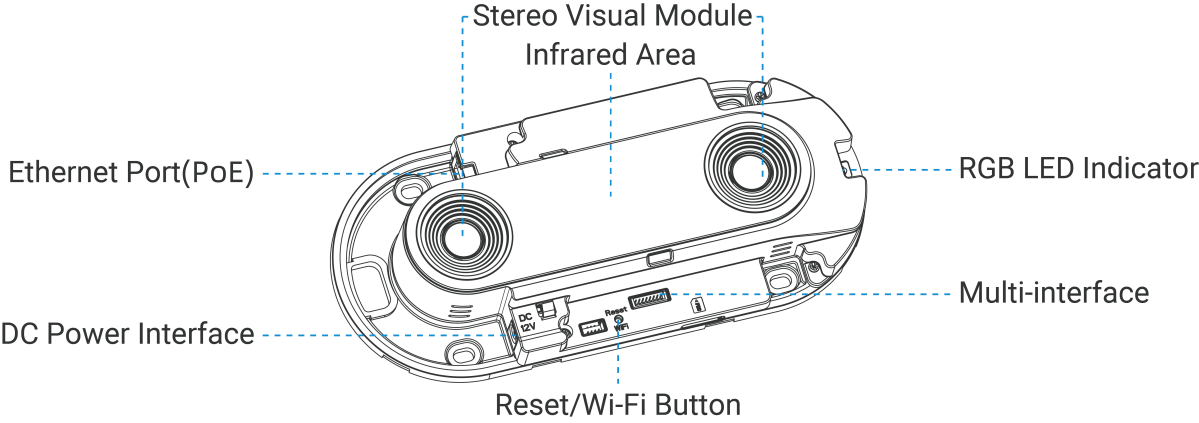

- POE Version:
-

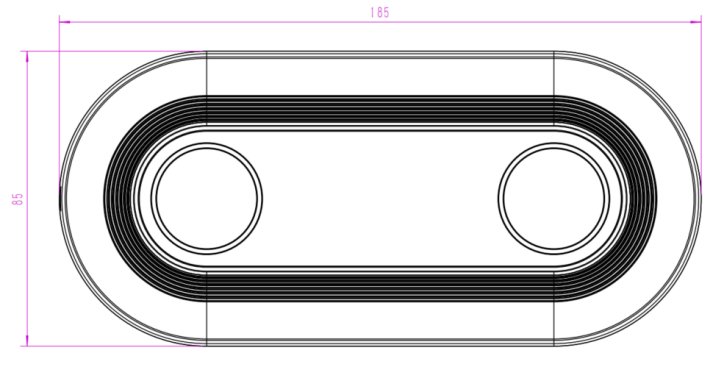

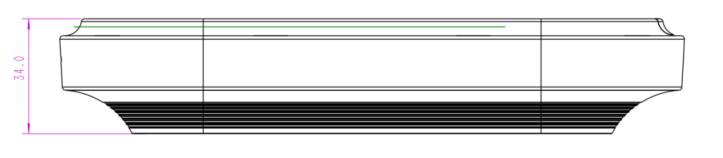

Dimensions(mm)
Button and LED Indicators
| Function | Action | LED Indication |
|---|---|---|
| Turn On/Off Wi-Fi | Press and hold the power button for more than 3 seconds. | Turn On/Off: Blue light blinks for 3
seconds. Wi-Fi On: Blue light on. Wi-Fi Off: Green light on. |
| Reset to Factory Default | Press and hold the power button for more than 10 seconds. | Green light blinks until the reset process is completed. |
Wirings
SIM Card Installation (Cellular Version Only)

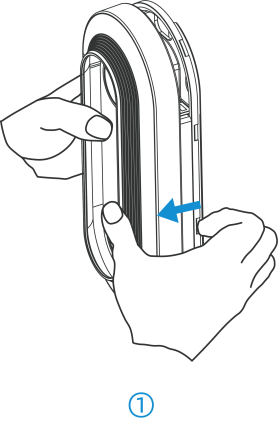

Step 1: Remove the cover plate.

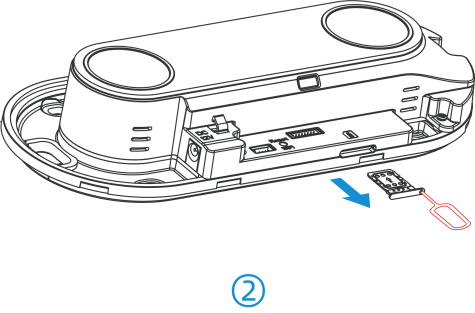

Step 2: Use the SIM-eject tool to pop open the SIM tray.

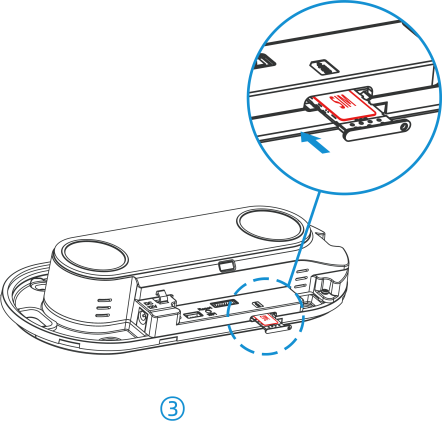

Step 3: Place the Nano SIM card into the sim card slot and insert it back to
device.
