8.6.1.4 List Event

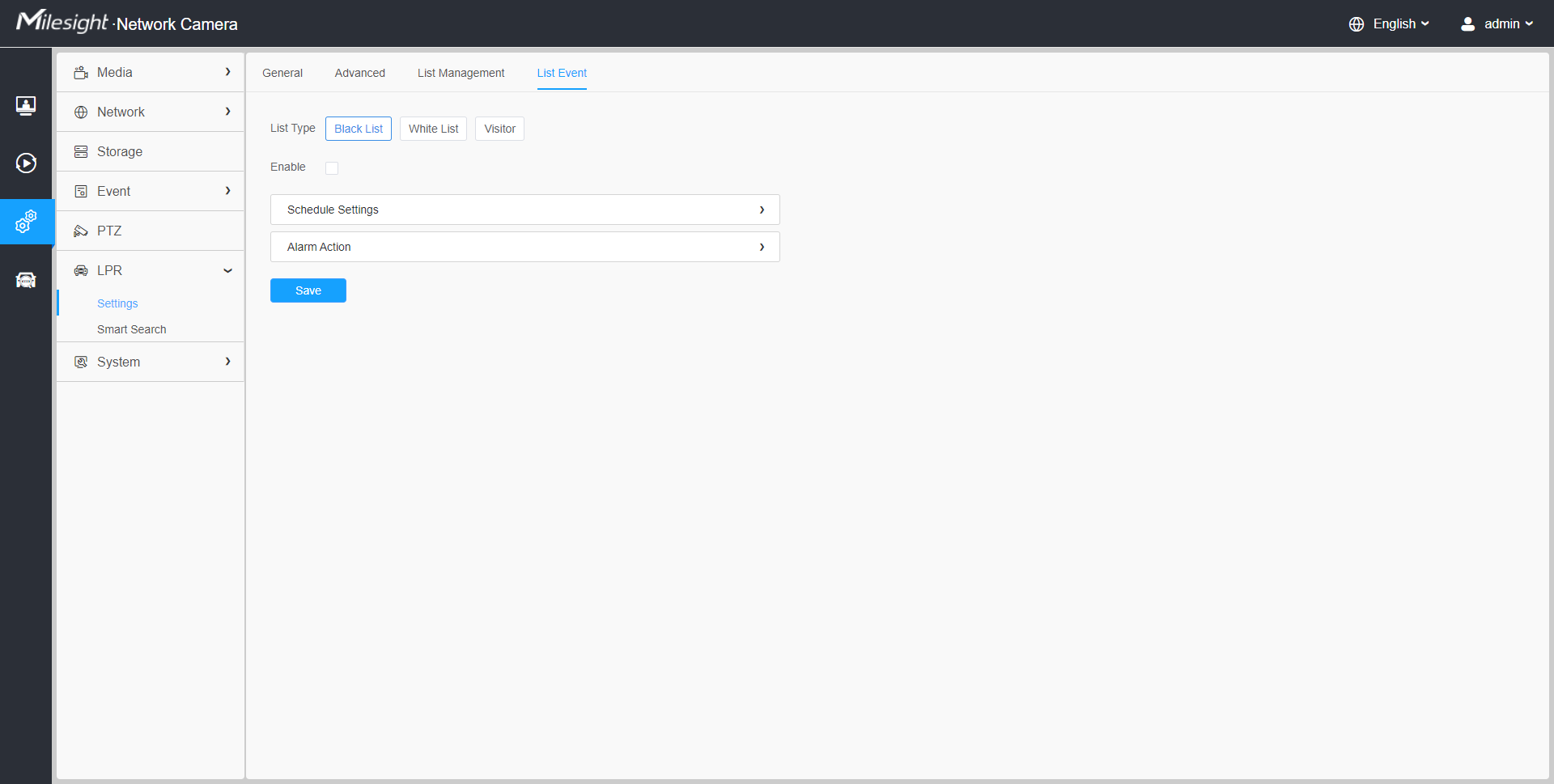

Step1: Select the List Type. Check the check box to enable Black List/White List/Visitor mode.

Step2: The corresponding alarm icon is triggered when the Black List/White List/Visitor vehicles passing by.

Black List:





White List:

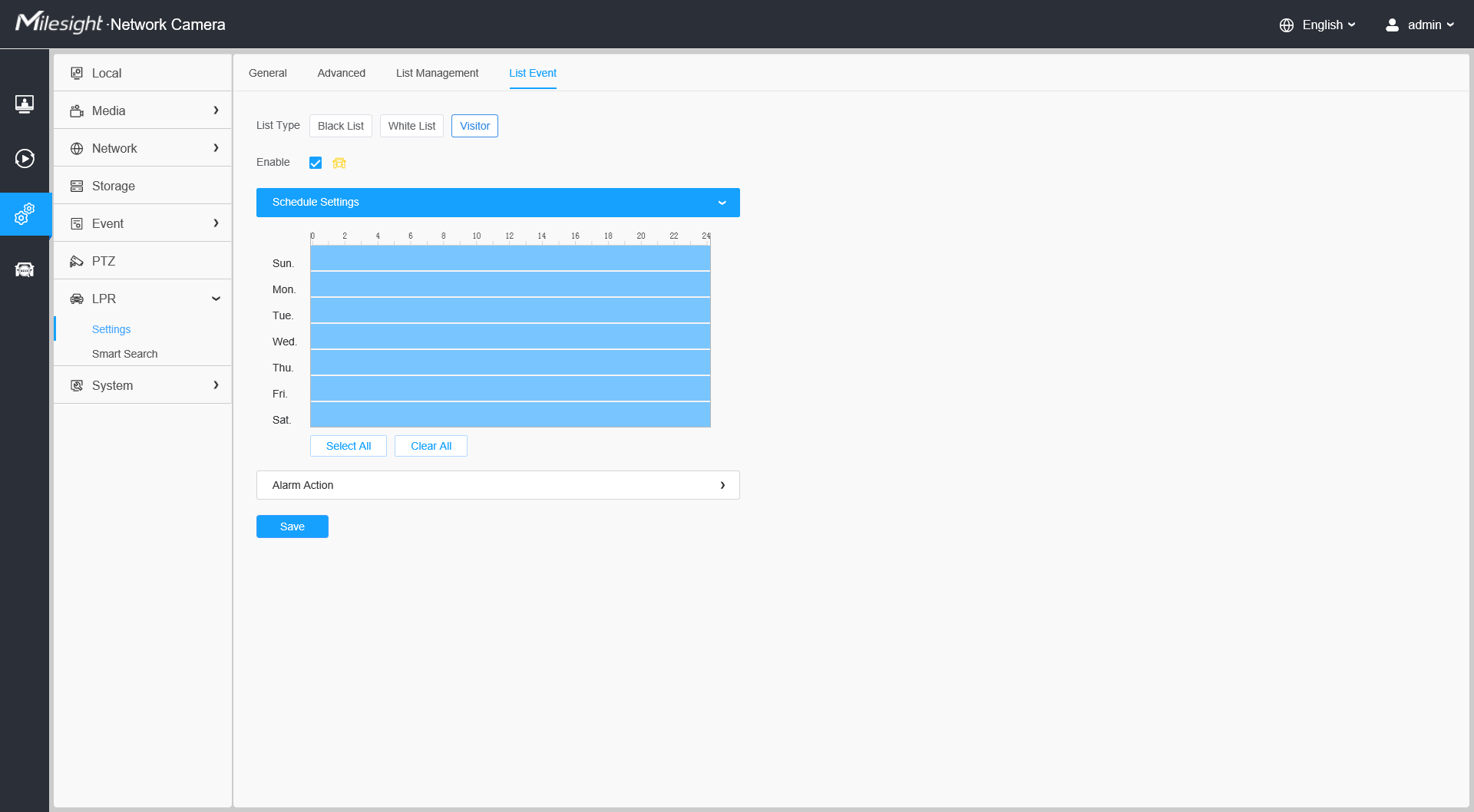

Visitor:





[Schedule Settings]

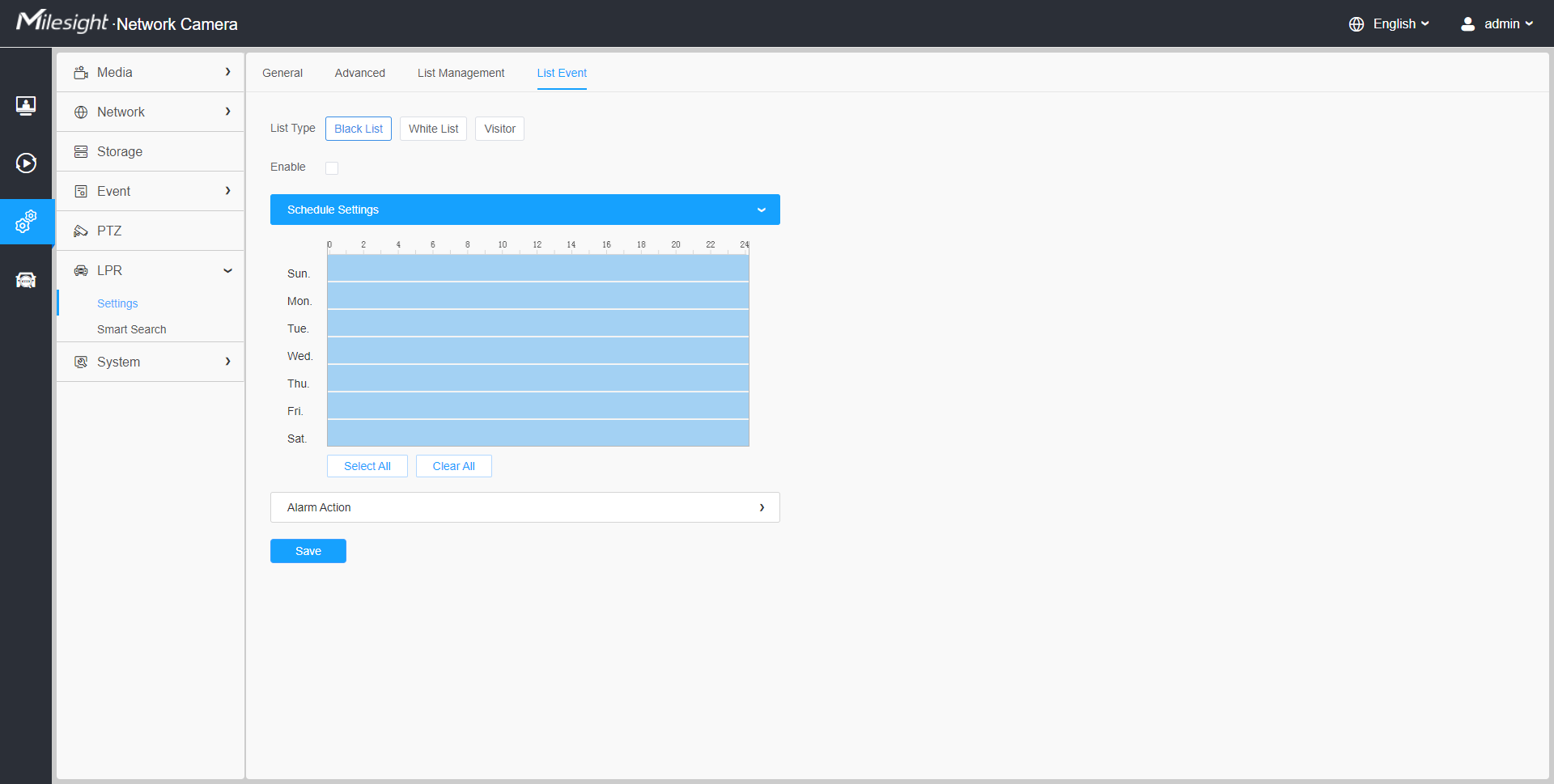

Step3: Schedule Settings.



Table 1. Description of the buttons
Parameters Function Introduction
Copy the schedule area to another date.

Select all schedule.

Clear all schedule.

[Alarm Action]

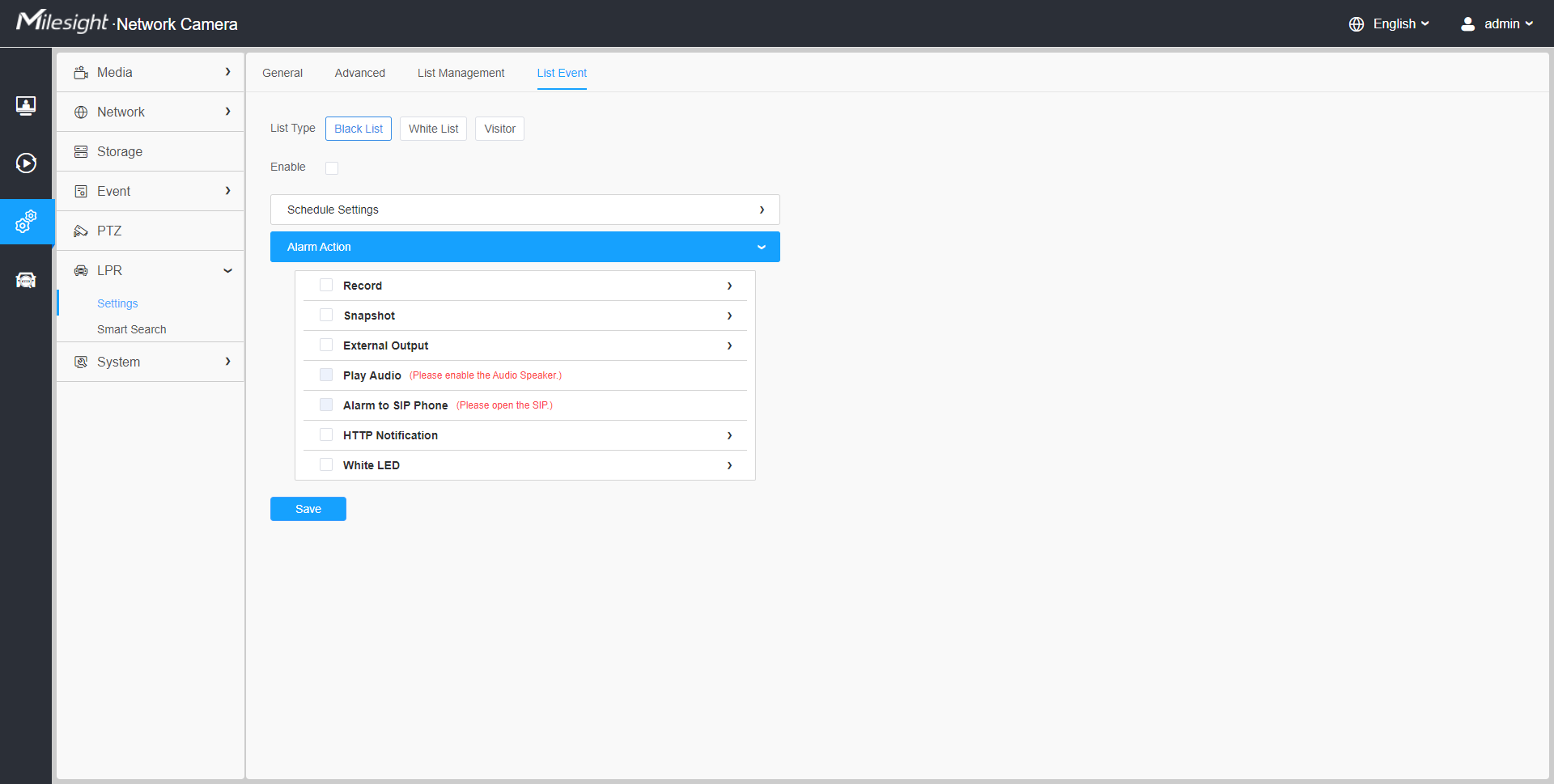

Step4: Set Alarm Action.



Table 2. Description of the buttons
Parameters Function Introduction
Record Duration: Selected the duration time of alarm. 5s/10s/15s/20s/25s/30s are available.

Linkage: Save alarm recording files into SD Card or NAS or Upload the recording files via FTP.

Snapshot Number: The number of snapshot, 1~5 are available.

Interval: This cannot be edited unless you choose more than 1 to Snapshot.

Linkage: Save alarm recording files into SD Card or NAS, Upload the recording files via FTP and send alarm email.

External Output If the camera equips with External Output, you can enable the action after configuring the trigger duration.
Play Audio

Auto/10 seconds/30 seconds/1 minute/5 minutes/10 minutes are available.

Note: Please enable the Audio Speaker.
Alarm to SIP Phone Support to call the SIP phone after enable the SIP function.
HTTP Notification

Support to pop up the alarm news to specified HTTP URL.

Note:
  • Three HTTP notifications at most can be added to the same event.
  • HTTP Notification supports Basic & Digest authentication
White LED When the alarm triggered, White LED will turn on to warning the detected objects (Only for PTZ Bullet).
