5.3.2 Configure Control Permission

This section introduces the control permission settings.

The thermostat provides the following options for temperature control:

Thermostat: Control the temperature using device's own algorithms and programs. It suits common room and hotel control applications and local automatic control.
Remote Control: Control the relay's on/off status directly. It suits the applications which has their own BMS/platform with custom algorithm.

Configure by ToolBox

On the homepage of ToolBox, click Setting to enter the Setting page.
On the top bar, select Device tab.

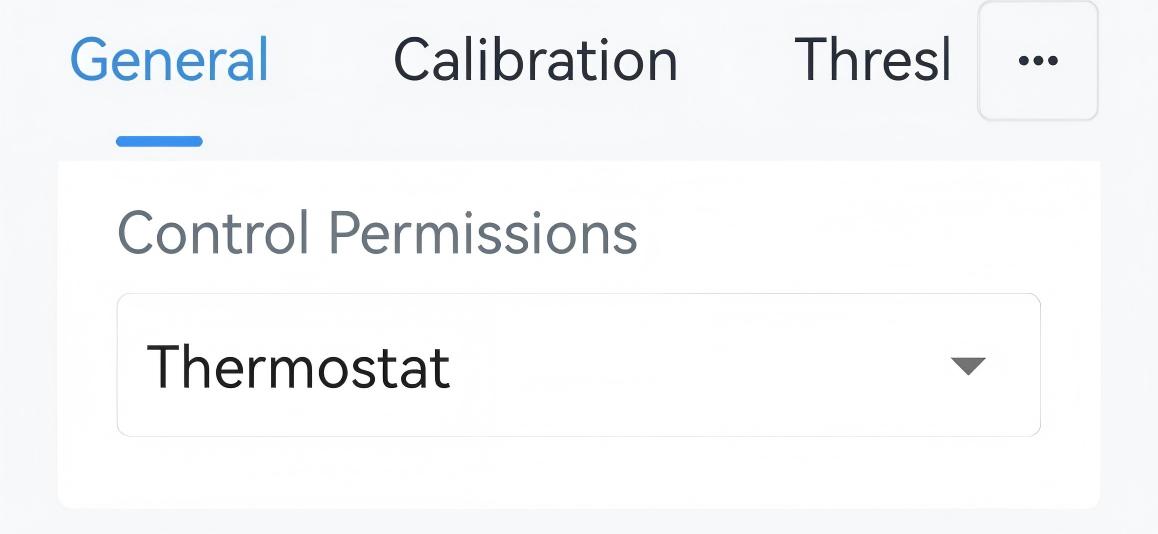

On the General page, select Control Permissions as required.
Click Write in the lower right corner, and put the NFC detection area of the phone close to the NFC antenna of device. If the configuration succeeds, the following page is displayed.

Configure by Downlink

JSON Command: control_permission
Raw Hex Command: Control Permission
