5.3.3 Configure System Status

This section describes the steps to turn the system on/off.

Configure by ToolBox

On the homepage of ToolBox, click Setting to enter the Setting page.
On the top bar, select Device tab.

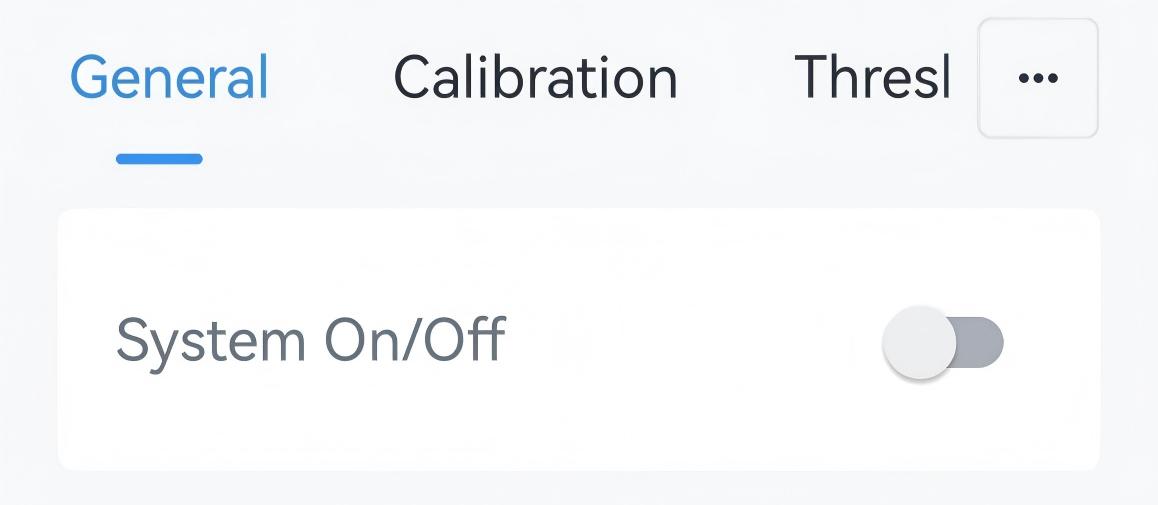

On the General page, tap System On/Off as required.
Click Write in the lower right corner, and put the NFC detection area of the phone close to the NFC antenna of device. If the configuration succeeds, the following page is displayed.

Configure by Downlink

JSON Command: temperature_control_enable
BACnet: System Status
Raw Hex Command: System Status
