Installation
EM300 Device Installation
- Installation Location
- Keep the device away from metal objects and obstacles.
- Wall Mounting
Step 1: Attach EM300 device to the wall and mark the two holes on the wall. The connecting line of two holes must be a horizontal line.
Step 2: Drill the holes according to the marks and screw the wall plugs into the wall.
Step 3: Mount the EM300 to the wall via mounting screws.
Step 4: Cover the mounting screws with screw caps.
Besides, it can also be mounted to the wall via a 3M tape.
- Pole Mounting
- Pass the cable tie through the mounting holes of the device and wrap the
device to the pole.
Magnet Installation
- Installation Locations
-
- Doors, windows and any facilities to detect open/close status.
- Do not install the magnets to or close to iron objects.
- Installation Steps
-

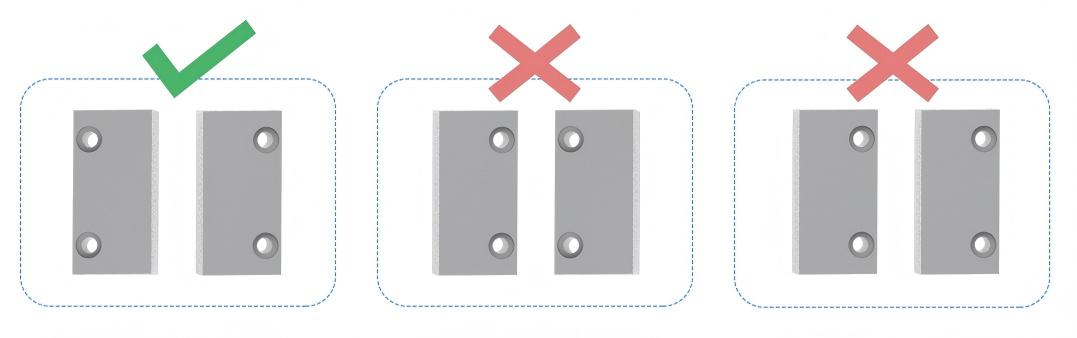

1. Put the two magnet parts to target location and mark the location as needed. To ensure the best detection, both parts should be aligned and the holes of magnets should be faced outside.
2. Fix the two magnet parts with 3M tape or screws.
