Installation
Standard Version
EM320-TH standard version supports wall mounting or pole mounting.
- Wall Mounting
-

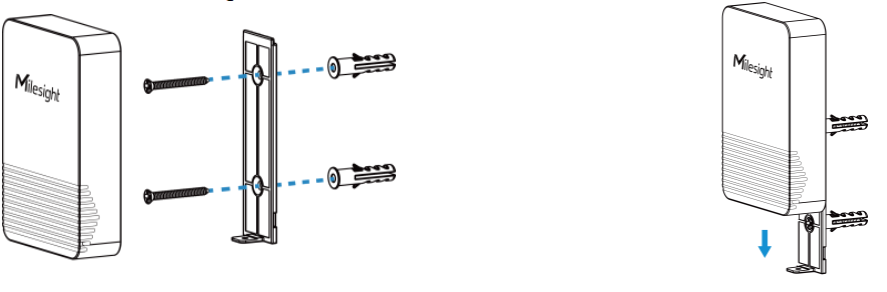

1. Remove the backplate on the back of the device, screw the wall plugs into the wall and fix the backplate with screws on it, then install back the device. Note that the vent of device should not face upwards when installing.
2. Fix the bottom of the device to the cover with a fixing screw.
- Pole Mounting

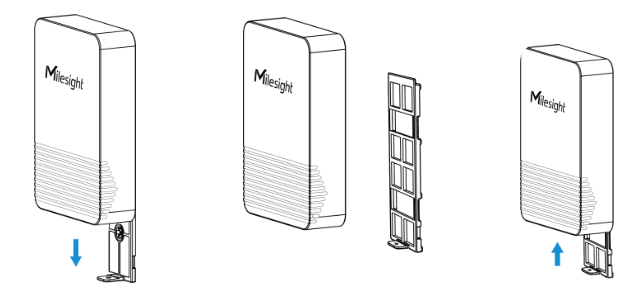

- Switch the backplate on the back of the device to the pole mounting
plate and fix the plate with a screw, then pass a cable tie through the
plate and wrap it with device to the pole.
Magnetic Version
Attach the device to a magnetic surface such as the metal surface of the
refrigerator, freezer, freight container, etc. The back of the device is equipped
with anti-slip pad to secure firm and sturdy installation. Note that the vent should
not face upwards.
