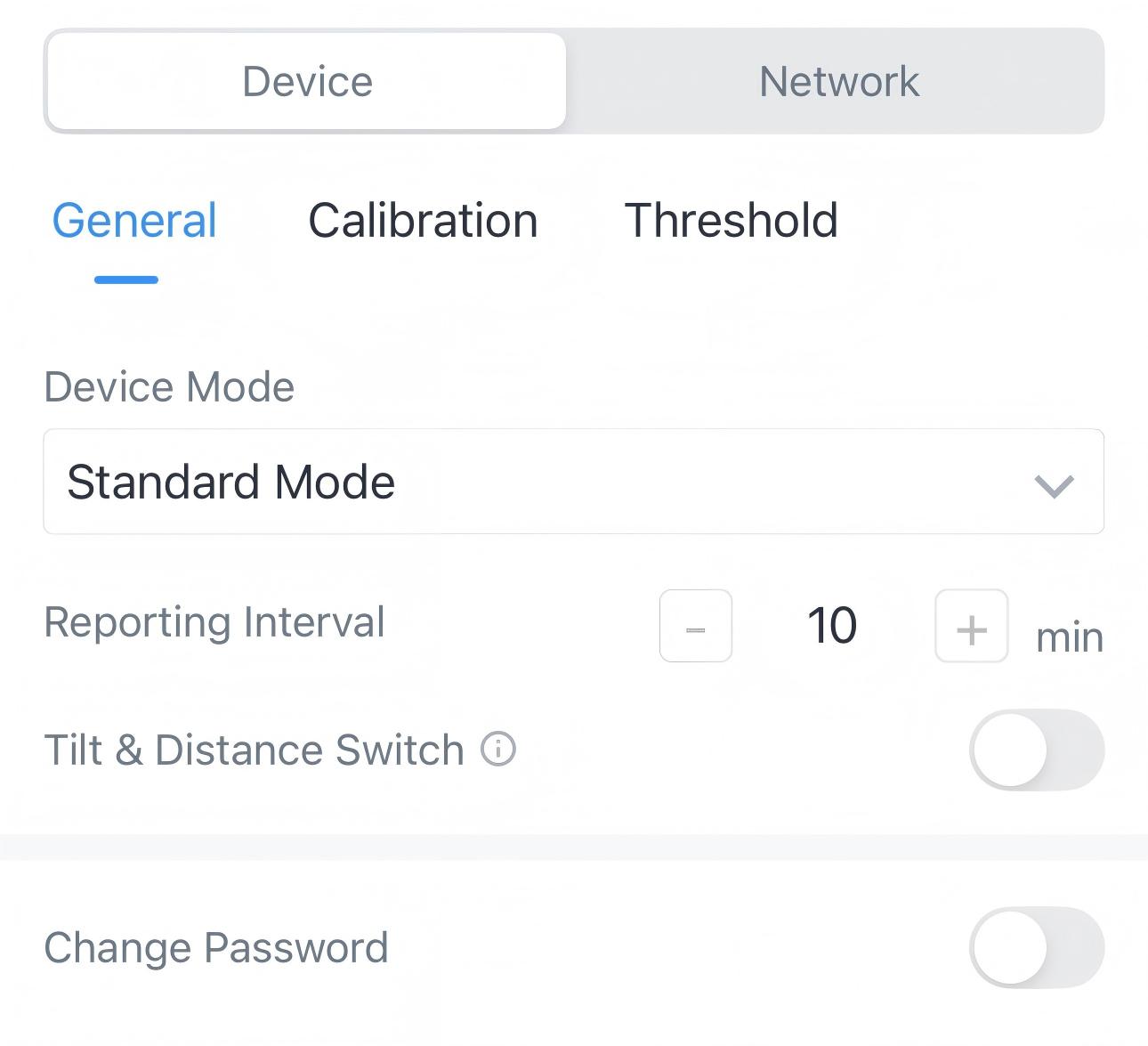

General Settings

General settings include the basic parameters of the device.



Parameter Description

Device Mode

Select from Standard Mode, Bin Mode or Parking Lot Mode.

Reporting Interval

Reporting interval of transmitting data to server.

Standard Mode: 10 minutes as default, range: 1~1080 minutes;

Bin mode: 20 minutes as default, range: 1~1080 minutes;

Parking Lot Mode: 1080 minutes as default, range: 1~1080 minutes. If the sensor detects the occupancy status change, it will report immediately.

Collecting Interval

Collecting interval of measuring distance on Parking Lot Mode. Default: 20s; Range: 1~600s

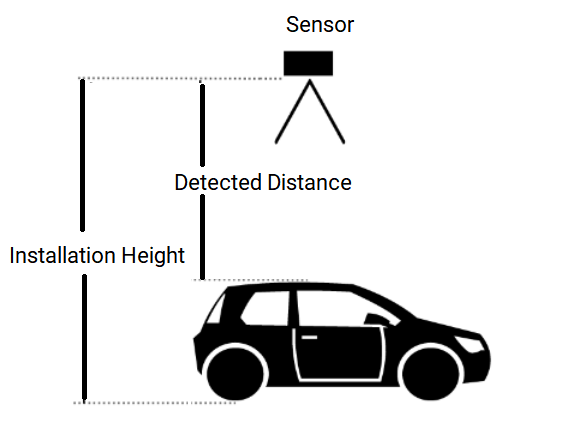

Installation Height

Set the installation height between device and ground when in Parking Lot Mode. Default: 3m; Range: 0.030~4.500m

Threshold Distance Value (Δ) is 1m as default, triggering logic is as below:

  • Installation Height - Detected Distance > Δ, the sensor will reports occupied immediately.
  • Installation Height - Detected Distance < Δ, the sensor will reports vacant immediately.

Tilt & Distance Switch

When detecting that the offset angle is greater than 20 degrees, turn off the distance sensor.

Change Password

 Change the password for ToolBox App to write this device.
